1.5kw 3kw 6025 Ipg Sheet Metal Fiber Laser Cutting Machine For Steel
1.5kw 3kw 6025 Ipg Sheet Metal Fiber Laser Cutting Machine For Steel

Features

1. Metal sheet fiber laser cutting machine, carry Raycus/IPG/MAX power source, power 1000w, 1500w, 2000w, 3000w, 4000w, 6000w,8000w, 10000w, 12000w for cutting all kinds of metal thickness from 1mm to 30mm.

2. Low cost and the power consumption is 0.5-1.5kw/h; Customer can cut all kinds of metal sheets by blowing air;

3. High-performance. Imported the original packaged fiber laser, with stable performance and the lifespan is over 100,000 hours;

4. High speed and efficiency, the speed of cutting metal sheets close to tens of meters;

5. The laser maintenance free;

6. The cutting edge looks perfect and the appearance is smooth and beautiful;

7. Imported the transmission mechanism and servo motor, and high cutting accuracy;

8. Dedicated software enables graphic or text to be instantly designed or processed. Flexible and easy operation.
1.5kw 3kw 6025 Ipg Sheet Metal Fiber Laser Cutting Machine For Steel

Product Parameter

ModelRAYMAX-3015G
Cutting Area3000*1500mm
Laser Power1000w, 2000w, 3000w, 4000w, 6000w, 120000w
Laser TypeRaycus fiber laser source(IPG/MAX for option)
Cutting Speed0-40000mm/min
Max Travelling Speed120m/min,Acc=1.2G
Power Supply380v, 50hz/60hz, 50A
Laser Wave Length1064nm
Minimum Line Width0.02mm
Rack Systemmade in Germany
Chain SystemIgus made in Germany
Graphic Format SupportAI,PLT,DXF,BMP,DST,IGES
Driving SystemJapanese Fuji Servo motor
Working TableSawtooth
Auxiliary GasOxygen, nitrogen, air
Cooling ModeWater cooling and protection system
Optional Spare Partsrotary system
Machine Weight2000-3000kgs

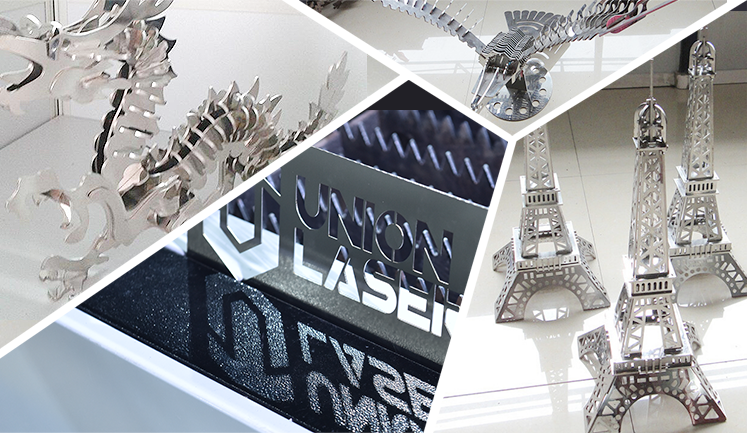

Samples Display

1.5kw 3kw 6025 Ipg Sheet Metal Fiber Laser Cutting Machine For Steel

Application Materials:

Fiber Laser Cutting Equipment is suitable for metal cutting like Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, If you equipped with the rotary axis, Metal Plate, Tubes and Pipes, all ok.

Application Industries:

CNC Fiber Laser Cutting Machines are widely used in manufacture Billboard, Signs, Advertising, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.

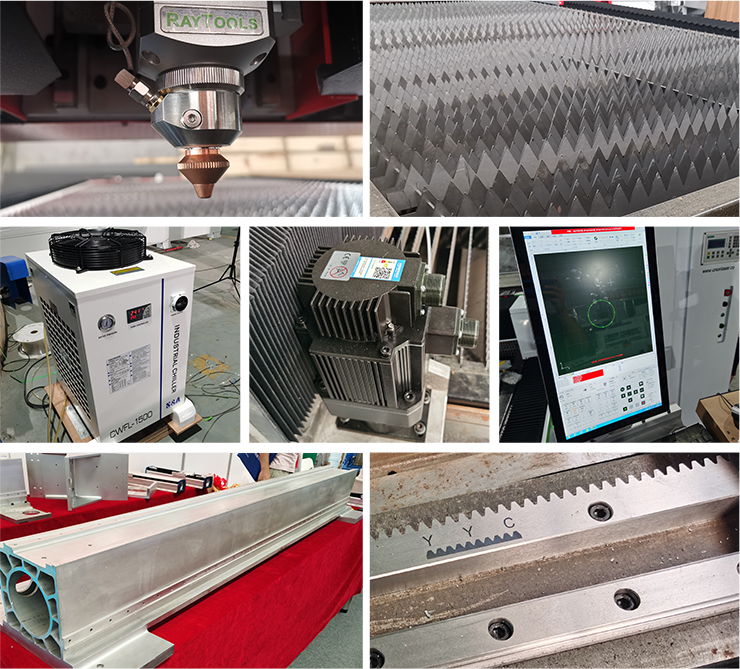

Product Details

1.5kw 3kw 6025 Ipg Sheet Metal Fiber Laser Cutting Machine For Steel

Business Cooperation

1.5kw 3kw 6025 Ipg Sheet Metal Fiber Laser Cutting Machine For Steel

FAQ

Q: What about warranty ?

A: 3 years quality warranty. The machine with main parts (excluding the consumables) will be changed free of charge (some parts will be maintained) when if any problem during the warranty period. The machine warranty time begins leave our factory time and the generator begins production date number.

Q: I don’t know which machine is suitable for me ?

A: Please contact with us and tell us:1) Your materials,2) Max size of your material,3) Max cut thickness,4) Common cut thickness,

Q: It's not convenient for me to go to China, but I want to see the condition of the machine in the factory. What should I do?

A: We support the production visualization service. The sales department who responds to your inquiry for the first time will be responsible for your follow-up work. You can contact him /her to go to our factory to check the production progress of the machine, or send you the sample pictures and videos you want. We support free sample service.

Q: I don’t know how to use after I receive Or I have problem during use, how to do?

A: 1) We have detailed user manual with pictures and CD, you can learn step by step. And our user manual update every month for your easy learning if there is any update on machine.

2) If have any problem during use, you need our technician to judge the problem elsewhere will be solved by us. We can provide team viewer/Whatsapp/Email/Phone/Skype with cam until all of your problems solved. We can also provide Door service if you need.

Details

  • Application: LASER CUTTING
  • Applicable Material: Metal
  • Condition: New
  • Laser Type: Fiber Laser
  • Cutting Area: 3000mm*1500mm
  • Cutting Speed: 0-60000mm/min
  • Graphic Format Supported: AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
  • Cutting Thickness: 0-30mm
  • CNC or Not: Yes
  • Cooling Mode: WATER COOLING
  • Control Software: Cypcut
  • Laser Source Brand: RAYCUS
  • Laser Head Brand: Raytools
  • Servo Motor Brand: FUJI
  • Guiderail Brand: PMI
  • Control System Brand: Cypcut
  • Weight (KG): 6000 KG
  • Key Selling Points: Multifunctional
  • Optical Lens Brand: II-VI
  • Warranty: 3 years
  • Applicable Industries: Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company, Other
  • Machinery Test Report: Provided
  • Video outgoing-inspection: Provided
  • Warranty of core components: 3 years
  • Core Components: Laser Generator
  • Mode of Operation: Pulsed
  • Configuration: gantry type
  • Products handled: Sheet Metal
  • Feature: Water-cooled
  • Working area: 3000mm*1500mm
  • Laser power: 3kw/6kw/8kw
  • Fiber lase rsource: Raycus or IPG
  • Working table: Sawtooth, exchange table
  • Laser wave length: 1064nm
  • Cutting head: Raytools/ Precitec auto focus
  • Transmission: YYC rack gears
  • Motor: Japanese servo motor
  • Control system: FSCUT Control System
  • Product name: Laser Steel Sheet Cutter
