1000w 1500w 2000w Fiber Laser Cutting Machine For Metal Sheet

Product Description

CNC fiber Laser Cutting Machine is an open type cutting machine which is able to cut carbon steel(mild steel) up to 20mm. It has passed CE/ETL certificates, comply with the European and American standards.
MODEL	3015G CNC Fiber laser cutting machine
Working Area	2500*1300mm/3000*1500mm/4000*1500mm/6000*1500mm
Fiber Laser Power	1000W/1500W/2000W/3000w
X axis stroke	3000mm
Y axis stroke	1500mm
Z axis stroke	100mm
X/Y Position Accuracy	±0.05mm/m
X/Y Reposition Accuracy	±0.02mm
Max Velocity of Movement	80m/min

Product Advantages

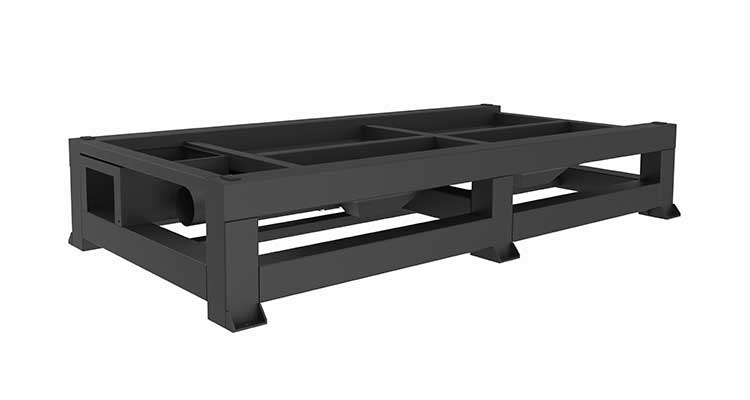

High quality carbon structural steel welding bed

High quality carbon steel welding bed, high temperature annealing treatment, reduce the internal stress and deformation, its rigidity is strong, high structural stability. we optimize the structure, perfectly integrate the workbench and bed, and directly put the knife blade on the bed to avoid shaking.

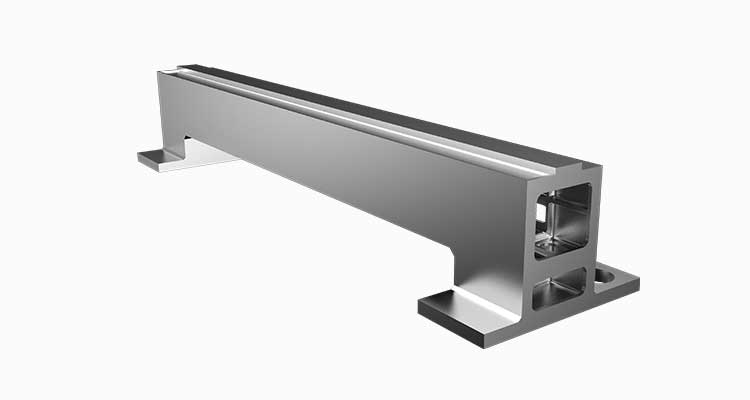

Aerospace standards cast aluminum beam

High accuracy, good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.

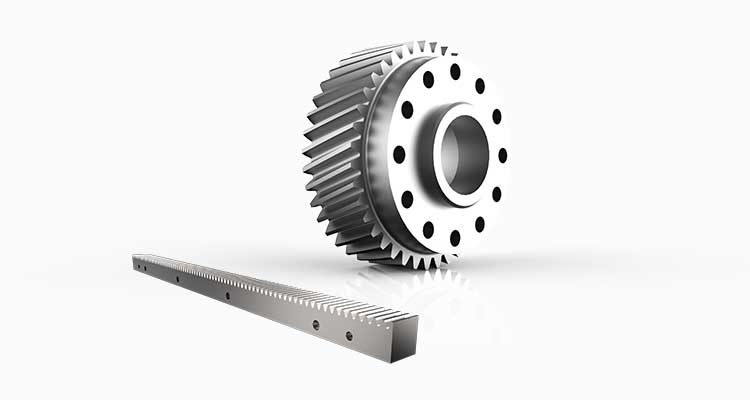

High Precision Rack and Pinion

Double-rack, double-driver;rack, guide and motor drive all use the international first-line brandUse laser interferometer to test to ensure cutting accuracy; Use the milling cutter to process the ruler more than 5 times to ensure the accuracy of the ruler, the middle of the guide rail and the ruler An adjustment block is installed for adjustment of accuracy.

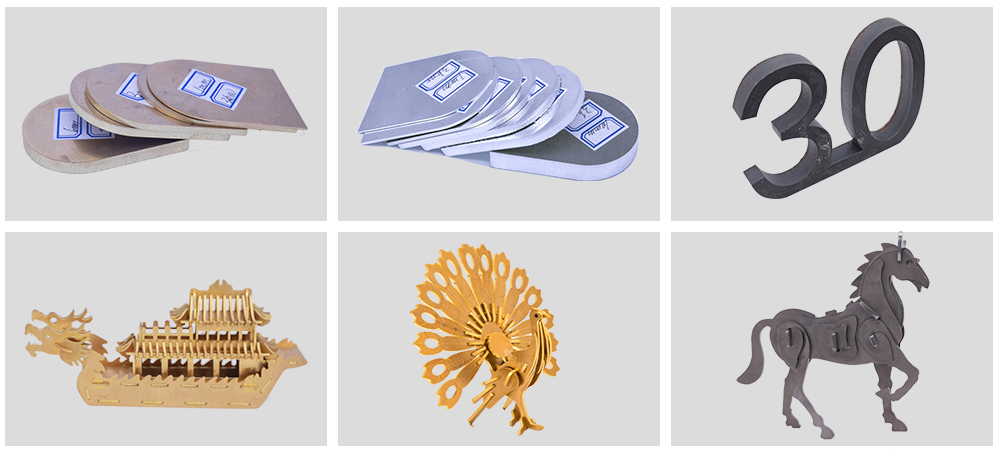

Cutting samples

SF3015G cnc fiber laser cutting machine of metal sheet is specially used for cutting carbon steel(mild steel),stainless steel,galvanized steel,brass,aluminum and other metal plates.
3015G	1000w	1500w	2000w	3000w
carbon steel(mild steel)	0.5-12mm	0.5-16mm	0.5-18mm	0.5-20mm
stainless steel	0.5-5mm	0.5-6mm	0.5-8mm	0.5-12mm
aluminum	0.5-3mm	0.5-5mm	0.5-8mm	0.5-10mm
brass	0.5-3mm	0.5-6mm	0.5-6mm	0.5-8mm

After-sale service:

1) The seller provides one time free installation and training in buyer’s factory. Seller pays for the airplane tickets and salary for engineers, buyer should provide accommodation and food to engineers.

2) The seller will provide technical guide’s e-mail, telephone, Wechat, Whatsapp and so on.

3) The seller should pay for the travel expense if local service needed within warranty time.

FAQ

Q: How can I choose the most suitable machine?

A: In order to recommend you the most suitable machine model, just tell us below information
1. What is your material
2. The size of material
3. The thickness of material

Q: How can I get the information and quotation of this product quickly?

A: Please leave your email, WhatsApp or wechat, and we will arrange the sales manager to contact you asap.

Q: What's material can fiber laser cut?

A: All kinds of metal, such as Stainless Steel,Carbon Steel, Mild Steel, Galvanized Steel, Aluminum, copper, etc.

Q:  This is the first time I use this kind of machine, is it easy to operate?

A: The machine is mainly controlled by software.Simple, not complicated. Before delivery, we will make a simple operation manual and videos. Generally speaking, an operator who is not familiar with the fiber laser machine can still operate it well.According to customer requirements, we can send technicians to the customer's factory for machine training, or the customer to come to our factory for machine training.

Q: If there is a problem with the machine, what about the after-sales service?

A:  1) The warranty of laser source is 2 years.

2) The warranty of the machine is 2 years (main spare parts), except for the consumable parts such as ceramic ring, focus lens, nozzle etc. Warranty counts from the date marked on the label of the laser source and machine.

3) Except the damage artificially, seller is responsible for offering the fittings free of charge during the warranty period.

4) Exceeding the warranty period, parts need to be repaired or changed, shall be paid.

Details

• Application: LASER CUTTING
• Applicable Material: Metal, stainless steel, mild steel, brass, copper
• Condition: New
• Laser Type: Fiber Laser
• Cutting Area: 3000*1500mm
• Cutting Speed: 0-80 m/min
• Graphic Format Supported: AI, PLT, DXF, BMP, Dst
• Cutting Thickness: Depends on materials
• CNC or Not: Yes
• Cooling Mode: WATER COOLING

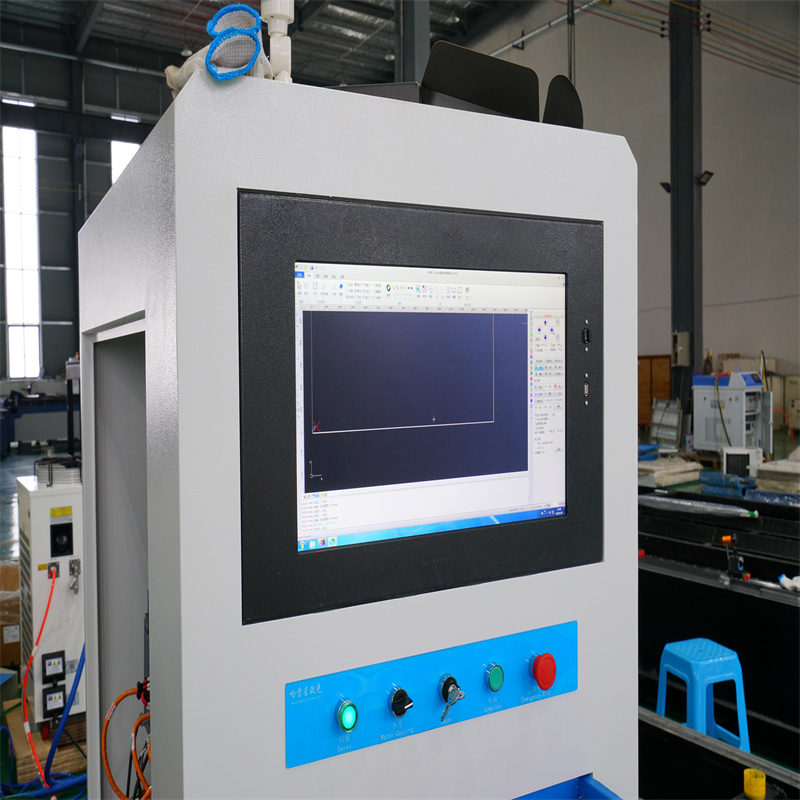

• Control Software: Cypcut
• Laser Source Brand: RAYCUS
• Weight (KG): 3700 KG
• Key Selling Points: Competitive Price
• Warranty: 2 years, 2 Years
• Applicable Industries: Building Material Shops, Manufacturing Plant, Retail, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
• Machinery Test Report: Provided
• Video outgoing-inspection: Provided
• Warranty of core components: 2 years
• Core Components: Motor, Pump
• After-sales Service Provided: Engineers available to service machinery overseas
• Product name: Senfeng Leiming Fiber Laser Cutting Machine Price SF 3015G
• Working area: 3000mmX1500mm
• Laser power: 1000W/1500W/2000W
• Positioning accuracy: ±0.05mm/m
• Repeated positioning accuracy: ±0.03mm
• Control system: Cypcut
• Cutting material: ss, ms, aluminium, brass
• Color: Blue-white
• Certification: ce
• After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
