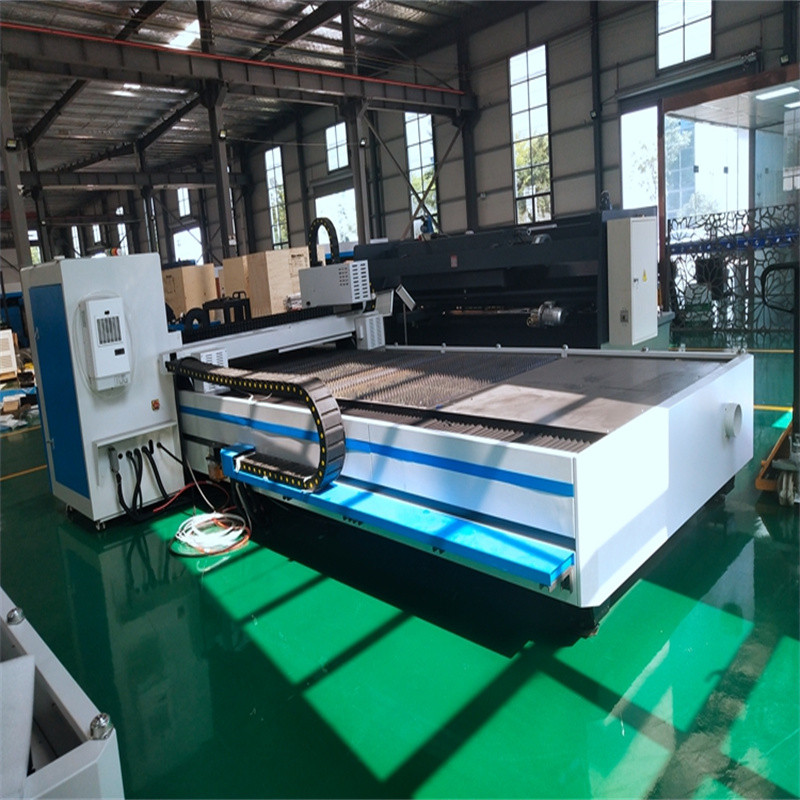

1000w 2000w 3000w 4kw Cnc Fiber Laser Cutter For Steel Aluminum Sheet Metal

A fiber cutting machine is a laser cutting equipment that uses a fiber laser generator as a light source. Fiber laser is a new type of fiber laser that is newly developed in the world. It outputs a high-energy-density laser beam, which is concentrated on the surface of the workpiece so that the area irradiated by the ultra-fine focus spot on the workpiece is instantly melted and vaporized, and the spot is moved by the numerical control mechanical system Realize automatic cutting by irradiating position.

We provide a variety of power fiber optic machines, such as 1000W, 1500W, 2000W, 3000W, 6000W, 8000W, 12000W, and 20000W laser power options to meet your needs.

Application industries of fiber laser cutting machine: metal cutting, electrical switch manufacturing, food machinery, textile machinery, engineering machinery, locomotive manufacturing, aerospace, agricultural and forestry machinery, elevator manufacturing, IT manufacturing, special automobiles, household appliances manufacturing, tool processing, petroleum machinery manufacturing, food machinery, Diamond tool welding, gear welding, metal material surface treatment, decorative advertising, laser external processing services and other machinery manufacturing and processing industries.

We offer free samples to our customers, If you have any questions, please contact us for the first time, we will provide you with the most perfect solution.
1000w 2000w 3000w 4kw Cnc Fiber Laser Cutter For Steel Aluminum Sheet Metal
1000w 2000w 3000w 4kw Cnc Fiber Laser Cutter For Steel Aluminum Sheet Metal

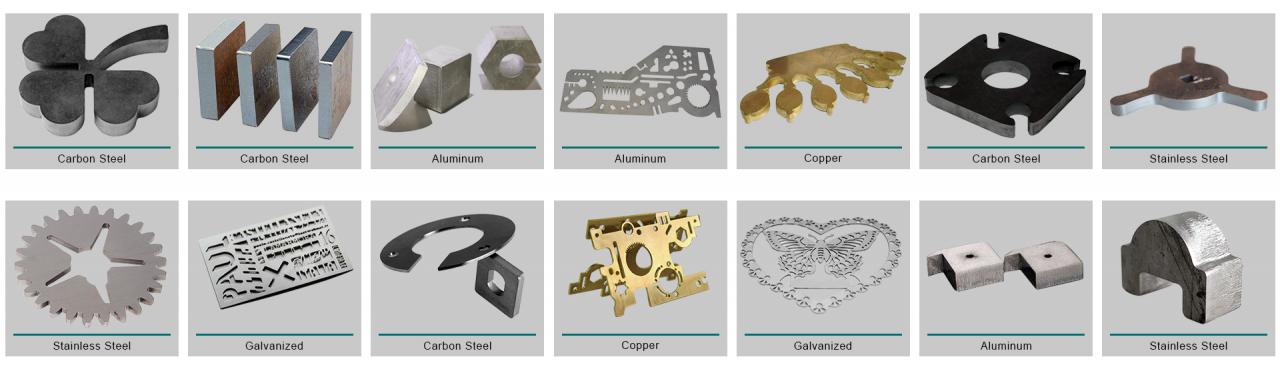

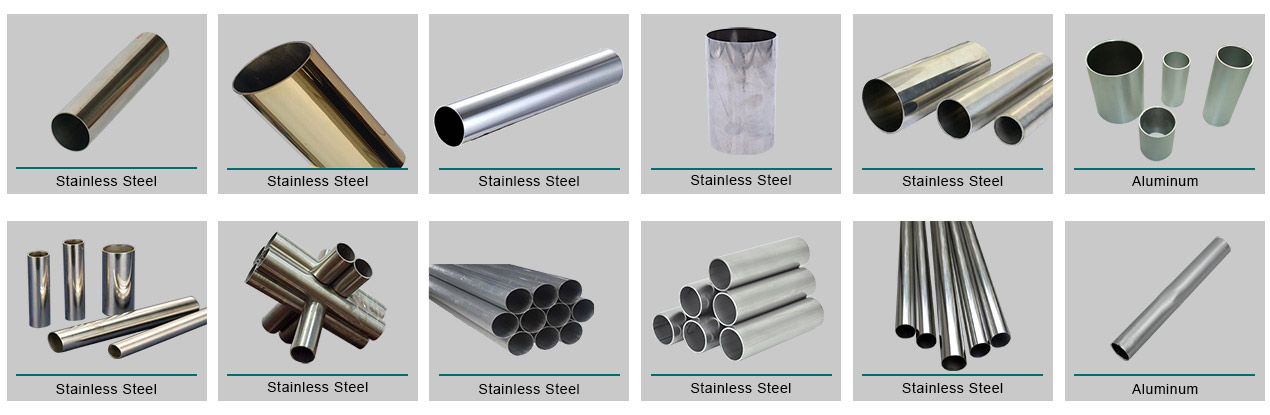

Fiber laser cutter is a kind of CNC laser metal cutting system with high quality, high speed, high precision and high efficiency. It is suitable for all kinds of metal cutting which will be your good metal working partner. It is equipped with different powers (1000W to 40000W) for cutting sheet metals and metal tubes of stainless steel, carbon steel, electrical steel, galvanized steel, aluminum zinc plate, aluminum, aluminum alloy, titanium alloy, copper, brass, iron and other metal materials with different thicknesses. Fiber laser cutter is also known as fiber laser metal cutting machine, fiber laser cutting machine, fiber laser cutting system, fiber laser cutting equipment.
1000w 2000w 3000w 4kw Cnc Fiber Laser Cutter For Steel Aluminum Sheet Metal

Parameters

1Model3015FT（3020FT 4020FT 6020FT）
2Working area3000*1500mm
3Miximum length of pipe(Options)3000mm(or)6000mm
4 Limits of pipe(Customized)Round tube:Φ20mm~Φ120mm;
Square tube :Φ20mm~80mm;
Circular tube: Φ20mm~Φ120mm;Square tube: Φ20mm~80mm
5Laser typeFiber laser generator
6Laser power(optional)500~4000W
7Transmission systemDouble serve motor &gantry&rack&pinion
8Maximum speed±0.03mm/1000mm
9Pipe cutting system(optional)yes
10Maximum speed60m/min
11Maximum accelerated speed1.2G
12Position accuracy±0.03mm/1000mm
Reposition accuracy±0.02mm/1000mm
Graphic format supportedCAD,DXF(etc)
Power supply380V/50Hz/60Hz

1000w 2000w 3000w 4kw Cnc Fiber Laser Cutter For Steel Aluminum Sheet Metal

FAQ

Q: Do you have CE document and other documents for customs clearance?

A: Yes, we have Original. At first we will show you and And after shipment we will give you CE / Packing list / Commercial Invoice / Sales contract for customs clearance.

Q: Payment terms?

A: Alibaba trade assurance/TT/West Union/Payple/LC/Cash and so on.

Q: I don’t know how to use after i receive Or i have problem during use, how to do?

A: We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your problems finished.We can also provide Door service if you need.

Q: I don’t know which one is suitable for me ?

A: just tell us below information
1) Max work size:choose most suitable model.
2) Materials and Cutting thickness:Power of laser generator.
3) Business industries:We sell a lot and give advice on this business line.

Q: If we need Lingxiu technician to train us after order,how to charge?

A: 1) If you come to our factory to get training,it is free for learning.And the seller also accompany you in factory 1-3 working days.(Every one learning ability is different,also according to details)

2) If you need our technician go to your local factory to teach you ,you need to bear the technician’s business travelling ticket / room and board/ 100 USD per day.

Q: Why the machine price not include fiber source and tube parts ?

A:Different power different tube diameter price different , that's why we list the price not include fiber source and tube parts .

Details

  • Application: LASER CUTTING
  • Applicable Material: Metal
  • Condition: New
  • Laser Type: Fiber Laser
  • Cutting Area: 1500mm*3000mm
  • Cutting Speed: 1--30m/min
  • Graphic Format Supported: AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP, IGES
  • Cutting Thickness: depend on the power and your material
  • CNC or Not: Yes
  • Cooling Mode: WATER COOLING
  • Control Software: cypcut
  • Laser Source Brand: RAYCUS
  • Laser Head Brand: Raytools
  • Servo Motor Brand: Yaskawa
  • Guiderail Brand: HIWIN
  • Control System Brand: Cypcut
  • Weight (KG): 4000 KG
  • Key Selling Points: High-accuracy
  • Optical Lens Brand: II-VI
  • Warranty: 3 years
  • Applicable Industries: Metal processing industry
  • Machinery Test Report: Provided
  • Video outgoing-inspection: Provided
  • Warranty of core components: 3 years
  • Core Components: fiber source
  • Mode of Operation: continuous wave
  • Configuration: bench-top
  • Products handled: Sheet Metal and Tube
  • Feature: Water-cooled
  • Machine Name: cnc laser machine
  • Laser wave length: 1064nm
  • X.Y axis location accuracy: ±0.01mm
  • X.Y axis repeat location accuracy: ±0.01mm
  • X.Y axis max moving speed: 30m/min
  • Application Material: Metal sheet Iron/CS/SS/Aluminum/Copper and all kinds metal
  • Gross weight: 4000KG
  • Net weight: 3800KG
  • Machine size: 4800*2600*1860mm
  • Certification: ce/ISO
