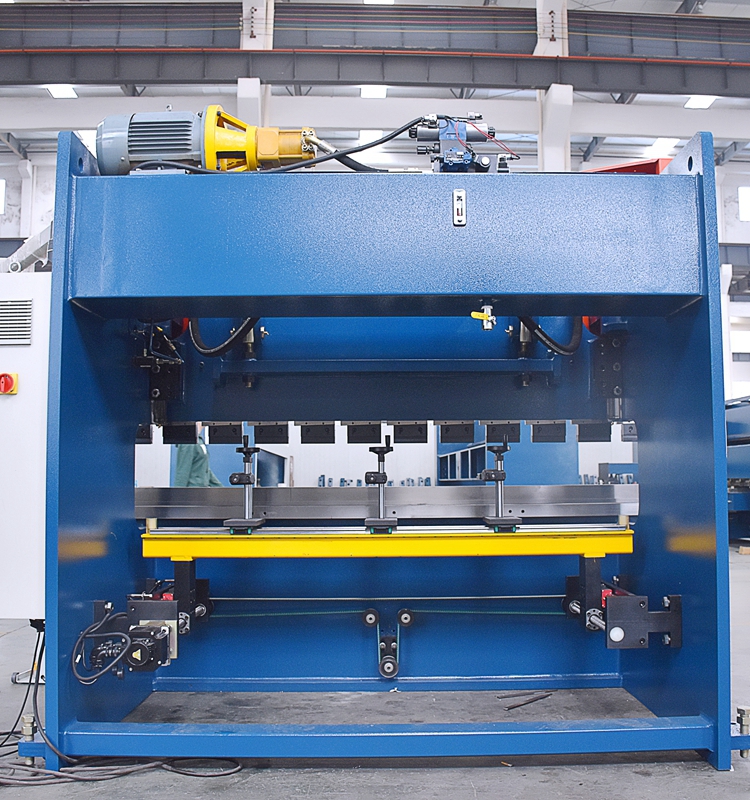

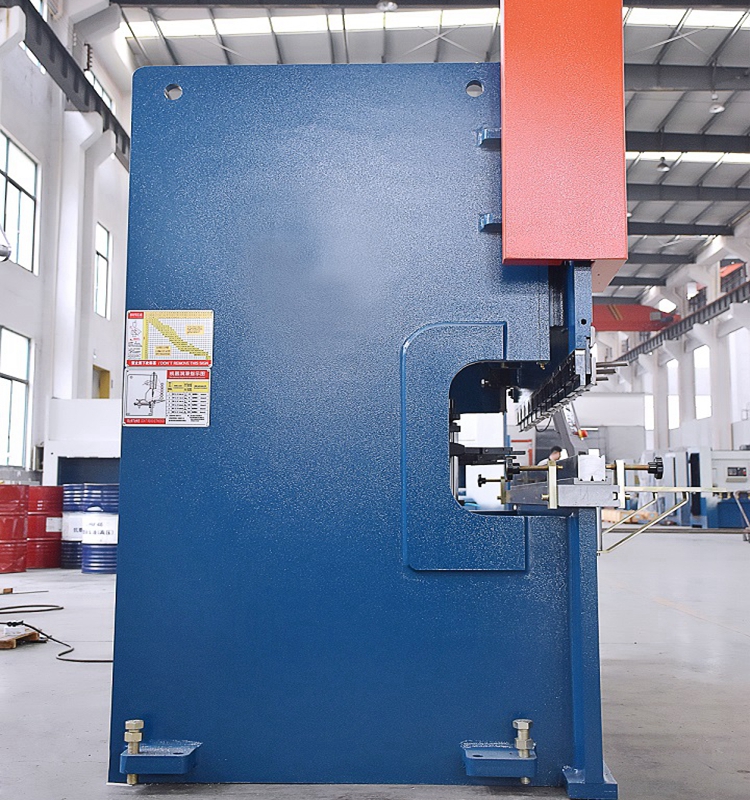

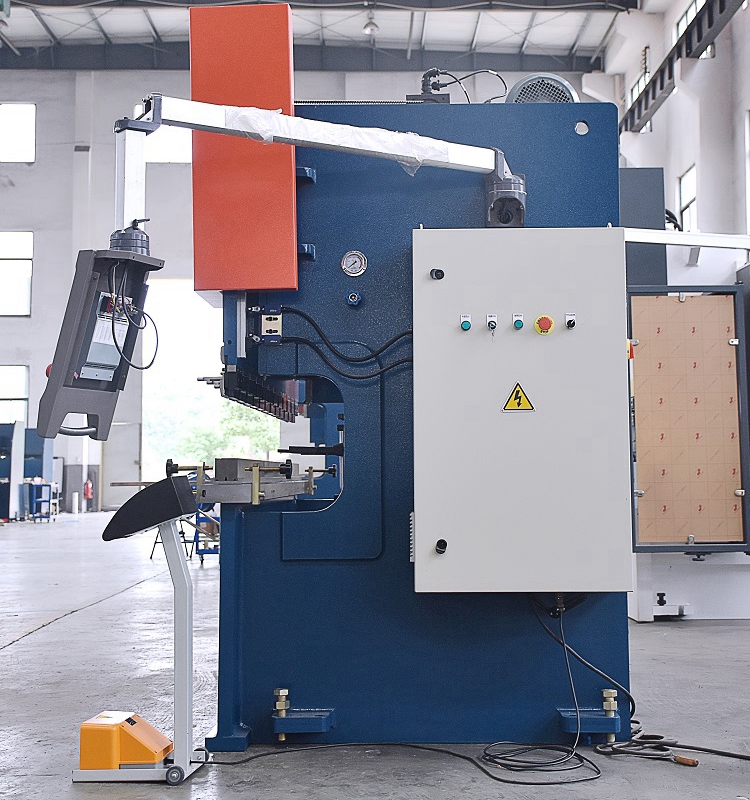

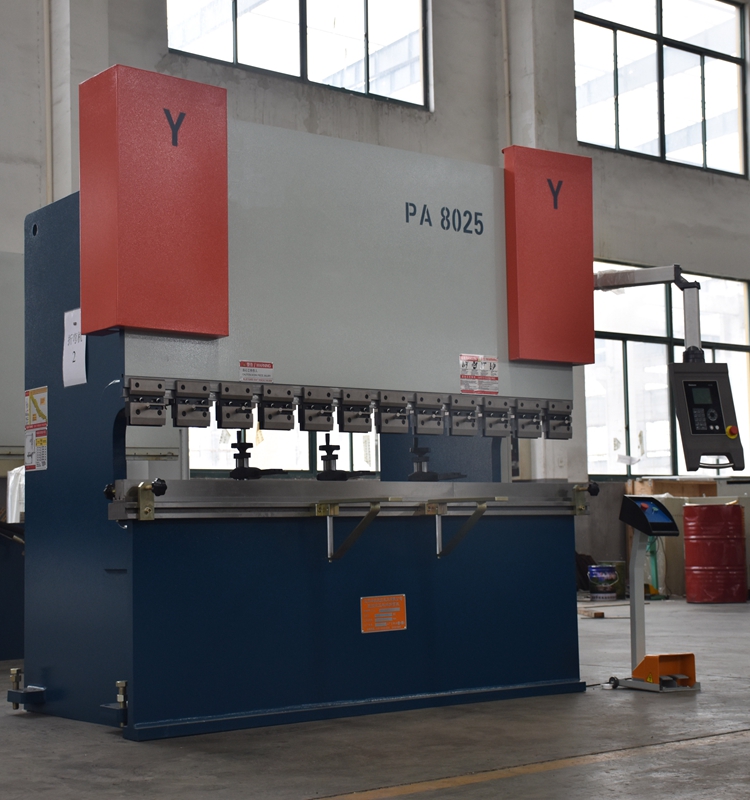

100t Cnc Metal Bending Machines, 3200 Mm Cnc Sheet Press Brake With E21

Hydraulic press brake is a steel sheet bending machine, it is composed by supporting frame, worktable and pressing board. The mainframe is processed by annealing art, long time using, there is no shape changing, keep high bending precision. Bending die is processed by special art.

Hydraulic press brake also named CNC press brake, CNC steel sheet bending machine, electric-hydraulic synchronized CNC press brake, NC steel sheet bending machine. Which is mainly used for steel sheet bending or stainless bending. Mainly in steel metal processing industry. Like cabinet processing, decoration, electrical lift surface wrapping, and other steel metal or stainless board processing industry.

PRODUCT CONFIGURATION

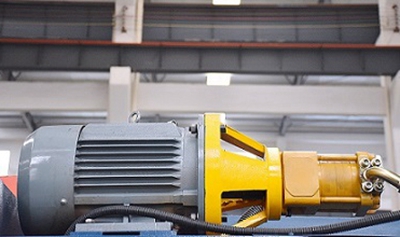

Motor

Name: Motor
Original: Siemens/Schnider France
Mainly Motor is france Schnider/Siemens system, and it is NC system.

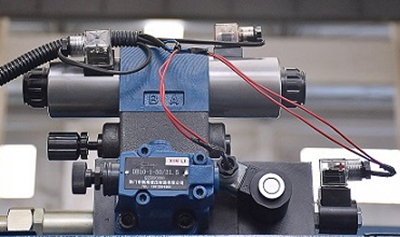

Valve Group

Name: Valve group
Original: China
Adjust and Control switch and have release pressure function.

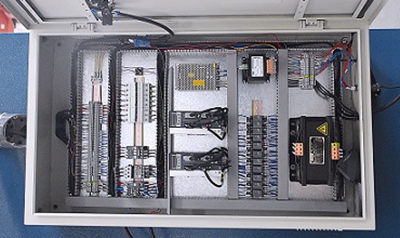

Electronic Components

Name: Electronic Components
Original: Siemens/Schnider France
Adjust and Control the programs of sheet metal bending works

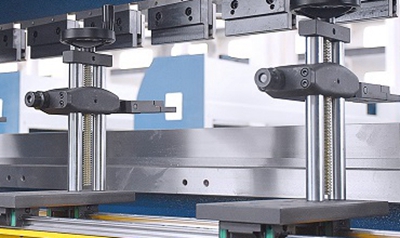

Back gauge Finger

Name: Back Gauge Finger
Original: China
Support & Position the sheet metal in bending

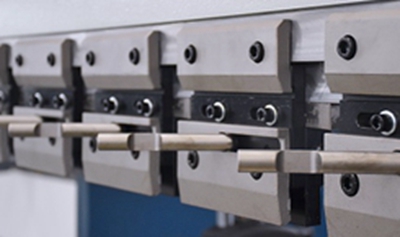

Quick-Release Clamps

Name: Quick-Release Clamps
Original: China
Quickly Fix , Release and Change the Punch From the Press Brake. Save your Working Time.

E21 Controller

Name: E21 Controller
Original: China Estun
HD LCD display, with both Chinese and English language options . X, Y-axis intelligent positioning.

Details

• Slider Stroke (mm): 120 mm
• Automatic Level: Semi-automatic
• Throat Depth (mm): 320 mm
• Machine Type: Torsion Bar, Press Brake
• Length of Working Table (mm): 3200
• Width of Working Table (mm): 180 mm
• Dimension: 3450 * 1920 * 2450
• Condition: New
• Material / Metal Processed: Stainless Steel, ALLOY, Carbon steel, Aluminum
• Automation: Automatic
• Extra Services: Machining
• Weight (KG): 6000
• Motor Power (kw): 5.5 kw
• Key Selling Points: Competitive Price
• Warranty: 1 Year
• Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works , Advertising Company
• Showroom Location: None
• Marketing Type: Ordinary Product
• Machinery Test Report: Provided
• Video outgoing-inspection: Provided
• Warranty of core components: 1.5 years
• Core Components: Bearing, Motor, PLC
• Power: Hydraulic
• Raw Material: Steel Bar
• nominal pressure: 400-6000kn
• press brake length of table: 2200-7000mm
• distance between housings: 1775-5620mm
• strokes: 100/10-320/2.5mm/min
• throat depth: 250-400mm
• main motor: 5.5-45kw
• OEM: yes
• Certification: ce
• After-sales Service Provided: Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
• After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
• Local Service Location: Viet Nam, Pakistan, Malaysia
• Nominal Pressure (kN): 1000
