1500x3000mm 500w Racuys Or Ipg Fiber Laser Cutting Machine
✦ Integrated fuselage design, greatly saving space.
✦ This series laser cutting machine, the positioning accuracy of the machine tool can be 0.02mm.

Technical Parameters

Model No.DTF-3015HDTF-4020HDTF-6020HDTF-6025H
Working Area3000*1500mm4000*2000mm6000*2000mm6000*2500mm
Laser output power1000W/1500W/2000W/3000W/4000W/6000W
Reapeated repositioning accuracy±0.03mm
Positioning accuracy±0.02mm
Maximum speed140m/min
Maximum acceleration1.2G

Details of Laser Cutting Machine

1500*3000mm 500w Racuys Or Ipg Fiber Laser Cutting Machine

Raytools Laser Head

We can provide all high quality laser heads on the market. It's been tested by us for a long time. Fuji/Yaskawa all of our long-term partners.

1500*3000mm 500w Racuys Or Ipg Fiber Laser Cutting Machine

Max Laser Source

Raycus/Max/IPG, multiple choice
Different brands, different laser power are available. The higher power, the thicker cutting thickness.

1500*3000mm 500w Racuys Or Ipg Fiber Laser Cutting Machine

Servo Motor

By adding and improving vibration suppression function, it can improve the following performance and shorten the setting time.

1500*3000mm 500w Racuys Or Ipg Fiber Laser Cutting Machine

Cypcut Control System

can remotely control computers and machines, adjust parameters and solve problems. Efficiency- One PC can control several machines.

1500*3000mm 500w Racuys Or Ipg Fiber Laser Cutting Machine

Fuji Servo Driver

Japan Fuji dual servo drive system guarantees the working stability and accuracy. It ensures the accuracy of the machine working for a long time

1500*3000mm 500w Racuys Or Ipg Fiber Laser Cutting Machine

S&A Water Chiller

With excellent quality and leading research retrength, S&A has become a leading enterprise in the China industrial refrigeration industry.

1500*3000mm 500w Racuys Or Ipg Fiber Laser Cutting Machine

Taiwan YYC Gear

High carbon content, high compressive strength and high hardness.Low thermal sensitivity reduce the loss of equipment in using.

1500*3000mm 500w Racuys Or Ipg Fiber Laser Cutting Machine

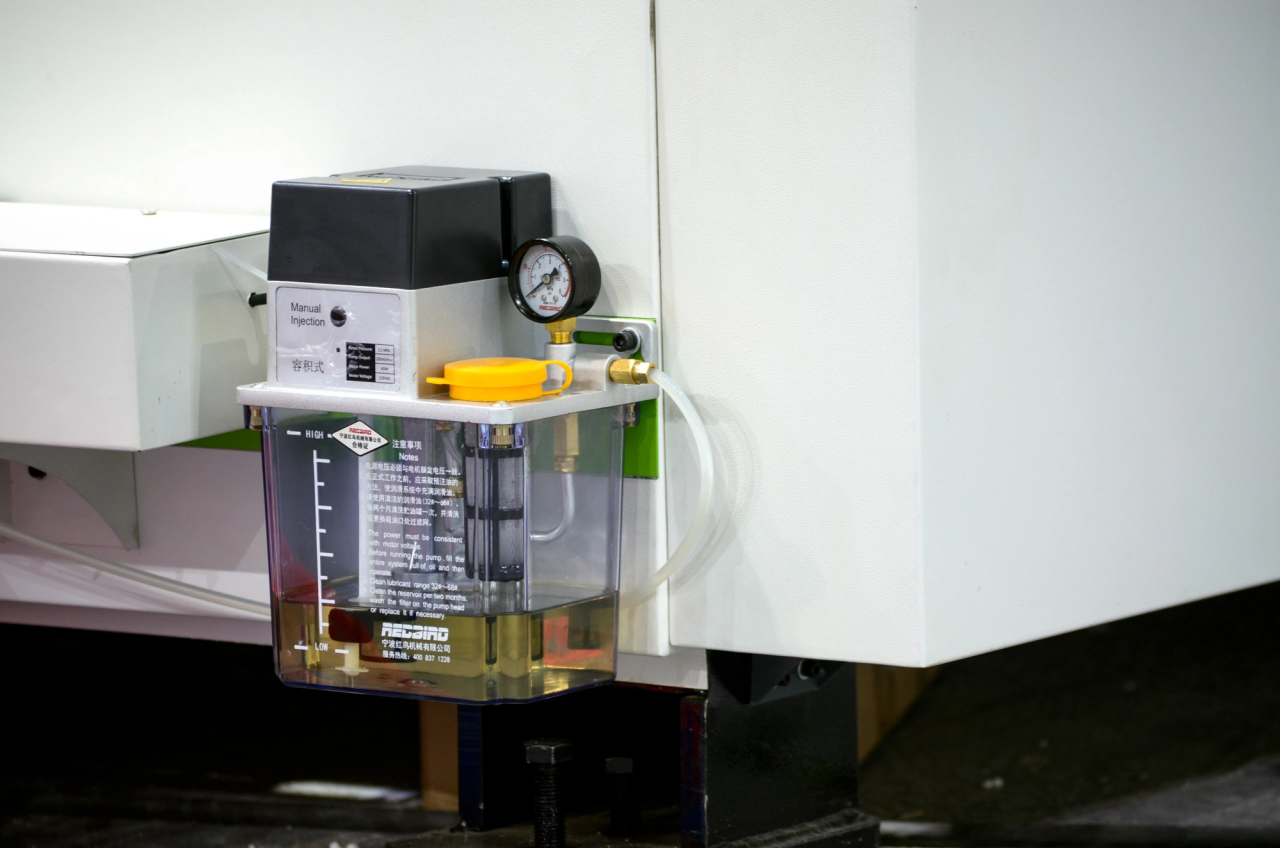

Auto Lubrication System

This machine accessory is applied to lubricate the machine rail and block in order that it runs smoothly and fast, improving the working efficiency.

1500*3000mm 500w Racuys Or Ipg Fiber Laser Cutting Machine

Taiwan HIWIN Guide

Adopted Taiwan Hiwin linear guide rail, high positioning accuracy, scroll guide, reduce wear to maintain accuracy for a longer time.

Cutting Parameter

1500*3000mm 500w Racuys Or Ipg Fiber Laser Cutting Machine Support graphic format of laser cutting machine

Samples

Raymax fiber laser cutting machine is usually used to cutting metal materials, like steel sheet, steel pipe, aluminum, copper, stainless steel, carbon steel, etc.
1500*3000mm 500w Racuys Or Ipg Fiber Laser Cutting Machine

Warranty and Service

✦ We will give you 3 years warranty, so you don't have to worry about the after-sales.

✦ We will also send you new parts if there's any parts broken by non-human issues.

FAQ

✦ How to operate the machine ?

We will deliver English manual and video with the machine to you. If you still need our help, please contact us.

✦ How can I get the sample to check you quality ?

If you want to marking sample to check the quality, we can help you do this. first you need to provide the logo or design to us, free mark samples can be provided.

✦ Does the machine can be customized according to my requirements ?

Sure, we have a strong technical team and have rich experience. Our goal is to make you satisfied.

✦ Can you arrange the shipment for me ?

We can arrange the shipment for our clients by sea or by air. Trading terms FOB, CIF, EXW are available.

Details

  • Application: LASER CUTTING
  • Applicable Material: Metal, stainless
  • Condition: New
  • Laser Type: Fiber Laser
  • Cutting Area: 6000*2500mm
  • Cutting Speed: 0-82m/min
  • Graphic Format Supported: AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
  • Cutting Thickness: 0-30mm
  • CNC or Not: Yes
  • Cooling Mode: WATER COOLING
  • Control Software: Cypcut
  • Laser Source Brand: MAX/IPG
  • Laser Head Brand: Raytools
  • Servo Motor Brand: Fuji
  • Guiderail Brand: HIWIN
  • Control System Brand: Cypcut
  • Weight (KG): 3800 KG
  • Key Selling Points: High-accuracy
  • Optical Lens Brand: Raytools
  • Warranty: 3 years
  • Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
  • Machinery Test Report: Provided
  • Video outgoing-inspection: Provided
  • Warranty of core components: 3 years
  • Core Components: Engine
  • Product name: laser cutting machine for metal sheet
  • Cutting materials: Stainless Steel Carbon Steel Etc( Metal Laser Cutting Machine )
  • Working table: Blade Table
  • Working area: 3000mmX1500mm (Other size Can be customized)
  • Laser source: MAX
  • Laser power: 500W/1000W /1500W/2000W/3000W/4000W/6000W/12000W
  • Control system: Cypcut Control System
  • Laser head: Raytools Laser Head
  • Motor and Driving: Japan Fuji
  • Guide rail: Taiwan Hiwin
  • Certification: ce, ISO, GS, Sgs
  • After-sales Service Provided: Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
  • After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
  • Local Service Location: Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, South Korea, UAE, Colombia, Romania, Ukraine
  • Showroom Location: Egypt, United Kingdom, United States, France, Philippines, Saudi Arabia, Russia, Morocco
