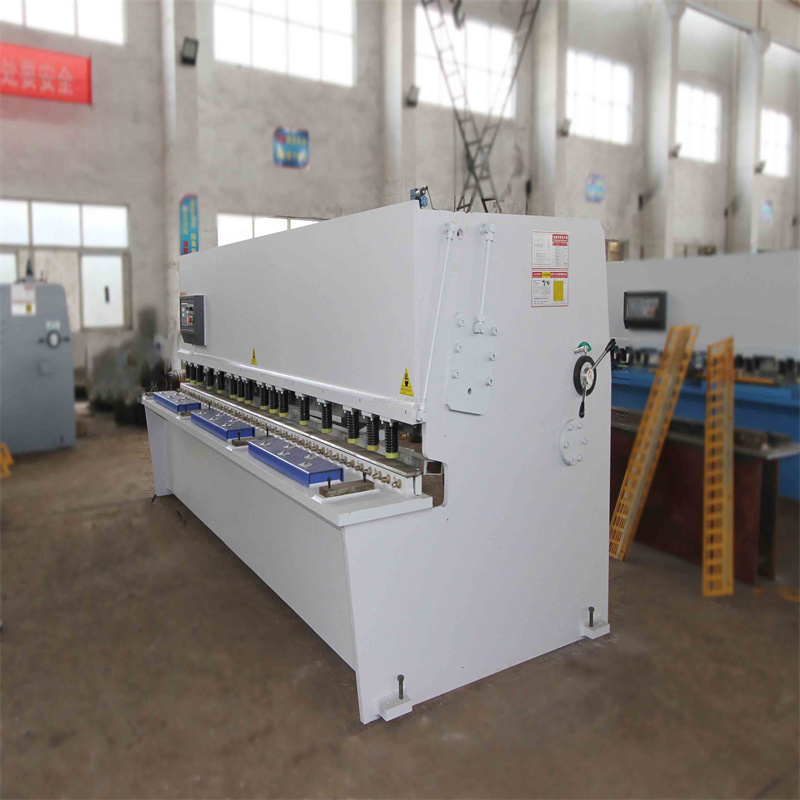

2.5m Length Hydraulic Nc Swing Beam Shearing Machine

Main Feature:

1.  Streamlined design originated from EU, the machine frame is a whole through overall welding and annealing treatment.

2.  Reliable Germany Rexroth integrated hydraulic system and hydraulic transmission; the design can effectively reduce problems caused by leakage of hydraulic fluid.

3.  Hydraulic swing beam shearing machine is one kind of equipment by swinging the upper blade to shear plate with smaller shearing angle and distortion, improving shearing quality.

4.  Backgauge is adjusted by high-precision ball screw driven by E21S controller, during the process frequency convertor prevent positioning device horizontal swinging, significantly improving positioning accuracy.

5.  Light aligning device, convenient for manual operation; pressure cylinder with built-in spring mechanism and bottom end furnished with special material gasket to prevent aluminum or other soft materials from being imprinted.

6.  Made by high-quality alloy tool steel, the machine can meet the requirements of impacting load and high wear resistance when working.

7.  Light and practical cantilever referring to man-machine engineering design, easy NC operation interface with features of high precision and more comfortable.

8.  The worktable adopts the rolling steel ball to reduce the frictional resistance, protect the work piece surface; novel
protective devices complying with safety specifications: protecting the operator’s personal safety; ingenious design: petty material can be cutter easily.

9.  Front material supporter is equipped with Perpendicularity and positioning regulator to ensure the cutting accuracy, easy operation, practical and efficient.

10.  Rapid adjustment mechanism for rearranging blade clearance, simple operation by hand and adjusting steplessly.
2.5m Length Hydraulic Nc Swing Beam Shearing Machine

FEATURES

1.  The second generation of shear.
2.  Welded steel plate construction, heating to eliminate stress,with high strength and good rigidity.
3.  Advanced integrated hydraulic system with and excellent reliabitity quality.
4.  Rapidly,accurately and conveniently adjusting the blade clearance by motor
5.  The adjustable rake angle can minimize plate deformation.
6.  As the cutting beam has been designed in inner-inclined structure,it is easy for plates to fall down and the accuracy of products can be also guaranteed.
7.  Shearing in sections, shadow-line cutting.
8.  Counter for the motorized back gauge.
9.  Back support device (optional).
2.5m Length Hydraulic Nc Swing Beam Shearing Machine

PRODUCT SPECIFICATIONS

Shearing Capability(mm)Back Gauge (mm)Shearing Angle(°)Throat Depth (mm)Motor Power (KW)Net Weight (kg)Dimension (LxWxH)(mm)
4x200020-6001.30150432002750x1500x1600
4x250020-6001.30150440003300x1500x1700
6x250020-6001.301507.558003200x1650x2000
6x320020-6001.301507.570003900x1650x2000
6x400020-6001.301507.590004750x1800x2200
8x250020-6001.301501160003200x1700x2280
8x320020-6001.301501183003900x1750x2280
8x400020-6001.301501195004750x1800x2200
10x320020-6001.301501595003900x1850x2200
10x400020-6001.3015015110004800x1900x2280
12x320020-9001.3015018.5120003900x2200x2200
12x400020-9001.3015018.5158004850x2280x2450

PRODUCT CONFIGURATION

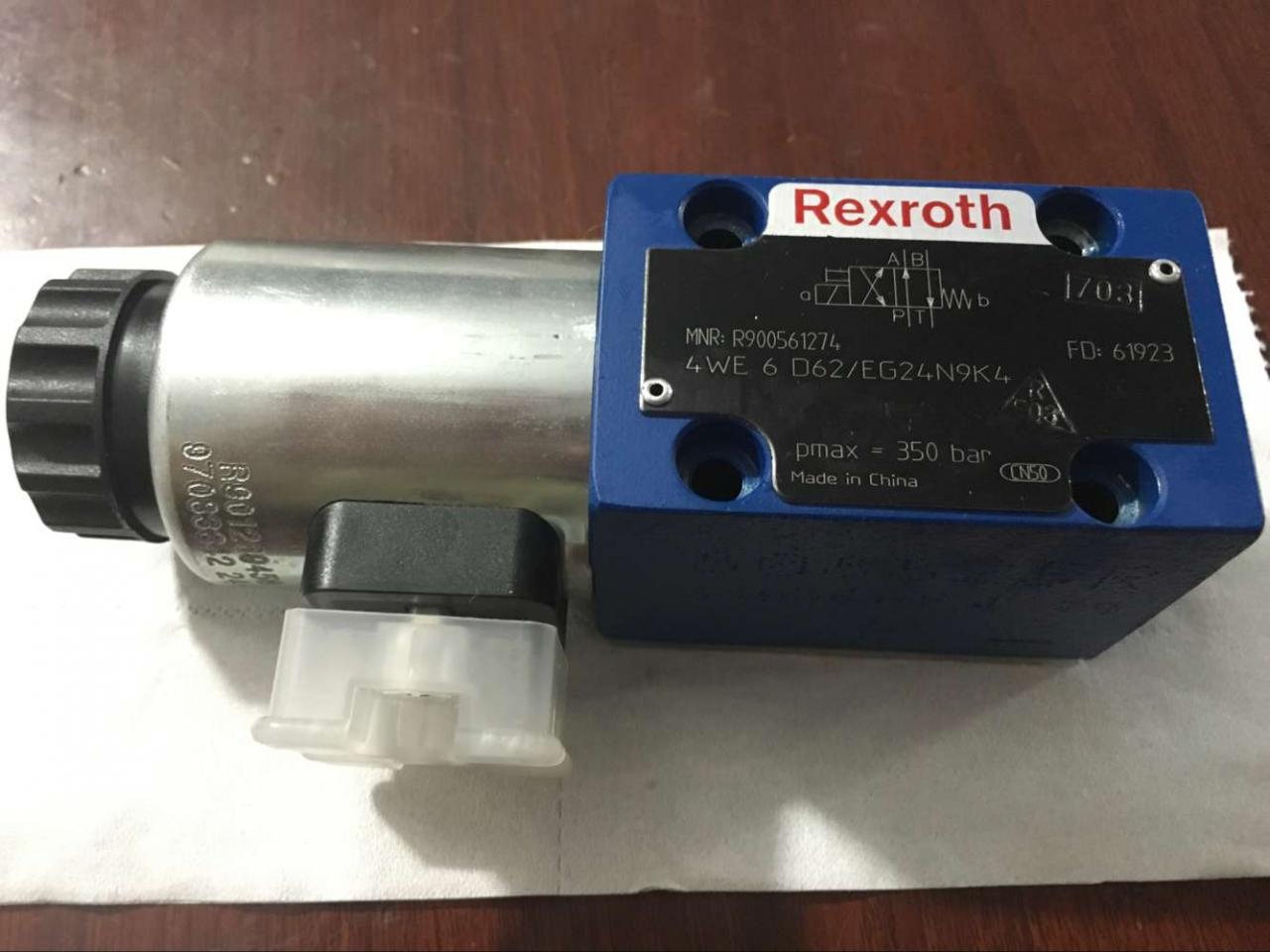

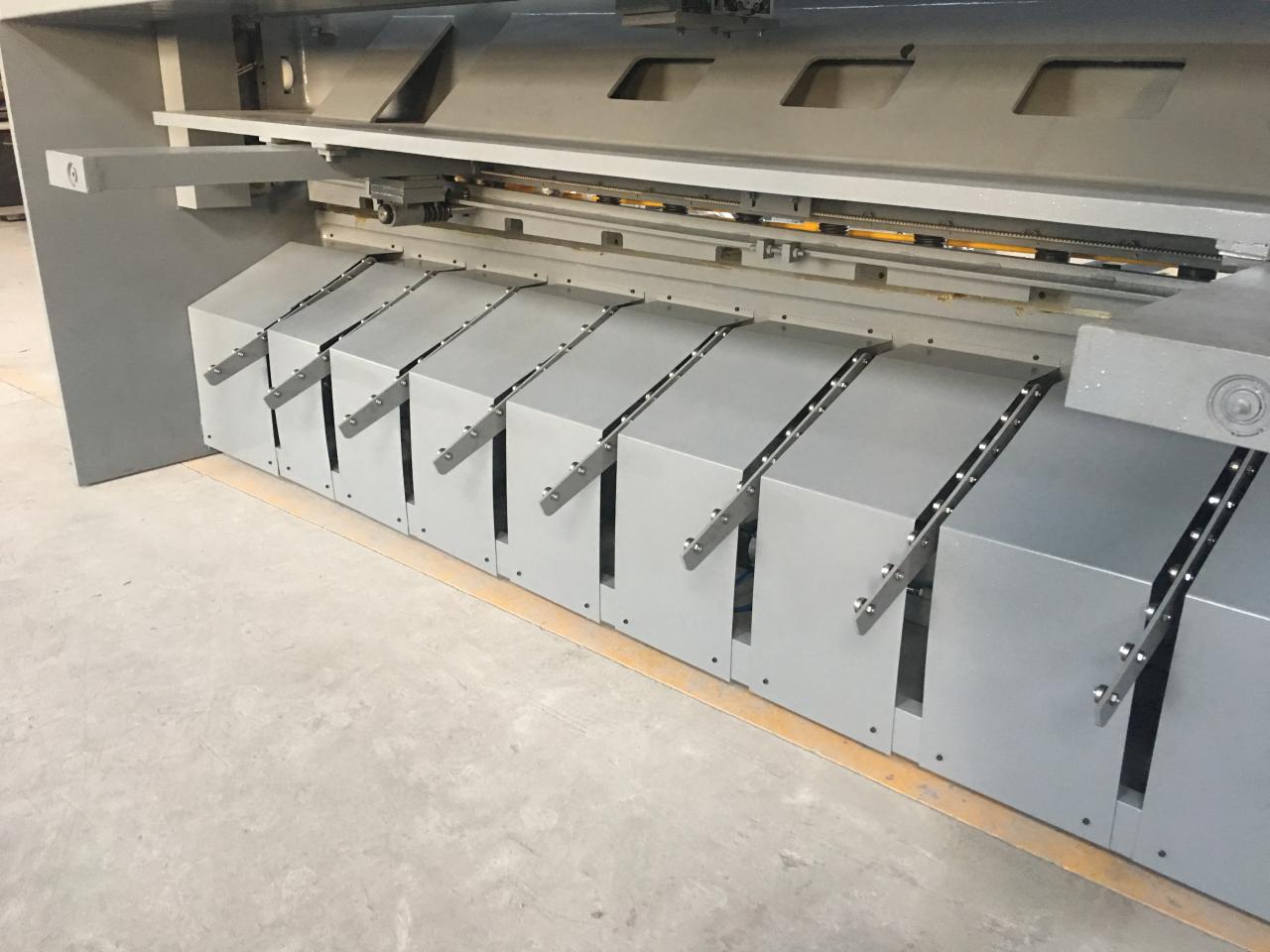

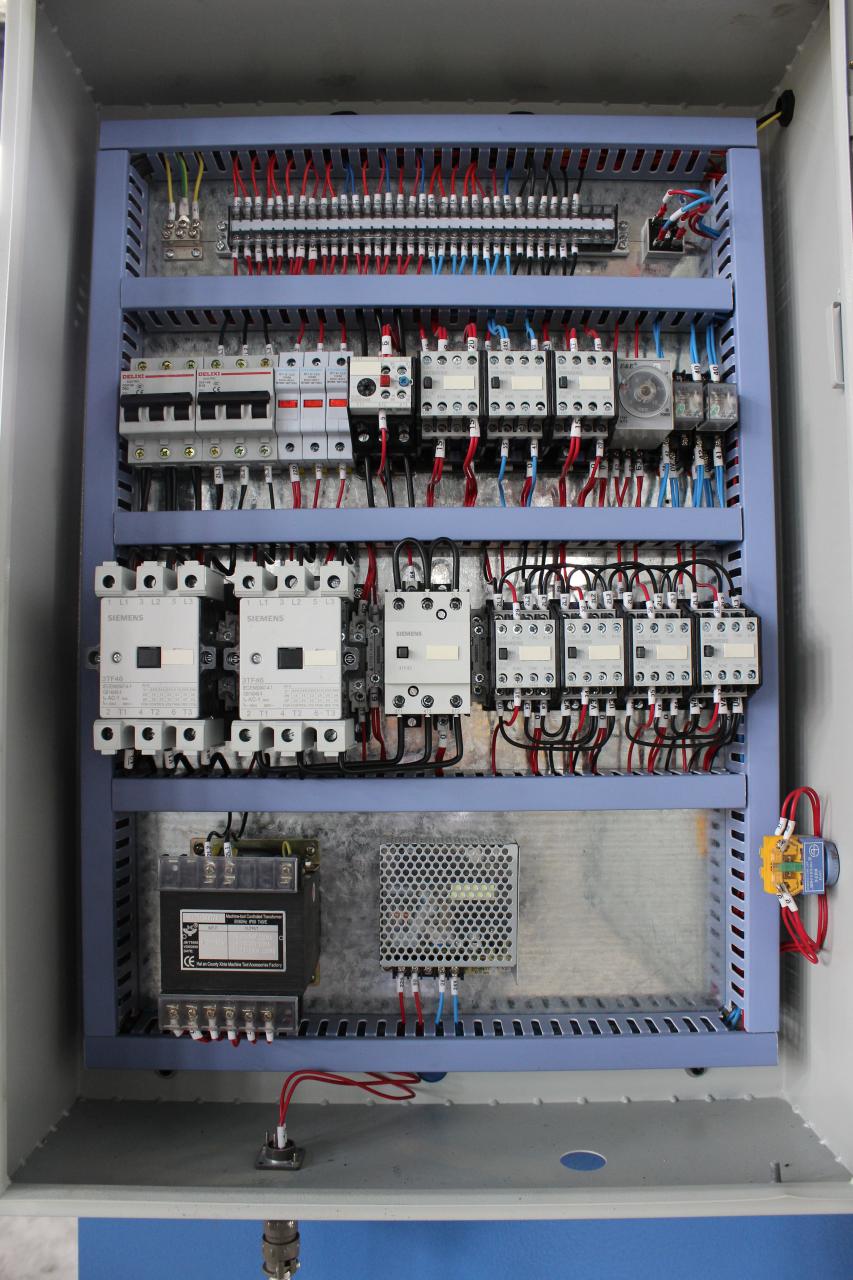

2.5m Length Hydraulic Nc Swing Beam Shearing MachineRexroth valve2.5m Length Hydraulic Nc Swing Beam Shearing MachineElectric Box2.5m Length Hydraulic Nc Swing Beam Shearing MachinePneumatic support

FAQ

Q.  How to confirm the Machine Model?

A:You can tell us the material ,max thickness and width of your plate.We will recommend the suitable model to you .

Q.  How can I get a quotation?

A: Pls tell us the machine you need, including quantity, raw materials and other requirements.

Q.  What is the payment term?

A:T/T (30% advance payment, and 70% balance paid one week before shipment) L/C (100% L/C at sight), this should be negotiated first.

Q.  Will you show me how to install the machine?

A:Certainly, we will enclose the production specification with the machine, and we could provide the video online to you, and our engineers are available to service machinery overseas.

Q.  After I buy the machine, what will you do if I don't know some of the function?

A: We will show you how to use the machine perfectly. Technical support and the video is available.

Q.  What can I do if the machine troubled after I buy it?

A:We provide completely after sales service, and our engineers are available to service machinery overseas.

Details

  • Max. Cutting Width (mm): 1300
  • Max. Cutting Thickness (mm): 3 mm
  • Automatic Level: Semi-automatic
  • Shearing Angle: 1.5
  • Blade Length (mm): 1300 mm
  • Backgauge Travel (mm): 10 - 600 mm
  • Throat Depth (mm): 150 mm
  • Condition: New, New
  • Power (kW): 7.5 kW
  • Weight (KG): 7000 KG
  • Place of Origin: China
  • Warranty: 1 Year
  • Key Selling Points: Competitive Price
  • Applicable Industries: Manufacturing Plant, Construction works
  • Showroom Location: None
  • Marketing Type: New Product 2020
  • Machinery Test Report: Provided
  • Video outgoing-inspection: Provided
  • Warranty of core components: 1 Year
  • Core Components: Motor, Pump
  • Color: White,Blue,Yellow
  • Precision: Precision
  • Processing type: Metal
  • Usage: Shear
  • Automatic Grade: Semiautomatic
  • Controlling mode: NC
  • keywprds: Hydraulic Plate Shearing Machine
  • Product name: Main Motor For 2.5M Length Hydraulic NC Swing Beam Shearing Machine
  • Cutting mode: Guillotine
  • After-sales Service Provided: Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support
  • After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
  • Local Service Location: None","attrValueId":3270618}
