3015 Fiber Laser Cutting Machine For High-Speed Cutting Of 1-6mm Metal Materials

Fiber Laser Cutting Machine Advantages：

laser cutting machine fiber cutter fiber cutting machine with stainless steel copper aluminum cutting servo driver 1530

1. Stability and reliability of light path system and control system with complete functions and simple operation

2. Imported original fiber lasers,high and stable function,lifespan is over 100000 hours.

3. Higher cutting quality and efficiency,cutting speed is up to 80m/min

4. Taiwan guideway and high precision grinding rack,ensure the long-time processing accuracy of the equipment.

Technical Paramaters:
Working size	1500mm*3000mm	10feet*5feet	120''*60''
Laser Power	500W Raycus or IPG fiber laser source	cut 3mm stainless steel max	cutting 6mm carbon steel max
	750W Raycus or IPG source	cut 4mm stainless steel max	cut 10mm carbon steel max
	1000W Raycus or IPG laser fiber	cut 5mm stainless steel max	cut 12mm carbon steel max
Main data	minimum line:0.15mm	auxiliary gas	oxygen, nitrogon
	repositioning precision:0.02mm	Max moving speed: 100M/min
	voltage: 220V/380V/440V	max cutting speed: 30M/min

Material	Thickness	Air
Carbon Steel	≤8mm	O2
Stainless Steel	≤4mm	N2
Aluminum	≤2mm	N2
Brass	≤2mm

PS: All the working area and specifications can be customized according to your requests.

Mechanical Structure:
The bed is welded with high quality steel, and the net weight of the bed is heavier, which greatly improves the stability of the machine, reduces the vibration of the bed, and has a good effect on cutting metal.

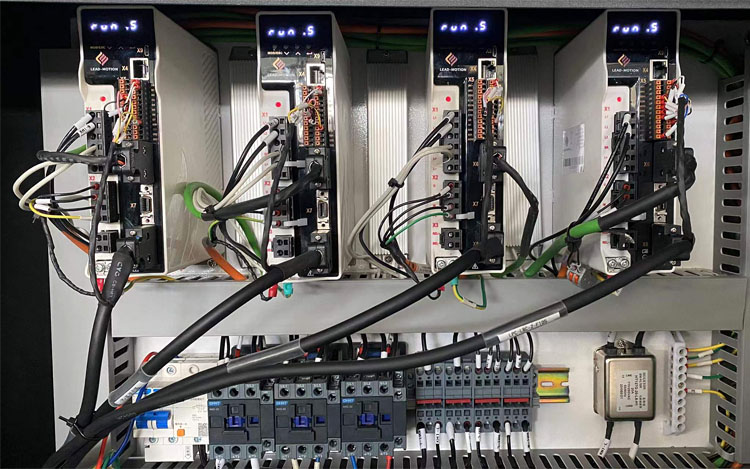

Fuji 750W Servo Motor:
Servo motor adopts closed-loop control method to ensure accurate positioning and dynamic response of optimal acceleration.

Cypcut Laser Cutting Software:
Supports all AutoCAD and drawing software.Professional cutting software supports cutting path, PLT and other graphical formats in dxf.

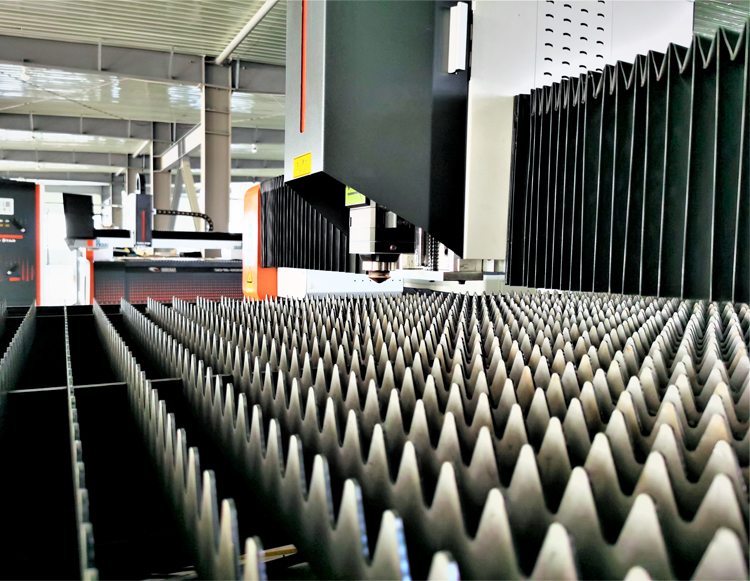

Working table:
Unique pointed rack design, very suitable for cutting alloy sheet metal, and equipped with positioning ruler, making feeding, parts and other operations more convenient and fast.

Aluminum Gantry:

Good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.

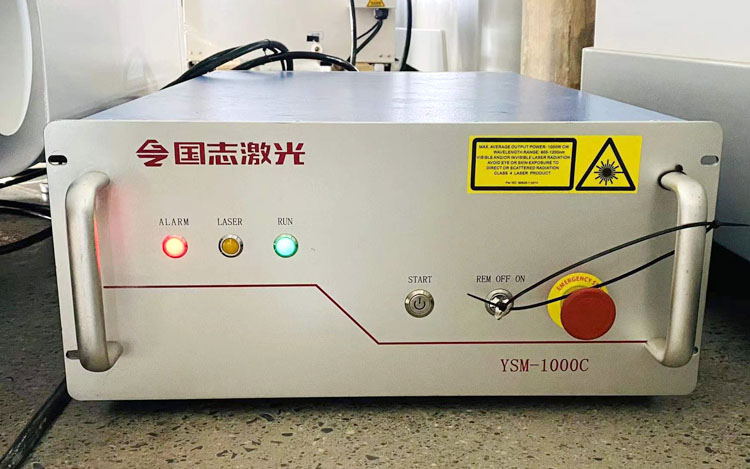

Laser source : MAX 1000W

Small size, light weight, easy to move; easy integration; high power, excellent beam quality; low energy consumption; good stability; suitable for different applications; simple operation; no spare parts requirements, maintenance-free.

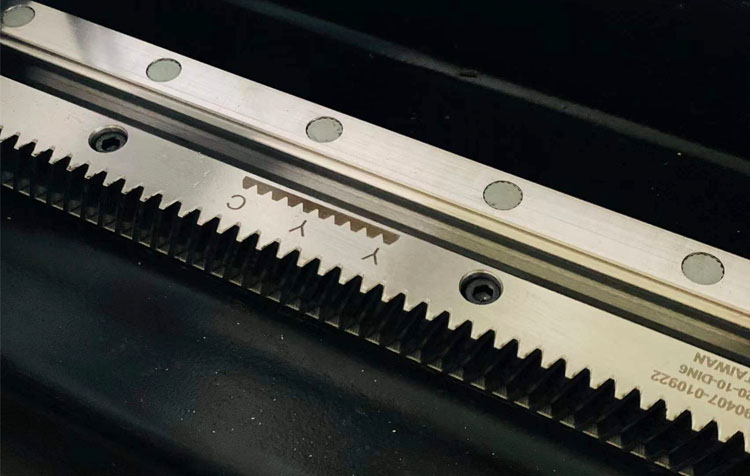

Taiwan YYC Gear-rack:

World-class quality transmission system, fast speed, high precision, strong reliability to ensure long-term smooth operation.

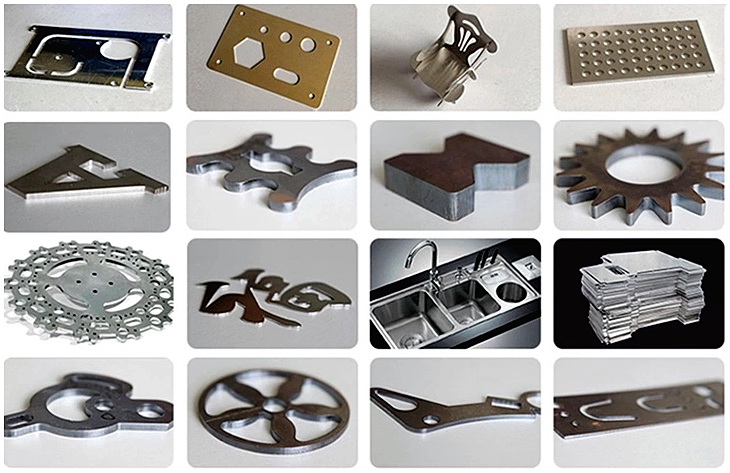

Sample

1. Sheet metal fabrication
2. Electrical cabinet
3. Kitchenware equipment
4. Elevator
5. Automotive Parts
6. Lighting lamps
7. Metal carfts & decoration
8. Hardware tools
9. Advertising
10. Fitness equpment
11. Furnitures
12. Agricultural and forestry machinery
13. Air conditioner

Guarantee and After-sale service:

1. 12 months warranty for the whole machine.

2. Technical support by phone, email or WhatsApp/Skype around the clock.

3. Friendly English version manual and operation video CD disk.

4. Engineer available to service machinery overseas.

Packaging Details:

1. Outside package: Standard marine export plywood case.

2. Inner package: Three layers in total; EPE pearl cotton film PEstretchy film.

Improved package, much more strong and environmental protection.

We can also make package according to your requests.

Delivery Detail: Shipped in 20-30 working days after payment.

FAQ

Q: Are you manufacturer ?

A: Yes,We are factory since 2003. Also we have more than 10 countries overseas warehouse and department.

Q: Can I get a machine according to my own requirements?

A: Sure.We accept OEM and ODM

Q: This is the first time I use this kind of machine, is it easy operate?

A: There are guide video that show how to use machine and english instruction book send to you with machine. If there is still have any question, we will provide free professinal guide for you until you could use machine well.

Q:What’s your MOQ and delivery?

A: Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you.

Q: How is your after sales service?

A: Our sales are online for 24-hours. We can also supply overseas install service.

Q: If my machine is broken. Can you repair it for me?

A: Yes. We have free training online. If there is big trouble with your machine in the warranty time, we can repair it.

Details

• Application: LASER CUTTING, Metal Steel Carbon Copper
• Applicable Material: Metal, stainless steel
• Condition: New
• Laser Type: Fiber Laser
• Cutting Area: 1500*3000mm
• Cutting Speed: 0-60000mm/min
• Graphic Format Supported: AI, Dst, Dwg, DXF, DXP, LAS
• Cutting Thickness: 1-30mm
• CNC or Not: Yes
• Cooling Mode: WATER COOLING
• Control Software: Cypcut
• Laser Source Brand: MAX
• Laser Head Brand: Raytools
• Servo Motor Brand: FUJI
• Guiderail Brand: YYC
• Control System Brand: Cypcut
• Weight (KG): 1800 KG
• Key Selling Points: Competitive Price
• Optical Lens Brand: Wavelength
• Warranty: 1 Year
• Applicable Industries: Hotels, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company, Other
• Machinery Test Report: Provided
• Video outgoing-inspection: Provided
• Warranty of core components: 1 Year
• Core Components: Pressure vessel, Motor, Bearing
• Mode of Operation: continuous wave
• Configuration: 3-axis
• Products handled: Sheet Metal and Tube
• Feature: Water-cooled
• Name: sheet metal laser cutting machine
• Working area: 1500mmX3000mm
• Type: Fiber Laser Cutting
• Control system: Cypcut System
• Driver&motor: Servo Fuji 750w, Japan
• Laser tube: Reci Laser Tube
• Laser power: MAX 1000w/1500W
• Water Chiller: HL-1000/HL-1500
• Function: Cutting Metal Materials
