63 Ton Metal Steel Sheet Plate Bending Machine Cnc Hydraulic Press Brake For Metal Working

Product Description

Product Type: CNC 63T/2500 CNC steel plate full cover hydraulic press brake

Bending Material: Metal/ Stainless Steel /Carbon Steel /Aluminum

Backgauge range: 500-800

Bending precision: -0.01

Safety Standard: Europe CE/South America

Control Axes: Y1 Y2 X Z1 Z2 R, V-axis Crowing

Controller: Delem DA66T

After-sales: Service Engineers available to service machinery overseas

Main features

1.  The machine body is in an overall welded and overall processed structure, and ANSYS finite element analysis software is applied to main parts of the machine body for analysis, which has ensured the reliability of the machine and the precision of entire machine.

2.  The numeric control system adopt Netherland DELEM, Swiss CYBELEC or Italian ESA Companies and so. able to achieve the functions of graphic programming for bending angle, compensation for angle amendment, automatic calculation also adjustment of bending pressure, automatic calculation of compensation for workbench distorsion, extending length of workpieces, bending pressure for sole pressing, open distance, and automatic withdrawal of rear stopper, etc.

3.  Totally EU streamlined design,Monoblock by welding robots & aparatus and stress relief process by Annealing treatment Adopt integrated hydraulic system, more reliable and easy for maintenance. and the hydraulic system from Bosch-Rexroth, Germany.

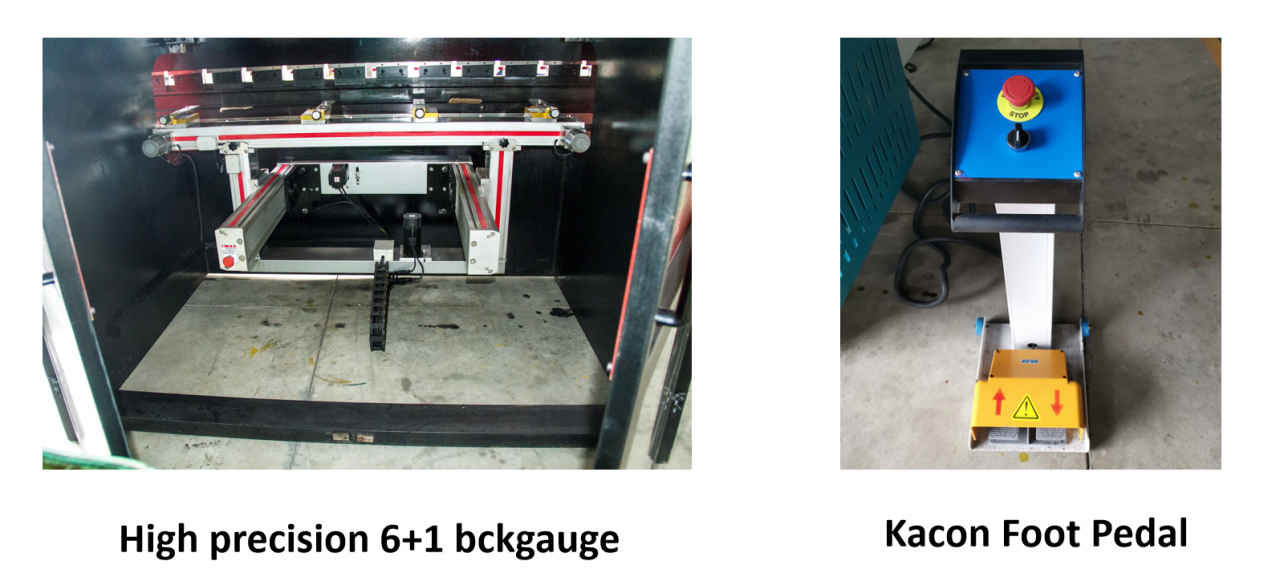

4.  Electro-hydraulic servo CNC, Y1, Y2,for Oil cylinder stroke X, R, Z1, Z2 for back gauge ,V for compensation. 6 1 axis The stroke and distance of the back gauge is adjusted by the motor and is well adjusted by hand,the adjustment is displayed by DA66T.

5.  Inch, single mode being designed for the machine and reversing and maintain time can be controlled by the time relays. Safe fence and the electric interlocker have been designed for the machine to ensure the operation safety

Detailed description

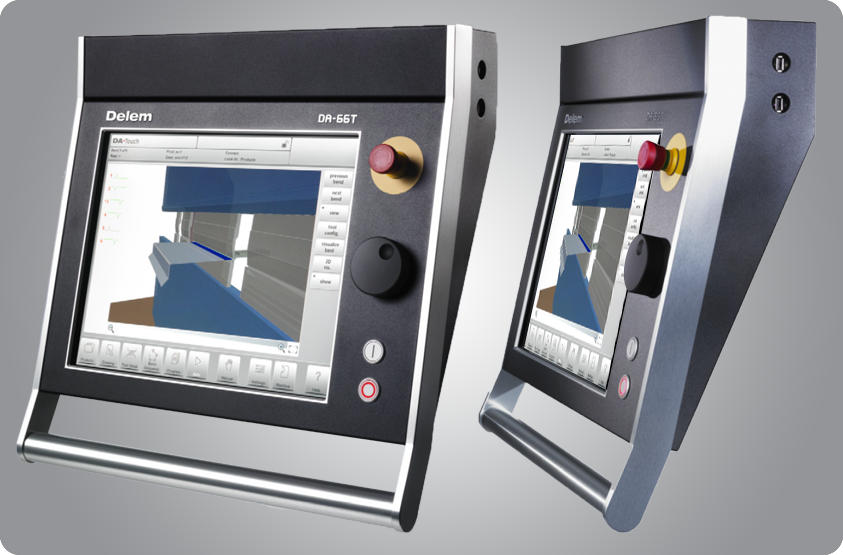

DA66T features

• 2D graphical touch screen programming mode
• 3D visualisation in simulation and production
• 17" high resolution colour TFT
• Full Windows application suite
• Delem Modusys compatibility (module scalability and adaptivity)
• USB, peripheral interfacing
• Open system architecture
• Sensor bending & correction interface

Technical Parameters

Model	Bending Length	Poles Distance	Throat depth	Slider Travel	Main motor	Dimension
63T/2500	2500mm	1900mm	350mm	150mm	7.5kw	3100*1450*2050
80T/3200	3200mm	2600mm	350mm	200mm	7.5kw	3500*1550*2100
100T/3200	3200mm	2600mm	400mm	200mm	7.5kw	3500*1580*2400
160T/3200	3200mm	2600mm	400mm	200mm	11kw	3500*1650*2500
200T/3200	3200mm	260mm	400mm	200mm	11kw	3500*1680*2550

Standardization of Service "212"

1.  response in 2 hours
2.  provide solution in 1 day
3.  solve complaint in 2 days

Installation Service

Installation Services are available with all machines. We dispatch technician to customer's factory for installation and preoperation of machines. ( Customers only need to pay the airfare and hotel )

Training Service

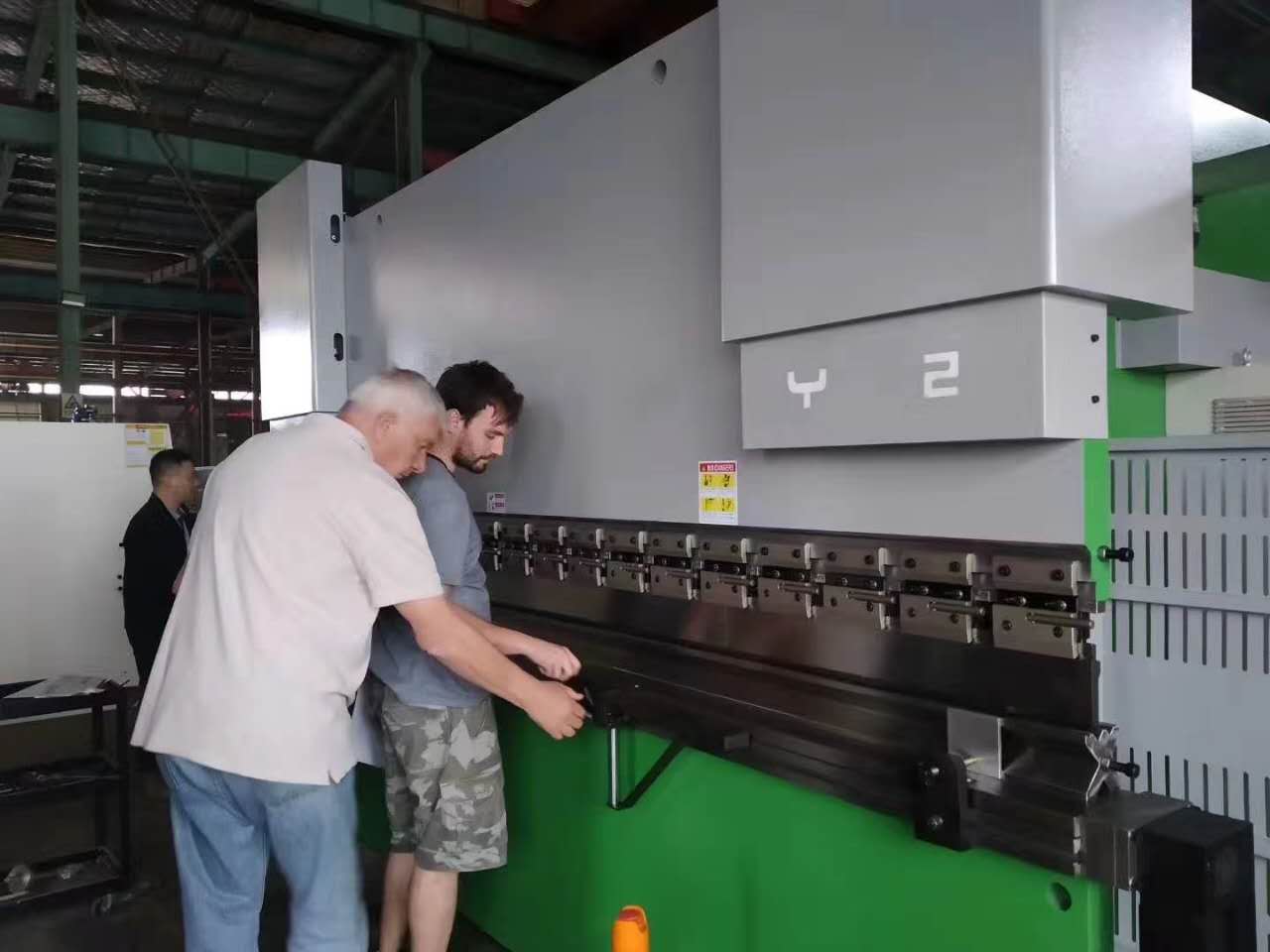

Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician to our company to learn how to operate machines.

Details

• Slider Stroke (mm): 150 mm
• Automatic Level: Fully Automatic
• Throat Depth (mm): 350 mm
• Machine Type: Synchronized
• Length of Working Table (mm): 2500 mm
• Width of Working Table (mm): 160 mm
• Dimension: 3100*1450*2050
• Condition: New
• Material / Metal Processed: Brass / Copper, Stainless Steel, ALLOY, Carbon steel, Aluminum
• Automation: Automatic
• Extra Services: Machining
• Year: new
• Weight (KG): 6800
• Motor Power (kw): 7.5 kw
• Key Selling Points: High-accuracy
• Warranty: 2 years
• Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Retail, Construction works , Energy & Mining, Advertising Company
• After-sales Service Provided: Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
• After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
• Nominal Pressure (kN): 630 kN
• Certification: CE and ISO
• Name: Hydraulic Press Brake
• Material: Mental
• Control system: DA-66T Delem

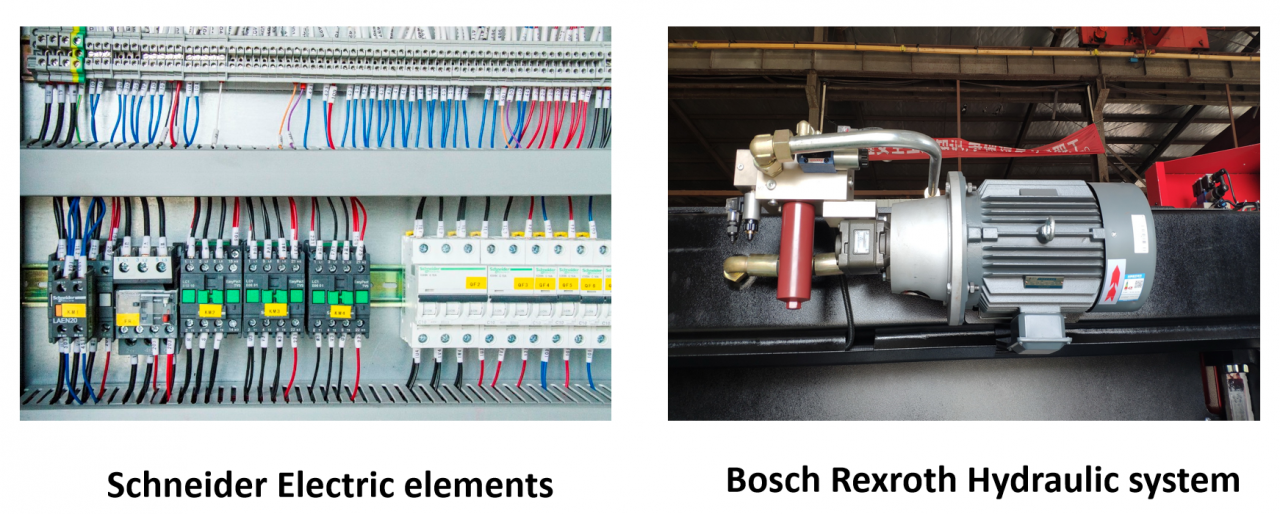

• Hydraulic System: Bosch Rexroth Germany

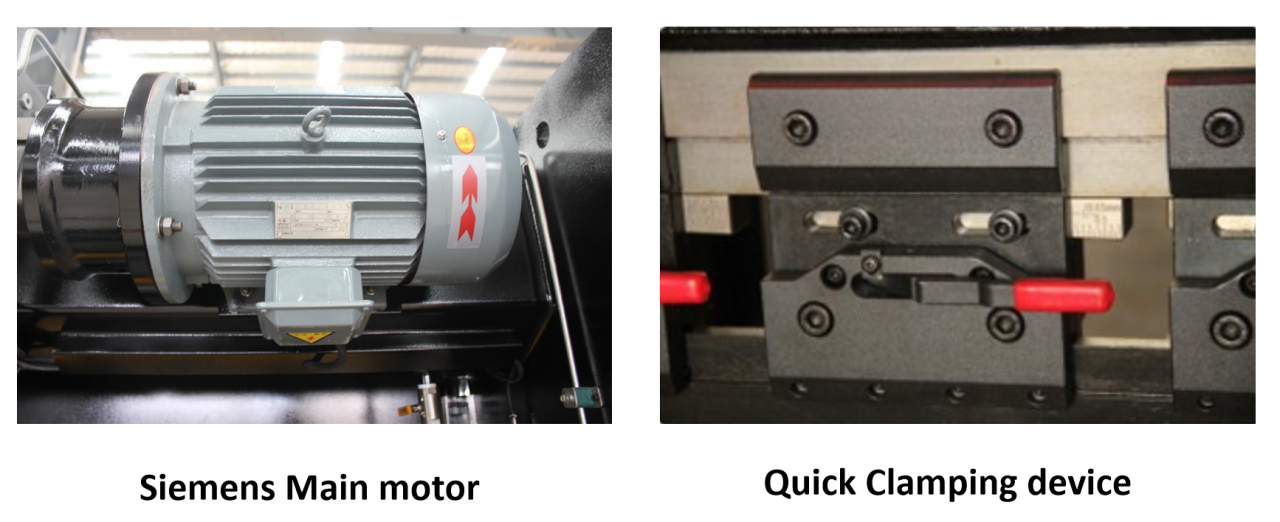

• Main motor: Siemens Germany
• Ball screw/ Liner guide: HIWIN
• Seal ring: NOK
• Electrical components: Schneider Electrical
• Servo motor/ Servo drive: Japan Brand
• Application: Hydraulic Bending Machine
