Cnc Dual-Use Sheet And Tube Pipe Tube Cutter Fiber Laser Cutting Machine For Metal

Product Features

1. One machine with dual functions, saving cost It can cut both metal sheets and pipes. Besides, the two-in-one design saves a lot of floor area and improve work efficiency greatly.

2. Aircraft-grade aluminum crossbeam Aircraft-grade aluminum is corrosion resistant, lightweight and highly rigid, guaranteeing high speed laser cutting. Besides, it also guarantee the excellent cutting precision due to the perfect dynamic performance such as anti-twisting, anti-tilting and anti-deformation.

3. High quality thick wall carbon steel pipe welded bed High strength machine bed is more stable and durable. After 600℃ stress relief annealing treatment, the machine bed has strong structural rigidity. The overall mechanical structure of the machine has small deformation, low vibration, ensure cutting accuracy.

4. Independent control cabinet All electrical components and laser sources are built into a separate control cabinet to prevent dust buildup. Besides, the control cabinet is equipped with automatic thermostatic air conditioning. This prevents damage to components from high summer temperatures.

5. Integrated large volume dust removal system. The dust removal system can remove all the smoke generated from the cutting process with large air volume. This helps protect the operator’s health and the working environment.

Technical Parameters

Working area1500*3000mm
Laser Output Power1000W/2000W/3000W/4000w（ optional ）
X/Y-axis positioning accuracy±0.03mm
X/Y-axis repositioning accuracy±0.02mm
Maximum acceleration1.5G
Servo motorJapan Yaskawa / Japan Fuji
Electrical componentsSchneider
ReducerJapan SHIMPO

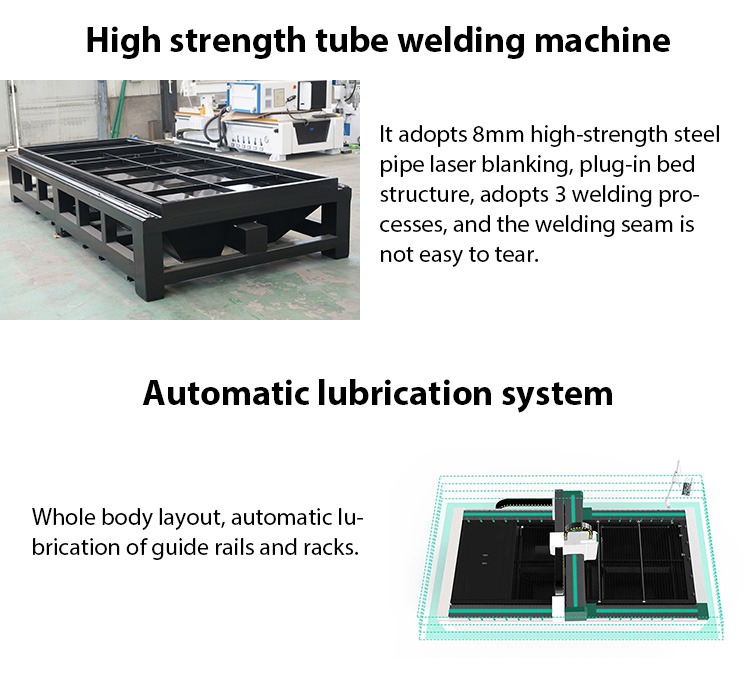

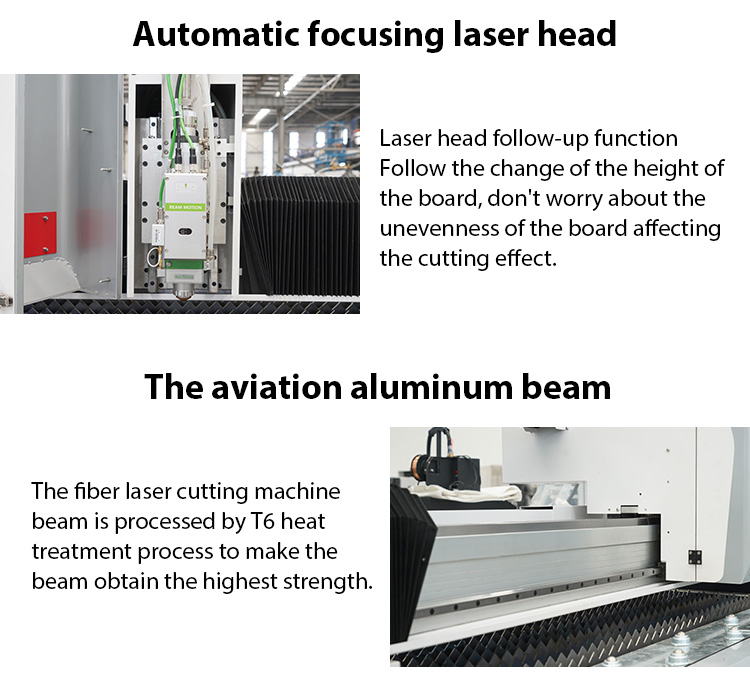

Product Details

Cnc Dual-Use Sheet And Tube Pipe Tube Cutter Fiber Laser Cutting Machine For Metal
Cnc Dual-Use Sheet And Tube Pipe Tube Cutter Fiber Laser Cutting Machine For Metal

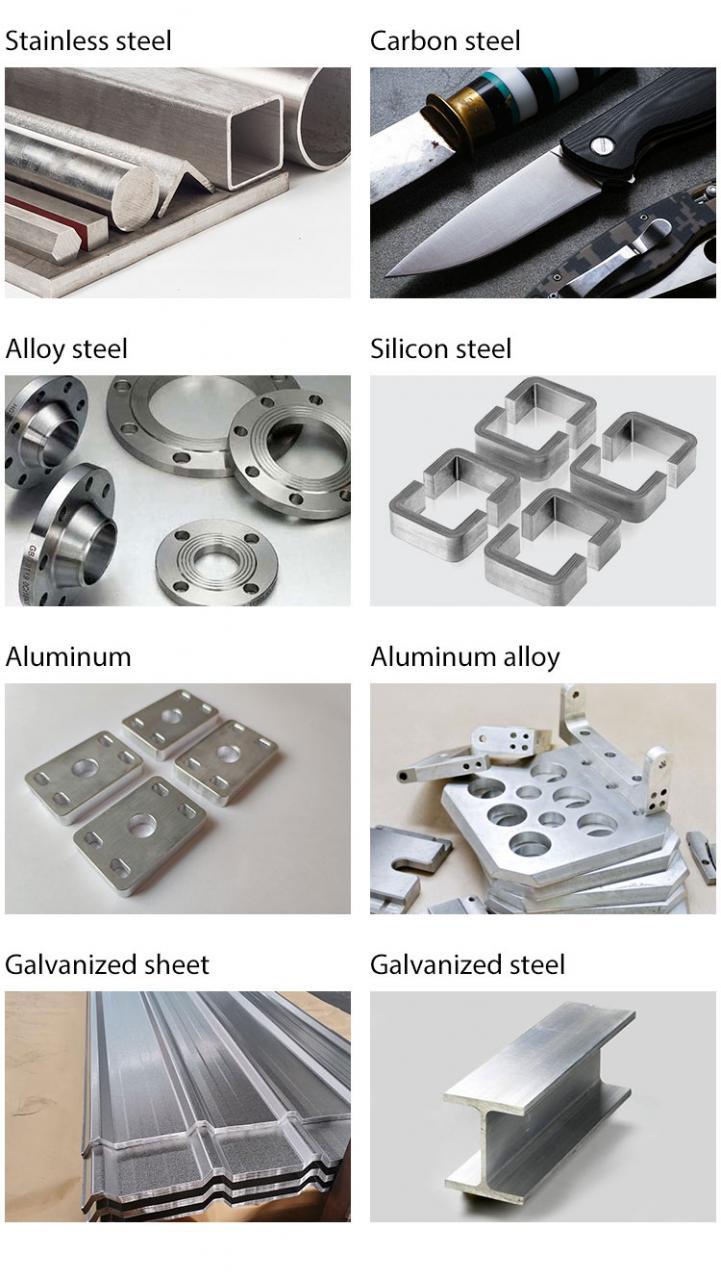

Applied Materials

Cnc Dual-Use Sheet And Tube Pipe Tube Cutter Fiber Laser Cutting Machine For Metal

Details

  • Application: LASER CUTTING
  • Applicable Material: Metal
  • Condition: New
  • Laser Type: Fiber Laser
  • Cutting Area: 1500mm*3000mm
  • Cutting Speed: 75m / min
  • Graphic Format Supported: PLT, Dst, DXP
  • Cutting Thickness: up to material
  • CNC or Not: Yes
  • Cooling Mode: WATER COOLING
  • Control Software: CYPCUT
  • Laser Source Brand: Raycus
  • Laser Head Brand: Raytools
  • Servo Motor Brand: FUJI
  • Guiderail Brand: HIWIN
  • Control System Brand: Cypcut
  • Weight (KG): 4500 KG
  • Key Selling Points: Competitive Price
  • Optical Lens Brand: Might
  • Warranty: 2 years
  • Applicable Industries: Hotels, Garment Shops, Manufacturing Plant, Machinery Repair Shops, Food Shop, Printing Shops, Energy & Mining
  • Machinery Test Report: Provided
  • Video outgoing-inspection: Provided
  • Warranty of core components: 1 Year
  • Core Components: Motor, Bearing, Pump, Engine
  • Mode of Operation: continuous wave
  • Configuration: 3-axis
  • Products handled: Sheet Metal and Tube
  • Feature: SERVO-MOTOR
  • Processing area: 1500x3000mm
  • Control system: Cypcut control system
  • Cooling System: TEYU S&A CW6250 water chiller
  • Laser Head: Switzerland Ray tools Laser Head
  • Square rail: Taiwan PMI Y#30*2, X 20#
  • Gear rack: Germany YYC High precision grinding rack (#2m)
  • Motor and driver: Japan Yaskawa850w for X,Y axis, Z axis with 400w Japan Yaskawa
  • Reducer: Japan Shimp Reducer
  • Pneumatic components: Japan SMC pneumatic components
  • Electrical components: France Schneider
