Cnc Manual Sheet Bending Machine 80 Ton Hydraulic Press Brake Metal Bending Machine

Advantage:

1. DSVP-based Oil-electric Hybrid System

2. High-rigidFrame + Auto Deflection Compensation

3. Post-positioning System

4. Intelligent CNC System

5. Easy to Install and Operate, High Accuracy

6. Efficient but Power-saving

Product Description

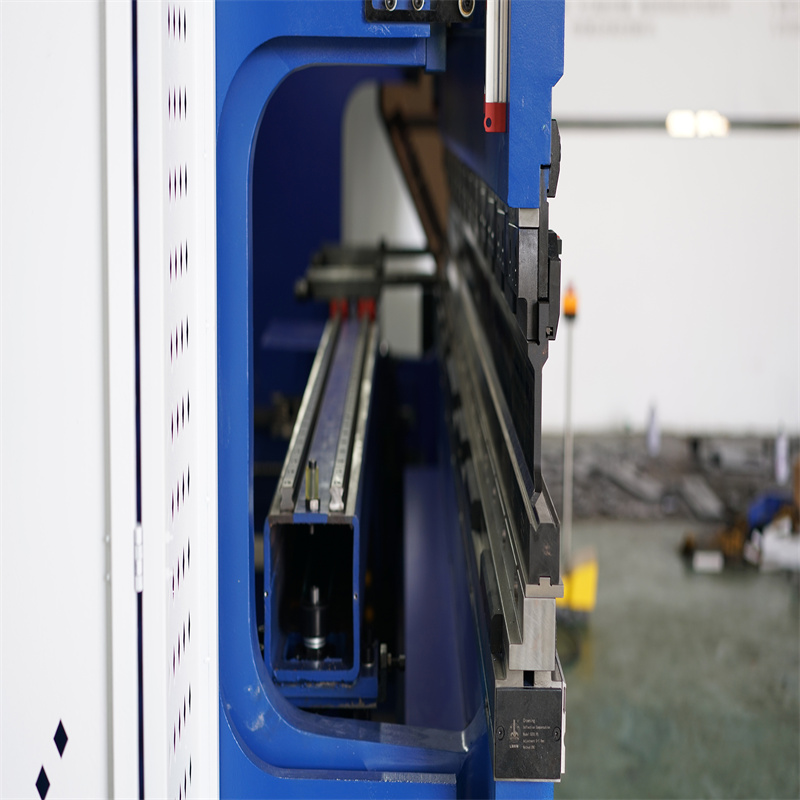

High-rigid Frame + Auto Deflection Compensation

Optimize the shape of high-rigid frame, improve rigidity and full bending accuracy based on calculated Y value and accurate workbench positioning. The angle tolerance of full bending workpiece is ±30’;

Calculate compensation by auto deflection compensation system through processing program based on length, thickness and angle of bending workpiece, match with reverse deformation while pressuring, and compensate for workbench deflection arising from work.

Efficient but Power-saving 2.5 times faster than same-grade hydraulic bending machines, higher efficient and take less time to get ready for work, much better using experience;

Servo hydraulic hybrid drive system is power-consuming only when pressuring, and changes electric consumption based on workpiece size;

STEP system calculates tonnage pressuring according to sheet length and thickness. Standby power loss accounts for 1% or less of total power;

Advanced control system avoids extra wasteful practices and electric loss.
Cnc Manual Sheet Bending Machine 80 Ton Hydraulic Press Brake Metal Bending Machine

Electrical control system

Electrical components are imported brand, in line with international standards, safe and reliable, electric control cabinet cooling function with movable foot switch control station, with startup, shutdown and emergency stop functions;The wiring of the electric cabinet is reasonable and clear, which is convenient for maintenance or troubleshooting.

Easy to Install and Operate, High Accuracy

Proficient skills unneeded while getting shapely bending, lower the professional threshold and labor costs;

Easy to install, firm and light, high operability;

German ELGO adopted, high bending accuracy guaranteed relying on micron-sized data, depth accuracy controlled as ±0.01mm.

Efficient and Reliable Post-positioning System

Position after high-speed moving, X-axis: 500 mm/s, Z-axis: 700 mm/s, R-axis: 60 mm/s; length measured on X-axis: 600 mm;

High positioning accuracy, X-axis: ±0.01 mm, Z-axis: ±0.1 mm, R-axis: ±0.1 mm.

Note: Only applicable to HB1003/HB6020.
Cnc Manual Sheet Bending Machine 80 Ton Hydraulic Press Brake Metal Bending Machine

Specification

Bending force500KN
Working table length2050mm
Height of worktable920mm
Column spacing1600mm
Throat depth320mm
Slider stroke160mm
Maximum opening height420mm
Rapid descent180mm/s
Return speed140mm/s
Speed of work10mm/s
Backgauge (x axis) stroke0-500mm
X axis positioning accuracy±0.1mm
X axis repeat positioning accuracy±0.02mm
y-axis positioning accuracy±002mm
Y-axis repeat positioning precision±0.02mm
Degree R axis stroke150mm
Working accuracyStraight line: 10.2mm/m, angle: ±0.5mm/m
Number of CNC axes4-axis
main motor powerAbout 5KW
Fuel tank capacity160L
DimensionsAbout 2400x1500x2480mm
Whole equipment weightAbout 4000KG

FAQ

1. I knew nothing about this machine, what kind of machine i should choose? -So easy . Just tell us what you want to do by using laser machine, then let us give you perfect solutions and suggestions.

2. What can it welding? -Laser machine for metal usually deal with carbon steel, stainless steel, aluminum, brass and alloy.

3. How long is the warranty? -We offer 1-year warranty.

4. Where is your headquarters? -Our headquarters is in Ma'anShan, Anhui Province, China.

5. Can I visit your factory? -Of course.Please contact us any time . We will arrange in advance.

6. Do you have engineer to teach me/my workers? -Yes, we offer free training for each customer. We promise to help until everything gets right.

Details

  • Slider Stroke (mm): 160 mm
  • Automatic Level: Fully Automatic
  • Throat Depth (mm): 320 mm
  • Machine Type: Synchronized
  • Length of Working Table (mm): 2050
  • Width of Working Table (mm): 920 mm
  • Dimension: 2400*1500*2480mm
  • Condition: New
  • Material / Metal Processed: Carbon steel
  • Automation: Automatic
  • Year: 2021
  • Weight (KG): 4000
  • Motor Power (kw): 5 kw
  • Key Selling Points: Easy to Operate
  • Warranty: 1 Year
  • Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Retail, Construction works , Advertising Company, Other
  • Showroom Location: Germany, Chile, South Africa, Malaysia
  • Marketing Type: HOT SALE
  • Machinery Test Report: Not Available
  • Video outgoing-inspection: Provided
  • Warranty of core components: 1 Year
  • Core Components: Motor, Gear, PLC
  • Product name: 1.6mm Thickness High Efficiency Sheet Metal Bending Folding Machine
  • Keywords: Profile Bending machine
  • Column spacing: 1600mm
  • Maximum opening height: 420mm
  • Rapid descent: 180mm/s
  • Return speed: 140mm/s
  • Speed of work: 10mm/s
  • Backgauge (X axis) stroke: 0-500mm
  • Number of CNC axes: 4 axis
  • Fuel tank capacity: 160L
  • Certification: ce
  • After-sales Service Provided: Video technical support, Online support
  • After Warranty Service: Video technical support, Online support
  • Local Service Location: Germany, Russia, Japan, South Korea, Chile, South Africa, Kazakhstan, Ukraine","attrValueId":5762774}
