Delem Da66t 125 3+1 4+1 6+1 8+1 Cnc Hydraulic Press Brake For Metal Plate Bending

Product Information

This Machine is a new CNC bending machine launched by RAYMAX in 2020, and is suitable for manufacturers with high precision and cost performance requirements. The machine is our most popular model by volume anda true workhorse, which is constructed of high quality parts and offers serious reliability. Y1 & Y2 Synchronization technology ensure high approach, bend and return speeds. It`s bending length capability and pressure range can be customized to meet various producing requirements.

Scientific design

1, Synchronous movement of Y1 and Y2 axes each controlled by independent cylinder

2, Possibility to add options and upgrades on the configuration, at later stage

Environmental friendly

Low noise during waiting and fast down (less than 25 decibels), pressing and return, as the pressure in the hydraulic system is the closed loop control of the servo main motor. Energy consumption lower than general machine by 60% by using servo motor.

Stable and durable performance of the machine body

1，The machine frame integrated welding.

2，The machine frame formed by the CNC three-dimensional machining center in one process, which ensures the parallelism and verticality of each mounting surface.

3，Internal stress lamination by tempering.

4，Shot blast to remove rust and anti-rust treatment.

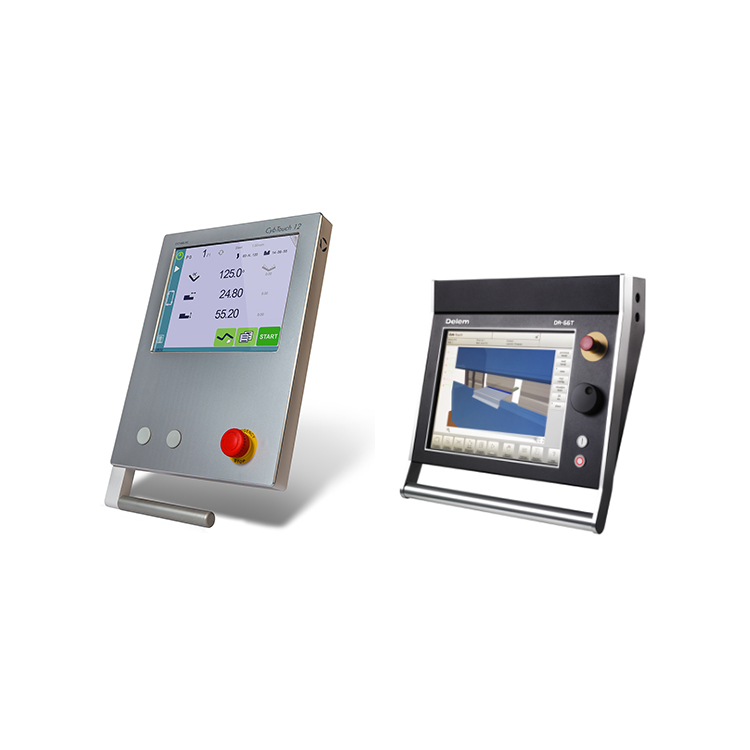

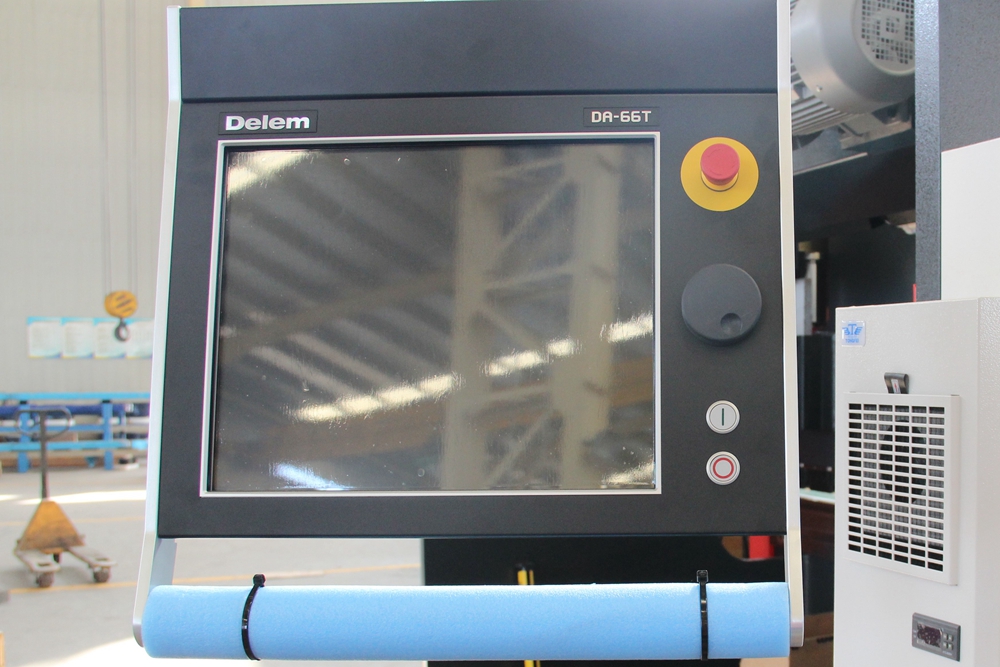

1. Control system: DA52s (Optional Cybelec CT8 from Switzerland)

Quick, one page programming

•Hotkey navigation

•7” VGA colour TFT

•Up to 4 axes (Y1, Y2, and 2 auxiliary axes)

•Crowning control

•Tool/material/product library

•USB, peripheral interfacing

•The basic machine control functions are Y1 Y2 X R -axis.

•Advanced Y-axis control algorithms for closed loop as well as open loop valves

Optional Control System：

(DA66T DA69T / Cybelec CT8 CT12 from Switzerland)

Optional Axis(3 1/4 1/6 1/8 1)

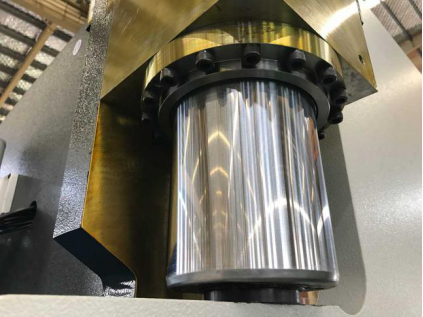

2. Cylinder
As a Chinese premium brand, it has a service life of more than 10 years

3. Proportional Valve
Proportional valve precisely regulates Y1 Y2 aixs movements

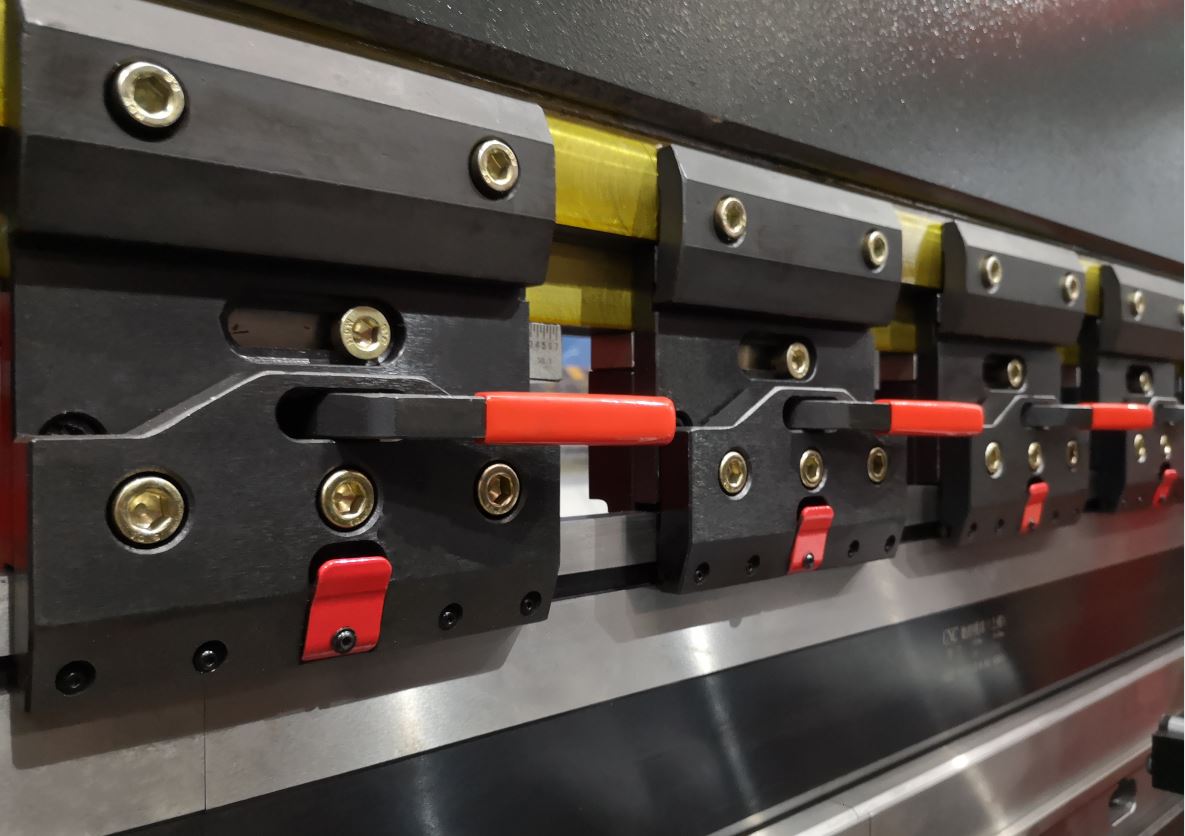

4. Quick Clip
Fast tool changes thanks to vertical set up，to reduce your set up times

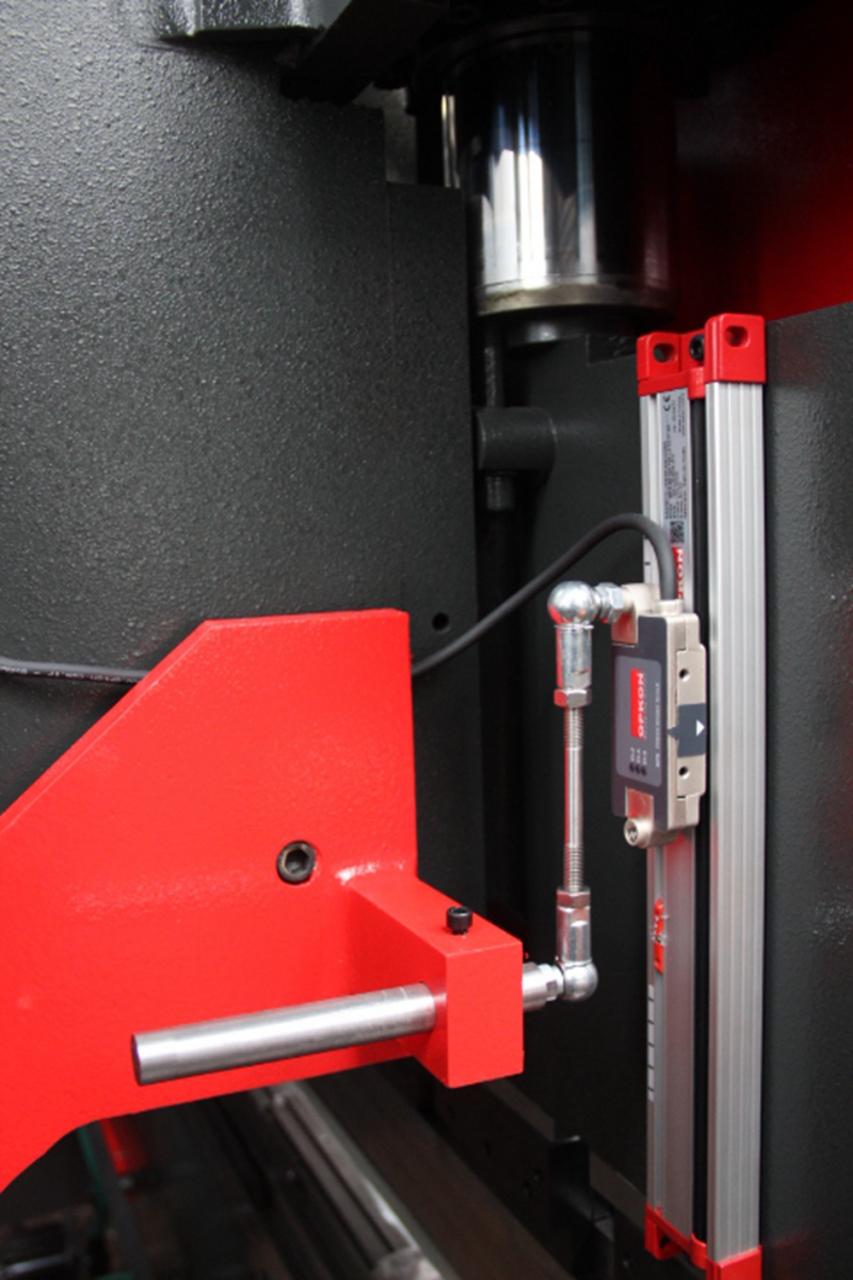

5. Grating Ruler gives precise positioning
Optic linear guide system is fixed to the machine bed by separated arm. By this solution, all yaw values are able to record to adjust your bindings sensitivities & repeatability.

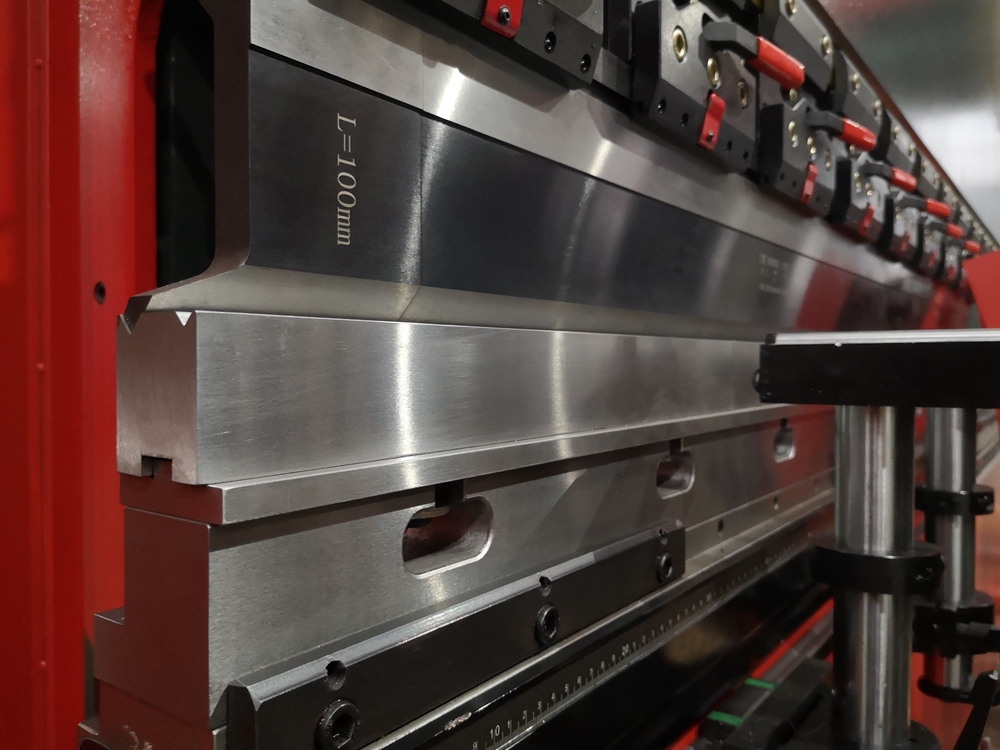

6. CNC Mold（Golin）
CNC concentric mold，Multi-function, easy to change sides

7. Automatic Crowning System
Equalized compensation, perfect bending angleControl by CNC control system DA52s

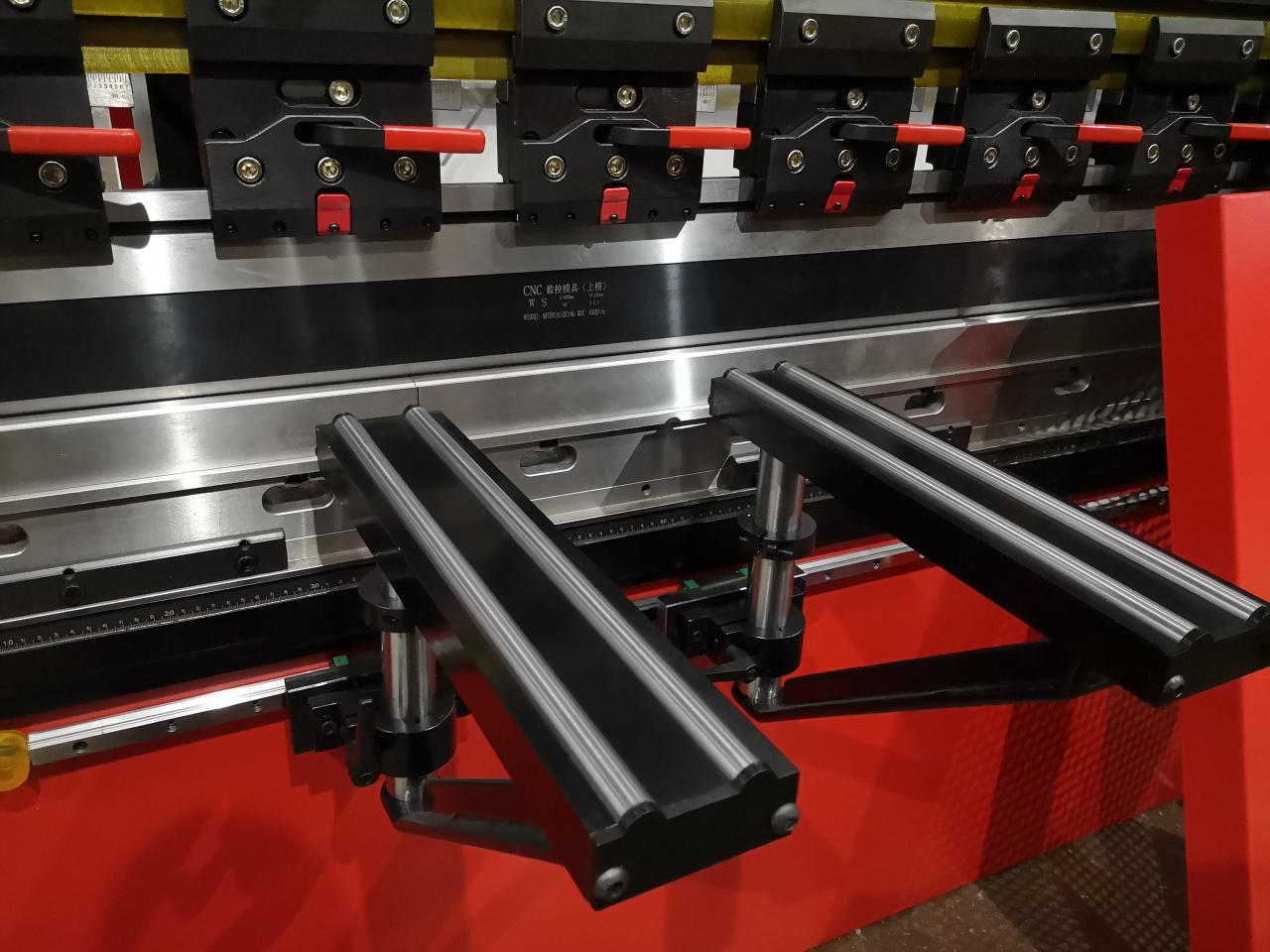

8. Supporting Arm
The ergonomic support brackets and led work area illumination serve to maximize your operating ease

9.  Double Linear Guides and Integrated Support Beam
To improve finger movement accuracy

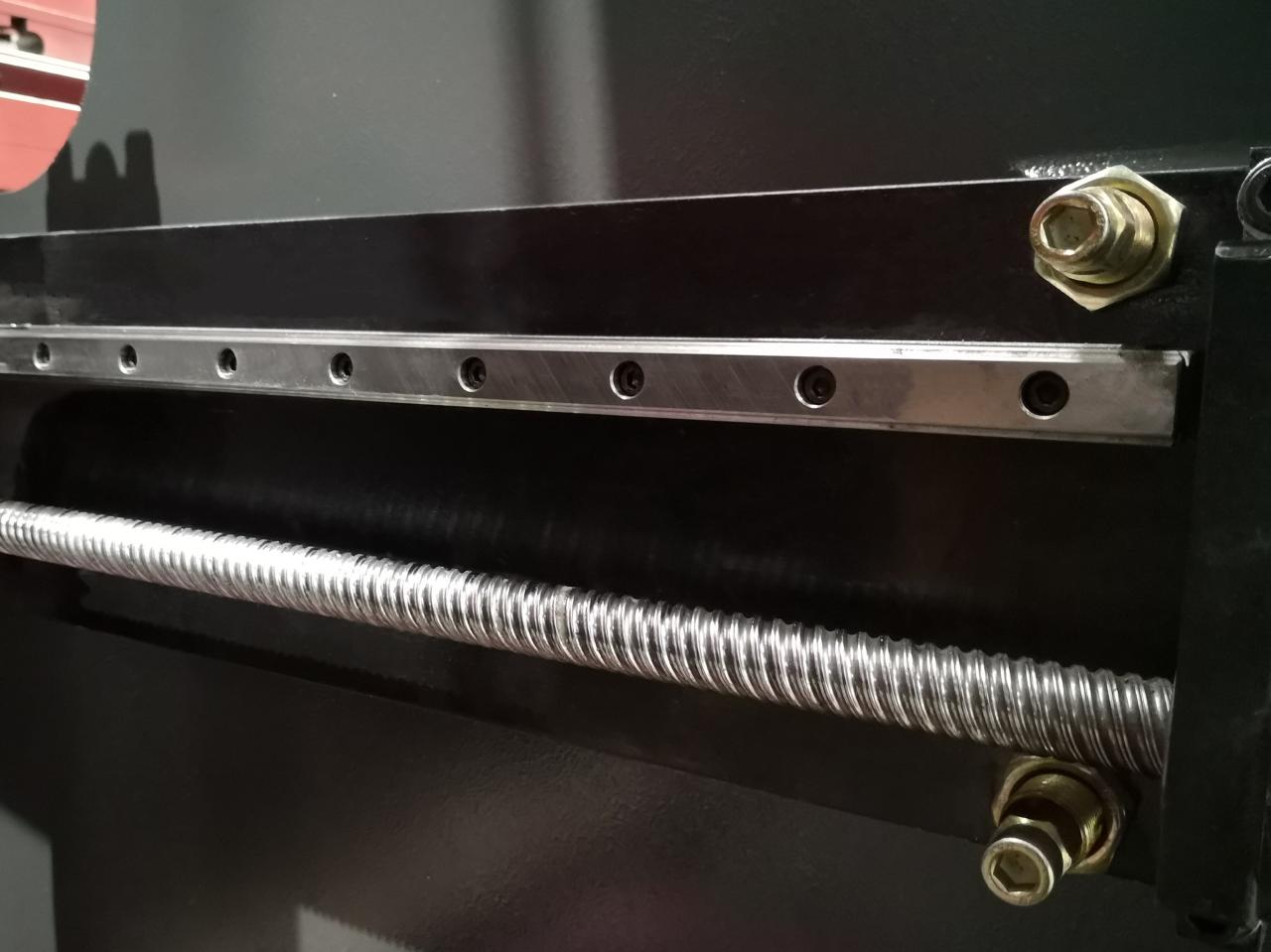

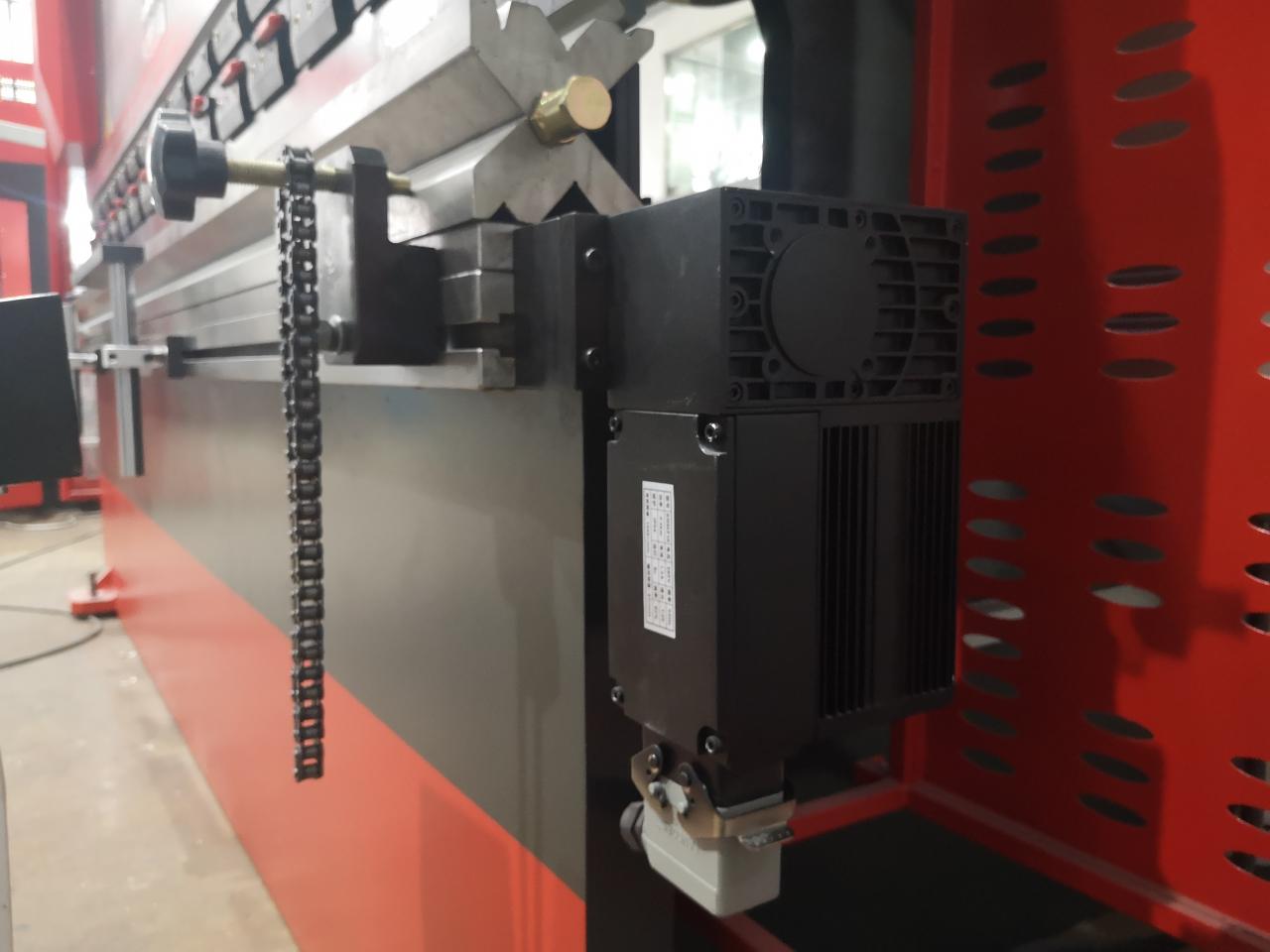

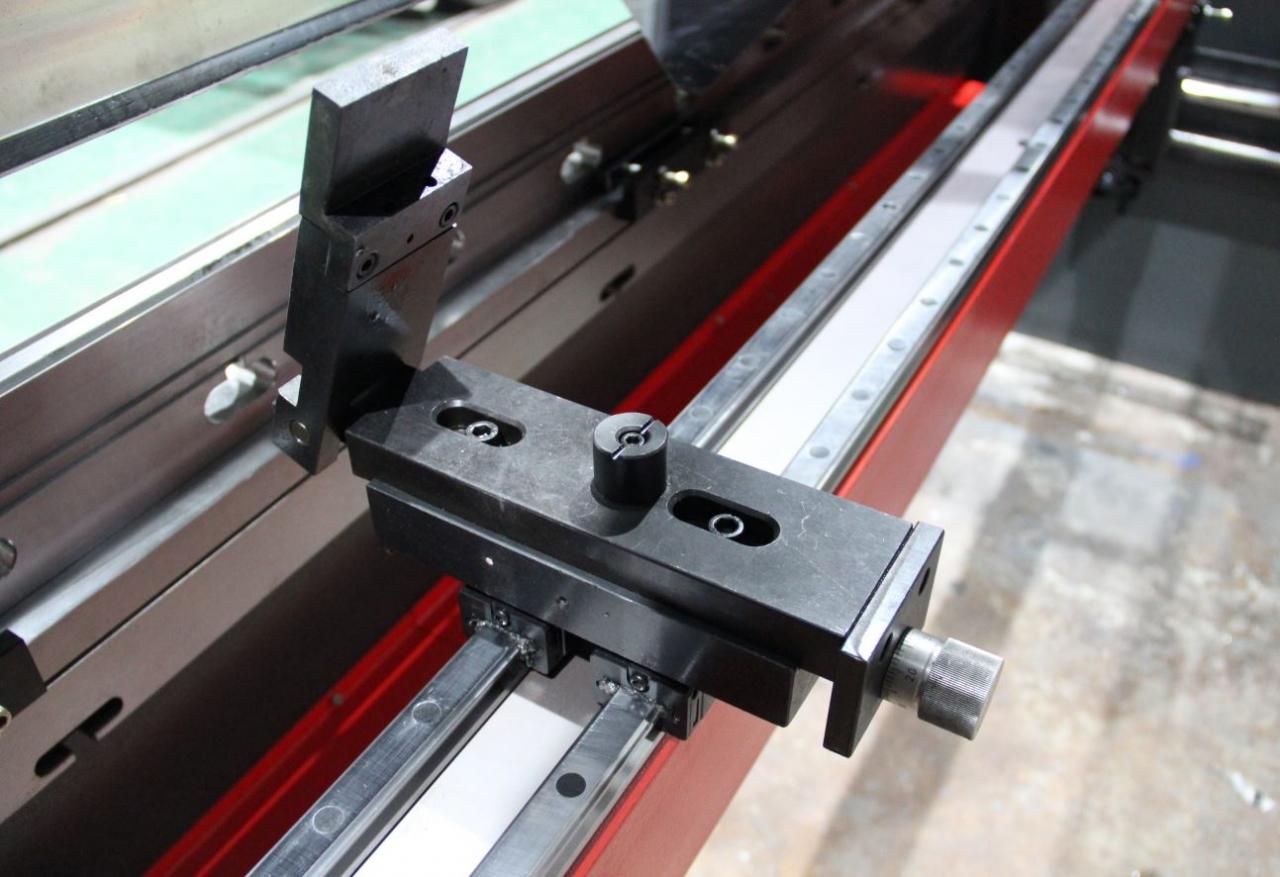

10. Ball Screw and Linear Guide
Dynamic back gauges and the high speed axis thanks to the ball screw and linear guideto improve back gauge movement accuracy

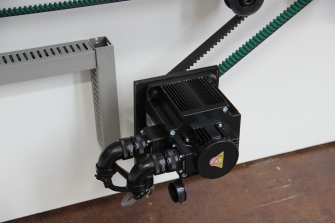

11. Servo Motor
Servo drive X and Y aixs positioning to increase speed and accuracy.

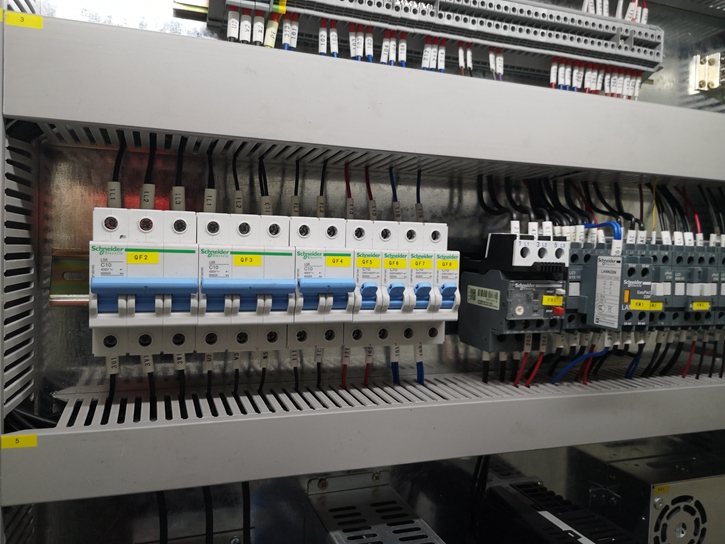

12. Main electrical components
Selection of international brands, stable and long-lasting performance.

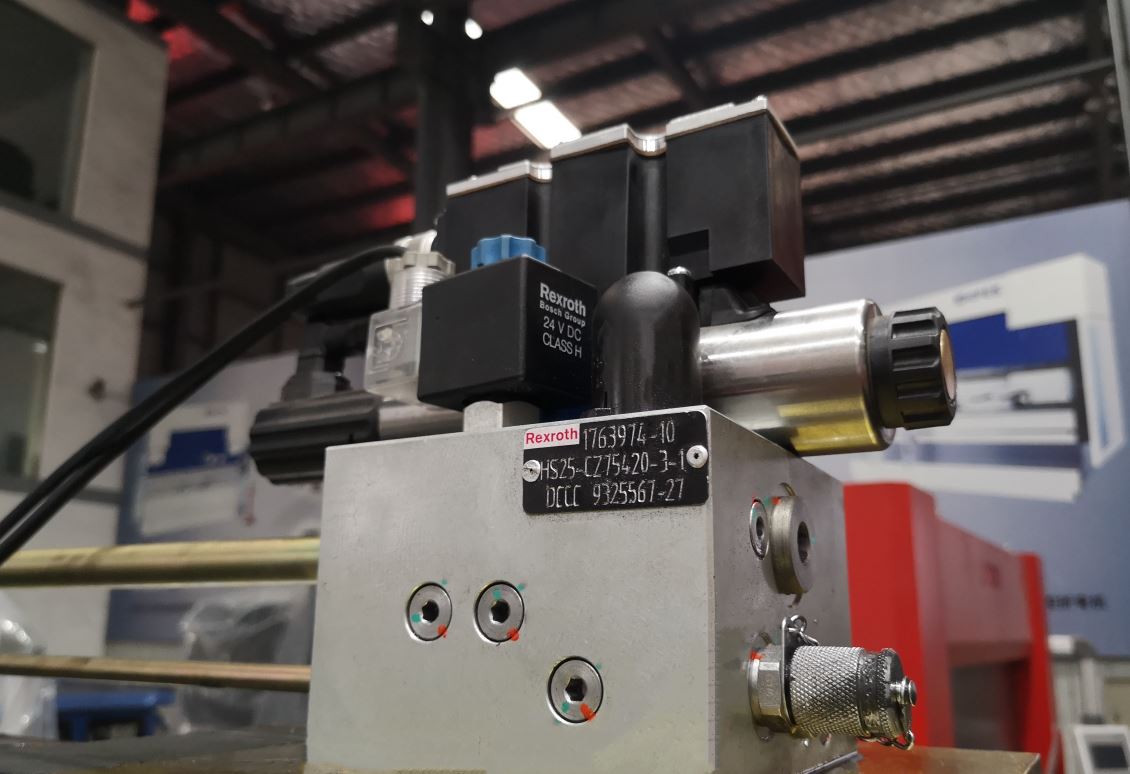

13. Hydraulic Valve
Selection of international brands, stable and long-lasting performance.

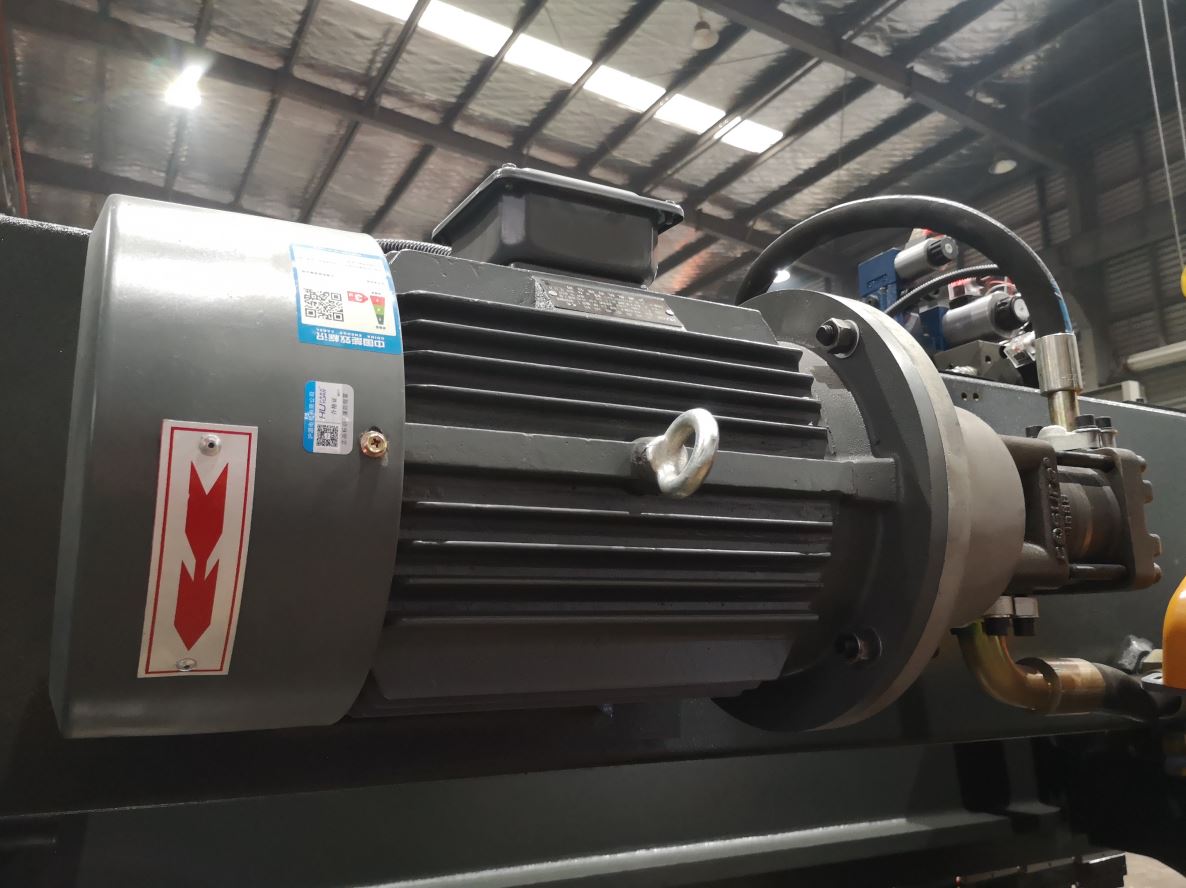

14. Main Motor（Siemens from German）Oil Pump（Sunny from America）
Selection of international brands, stable and long-lasting performance.

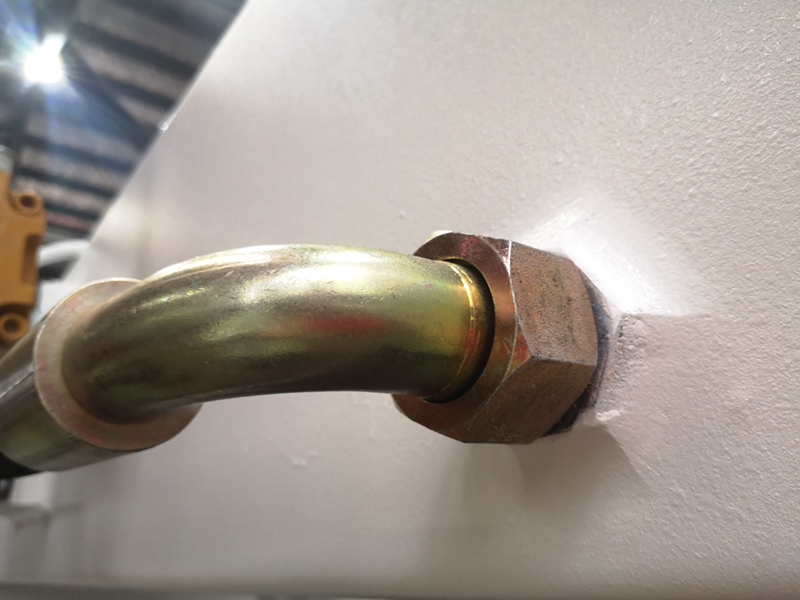

15. Tubing Joint (EMB from German)
To avoid leak oil, easy to repair

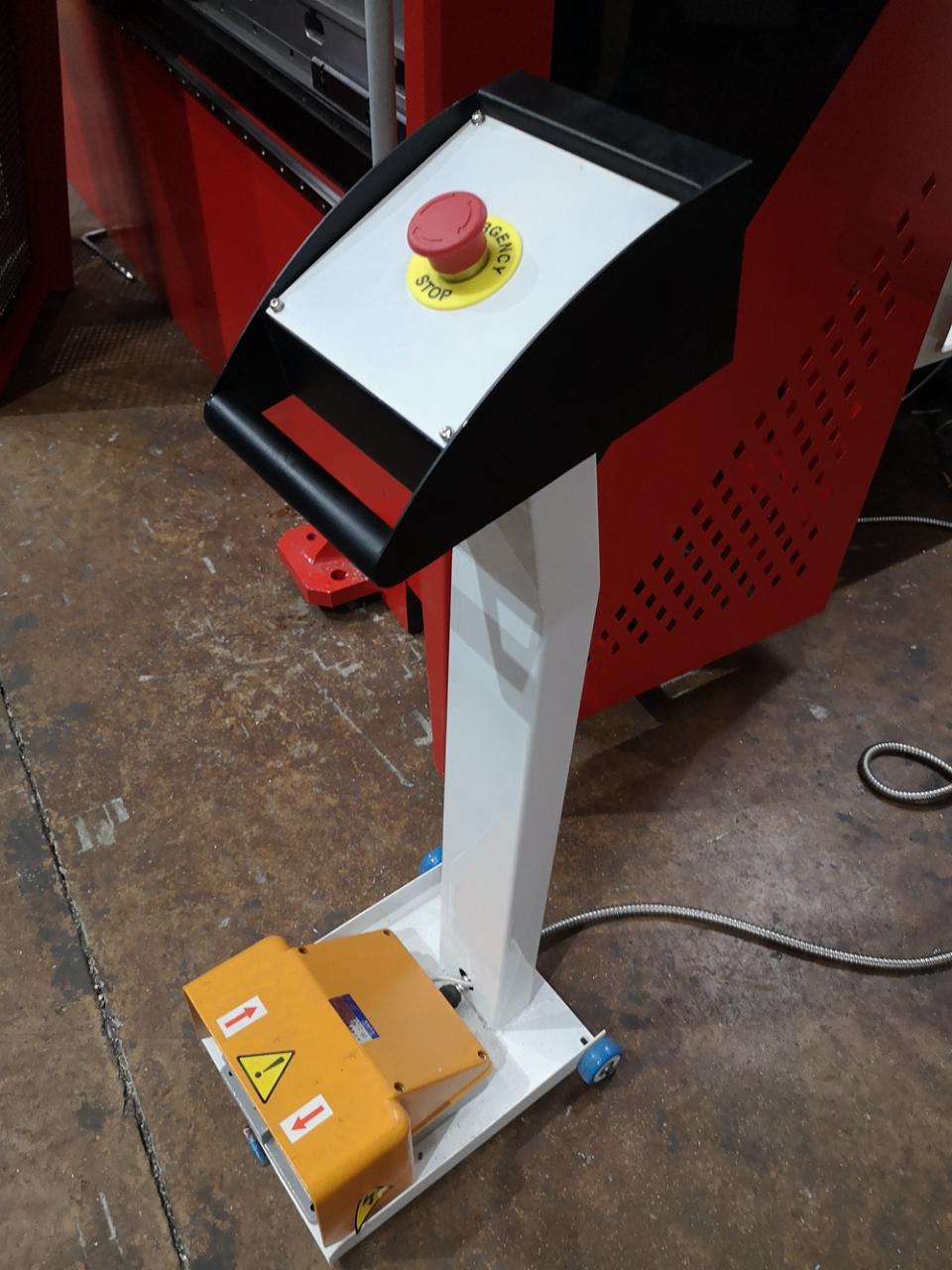

16. Foot Switch Electric Components（Schneider from France）

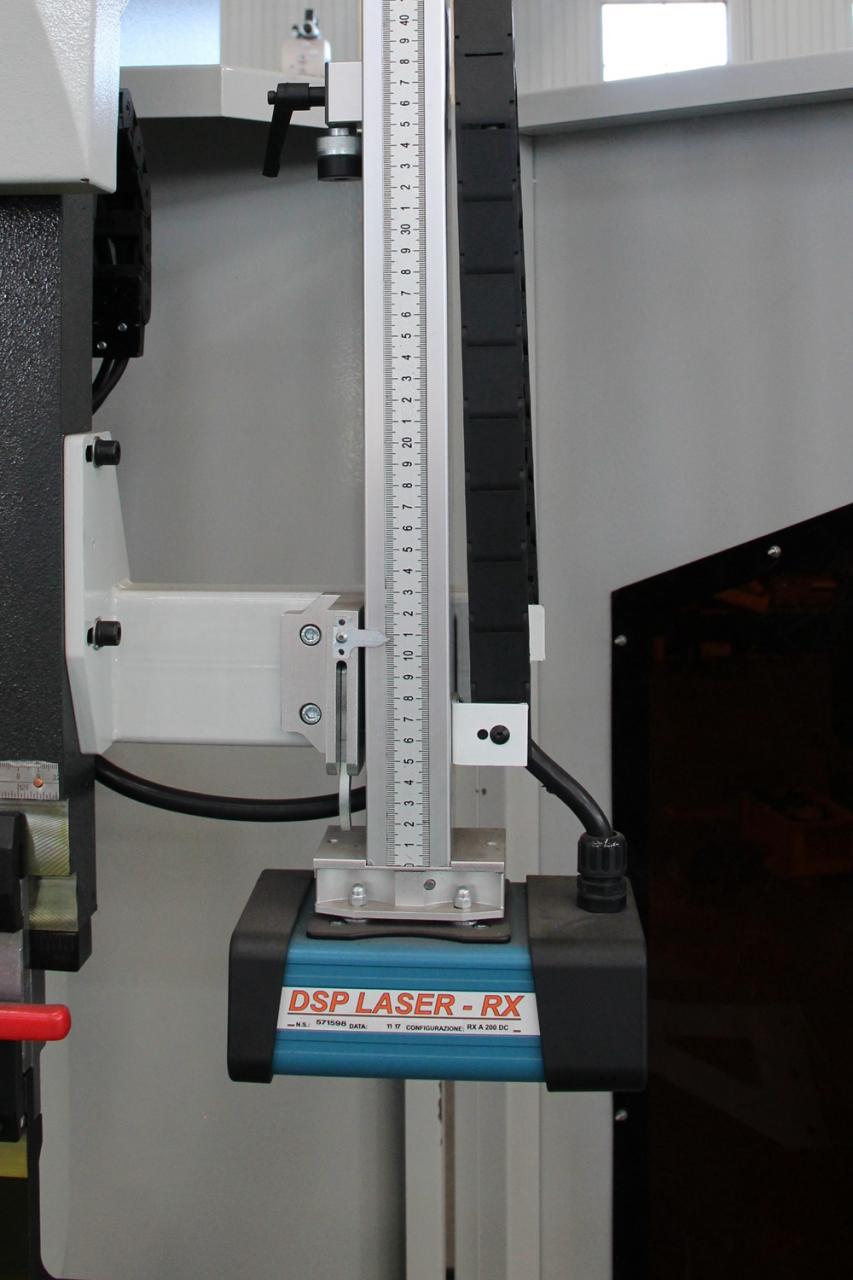

17. DSP Laser Safe （Optional）
The blade stops when obstacle detected by laser.

Technical Parameters

Model	Poles distance(mm)	Throat depth(mm)	Slider stroke(mm)	Max height(mm)	Power(kw)	Weight(kg)	Demension (mm)
40T/2200	1850	230	80	320	4	2750	2200x1200x1900
40T/2500	1850	230	80	320	4	3000	2500x1200x1900
63T/2500	1900	250	100	320	5.5	4000	2500x1300x2210
63T/3200	2560	250	100	320	5.5	4800	3200x1300x2210
80T/2500	1990	300	100	320	7.5	5000	2500x1400x2300
80T/3200	2560	320	100	350	7.5	6000	3200x1500x2300
80T/4000	3200	320	100	350	7.5	7000	4000x1500x2400
100T/2500	1990	320	120	350	7.5	6000	2500x1600x2400
100T/3200	2600	320	120	400	7.5	6800	3200x1600x2600
100T/4000	3200	320	120	400	7.5	8000	4000x1600x2600
125T/3200	2600	320	120	400	7.5	7000	3200x1600x2600
125T/4000	3200	320	120	400	7.5	8500	4000x1600x2600
160T/3200	2580	320	120	460	11	10000	3200x1700x2700
160T/4000	2900	320	160	460	11	11000	4000x1700x2800
160T/5000	3900	320	160	460	11	13500	5000x1900x3100
160T/6000	4900	320	160	460	11	18500	6300x1900x3200
200T/3200	2480	320	200	460	11	11000	3200x1950x2800
200T/4000	2900	320	200	460	11	12500	4000x1950x2800
200T/5000	3900	320	200	460	11	14000	5000x1950x3000
200T/6000	4900	320	200	460	11	20000	6000x1950x3300
250T/3200	2450	400	250	590	18.5	18500	3250x2000x3200
250T/4000	2900	400	250	590	18.5	20000	4000x2000x3400
250T/5000	3900	400	250	590	18.5	23000	5000x2000x3400
250T/6000	4900	400	250	590	18.5	27000	6000x2000x3400
300T/3200	2450	400	250	590	22	20500	3200x2000x3450
300T/4000	2900	400	250	590	22	22000	4000x2000x3450
300T/5000	3900	400	250	590	22	25000	5000x2000x3450
300T/6000	4900	400	250	590	22	28000	6000x2000x3450
400T/3200	2400	400	250	590	30	22500	3200x2180x3400
400T/4000	2900	400	250	590	30	25000	4000x2180x3400
400T/5000	3900	400	250	590	30	29000	5000x2180x3500
400T/6000	4900	400	250	590	30	34000	6000x2180x3800
500T/5000	3900	400	250	590	45	42000	5050x3500x3700
500T/6000	4900	400	320	590	45	54000	6050x3500x3700
600T/4000	2900	400	320	590	55	44000	4050x4500x3700
600T/6000	4900	400	320	590	55	60000	6050x4500x3700

Details

• Slider Stroke (mm): 120 mm
• Automatic Level: Fully Automatic
• Throat Depth (mm): 320 mm
• Machine Type: Synchronized
• Length of Working Table (mm): 3200 mm
• Width of Working Table (mm): 150 mm
• Dimension: 3200x1600x2600mm
• Condition: New
• Material / Metal Processed: Brass / Copper, Stainless Steel, ALLOY, Carbon steel, Aluminum
• Automation: Automatic
• Extra Services: End Forming
• Year: 2020
• Weight (KG): 7000
• Motor Power (kw): 7.5 kw
• Key Selling Points: Multifunctional
• Warranty: 2 years
• Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops
• Showroom Location: None
• Marketing Type: New Product 2020
• Machinery Test Report: Provided
• Video outgoing-inspection: Provided
• Warranty of core components: 1 Year
• Core Components: Bearing, Motor, Pressure vessel, Engine, Other
• Model: WE67K Series-125T/3200
• Raw Material: Sheet / Plate Rolling
• Control system: Delem DA66T
• Control Axes: Y1 Y2 X W-axis Crowning
• Electrical Components: Schneider from France
• Main Motor: Siemens from Germany
• Lead Time: 15days
• Usage: Metal Sheet Bending
• Certification: CE ISO
