Electro-hydraulic Cnc Press Brake Automatic Metal Sheet Bending Machine

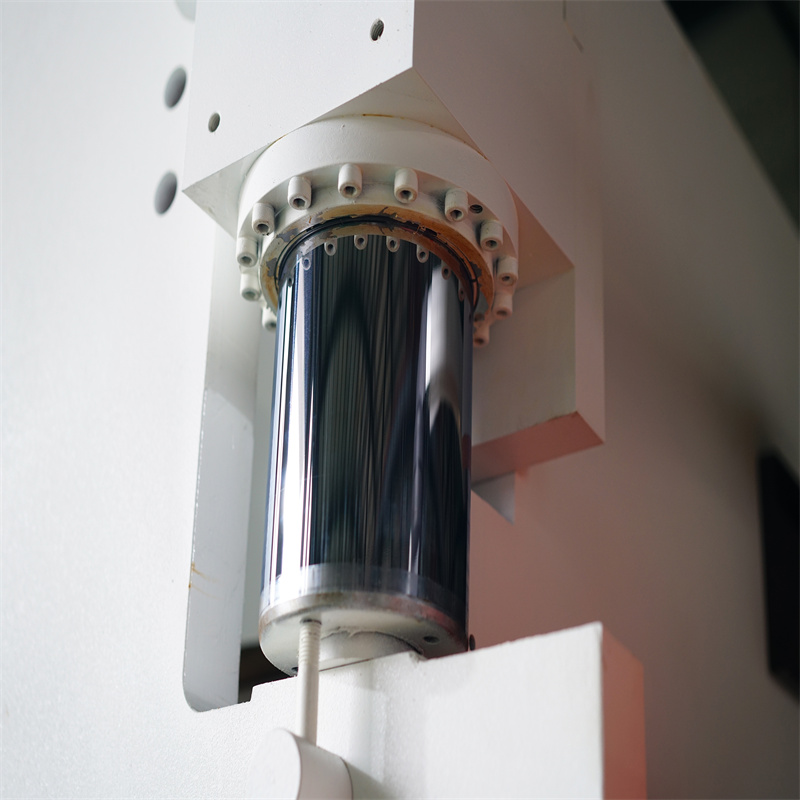

1. The electric-hydraulic servo system can control the synchronization of two cylinders. Combined with optical curtain of international standard, the fully closed loop control is formed with high synchronization control accuracy, and high bending and repetitive positioning accuracy.

2. The CNC cylinder deflection auto compensation system helps to prevent the deformed sliding block from affecting the work piece quality and ensure its good linearity and bending angle. The compensation is adjusted automatically by the CNC system, both convenient and accurate.

3. The full functional back gauge system can be extended up to six axes. The work piece can be bent at whatever angled. After welding, the body is machined with the fixture installed only one time. It is processed by CNC pentahedron machining center, ensuring high rigidity and processing accuracy.

4. The hydraulic system adopts the integrated one, which helps to reduce piping connection, eliminate oil leakage, improve the work stability, and beautify the machine appearance. The inner engaged gear pump manufactured by a famous German company is used to reduce the system noise and extend the service life.

5. The up die sections have different lengths, which can be combined with a certain width to meet the processing requirements of special work pieces.

6. The up die hydraulic automatic fastener or quick fastener and plug-in lower die can be equipped based on the customer requirement to reduce work load and improve productivity.

Product Paramenters

Model	Nominal Pressure(KN)	Table Length(mm)	Column Distance(mm)	Throat Depth(mm)	Slider Stroke(mm)	Open Height(mm)	Main Motor(KW)
WE67K-63/2500	630	2500	2000	320	150	380	5.5
WE67K-63/3200	630	3200	2600	250	110	350	5.5
WE67K-100/2500	1000	2500	2000	350	150	400	7.5
WE67K-100/3200	1000	3200	2600	350	150	400	7.5
WE67K-100/4000	1000	4000	3200	350	150	400	7.5
WE67K-100/5000	1000	5000	4000	350	150	400	7.5
WE67K-125/2500	1250	2500	2000	350	150	410	7.5
WE67K-125/3200	1250	3200	2600	350	150	410	7.5
WE67K-125/4000	1250	4000	3200	350	150	410	7.5
WE67K-125/5000	1250	5000	4000	350	150	410	7.5
WE67K-125/6000	1250	6000	4500	350	150	410	7.5
WE67K-160/2500	1600	2500	2000	350	150	425	11
WE67K-160/3200	1600	3200	2600	350	150	425	11
WE67K-160/4000	1600	4000	3200	350	150	450	11
WE67K-160/5000	1600	5000	4000	350	150	450	11
WE67K-160/6000	1600	6000	4500	350	150	450	11
WE67K-200/3200	2000	3200	2600	350	150	460	11
WE67K-200/4000	2000	4000	3200	350	150	460	11
WE67K-200/5000	2000	5000	3800	350	150	460	11
WE67K-200/6000	2000	6000	4500	350	150	460	11
WE67K-250/3200	2500	3200	2600	400	245	525	15
WE67K-250/4000	2500	4000	3200	400	245	525	15
WE67K-250/5000	2500	5000	3800	400	245	525	15
WE67K-250/6000	2500	6000	4500	400	245	525	15
WE67K-300/3200	3000	3200	2600	400	245	545	22
WE67K-300/4000	3000	4000	3200	400	245	545	22
WE67K-300/5000	3000	5000	3800	400	245	545	22
WE67K-300/6000	3000	6000	4500	400	245	545	22
WE67K-400/4000	4000	4000	3200	400	245	560	22
WE67K-400/5000	4000	5000	3600	400	245	560	22
WE67K-500/4000	5000	4000	3200	450	245	600	30
WE67K-500/5000	5000	5000	3600	450	245	600	30

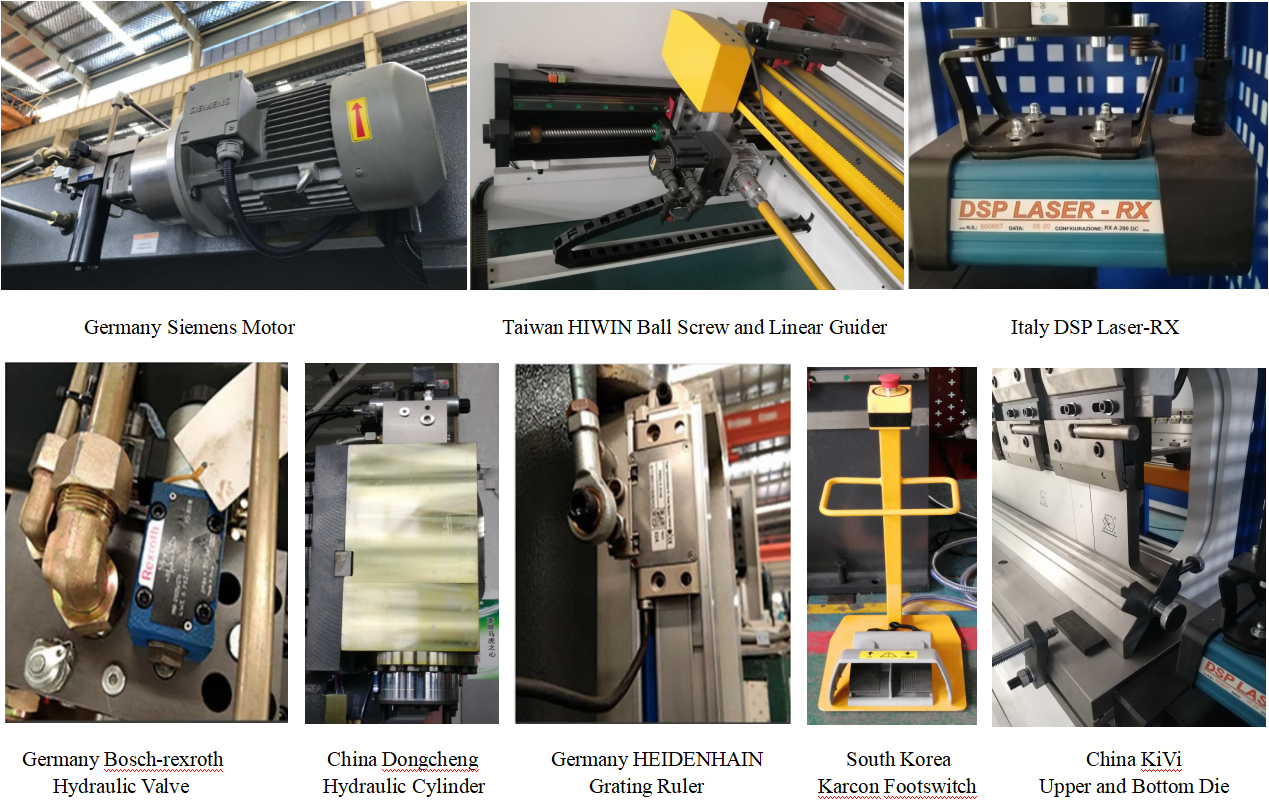

Details Images

FAQ

1. Q:Are you a factory or trading company?

A: We are a factory.

2. Q:Can you supply the relevant documentation?

A: Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.

3. Q:How does your factory do regarding quality control?

A: "Quality is priority". we always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO, CE certificate.

4. Q: How long is the product warranty period?

A: We will provide one year warranty for all products.

5. Q: I would like to ask you if it's possible to have my logo on the product.

A: We hope you know that our company perfectly support customized logo service. But, we also hope you know that it's an extra service,so a little bit extra service fee is needed.

Details

• Slider Stroke (mm): 150 mm
• Automatic Level: Fully Automatic
• Throat Depth (mm): 350 mm
• Machine Type: Synchronized
• Length of Working Table (mm): 3200
• Width of Working Table (mm): 200 mm
• Dimension: 3740*1650*2355mm
• Condition: New
• Material / Metal Processed: Brass / Copper, Stainless Steel, ALLOY, Carbon steel, Aluminum
• Automation: Automatic
• Extra Services: Machining
• Weight (KG): 7500
• Motor Power (kw): 7.5 kw
• Key Selling Points: High-accuracy
• Warranty: 2 Years
• Applicable Industries: Machinery Repair Shops, Manufacturing Plant
• Showroom Location: Egypt, Viet Nam, Russia, Argentina, Chile
• Marketing Type: Factory Sales
• Machinery Test Report: Provided
• Video outgoing-inspection: Provided
• Warranty of core components: 5 Years
• Core Components: Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Engine, Gearbox
• Model: WE67K-100/3200
• Column Distance: 2600 mm
• Material: Stainless Steel, Alloy, Carbon Steel
• Color: Gray or Designated
• After Warranty Service: Video technical support, Online support
