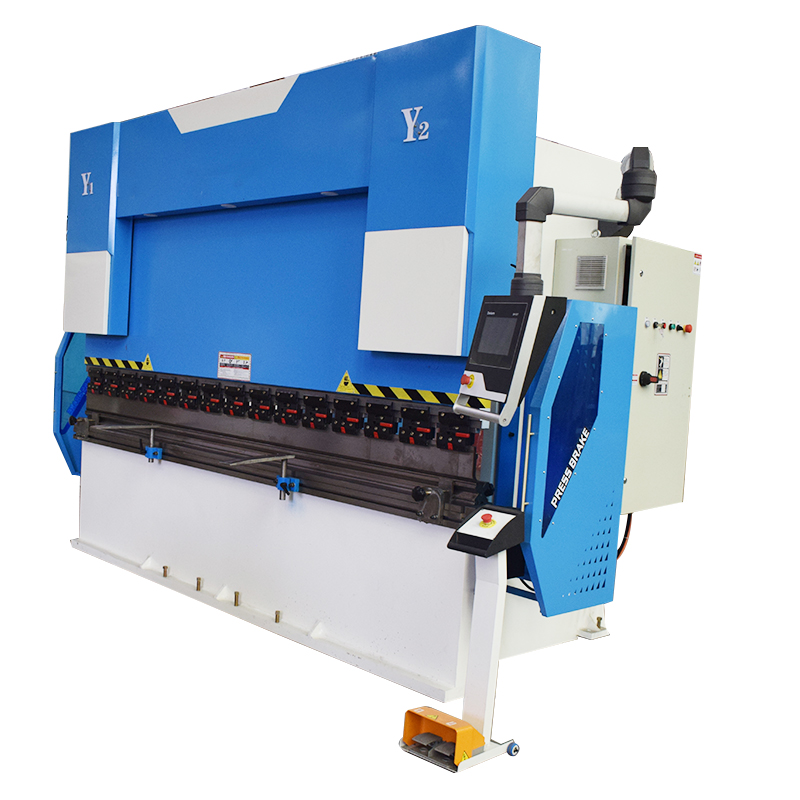

Factory Supply Electro Hydraulic Press Brake Cutting Bending Machine

Product Description

Electro hydraulic synchronous CNC bending machine

Adhering to the European design concept, it is a new generation of CNC bending machine with simple appearance, practical and efficient, stable and reliable, high cost performance and low failure ratePerformance characteristics

1. The fuselage adopts integral welding and integral processing structure, and the main components of the fuselage are analyzed by ANSYS finite element analysis software, so as to ensure the reliability of the machine tool and the accuracy of the whole machine;

2. The main cylinders on both sides break through the stroke control mode of the traditional mechanical stop bending machine,but adopt the closed-loop control mode composed of electro-hydraulic servo valve imported from Germany and imported grating ruler. The slider position feedback accuracy is high, the operation is accurate and stable, the synchronization performance is good, and the bending accuracy and the repeated positioning accuracy of the slider are high;

3. The functional parts in the rear material retaining are imported parts, which ensures the material retaining accuracy of the rear material retaining, and the rear material retaining mechanism with more complete functions of multiple rear material retaining shafts can be adopted according to the needs of customers;

4. The hydraulic system adopts the integrated control system imported from Germany, which reduces the installation of pipelines, ensures the working stability of the machine tool, and has a simple and beautiful appearance;

5. Both sides of the fuselage are equipped with C-type plates, and the high-precision grating ruler is installed on the C-type plate, so as to avoid the influence of fuselage deformation on bending accuracy during bending;

6. The lower worktable has a hydraulic deflection automatic compensation mechanism, which realizes effective compensation without blind area, high bending accuracy and long-term stability;

7. The numerical control system adopts the special numerical control system for electro-hydraulic servo bending machine of ESA in Italy, delem in the Netherlands or cybelec in Switzerland, which can realize the functions of bending angle graphic programming, angle correction and compensation, automatic calculation and automatic adjustment of bending pressure, automatic calculation of workbench deformation compensation, workpiece unfolding length, bottom bending pressure, opening distance, automatic return of rear stop, etc.

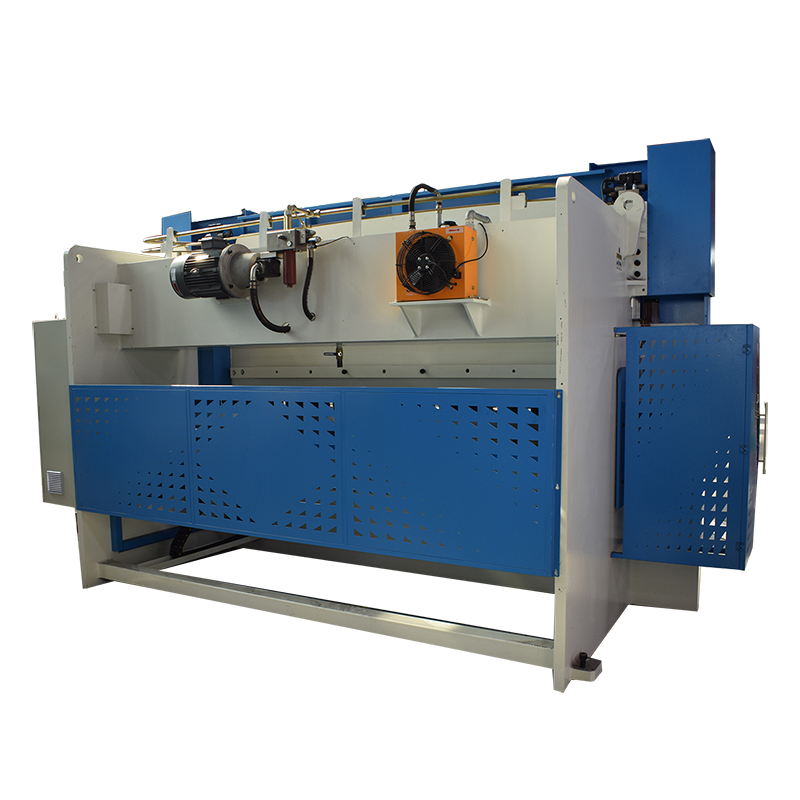

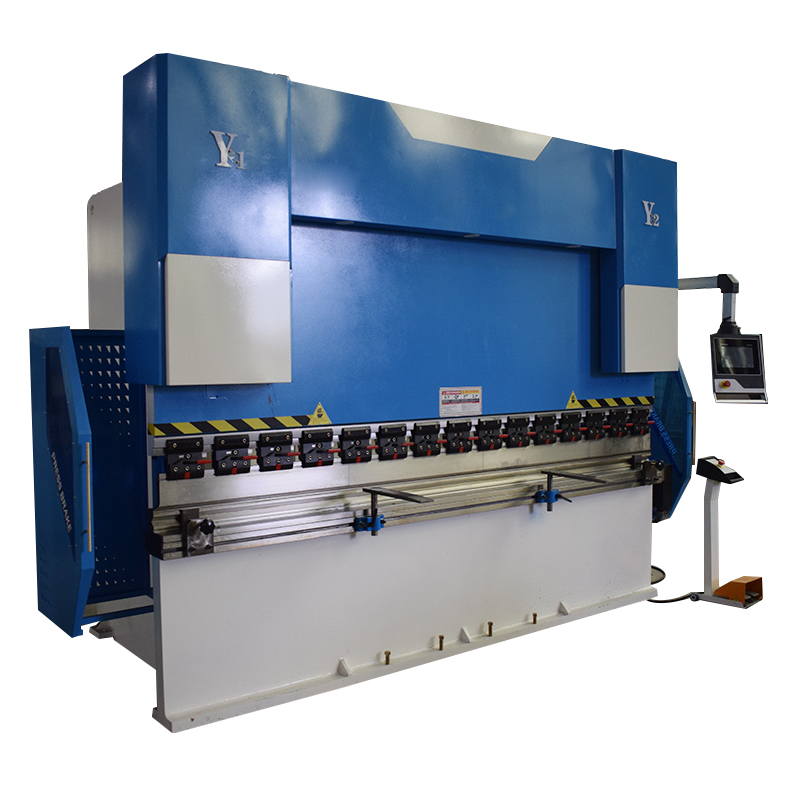

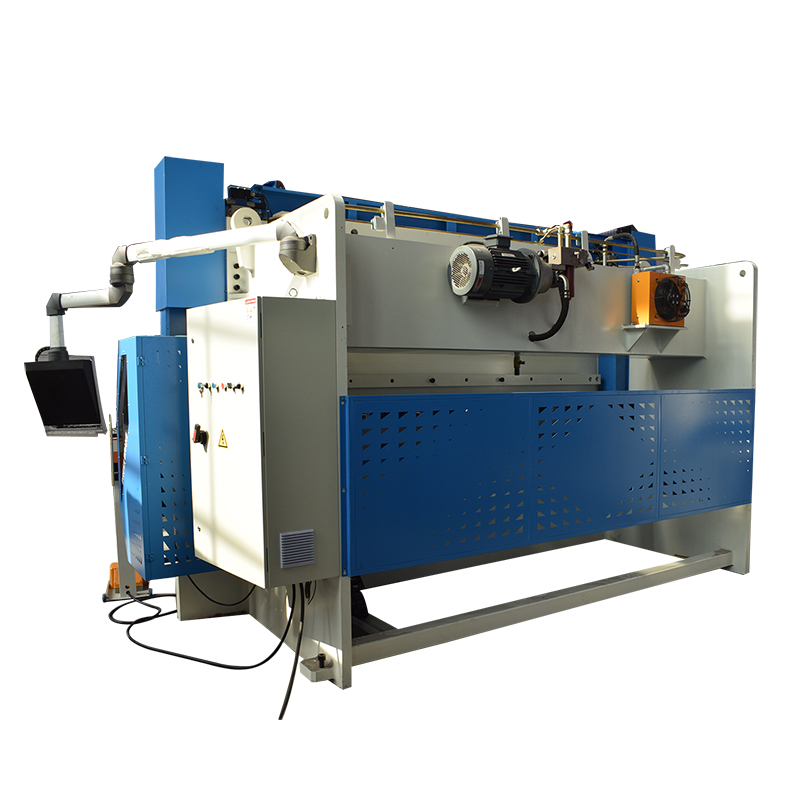

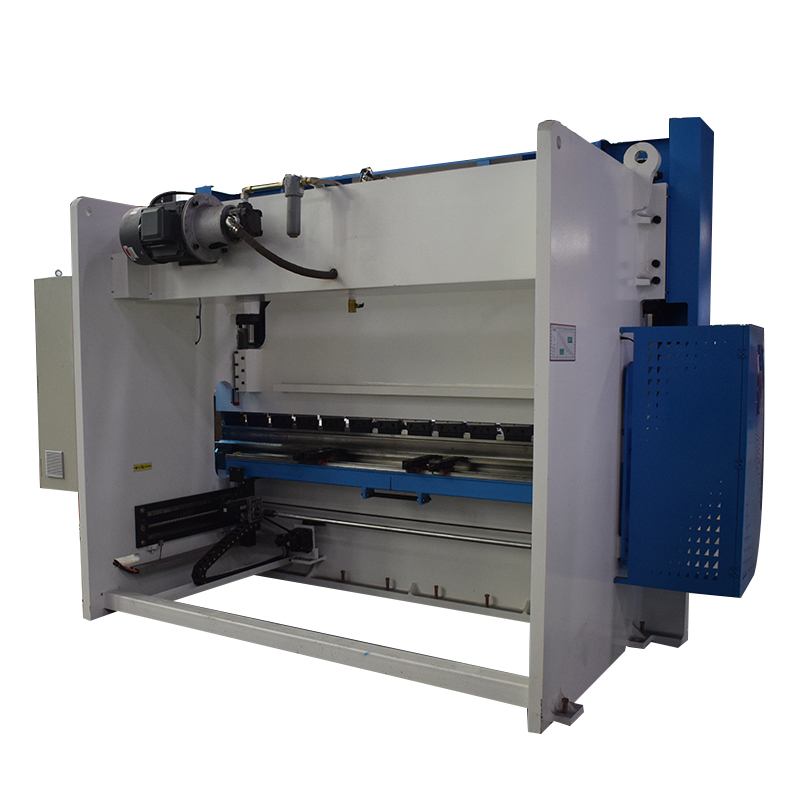

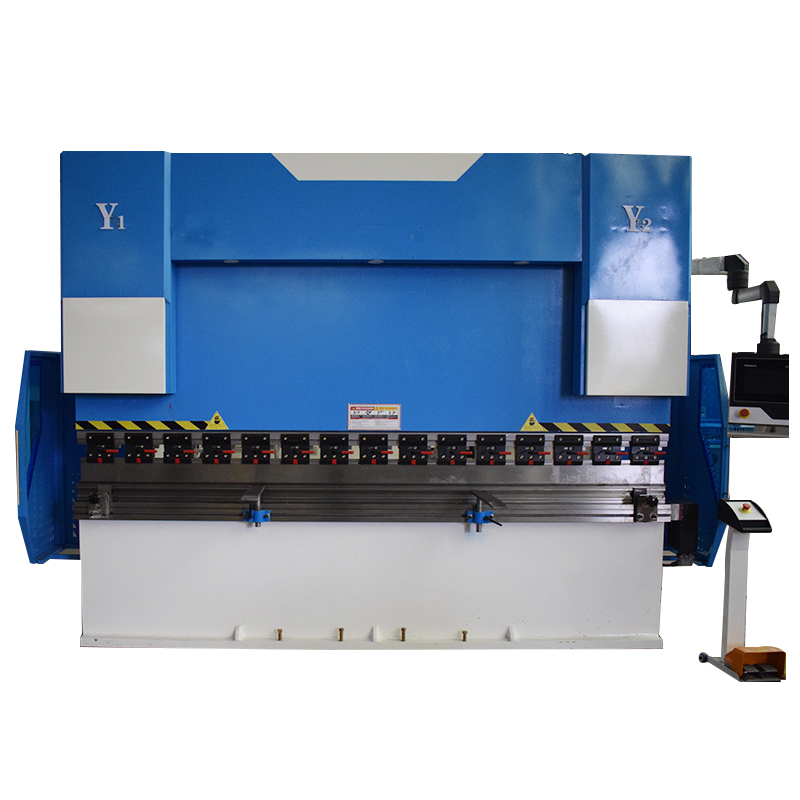

Details Images

Da-52s / DELEM.

♦ One page parameter fast programming
♦ Navigation shortcuts
♦ 7 "widescreen color TFT
♦ Maximum 4-axis control (YL / Y2 and two additional axes)
♦ Table deflection compensation control
♦ Mold / material / Product Library
♦ Advanced Y-axis control algorithm can control both closed-loop and open-loop valves
♦ Panel mounting structure, optional suspension box

Da-53t / DELEM.

♦ 10.1 'high resolution true color TFT display
♦ up to 4 axis control (Y1, Y2 2 auxiliary axes)
♦ deflection compensation control
♦ with mold /material / Product Library
♦ Support servo or frequency conversion control
♦ advanced Y-axis control algorithm can control both closed-loop valve and open-loop valve.
♦ network dual computer linkage (optional)
♦ USB peripheral interface. Profile-53tl offline programming software

Da-58t / DELEM.

♦ 2D touch graphics programming
♦ 15 "high resolution TFT true color display
♦ Bending operation calculation
♦ Disturbance compensation control
♦ Servo and frequency converter control mode
♦ Advanced Y-axis control algorithm can control both closed-loop valve and open-loop valve.
♦ USB interface. Profile-58tl offline programming software

Da-66t /DELEM

♦ 2D touch graphics programming
♦ 3D product graphic simulation display
♦ 17 "high resolution TFT true color display
♦ Complete windows application package
♦ Compatible with DELEM modular structure system
♦ USB, peripheral interface
♦ User application in multitasking environment
♦ Angle detection sensor interface

CybTouch8/ CYBELEC

♦ Large touch screen, bright color, high contrast.
♦ Convenient interface, clear display and large icon buttons.
♦ Visual, friendly and easy to operate man-machine interface.
♦ Perfect programming can improve the efficiency of batch multi-step bending.
♦ One-step bending of the page is very convenient
♦ Online help and pop-up prompts make the software interface very friendly.
♦ Using PCs or laptops, data can be upgraded and transmitted through wireless software.
♦USB interface transfers/backs up data
♦Support multiple languages

CYB Touch 12/CYBELEC.

@font-face{ font-familyTimes New Roman"; } @font-face{ ♦ Large touch screen, bright color, high contrast.
♦ Convenient interface, clear display and large icon buttons.
♦ Visual, friendly and easy to operate man-machine interface
♦ Perfect programming can improve the efficiency of batch multi-step bending.
♦ One-step bending of the page is very convenient.
♦ Online help and pop-up prompts make the software interface very friendly.
♦ Using PCs or laptops, data can be upgraded and transmitted through wireless software.
♦ USB interface transfers/backs up data.
♦ Support multiple languages

Type	WE67K-400T/4000	WE67K-500T/7000	WE67K-600T/7000
Nominal Force	4000KN	5000KN	6000KN
Bending length	4000mm	7000mm	7000mm
Poles Distance	3500mm	5900mm	5900mm
Throat Depth	400mm	500mm	500mm
Slider Travel	320mm	320mm	320mm
Die loading Height	420mm	600mm	600mm
Power	30kw	37kw	45kw
Axes	3 1	3 1	3 1
Travel	500mm	800mm	800mm
Speed	200mm/s	200mm/s	200mm/s
Dimension (mm)	4500x2450x3500	6500x2810x4500	7500x2910x5200

FAQ

1.How long is your delivery time?

lt is according to the model and quantity.Generally it is 3-5 days if the machines are in stock.lt will be 15-30 days if you want to customize the machines.

2.Do you provide samples? ls it free or extra?

Yes, we could offer you the sample machine.But it's not free. You need to pay for the sample and the cost of freight.

3.What is your terms of payment?

We accept T/T, Western Union, Money Gram,Paypal,Alibaba Escrow etc.Payment<=USD 5000,100% in advance.Payment>=USD 10000,50%T/T in advance, balance before shipment.

Details

• Slider Stroke (mm): 200 mm
• Automatic Level: Fully Automatic
• Throat Depth (mm): 500 mm
• Machine Type: Bending Machine
• Length of Working Table (mm): 400
• Width of Working Table (mm): 280 mm
• Condition: New
• Place of Origin: China
• Material / Metal Processed: Brass / Copper, Stainless Steel, ALLOY, Carbon steel, Aluminum, Plastic, PVC
• Year: 2020
• Weight (KG): 21000
• Motor Power (kw): 22 kw
• Key Selling Points: long service life
• Warranty: 1 Year
• Applicable Industries: Hotels, Building Material Shops, Manufacturing Plant, Retail, Construction works
• Showroom Location: None
• Marketing Type: New Product 2020
• Machinery Test Report: Provided
• Video outgoing-inspection: Provided
• Warranty of core components: 2 years
• Core Components: Motor, Pump, PLC
• Bending length: 2500-3200mm
• Pol" Distance: 1900-2700 mm
• Throat Depth: 350-400 mm
• Slider Travel: 170-200mm
• Die loading Height: 380-420mm
• Weight (KG):: 21000 KG
• Dimension(L*W*H):: 4500*2450*3500
• model: WE67K-400T/4000
• After-sales Service Provided: Video technical support
• After Warranty Service: Video technical support
