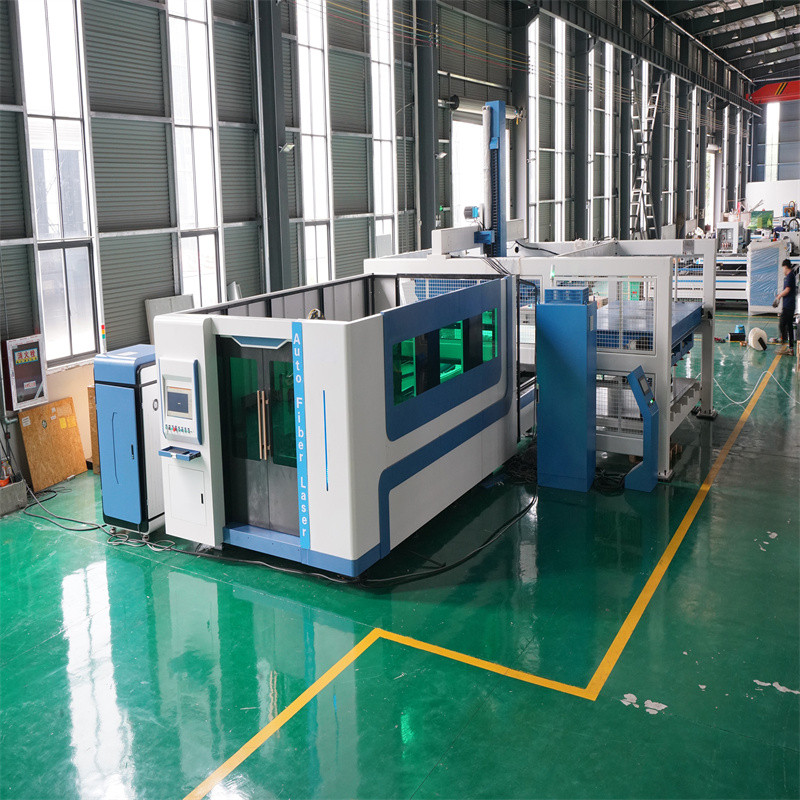

High Precision Cnc Medium Width Metal Sheet Fiber Laser Cutting Machine

Parameter

Laser type	Fiber laser
Laser wavelength	1070mm
Cutting range	1300*900mm
Laser power	500w/800w/1000w/1500w/2000w
Cutting thickness	0.3-10mm（depends on materials）
Minimum line width	0.1mm
X/Y axis positioning accuracy	±0.02mm
Repeated positioning accuracy of X/Y axis	±0.01mm
Maximum speed	≤70m/min
Maximum acceleration	≤1G
Machine weight	1500kg
Loadable weight	200kg
Power Requirements	Single-phase AC 220V,50Hz,32A
Size	220018501600mm

Products Description

1. High Precision laser cutting machine

Stable, mature technology, high cutting efficiency, small footprint, flexible application with full-time cutting, high utilization
of the materials, strong expandability , and very flexible

2. High-precision host

Precision linear guide, high precision positioning, less wear; can keep high precision for a long time, easy and interchangeable

3. Laser cutting head

The laser cutting head is equipped with a sensitive bus-type capacitor, which can be adjusted to the ideal focal length to ensure
the cutting efficiency and cutting effect

4. Precise cutting

Realize the precise cutting and nearly without error and the cutting surface is smooth and flat

Sample Show

Our Services

---Pre-Sales Service

① Free pre-sales 7*24 hours rapid response services / cousulting

② Free sample testing / inspection

③ Free design of fixtures as customers / distributor required

④ Strict quality control for our products

⑤ Quick delivery time

---After-sales Services

① 2 year guarantee for laser source(people damaged are charged)

② Full technical support / by e-mail, call and video

③ Spare parts supply.

④ Free online training installation and operation

⑤ 12 hours quick feedback & after-sales services

⑥ ODM/OEM service

FAQ

1. What model does RAYMAX produce?

Production of Laser Welding series, Laser Cleaning series, Laser Cutting series and Laser New energy automation, etc.

2. What are the payment methods of RAYMAX Company?

T/T, LC, CAD, OA, Trade Insurance, Alibabapay

3. Does Herolaser accept Acceptance?

Yes, we accept bank acceptances within 6 months, not commercial acceptances.

4. Can I visit the factory?

Available to have a visit to our factory at any time.

5. What can I get with the purchase of equipment?

Each machine has a set of standard accessories.

6. Can I go to the factory to test the machine before shipment?

Of course you can.

7. How is the delivery and shipment?

Ship in 7 days after 100% payment; Packaged with Plywood box.

Details

Application: LASER CUTTING
Applicable Material: Glass, Metal, Plastic, Wood, Crystal
Condition: New
Laser Type: Fiber Laser
Cutting Area: 1300mm*900mm
Graphic Format Supported: DXF
Cutting Thickness: Carbon ≤8mm;SS ≤4mm; AA ≤2mm; Copper ≤2mm;
CNC or Not: Yes
Cooling Mode: WATER COOLING
Control Software: BCM1604
Laser Source Brand: IPG, MAX
Laser Head Brand: Precitec, Ospri
Servo Motor Brand: Yaskawa
Guiderail Brand: HIWIN
Control System Brand: Cypcut
Weight (KG): 1500 KG
Key Selling Points: High Safety Level
Optical Lens Brand: Wavelength
Warranty: 2 years
Applicable Industries: Building Material Shops, Manufacturing Plant, Advertising Company, Metal processing industry, Sheet metal processing, Mechanical Parts, Glasses Industry, Hardware industry
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 2 years
Core Components: PLC, Laser source
Mode of Operation: continuous wave
Configuration: 2-axis
Products handled: Sheet Metal
Feature: Water-cooled
Product name: Small Size High Precision Laser Cutting Machine
Laser power: 1500W
Laser wave length: 1070nm
Positioning accuracy: ≤±0.03mm
Repeated position accuracy: ≤±0.02mm
Max speed of X-axis: ≤20m/min
Max speed of Y-axis: ≤20m/min
Max speed of Z-axis: ≤17m/min
Power supply: AC220V±5%50Hz
Dimension size: 1880*1450*2100(mm)
