Hot Selling Gearbox Cnc Press Brake Manual Sheet Metal Shearing Machine

1. Using fabricated steel structure, with compact, construction and good rigidity stability

2. Integrated hydraulic transmission system, with good reliability

3. Using Back gauge using intelligent digital display device, shear quantity can be automatic counted, distance of back gauge can be set according to requirements of customers

4.  Moving orbit of the blade beams inclines forwards to the supporting surface of the bottom blade, so you can gain fine shear surface. Jacking screws of the top blade provide a fine adjustment to minimize “rag” or “burring” on the sheared edge of the material. The hold-down assembly adopts the butterfly springs. There are antiskid heel block on the hold-down device of hold-down plate. The pressure is bigger, but it doesn’t damage the sheet-metal surface.

5. Drived by a self-contained, totally enclosed gearbox mounted directly on the main shaft. Its construction is compact and the gear is well lubricated with low noise and long life.

6. Our Machine hasn’t the clutch and the flywheel. It shears the sheet-metal directly drived by the magnetic brake motor. This reduces the idle time of the motor and saves the energy.

7. Front and back gauges are provided with the scale plate displaying the scale. The back gauge may be easily adjusted in synchronism

FAQ

We are factory, and was set up in 2003! Our factory mainly production shearing machine, press brake machine, rolling machine, punching machine, hydraulic press machine ,iron worker, welding machine .

Guarantee period:

Our product quality guarantee period is 12 months from B/L date. During guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by customers' incorrect operations, we will provide customers spare parts at cost price. We also can offer flexible extended warranties according to the actual situation.

After-sales services:

Our engineer can go to your factory for installation and showing operation details on condition of you provide the round-trip air tickets, visa formalities, food and accommodation. In turn, your engineers can come to our factory for learning the installation, operation and maintenance for free.

Why Choose Us:

1. We will run the machine for a few days, and use your materials to do the test. Only guarantee the machine shows best
performance, and then we will ship out.

2. Our elite teams can provide you professional, customized, and all-round services around the clock. If you need any help,
contact us by WHATSAPP, Skype, Email or Telephone.

How can we provide you efficient services (metal processing solution):

There are Three Steps as following:

1. Gather your requirements based on your real working situation.
2. Analyze your information and provide our feedback.
3. Offer options based on your specific needs. For instance, reg. standard products, we can offer professional recommendations; reg. non-standard products, we can offer professional designing.

Details

• Max. Cutting Width (mm): 6000
• Max. Cutting Thickness (mm): 32 mm
• Automatic Level: Semi-automatic
• Shearing Angle: 30°~1°30, 30°~1°45, 30°~2°, 30°~2°30, 1°30~3°, 1°30~3°30, 1°30~4°
• Blade Length (mm): 20 mm
• Throat Depth (mm): 20 mm
• Condition: New
• Power (kW): 55 kW
• Weight (KG): 35000 KG
• Voltage: 220V/380V/400V/415V/480V
• Dimension(L*W*H): 220V/380V/400V/415V/480V
• Year: NEW
• Warranty: 3 years
• Key Selling Points: High-accuracy
• Applicable Industries: Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
• Showroom Location: South Korea, Sri Lanka, Ukraine, Japan
• Marketing Type: Ordinary Product
• Machinery Test Report: Not Available
• Video outgoing-inspection: Provided
• Warranty of core components: Provided
• Core Components: Bearing, PLC, Gearbox

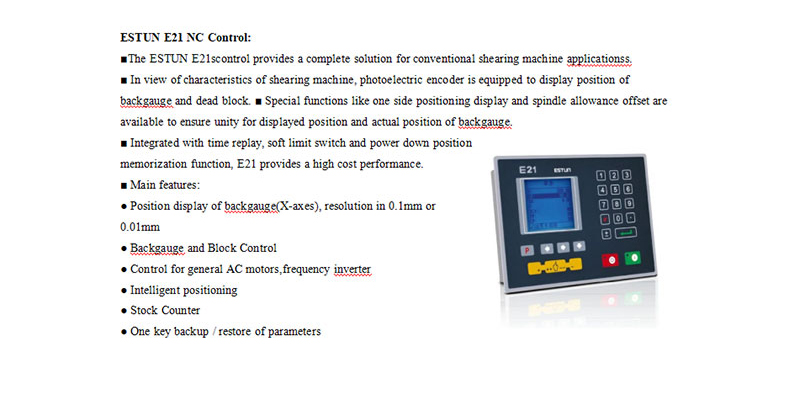

• Controller: E21S
• Color: according customer
• Hydraulic system: for Bosch Rexroth Germany
• Sealing rings: Volqua Japan
• Electric parts: Siemens & Schneider
• Hydraulic oil: 46#
• Max thickness: As per machine specification
• After-sales Service Provided: Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support
• After Warranty Service: Spare parts
• Local Service Location: Nigeria
• Certification: ISO CE
