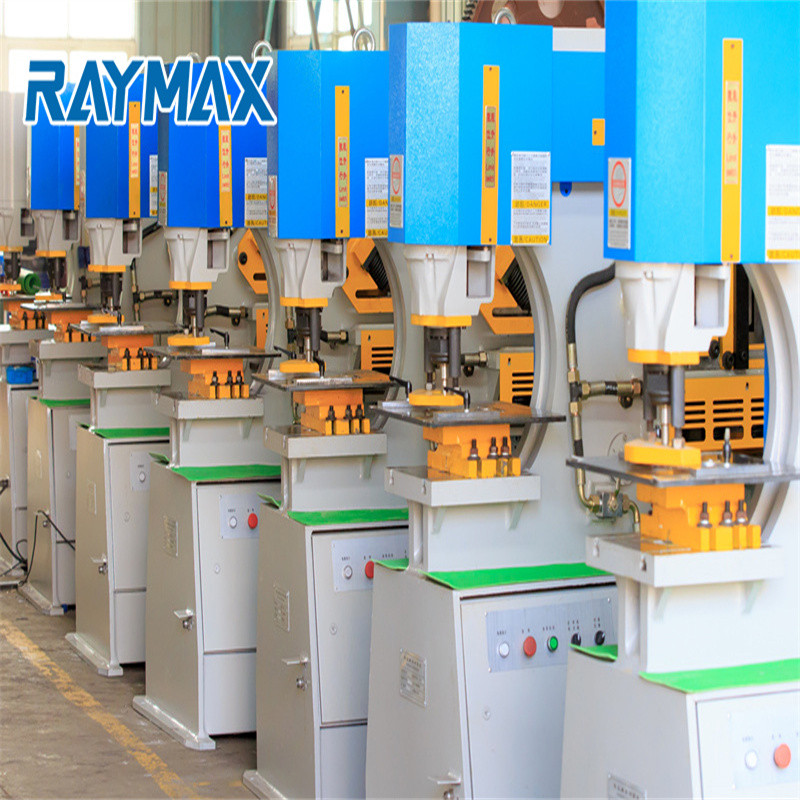

Hydraulic Combined Punching And Shearing Machine Hydraulic Ironworker Shearing Machine

Products Description

Model			Q35Y-16	Q35Y-20	Q35Y-25	Q35Y-30	Q35Y-35	Q35Y-40
Processing Capacity (KN)			550	750	1100	1400	1700	2000
Material Tensile Strength (Mpa)			≤450	≤450	≤450	≤450	≤450	≤450
Flat Shearing	Max. Shearing Capacity (thickness* width (mm)		16×250	20×330	25×330	30×355	30×400	35×450
			8×400	10×480	16×600	20×600	25×600	30×750
Bar Shearing	Square Bar(mm)		40	50	50	55	60	65
	Round Bar (mm)		45	50	60	65	70	75
	C-channel (mm)		126×53	160×5	200×9	280×11	300×11	320×12
	I-beam (mm)		126×74	160×6	200×9	280×10	300×10	320×10
Angle shearing	90° shearing (mm)		125×12	140×12	160×14	180×16	180×8	200×20
	45° shearing (mm)		50x5	50x5	60x6	60x6	80x8	80x10
Hole Punching	Max. Punching Capacity (diameter* thickness) (mm)		Φ25*16	Φ30*20	Φ35*25	Φ38*26	Φ40*35	Φ40*40
Motor (KW)			5.5	5.5	7.5	11	15	18.5
Dimension(mm)		Length	1640	1860	2355	2680	2800	3200
		Width	730	790	960	1040	1260	1440
		Height	1780	1900	2100	2300	2400	2450
Weight			1800	2200	4800	6300	7300	9800

Q35Y series hydraulic ironworker adopt hydraulic driving system. Ironworker can cut punch all kinds of holes. Various metal plates, square bar, angle steel, round iron, flat bars, profiled bars, channel steel and joist steel can be cutted, punched and notched on the machines.

Accessories List

* A set of hole punching die
* A set of angle steel blade
* A set of channel blade
* A set of shearing plate blade
* A set of notching blade

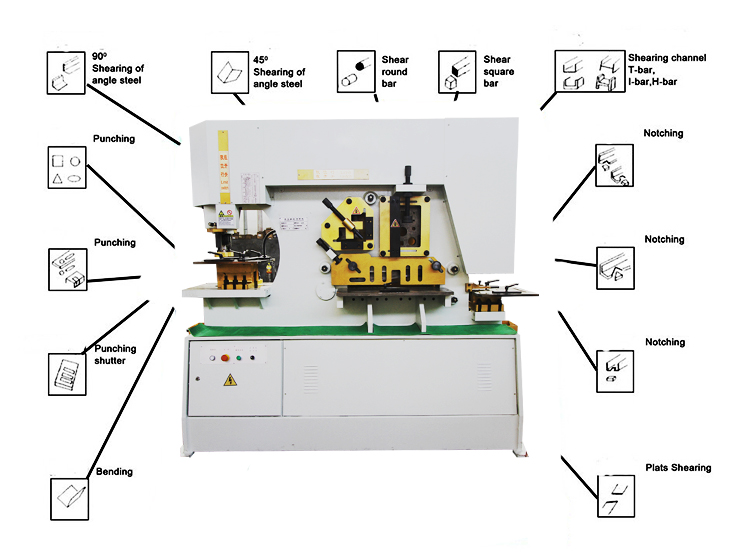

Shearing Station

a. Round & square bar shearing: there are multiple holes for a varity of sizes. Adjustable hold down device is convenient for shearing various sizes of round and square bar, channel, joist, etc.

b. Flat bar shearing: large 15" squraing arm with inlaid scale as standard equipment. Special anti-disorted blade for quality cutting. Lower blade has four usage edges. There is screw allow for gap adjust no shim needed.

c. Angle iron shearing: the angle iron shear has the ability to cut angle iron at 45 degrees & 90 degrees withe diamond shaped blade. e.g. This gives the operator the ability to make a picture frame corner for perfect welds.d. Diamond shaped blade for quality cuts that is minimal material wast. Easily adjustable hold-down device for accurate plate cutting.

Punching Station

a. Large viewing window on stripper.

b. Swing-away design for easy operation.

c. Available unique style allows for large angle iron punching and large channel punching.

d. Quick change coupling nut and sleeve for rapid replacement change

e. Large two pieces gauging table with rules and stop as standard equipment.

Notching Station

a. Unique design for unsurpassed cutting of angle and flat bar.

b. Electrical interlock safety guard and three gauging stops for precise positioning.

c. with ventilated device for good visibility.

d. The notching station also has an oversized table with material stops.

Electronic back gauge device

a. With 3 supporting feet.

b. Fine adjustment assures precision cuts.

c. Fully protected electrical hardness for safety and reliability.

d. Large contact button for high efficiency productivity.

FAQ

1. How about your machine quality? We are worry about the quality.

A: RAYMAX is a mature brand in CHINA,through our 20 years research in technology,our design including structure and detailed sercurity and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry ,there are Brillante machines.And where there are our machines,there are good reputation and terminal user satisfaction.

2. Whether the machine price can be more discount?

A: 1.RAYMAX always provide high quality machine,as we know, oversea market is more important and difficult than domestic market because of communication time costing after sales, So always,our machine has enough qaulity standard to make sure the machine can work more than the real warranty period. In this way ,we will save a lot and think in advance for the clients.

A:2. Actually RAYMAX also think about our price level,we are sure to provide quality=price and pice=quality ,the matched priceand acceptable for the clients and durable for our machines.We welcome your negotiate with us and get a good satisfaction.

3. How about your manufactory in CHINA?

A: RAYMAX is located in the ancient capital of the Six Dynasties as the capital city of Anhui Provice. We have worked about 15 years in this area and totally have about 300 staffs. Rich experience in this field with professional technical supporting and oriented service. We welcome your visit to us any time.

4. Where are you? Can I visit you?

A: Sure, welcome to you visit our factory at any time.

5. How about the delivery time?

A: Within 15-35 days after we confirm you requirement.

6. What kind of payment does your company support?

A: T/T, 100% L/C at sight, Cash, Western Union are all accepted if you have other payment,please contact me.

Details

• CNC or Not: CNC
• Condition: New
• Nominal Force (kN): 7
• Power Source: Hydraulic
• Place of Origin: China
• Weight (T): 11
• Key Selling Points: High Productivity
• Warranty: More than 5 years
• Showroom Location: None
• Applicable Industries: Machinery Repair Shops
• style: Luxury
• Product name: combined punching and shearing machine
• Raw Material: Sheet
• Application: Transformer
• Machine Type: shearing machine
• Motor Power: 7.5kw
• After-sales Service Provided: Free spare parts, Online support, Video technical support, Field installation, commissioning and training
• After Warranty Service: Video technical support, Spare parts, Online support
