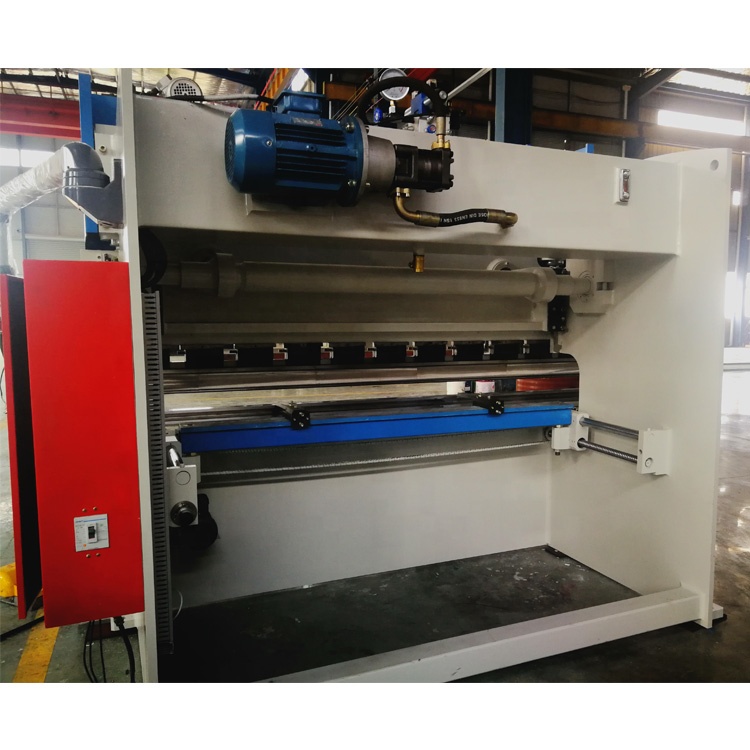

Hydraulic Press Brake 3 Meter 160 Ton High Quality Cnc Wc67y-Bending Machine

Product Description

Hydraulic press brake cnc bending machine with precision backgauge, servo motor,safety protection, fast clamp, ball screw and linear guide. All from Germany, USA, Holland, Italy Brand parts. The bend thickness and length can be manufactured customized.

High precision back gauge

Cuttable graphics

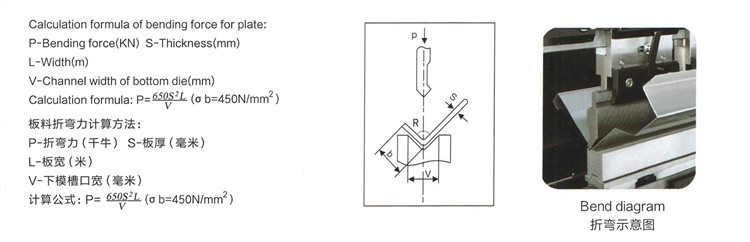

Calculation method of sheet bending force

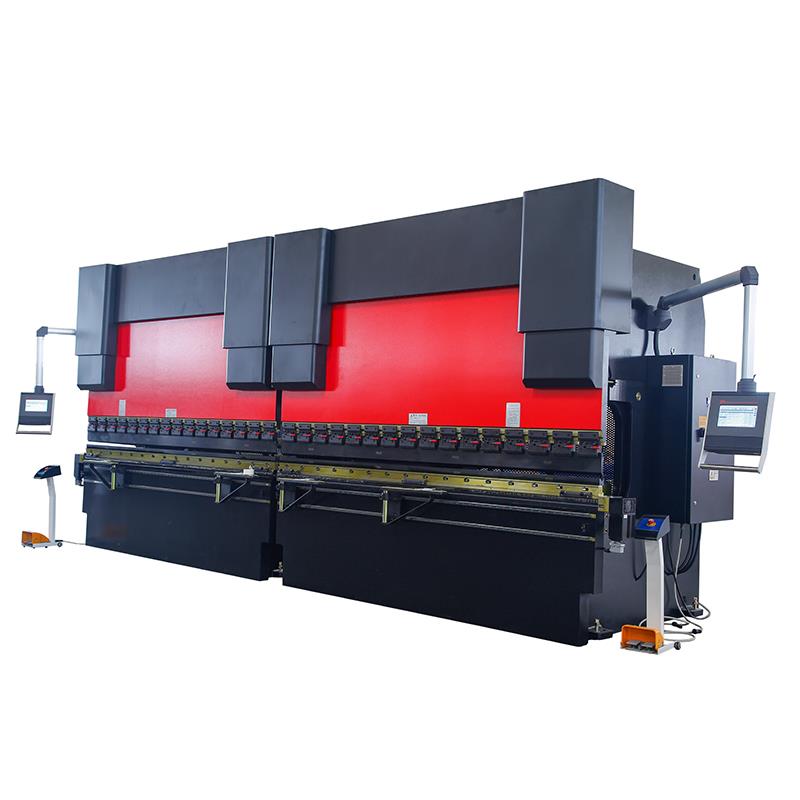

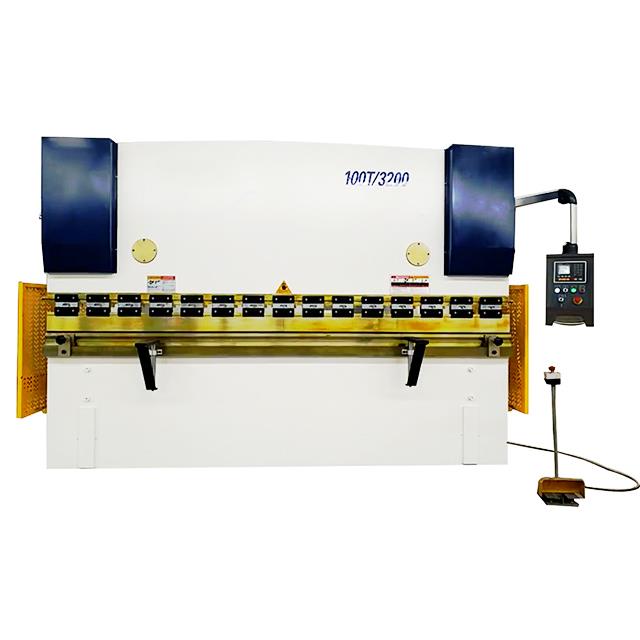

WC67Y/K press brake

• Servo motor control
• Store up to 100 programs
• Up to 25 bends per program
• Tool library & Tool program
• Automatic Bending angle program
• Higer ram and backgahge speed
• Higer bending and positioning accuracy

WC67Y/K Features

• The whole welded machine structure achieves high rigidity; the machine is designed by ANSYS software which can ensure the reliability and precision of the press brake.
• The motors for backgauge are controlled by inverter,which can achieve high positioning accuracy of the backguage and ram by changing the frequency and voltage of motor.

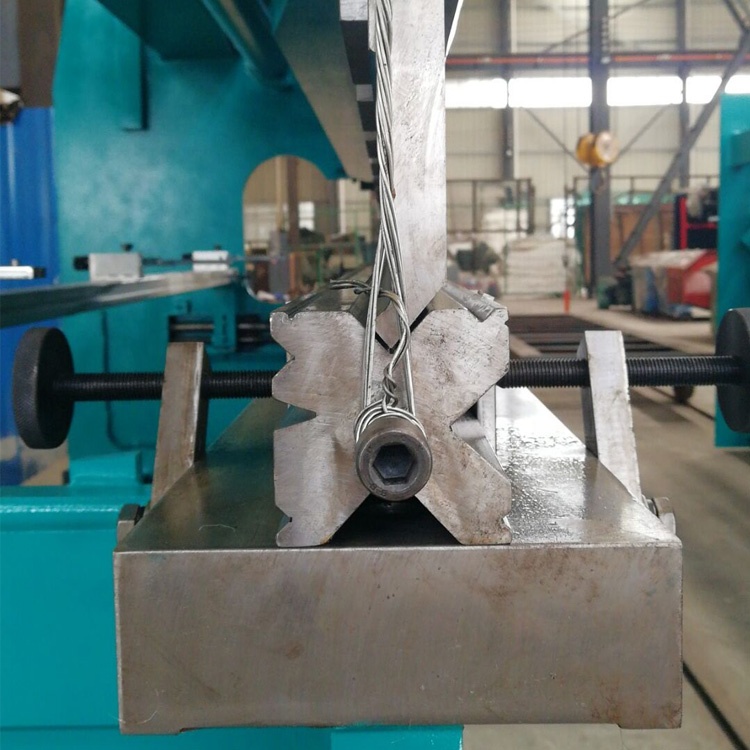

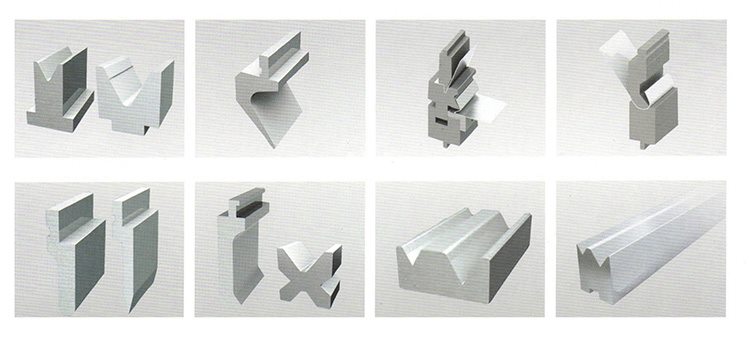

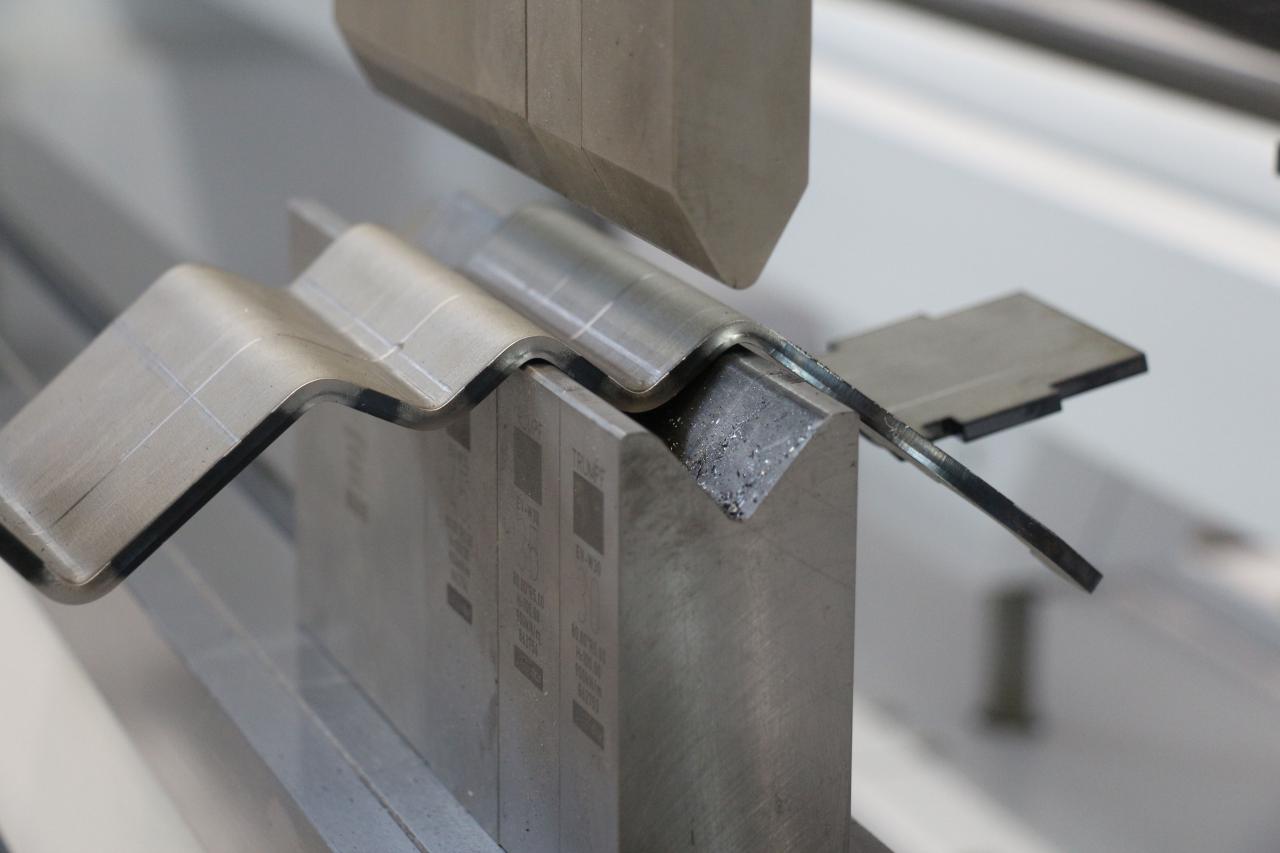

• Different punch and dies are optional according to customer' s requirements,such as Multi-V die,radius die,gooseneck die,etc.One set of complete standard punch and die will be included for free.
• X axis(Backgahge) and Y axis(Ram stroke or cylinder stroke) can be programmed by E21 system controller,which can store up to 40 groups of programs.Side and rear metal safety guard meets European safety standard.
• Hydraulic overload can be protected by overflow valve,System pressure can be regulated by pressure switch easily.
• Foot switch with emergency button can stop the machine immediately when accident happens.

Type	Nominal Pressure	Worktable Length	Column spacing	Throat Depth	Slide Stroke	Max Open	Motor Power	Dimensions
	（KN）	(mm)	(mm)	(mm)	(mm)	(mm)	(KW)	(mm)
WC67Y- 40t/2200	400	2200	1775	250	100	320	5.5	2300×1500×2000
WC67Y- 40t/2500	400	2500	1975	250	100	320	5.5	2600×1500×2000
WC67Y- 63t/2500	630	2500	2095	250	120	360	5.5	2600×1600×2300
WC67Y- 63t/3200	630	3200	2570	250	120	360	5.5	3300×1600×2300
WC67Y- 80t/3200	800	3200	2565	320	120	360	7.5	3300×1700×2300
WC67Y- 80t/4000	800	4000	3165	320	120	360	7.5	4100×1700×2300
WC67Y- 100t/3200	1000	3200	2560	320	120	360	7.5	3300×1800×2400
WC67Y- 100t/4000	1000	4000	3165	320	120	360	7.5	4100×1800×2500
WC67Y- 125t/3200	1250	3200	2550	320	120	360	7.5	3250×1920×2450
WC67Y- 125t/4000	1250	4000	3450	320	120	360	7.5	4100×1920×2500
WC67Y- 160t/3200	1600	3200	2540	320	180	440	11	3300×1600×2600
WC67Y- 160t/4000	1600	4000	3140	320	180	440	11	4100×2000×2600
WC67Y- 160t/6000	1600	6000	4740	320	180	440	11	6100×2000×2600
WC67Y- 200t/3200	2000	3200	2540	320	250	530	11	3300×2100×2800
WC67Y- 200t/4000	2000	4000	3140	320	250	530	15	4100×2100×2900
WC67Y- 200t/5000	2500	5000	3120	400	250	530	15	5100×2100×3000
WC67Y- 250t/4000	2500	4000	3120	400	250	560	18.5	4100×2200×3500
WC67Y- 250t/5000	2500	5000	3920	400	250	560	18.5	5100×2200×3500
WC67Y- 250t/6000	2500	6000	4720	400	250	560	18.5	6100×2200×3500
WC67Y- 300t/5000	3000	5000	39100	400	250	560	22	5100×2600×4000
WC67Y- 300t/6000	3000	6000	4710	400	250	560	22	6100×2600×4000
WC67Y- 300t/7000	3000	7000	5620	400	250	560	22	7100×2600×4400
WC67Y- 350t/6000	3500	6000	5100	400	250	560	30	6100×2600×4200
WC67Y- 350t/7000	3500	7000	5620	400	250	560	30	7100×2600×4500
WC67Y- 400t/4000	4000	4000	3100	400	300	620	30	4100×2700×3800
WC67Y- 400t/6000	4000	6000	4280	400	320	630	30	6100×2800×4200
WC67Y- 500t/5000	5000	5000	4100	400	320	630	37	5100×3000×4400
WC67Y- 500t/6000	5000	6000	4820	400	320	630	37	6100×3000×4700
WC67Y- 500t/7000	5000	7000	5620	400	320	630	37	7100×3000×4900
WC67Y- 600t/6000	6000	6000	4820	400	320	630	45	6100×2965×4700
WC67Y- 600t/7000	6000	7000	5620	400	320	630	55	7100×2965×4900

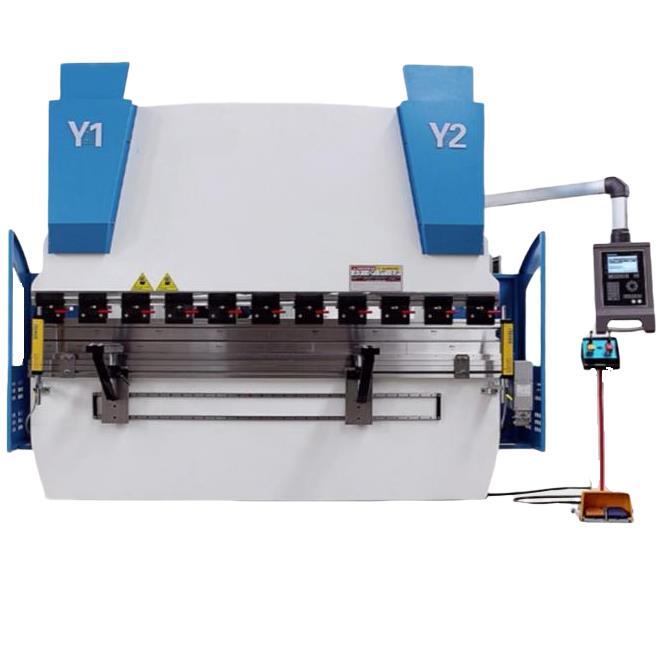

WE67K press brake

WE67K Series Electro-hydraulic Servo Press Brake CNC Bending Machine adopts integral welding and integral processing structure.

The main components of the body are analyzed with ANSYS finite element analysis software, which ensures the reliability and overall accuracy of the machine tool.

The main oil cylinder on both sides breaks through the stroke control mode of the traditional mechanical baffle type bending machine and adopts the closed-loop control mode consisting of the electro-hydraulic servo valve imported from Germany and the grating ruler imported from Germany.

WE67YK Features

• Advanced Configuration,high precision and high eficiency CNC hydraulic press brake
• Holistic welding structure
• Electro-hydraulic servo system,the closed-loop cotrol the slider synchronization
• Double crowning mechanism
• Standard configuration with 3 1axes:
  Y1(upward-downward of left cylinder)
  Y2(upward-downward of right cylinder)
  X(forward-backward of backguge)
  V(hydraulic crowning)

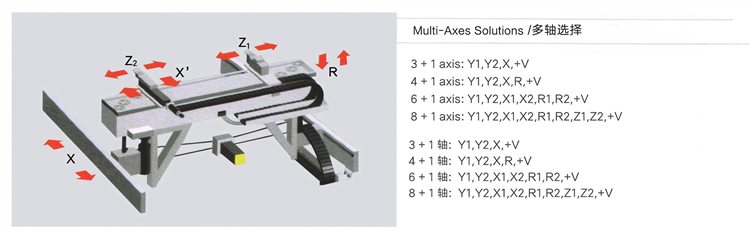

• Backgauge System Optional:
  4axes Backgauge(X. R,Z1. Z2)
  5axes Backgauge(X. R. Z1. Z2,X')
  6axes Backgauge(X1. X2. R1. R2,Z1. Z2)

Type	Nominal Pressure	Worktable Length	Column spacing	Throat Depth	Slide Stroke	Max Open	Motor Power	Dimensions
	（KN）	(mm)	(mm)	(mm)	(mm)	(mm)	(KW)	(mm)
WE67K-40t/2200	400	2200	1775	250	175	320	5.5	2300×1500×2000
WE67K-40t/2500	400	2500	1975	250	175	320	5.5	2600×1500×2000
WE67K-63t/2500	630	2500	2095	250	175	360	5.5	2600×1600×2300
WE67K-63t/3200	630	3200	2570	250	175	360	5.5	3300×1600×2300
WE67K-80t/3200	800	3200	2565	320	175	360	7.5	3300×1700×2300
WE67K-80t/4000	800	4000	3165	320	175	360	7.5	4100×1700×2300
WE67K-100t/3200	1000	3200	2560	320	215	360	7.5	3300×1800×2400
WE67K-100t/4000	1000	4000	3165	320	215	360	7.5	4100×1800×2500
WE67K-125t/3200	1250	3200	2550	320	215	360	7.5	3250×1920×2450
WE67K-125t/4000	1250	4000	3450	320	215	360	7.5	4100×1920×2500
WE67K-160t/3200	1600	3200	2540	320	215	440	11	3300×1600×2600
WE67K-160t/4000	1600	4000	3140	320	215	440	11	4100×2000×2600
WE67K-160t/6000	1600	6000	4740	320	215	440	11	6100×2000×2600
WE67K-200t/3200	2000	3200	2540	320	215	530	11	3300×2100×2800
WE67K-200t/4000	2000	4000	3140	320	215	530	15	4100×2100×2900
WE67K-200t/5000	2500	5000	3120	400	215	530	15	5100×2100×3000
WE67K-250t/4000	2500	4000	3120	400	215	560	18.5	4100×2200×3500
WE67K-250t/5000	2500	5000	3920	400	215	560	18.5	5100×2200×3500
WE67K-250t/6000	2500	6000	4720	400	250	560	18.5	6100×2200×3500
WE67K-300t/5000	3000	5000	39100	400	250	560	22	5100×2600×4000
WE67K-300t/6000	3000	6000	4710	400	250	560	22	6100×2600×4000
WE67K-300t/7000	3000	7000	5620	400	250	560	22	7100×2600×4400
WE67K-350t/6000	3500	6000	5100	400	250	560	30	6100×2600×4200
WE67K-350t/7000	3500	7000	5620	400	250	560	30	7100×2600×4500
WE67K-400t/4000	4000	4000	3100	400	300	620	30	4100×2700×3800
WE67K-400t/6000	4000	6000	4280	400	320	630	30	6100×2800×4200
WE67K-500t/5000	5000	5000	4100	400	320	630	37	5100×3000×4400
WE67K-500t/6000	5000	6000	4820	400	320	630	37	6100×3000×4700
WE67K-500t/7000	5000	7000	5620	400	320	630	37	7100×3000×4900
WE67K-600t/6000	6000	6000	4820	400	320	630	45	6100×2965×4700
WE67K-600t/7000	6000	7000	5620	400	320	630	55	7100×2965×4900

Tandem Press Brake

• Two (WC67Y/WE67K) mainframes were selected to configure the dual-machine linkage synchronous equipment.
• The double-machine combined bending machine can process super long workpiece, especially suitable for city construction, highway light pole, electric pole and so on.
• The two types of machine tools can also be used separately to improve production efficiency and are equipped with a deflection compensation mechanism.
• The synchronous mechanism adopts mechanical liquid servo and mechanical block.
• This machine was combined by two sets of 400 tons press brake.
• Tandem control achieve synchronous working. Single machine was combined by working table , right and left wall board.
• Due to the transportation, we adopt assembled structure. The rack has strong rigidity, two cylinders were installed on right and left wall board, hydraulic system was under the action of electrical system, drive ram working down. On the ram, there are upper dies, when upper dies and lower dies touched, system will raise pressure and forming the workpieces.
• With different dies and under different bending types, it can get different shapes of workpieces. The quality is stable and
  reliable.

Type	Nominal Pressure	Worktable Length	Column spacing	Throat Depth	Slide Stroke	Max Open
	（KN）	(mm)	(mm)	(mm)	(mm)	(mm)
WE67K-500t/5000	5000	5000	4100	400	320	630
WE67K-500t/6000	5000	6000	4820	400	320	630
WE67K-500t/7000	5000	7000	5620	400	320	630
WE67K-600t/6000	6000	6000	4820	400	320	630
WE67K-600t/7000	6000	7000	5620	400	320	630
WE67K-700t/8000	7000	8000	5300	400	320	630
WE67K-700t/10000	7000	10000	5300	400	320	630
WE67K-800t/8000	8000	8000	5300	400	320	630
WE67K-1000t/10000	10000	10000	5300	400	320	630
WE67K-1000t/12000	10000	12000	5300	400	320	630
WE67K-1200t/12000	12000	12000	5300	400	320	630
WE67K-1200t/14000	12000	8600	5300	400	320	630
