MAIN FEATURE:

1. Totally EU streamlined design. Monobloc by welding robots & apparatus and stress relief process by annealing treatment.

2. Hydraulic top-drive, steadiness and reliability, mechanical stop, steel torsion bar to maintain synchronization, high precision.

3. Adopt integrated hydraulic system, more reliable and easy for maintenance. and the hydraulic system from Bosch Rexroth, Germany.

4. Travel limit protection, full machine guarding with safety interlocker.

5. Mechanical synchronous mechanism and the complex compensation are designed so as to raise the workpieces precision.

6. The stroke and distance of the back gauge is adjusted by the motor.

7. Inch, single mode being designed for the machine and reversing and maintain time can be controlled by the time relays

8. Safe fence and the electric interlocker have been designed for the machine to ensure the operation safety.

9. Standard punches and dies. Front arm material support. Foot pedal with emergency stop.

10. Control system: Estun NC E21, CNC DELEM DA41, DA52, DA66T.

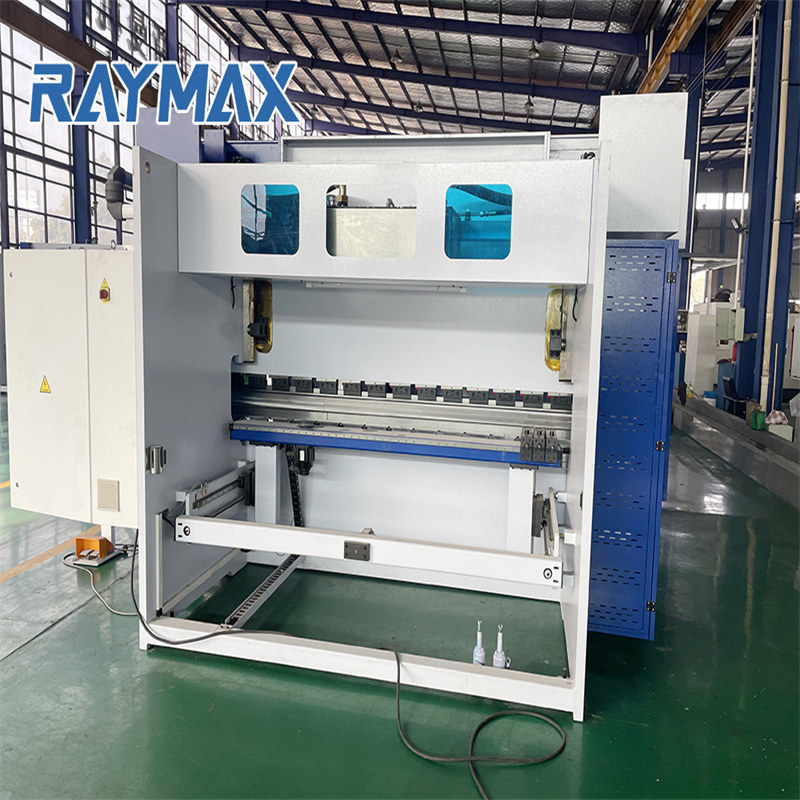

Hydraulic Sheet Metal Bending Machine With Good Price

All the components are from world Famous Brand:

1) Hydraulic System: Bosch-Rexroth from Germany
2) Hydraulic PUMP: Sunny USA
3) Electrical Components: Schneider Electrical from France
4) Main Motor: Siemens from Germany
5) Ball screw/ Liner guide: HIWIN from Taiwan
6) Seal/Guide Ring: VALQUA-JAPAN

Hydraulic Sheet Metal Bending Machine With Good Price

Machine Parts

Name: Electric Components

Brand: Schneider France

Original: France

All RAYMAX press brake Electrical Components original from Schneider France. Also our machine use Frequency Inverter.

Name: Motor

Brand: Siemens Germany
Original: Germany

All RAYMAX Press brake Motor original from Siemens Germany. Our bending machine warranty is 5 years.

Name: Hydraulic System

Brand: Rexroth Germany
Original: Germany

RAYMAX Press brake Hydraulic system original from Rexroth Germany, which can make sure our bending machine in high quality.

Name: Gear PUMP

Brand: Sunny USA
Original: USA

RAYMAX Press brake Gear Pump original from Sunny USA. All our bending machine components use world famous brand.

Name: Pipes and Tubing connector

Brand: EMB

Original: Germany

RAYMAX Press brake pipes and tubing connector use EMB Germany brand.

Name: Quick Clamp

Brand: RAYMAX

All RAYMAX press brake use Quick clamp to change the bending tools quickly and easily.

Name : Foot pedal and Emergency Stop Button

Brand: KACON from South Korea

RAYMAX press brake foot pedal is more good looking and useful.also it include Emergency Stop Button.

Name: Standard Upper tools and Down die

Brand: RAYMAX

RAYMAX press brake Upper Bending tooling adopts segmented tooling. we can sperate the whole length into pieces according to your request.

Hydraulic Sheet Metal Bending Machine With Good Price

Our Service

Pre-Sales Service

Technical solution. Online video authentication machine work. Bending samples provided by DHL

After-Sales Service

Our guarantee time is 5 years from B/L date. Any component damaged during guarantee time, we can send the component to the customers by DHL, TNT freely within 3 days. Our factory can send our engineers to the customer's factory install and training freely.

Details

  • Slider Stroke (mm): 200 mm
  • Automatic Level: Fully Automatic
  • Throat Depth (mm): 400 mm
  • Machine Type: Torsion Bar
  • Length of Working Table (mm): 6000
  • Width of Working Table (mm): 450 mm
  • Condition: New
  • Place of Origin: China
  • Material / Metal Processed: Brass / Copper, Stainless Steel, ALLOY, Carbon steel, Aluminum
  • Weight (KG): 6000
  • Motor Power (kw): 7.5 kw
  • Key Selling Points: Competitive Price
  • Warranty: 5 years
  • Applicable Industries: Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works , Energy & Mining
  • Showroom Location: Egypt, Turkey, United Kingdom, United States, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Nigeria, Uzbekistan, Malaysia, Australia
  • Marketing Type: Ordinary Product
  • Machinery Test Report: Provided
  • Video outgoing-inspection: Provided
  • Warranty of core components: 5 years
  • Core Components: Motor, Pump, Gear, PLC, Pressure vessel
  • Hydraulic valves: Rexroth
  • CNC system: Delem Holland
  • Electronicals: Schneider
  • Main Motor: Siemens
  • Seals Ring: Valqua
  • Machine color: Customer Pointed
  • After-sales Service Provided: Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
  • After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
