Product Description
Cutting 6mm thick 6m length hydraulic angle iron shear metal streamlined looking, Frame: consists of right and left wall boards, working table, oil box, slot steel and etc. The stress of the welded parts can be eliminated by vibration. The machine enjoys high accuracy and high strength and can be transported easily.
As the cutting beam has been designed in inner-inclined structure, it is easy for plates to fall down and the accuracy of products can also be guaranteed.
High accuracy, high efficiency, simple and convenient operation, good performance, favorable price and best service. The machine by CE certification and ISO quality system certification.

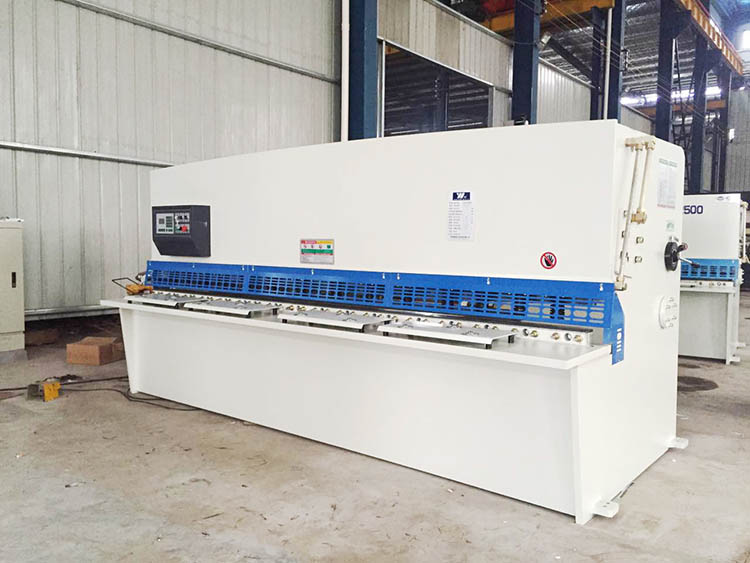

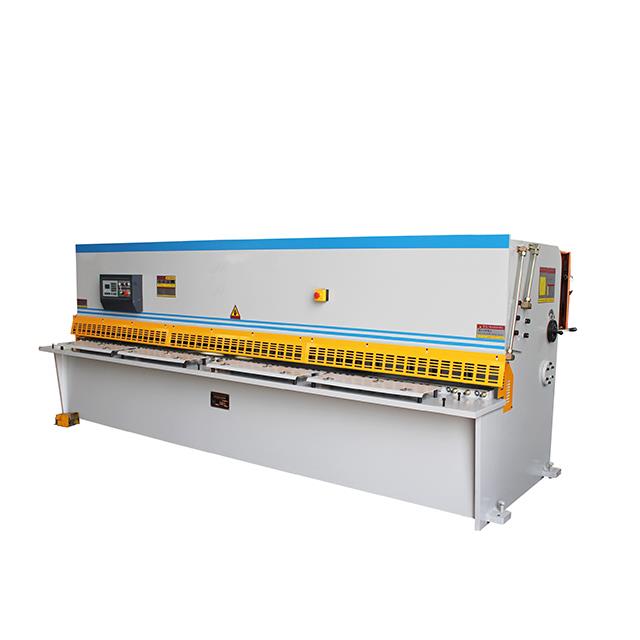

QC11Y Series Hydraulic shearing machine

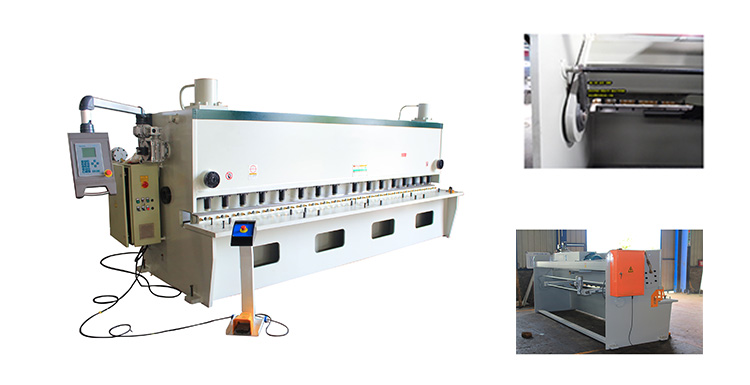

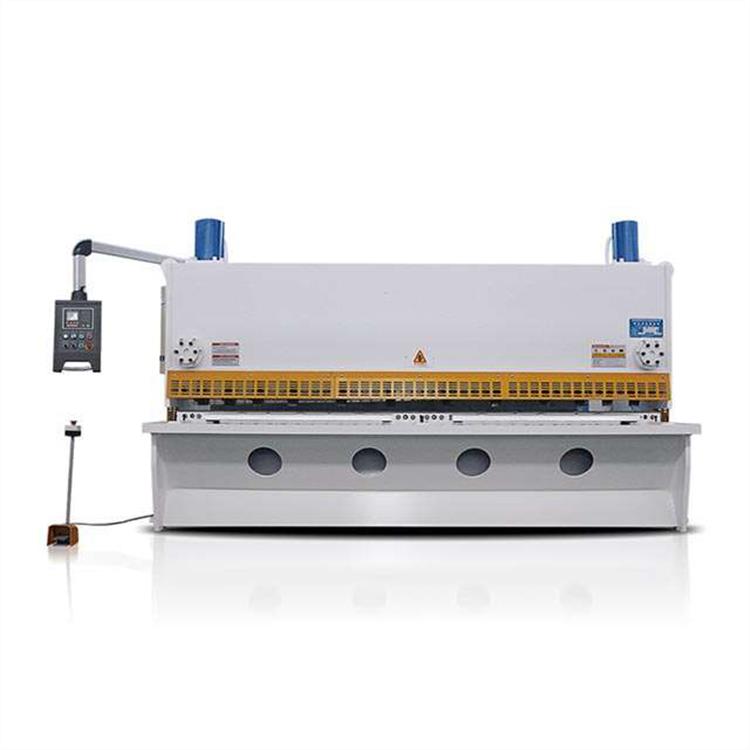

QC12Y Series Hydraulic shearing machine

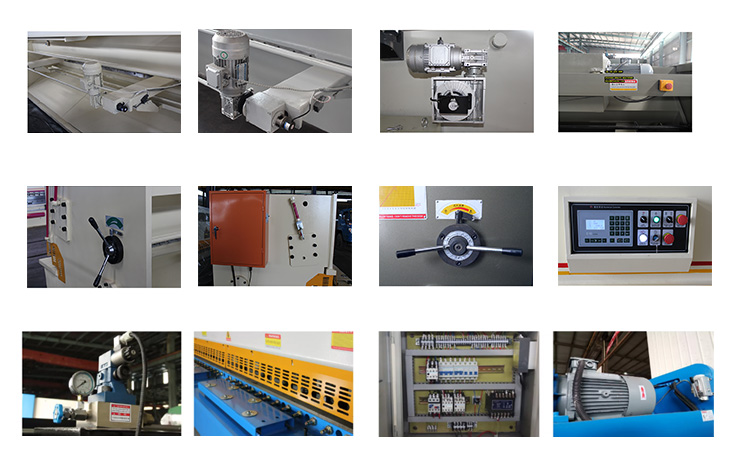

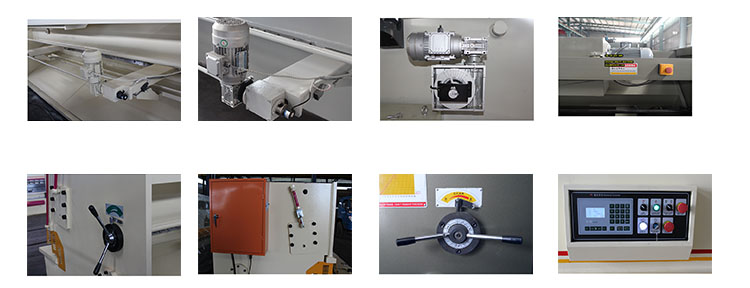

Hydraulic shearing machine Features
1.Entire welded frame, tempering.(our feature)
2.Digital display,back gauge size & shear times
3.Balde clearance indicated,easy for adjusting
4.Cartridge type hydraulic system,impove the reliability and security for Hydraulic shearing machine running.
The working conditions and environments used are:
1. Input power: 380V ± 5% / 50Hz ± 1, three-phase five-wire (according to customer requirements) or Input power: 220V ± 5% / 60Hz± 1, three-phase
2. Ambient temperature: 0℃-45℃
3. At 40 ℃: relative humidity≤50%; at 20℃: relative humidity≤85%
The use of occasions should not seriously affect the use of welding gas, steam, chemical deposition, dust, mold and other easy fuel and corrosive substances, and does not allow severe vibration and bumps. The equipment should be placed in a dry and ventilated place and prevent sunlight, direct and rain.

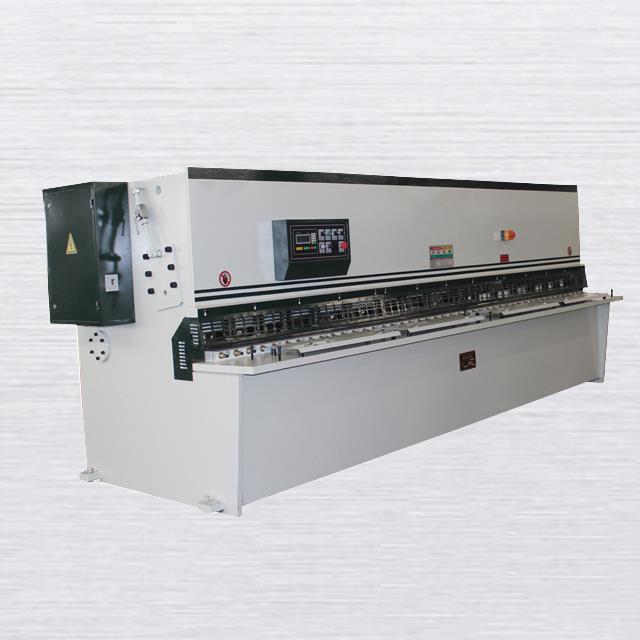

QC11Y Series Hydraulic shearing machine

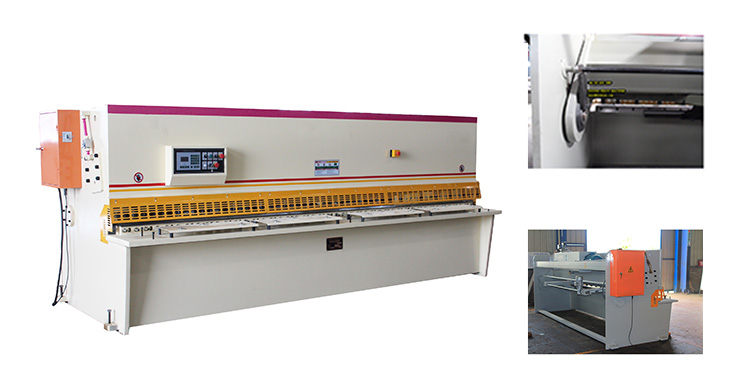

QC12Y Series Hydraulic shearing machine
- Electrical components are imported or from Sino-foreign joint Venture, in accordance with international standards,reliable safety, long life, good anti-interference ability.
- Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch, easy to operate.
- Emergency stops on machine and foot switch for safety and Fence like body guard is standard or light curtain is optional.The famouse brand for Motor, Gear pump, Hydraulic system,Ball screw and line guide, Sealing rings ect. Company Information
| Type | Cutting length | Travel times | Stopper adjust range | Power |
| 4x2500 | 2500mm | 28 Min-1 | 20-500mm | 4.0kw |
| 6x3200 | 3200mm | 14 Min-1 | 20-600mm | 7.5kw |
| 8x6000 | 6000mm | 8 Min-1 | 20-600mm | 11kw |
| 10x4000 | 4000mm | 6 Min-1 | 20-600mm | 11kw |
| 12x5000 | 5000mm | 10 Min-1 | 20-800mm | 30kw |
| 16x3200 | 3200mm | 6 Min-1 | 20-800mm | 22kw |
| 20x4000 | 4000mm | 6 Min-1 | 20-1000mm | 30kw |
| 25x3200 | 3200mm | 6 Min-1 | 20-1000mm | 37kw |
| 30x3200 | 3200mm | 4 Min-1 | 20-1000mm | 37kw |
For the steel guillotine shear,besides the above model, we accept customized accordingly.pls advise the plate length and
thickness,we will design the steel guillotine shear for you.
We use the famouse brand for Hydraulic shearing machine configurations,smoothly cutting effect,good quality and high performance.
| No. | Item | Quantity | Brand |
| 1 | Motor | 1Set | Siemens China |
| 2 | Gear pump | 1Set | Sunny USA |
| 3 | Casting connector | 1Set | Cast CO Italy |
| 4 | Main electric parts | 1Set | Siemens China |
| 5 | Hydraulic system | 1Set | Rexroth Germany |
| 6 | Sealing rings | 1Set | Valqua CO Japan |
| 7 | Blade | 1Set | Jinshan China |
| 8 | Ball screw and line guide | 1Set | Hiwin TaiwanChina |
| 9 | E21 CNC System | 1Set | ESTUN China |
FAQ
Q1. What is our main product ?
A1: Our company is a professional sheet metal processing machinery manufacturer. Concentrate on four column press machine, embossing door press machine, bending machine, shearing machine, cnc plasma cutting machine, rolling machine, punching machine, hydraulic ironworker, welding equipment. All these machine will be solved for the tank, pan, trolley, ect.
Q2. When can I get the price ?
A2:We usually offer the quotation within 8hours, For urgent offer, please contact with us for special.
Q3.How long is our Production leading time?
A3: It depends on type of equipment. We often deliver the goods within 35days.
Q4.What is the Payment term?
A4: By T/T before shipment or By L/C at sight.
Q5. During shipping, if there is a damage to products, how do you get replacement?
A5: Firstly, we should investigate the reason cause the damage. At the same time, we will claim for the insurance by ourselves or assist the buyer.
Secondly we will send the replacement to the buyer. The responsible person for above damage will take charge of the cost of the replacement.
Q7. What are your terms of packing?
A7: Packing: export worthy package suitable for container transportation. Wooden case, iron pallet, plastic film ect.
Q8. Do you test all your goods before delivery?
A8: Yes, we have 100% test before delivery.
Q9: Where is your factory located?
A9: Our factory is located in Anhui province.
Q10: What is your warranty?
A10: Warranty: 24 months after commercial running or 18months from the date of shipment, subject to the earlier expiry.
Q11: Can you arrange thirty party pre-shipment inspection?
A11: Pre-shipment inspection: Supplier’s pre-shipment inspection is Final; pre-shipment inspection by third Party on buyers cost.
Q12: Can we do our OEM logo?
A12:Yes, for the products with drawing supplied by you, we of course apply your logo ",
Details
- Max. Cutting Width (mm): 6000
- Max. Cutting Thickness (mm): 40 mm
- Automatic Level: Fully Automatic
- Blade Length (mm): 6000 mm
- Backgauge Travel (mm): 20 - 1000 mm
- Throat Depth (mm): 2500 mm
- Condition: New
- Brand Name: RAYMAX
- Power (kW): 7.5 kW
- Weight (KG): 14500 KG
- Place of Origin: Liaoning, China
- Voltage: 220V/380V
- Dimension(L*W*H): 3700X1650X1850mm
- Warranty: 1 Year
- Key Selling Points: Competitive Price
- Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Retail, Construction works , Energy & Mining, Advertising Company
- Showroom Location: United States, Peru, Indonesia, Pakistan, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Chile, Algeria, Romania, Bangladesh
- Marketing Type: New Product 2020
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Warranty of core components: 1 Year
- Core Components: Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Other, Engine, Gearbox
- Type: Shearing Machines
- Name: Hot selling hydraulic guillotine shearing machine metal cutting
- Sealing rings: Volqua Japan
- CONTROLLER: ESTUN E21
- Control: AC motors frequency inverter
- Electric parts: Siemens
- Gear pump: Sunny USA
- Shearing machine HS Code: 84622990
- Number of stroke: 14Min-1
- Cutting length: 2500-6000mm
- After-sales Service Provided: Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support
- After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
- Local Service Location: United States, Italy, Peru, Indonesia, Pakistan, Mexico, Russia, Thailand, Japan, Malaysia, Kenya, Romania, South Africa
- Certification: CE ISO
