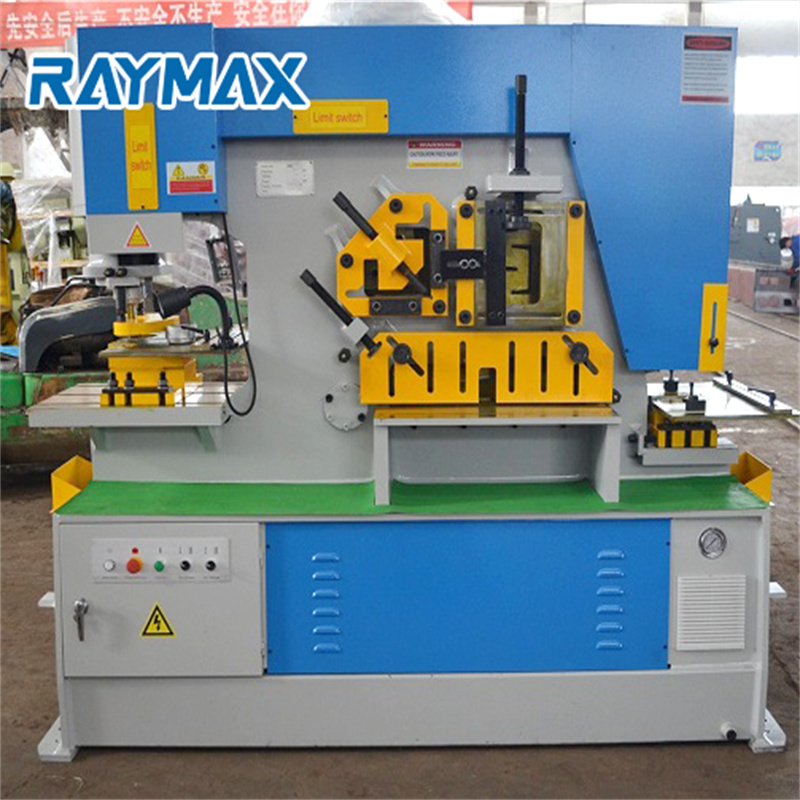

Metal Hydraulic IronWorker Machine Punching And Shearing Machine

Hydraulic Ironworkers are designed with multiple functions to save labor, time, energy and cost. This allowsAccurl Ironworkers to meet the diversified needs of the metal fabricating industry. Maximum efficiency and long life is guaranteed by using the latest manufacturing methods, including powerful CAD design, modern production line with CNC equipment and continuous quality control.

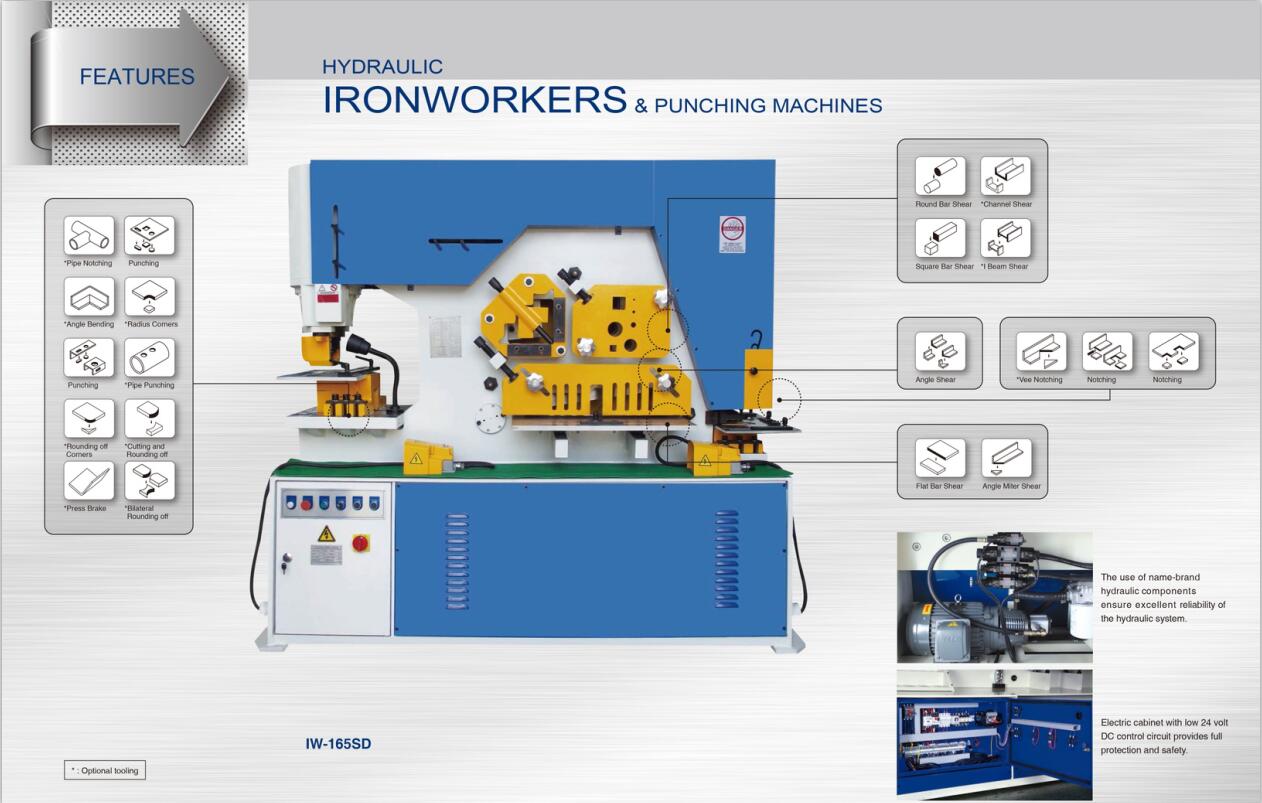

WORK STATIONS

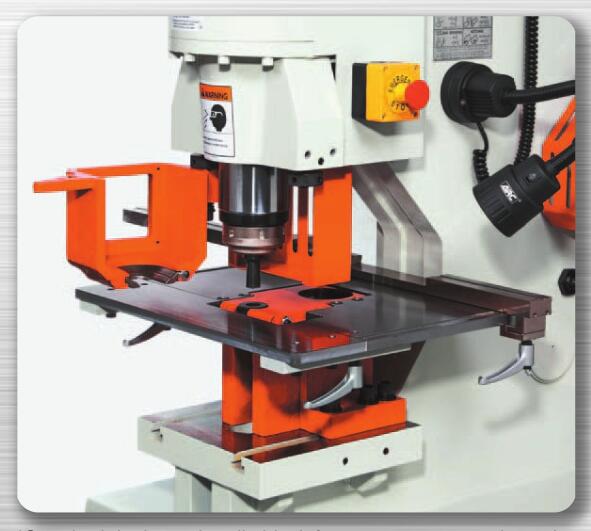

Punching Station

1. A full range of punches and dies are available for various punching needs.

2. Quick change retaining nut system for fast punch tooling change.

3. Thoughtfully designed stripper for visibility, safety and ease of use.

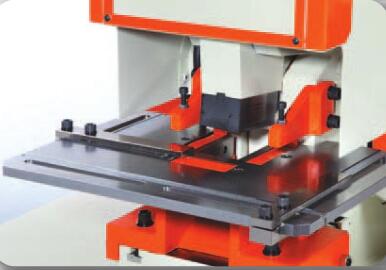

4. A large 2-piece table with scales and gauging stops is standard on all models.

5. Stripper with interchangeable plates of various openings to minimize deformation is standard on all models.

PUNCHINGMODEL	IW-60S IW-60SD	IW-80S IW-80SD	IW-100S IW-100SD	IW-125S IW-125SD	IW-165SD
Punching Force	60 Ton	80 Ton	100 Ton	125 Ton	165 Ton
Punch Capacity S	ø22 x 20	ø26 x 22	ø28 x 26	ø33 x 27	ø37 x 32
Punch Capacity SD	ø50 x 9	ø50 x 12	ø50 x 15	ø50 x 18	ø50 x 24
Throat Depth S	310	310	310	310	--
Throat Depth SD	510	510	510	510	510
Maximum Stroke Length	100	100	100	100	100
Cycles / Min. (20mm stroke)	30	29	28	28	29
Working Height Up to Die	1010	1050	1044	1069	1050

Flat Bar Shearing Station

1. Specially machined upper blade to give a clean shear with minimum distortion.

2. Lower blade has four usable cutting edges.

3. Variable degree miter-cutting on angle flange.

4. Easily adjustable hold-down.

5. Support table with guides for accurate positioning.

FLAT SHEARINGMODEL	IW-60S IW-60SD	IW-80S IW-80SD	IW-100S IW-100SD	IW-125S IW-125SD	IW-165SD
Flat Bar Shear S	350 x 15	460 x 15	610 x 16	125 Ton	760 x 20
Flat Bar Shear SD	240 x 20	300 x 20	400 x 20	400 x 25	400 x 30
Blade Length	360	465	620	620	770
Angle Flange Trim	100	100	100	100	120
Working Height	910	926	954	920	920

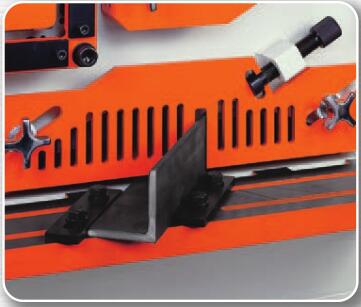

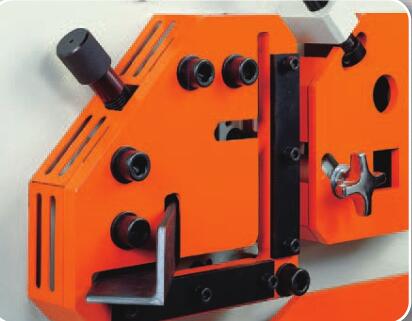

Angle Shearing Station

1. Single shear with no material loss and minimal deformation.

2. 45° miter-cut is easy and clean.

3. Stationary blades with four usable cutting edges.

4. Selectable corner radii on moving blades for optimum results on small or large angles.

ANGLE SHEARINGMODEL	60S IW-60SD	80S IW-80SD	100S IW-100SD	125S IW-125SD	IW-165SD
At 90° Shearing	130 x 130 x 12	150 x 150 x 12	150 x 150 x 15	150 x 150 x 15	150 x 150 x 20
At 45° Miter Shearing	65 x 65 x 8	75 x 75 x 9	75 x 75 x 9	75 x 75 x 9	75 x 75 x 9
Working Height	1115	1165	1216	1185	1185

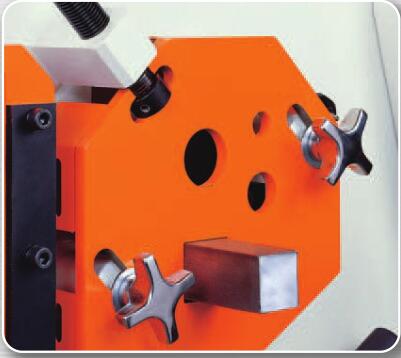

Bar Shearing Station

1. One hold-down for various sizes of square bar shearing and round bar shearing.

2. Optional channel and section bar shear tooling is available for most models. (See specification chart for details)

BAR SHEARINGMODEL	60S IW-60SD	80S IW-80SD	100S IW-100SD	125S IW-125SD	165SD
Round Bar Shear	ø40	ø45	ø45	ø50	ø60
Square Bar Shear	38 x 38	300 x 20	400 x 20	50 x 50	60 x 60
Channel Shear (H x B)	125 x 65*	150 x 75*	150 x 75*	150 x 75*	200 x 90*
IBeam Shear (H x B)	100	150 x 75*	150 x 75*	150 x 75*	200 x 100*
Working Height	1220	1270	1332	1310	1370

Notching Station

1. Ideal for notching of flat bars and angles.

2. Electrically interlocked safety guard for maximum safety and visibility.

3. Gauging table included with stops for precise positioning.

NOTCHINGMODEL	60S IW-60SD	80S IW-80SD	100S IW-100SD	125S IW-125SD	165SD
Rectangular Notcher (W x D x T)	50.8 x 90 x 9	50.8 x 90 x 12	63.5 x 90 x 12	63.5 x 90 x 13	63.5 x 90 x 16
Vee-Notcher (Side x Side x T)	90 x 90 x 10*	90 x 90 x 12*	105 x 105 x 12*	105 x 105 x 13*	105 x 105 x 16*
Working Height	910	926	954	920	920

Details

• CNC or Not: CNC
• Condition: New
• Nominal Force (kN): 125
• Power Source: Hydraulic
• Place of Origin: Anhui, China
• Voltage: 380V50HZ
• Motor Power (kW): 7.5HP
• Weight (T): 4.2
• Key Selling Points: Competitive Price
• Warranty: 1 Year
• Showroom Location: Australia, Canada, United Kingdom
• Applicable Industries: Hotels, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Home Use, Construction works , Energy & Mining
• Machine Type: Hydraulic Press
• Keyword: Metal Punching Machine
• Product name: Hydraulic metal sheet iron worker punching and shearing machine
• Throat depth: 500MM
• Color: Blue White Grey
• Punch Force: 125ton
• Purpose: Save cost and energy
• After-sales Service Provided: Online support, Video technical support
• After Warranty Service: Video technical support, Field maintenance and repair service, Spare parts
• Local Service Location: Mexico, Australia, United States, Morocco, Russia, Canada
• Certification: CE ISO
