Q35y-30 Hydraulic Ironworker Square Steel Ironworker Machine

Product Application

Q35Y Series hydraulic combined punching&shearing machine can cut and punch all kinds of materials such as plate, square bar, angle, round bar, channel and so on.Prima hydraulic ironworkers have been designed and built to the highest quality standards in the industry. This profitable machine will serve any grueling fabrication shop for decades to come. This machine is typically in stock for quick deliveries.

Q35y-30 Hydraulic Ironworker Square Steel Ironworker Machine

Main Features

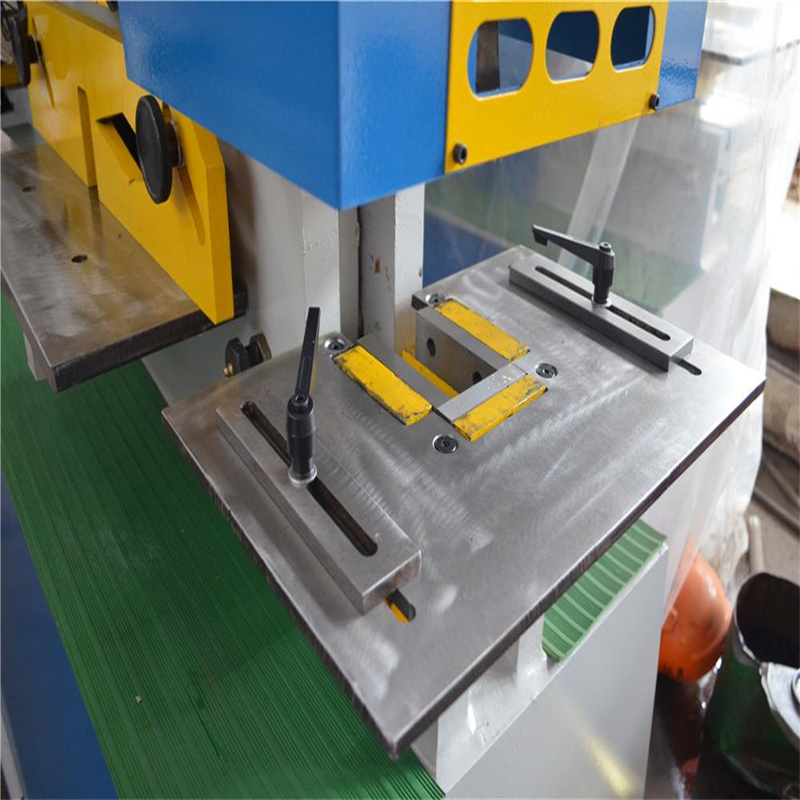

1) Punching:

Full range of universal punches and dies are available.unique style allows for large angle iron punching and large channel punching.Large viewing window on stripper swing away design for ease of operation.large two piece gauging table with rulers and stop as standard fittings.Quick change coupling nut and sleeve for rapid replacement of change.

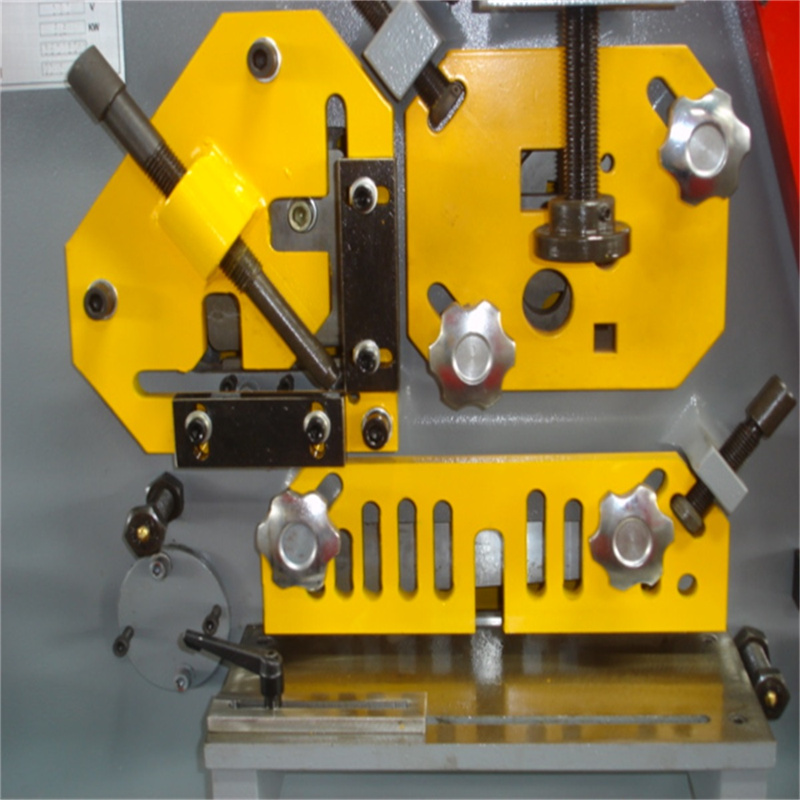

2) Shearing:

Round and square bar shear has multiple holes for a variety of sizes. Adjustable hold down device for round/square bar,channel/beam cutting. Large strong guarding for max safety. The angle shear has the ability to cut angle at 45°both top and bottom leg. This gives the operator the ability to make a picture frame corner for perfect welds.Diamond shaped blade for quality cuts that is minimal material lost and deformity. Easily adjustable hold-down device for accurate plate cutting.Large 15″squaring arm with inlaid scale.Special anti-distorted blade for quality cutting.Lower blade has four usable edges.There is screw allow for gap adjust no shim needed.

3) Notching:

Unique design allows for cutting of angle and flat bar. Electrical interlock safety guard and three gauging stops for precise positioning.The notching section of this hydraulic ironworker is perfect for notching out metal plate, angle iron and much more. The notching station also has an over sized table with material stops. This section of the machine can also be outfitted with the optional vee notcher.

4) Bending:

Also bend the plate below 500mm. All the components of Machine are of the highest quality in their safety, function. q35y-20 angle steel shearing and punching machine ironworker

Q35y-30 Hydraulic Ironworker Square Steel Ironworker Machine

Q35y-30 Hydraulic Ironworker Square Steel Ironworker Machine

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

FAQ

Q1. Trade company or manufacturer?

A: We are manufacturer and have specialized in machine industry for many years.

Q2. How to choose the suitable machine model?

Three key words: max thickness, max length, processing material

Q3. Is it easy to operate for the new user ?

A: Every machine all is with the opreration manual, and we can also provide you with online support. Traninning and guidence is available to your country.

Q4. What should I do when the machine is in trouble?

A: Take photos and videos to us, we will provide you with the timely help.

Q5. How to trust your machine quality ?

We warmly welcome you to visit our factory in Nanjing. And we have acquired ISO and CE certification.

Q6. How to pay?

Alibaba credit protection order, T/T（30% deposit with 70% balance）

Q7. Delivery time?

15-20days after we receive your order deposit and confirm all details.

Details

  • Model Number: Q35Y-30
  • CNC or Not: CNC
  • Condition: New
  • Power Source: Hydraulic
  • Place of Origin: Anhui, China
  • Dimension(L*W*H): 2530mm*1600mm*1900mm
  • Motor Power (kW): 4
  • Weight (T): 6.3
  • Key Selling Points: Multifunctional
  • Warranty: 5 years
  • Applicable Industries: Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Printing Shops
  • After-sales Service Provided: Video technical support, Engineers available to service machinery overseas
  • Machine Type: Ironwork Machine
  • Slide Stroke (mm): 80
  • Certification: CE, CE ISO
  • Title: Prima Q35Y-30 Hydraulic Ironworker /Square Steel Ironworker Machine
  • Product name: ironworker machine
  • Function: punching shearing bending
  • Weight (KG): 6800
  • Power(W): 11000
  • Color: can be customized
  • Lead time: 15 days
  • Dimension: 2680*1060*2380mm
