Product Description

Q35y Series Multifunctional Hydraulic Iron Worker Combined Shearing And Punching Machine

Q35Y series industrial-grade hydraulic ironworker featuring multiple functions, including: round hole, square hole, oblong hole punching; steel plate, flat bar, angle steel, C-channel, H-beam punching; steel plate bending; angle steel shearing, notching and bending; flat, round, square bar, C-channel, I-beam, T-bar shearing/cutting; angle bending and pipe notching.

The machine comes standard with: quick-change coupling nut & sleeve, squaring arm with scale, electronic back gauge, gauging table with stops, punching base table, safety guards and more. With its multifunction, Q35Y series hydraulic ironworker is your first choice among the counterpart machine. Besides, all the components are of the highest quality in the matter of safety, function, capability and maintenance.

Our machine is designed via the most advanced technology and has the virtues of easy operation, low consumption and low maintenance cost. We also can provide customized solutions to better cater for customers’ needs.

Main standard properties components of Ironworker:

1. All the electrical parts are IMPORT with CE certificate.
2. Professionally engineered design frame structures.
3. Steel welds with high precision strength and rigidity to eliminate vibrations.
4. Ironworker steel frame Q235 = American standard steel A306 GR55.

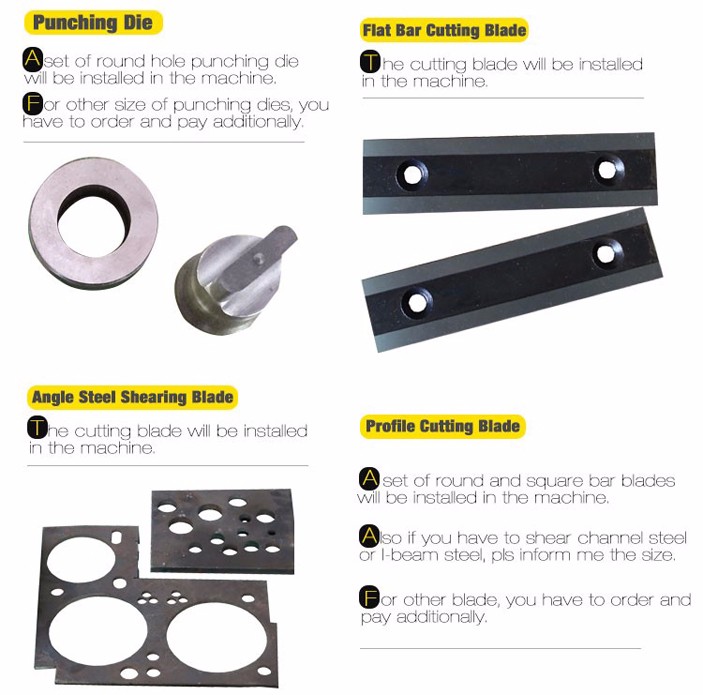

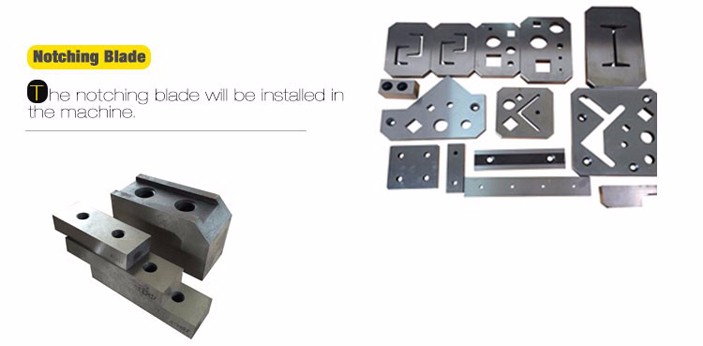

5. Five sets of punch and blades were installed on the machine.
6. Timer relay by Japanese OMRON.
7. All wiring terminal block by WEIDMULLER.
8. Main Electrical component by Germany Schneider.
9. Oil seals by Japanese, NOK.
10. O-Ring and Valve by Taiwan for piston pump more durable.
11. Hydraulic System by Japanese Yuken.
12. Motor by Chinese Jiangsu Dazhong
13. Hydraulic fuel tanks and ironworker frame built by our Factory.
14. Dual independent hydraulic cylinder
15. Dual Footswitch controlled work separately
16. Easy Adjustable stroke control with ruler
17. Indicator on both hydraulic cylinders
18. Electric back gauge auto stop
19. Moveable working light that can be placed at any desired position
20. Hydraulic system with overload protection system
21. Emergency safety stop switch
22. Large punching table with ruler guide
23. Larger notching table with Ruler guide
24. Large flat shearing table with Ruler guide
25. Most important easy maintenance

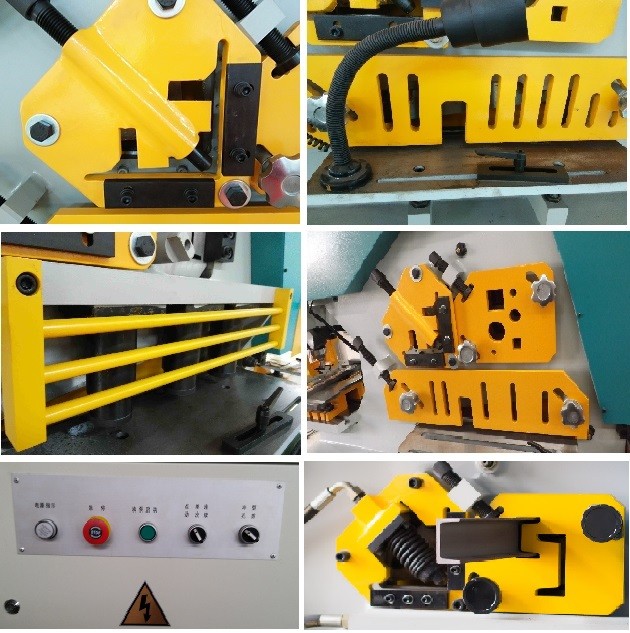

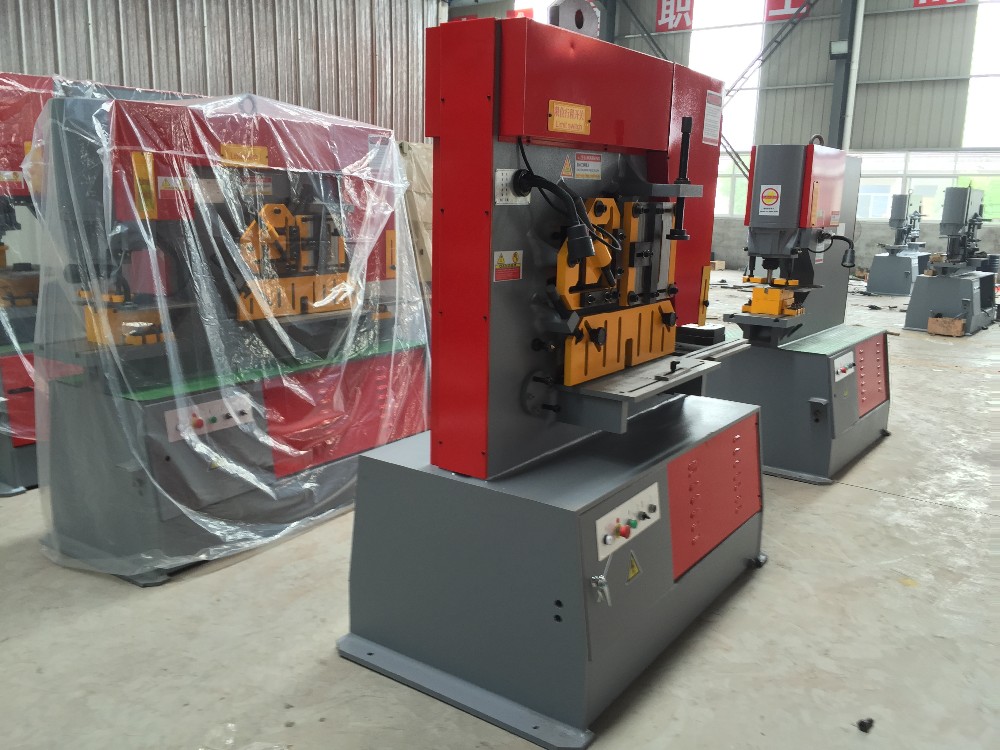

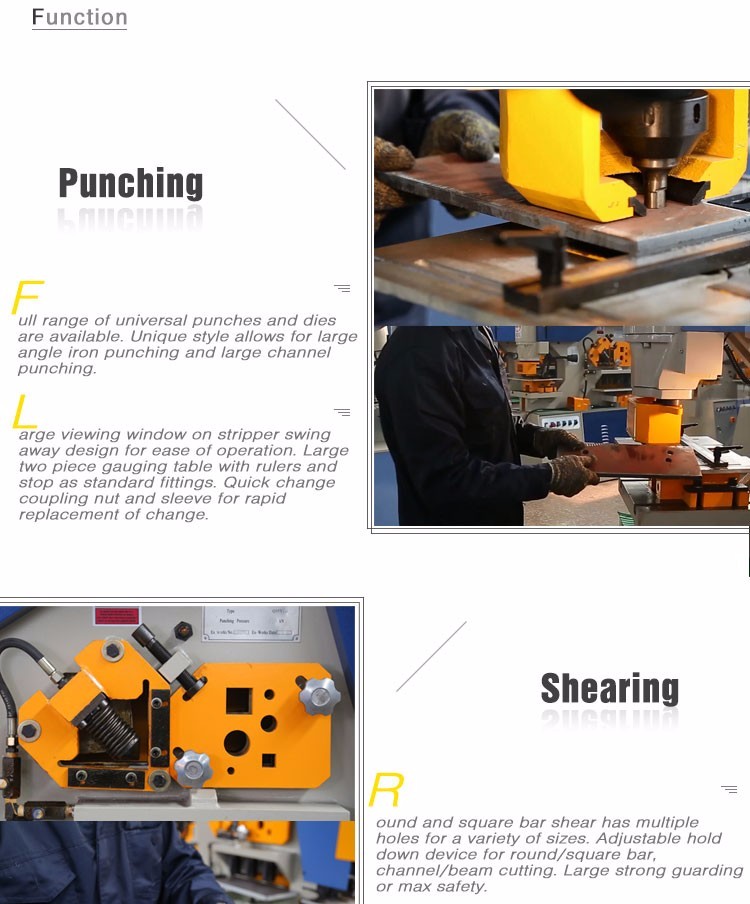

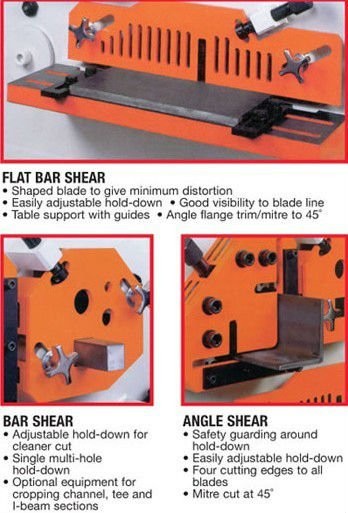

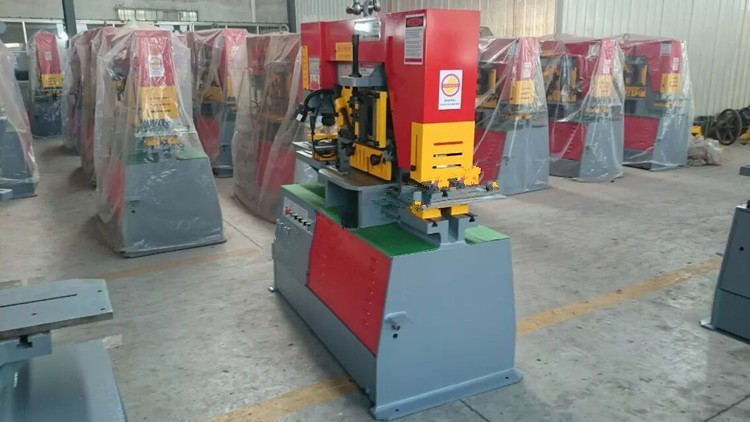

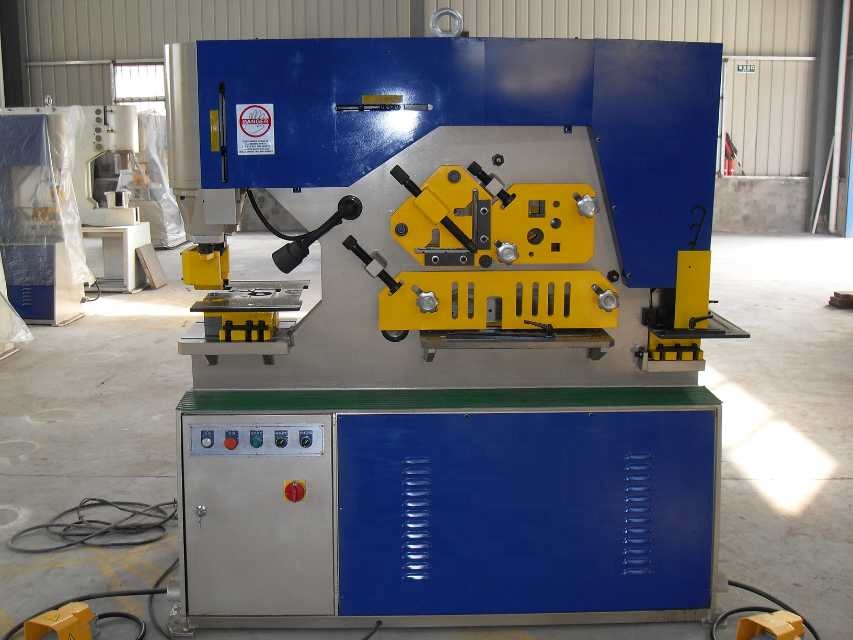

Detailed Images

Q35y Series Multifunctional Hydraulic Iron Worker Combined Shearing And Punching Machine Q35y Series Multifunctional Hydraulic Iron Worker Combined Shearing And Punching Machine Q35y Series Multifunctional Hydraulic Iron Worker Combined Shearing And Punching Machine Q35y Series Multifunctional Hydraulic Iron Worker Combined Shearing And Punching Machine Q35y Series Multifunctional Hydraulic Iron Worker Combined Shearing And Punching Machine Q35y Series Multifunctional Hydraulic Iron Worker Combined Shearing And Punching Machine

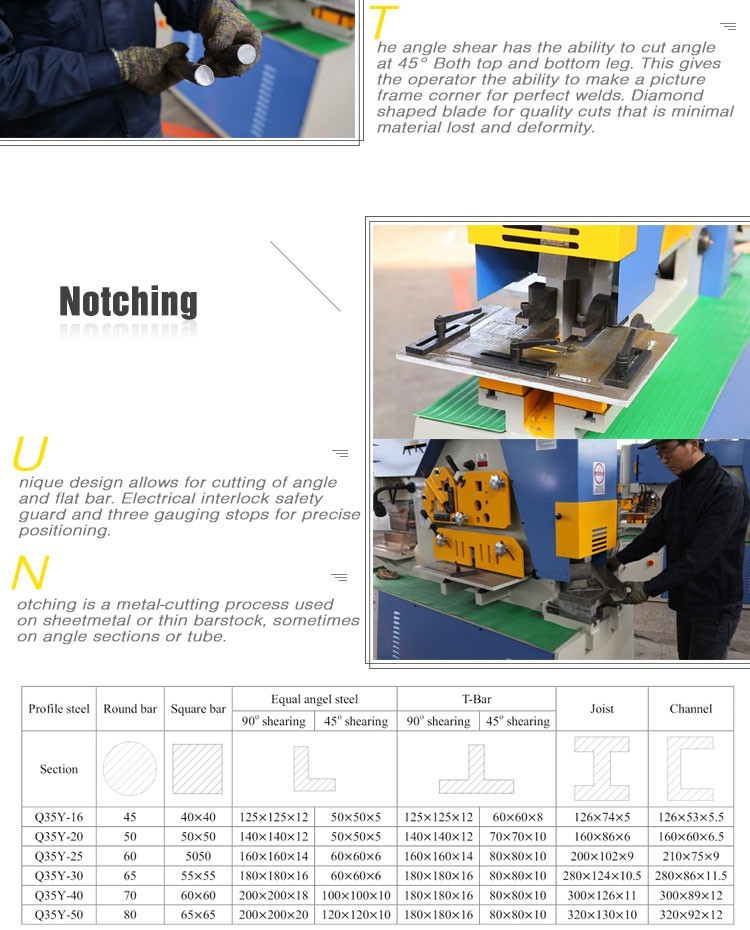

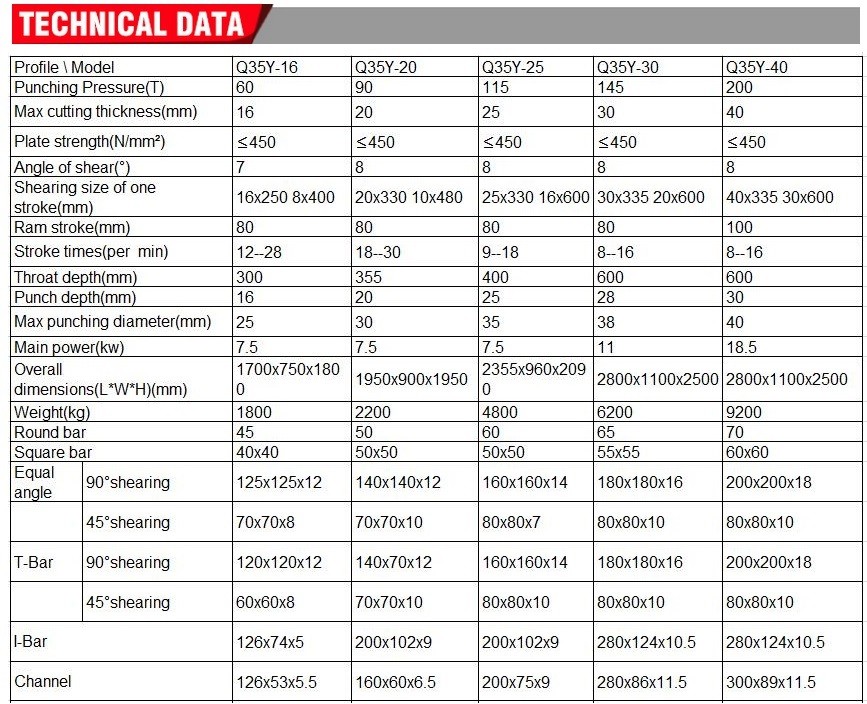

Technical Parameters

Q35y Series Multifunctional Hydraulic Iron Worker Combined Shearing And Punching Machine
Q35y Series Multifunctional Hydraulic Iron Worker Combined Shearing And Punching MachineQ35y Series Multifunctional Hydraulic Iron Worker Combined Shearing And Punching Machine

FAQ

1. Advanced Techinology

We provide our customers with all type of indigenousn CNC machines with good quality.

2. Non-standard machines

Most requirements for non-standard metal processing machines is easily fulfilled by giant cnc machinery, due to its vast knowledge and links in the industry.

3. Payment

We can accept T/T, L/C, West union,the best way is T/T payment, you can choose yourself, if you want other payment terms please let us know when you place the order.

4. After-sales service and techinical assistance

We provide overseas & domestic after-sales services and techinical assistance as per the customer requirements and needs.

5. Shipping

six independent giant workshops guaranteed the high efficient production, we will arrange the shipment within7 workdays after your full payment has been confirmed, and we have established long-term cooperation relations with reliable shipping forwarders which also promised the delivery time.

6. Cost saving

We are directly manufacturer, so there are no intermediary costs involved.

7. Return & Warranty

All our machines are inspected and tested before shipment, if you are not satisfied with the purchase, you can return the whole equipment in one week,all return items must be in its iriginal conditions, including packing case and accessories and so on. All our machines carry a full 3 year whole & parts warranty.

Details

  • Condition: New
  • Type: Shearing Machines
  • Video outgoing-inspection: Provided
  • Machinery Test Report: Provided
  • Marketing Type: Hot Product 2019
  • Warranty of core components: 2 years
  • Core Components: Motor, Pump
  • Voltage: 380V 220V Optional
  • Rated Power: 5.5kw
  • Dimension(L*W*H): 1860*800*1900mm
  • Warranty: 2 Years
  • Key Selling Points: Multifunctional
  • Applicable Industries: Hotels, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Retail, Construction works
  • Showroom Location: None
  • Weight (KG): 1700 KG
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Name: hydraulic ironworker
  • Cutting material: Metal Stainless Steel Carbon Steel Aluminum
  • Application: Steel Sheet Metal Cutting
  • punching depth: 12-35mm
  • Function: Punching And Cutting
  • Cutting thickness: 12-40mm
  • throat depth: 115-530mm
  • Max.punching diameter: 25-400mm
  • Motor power: 4-18.5kw
