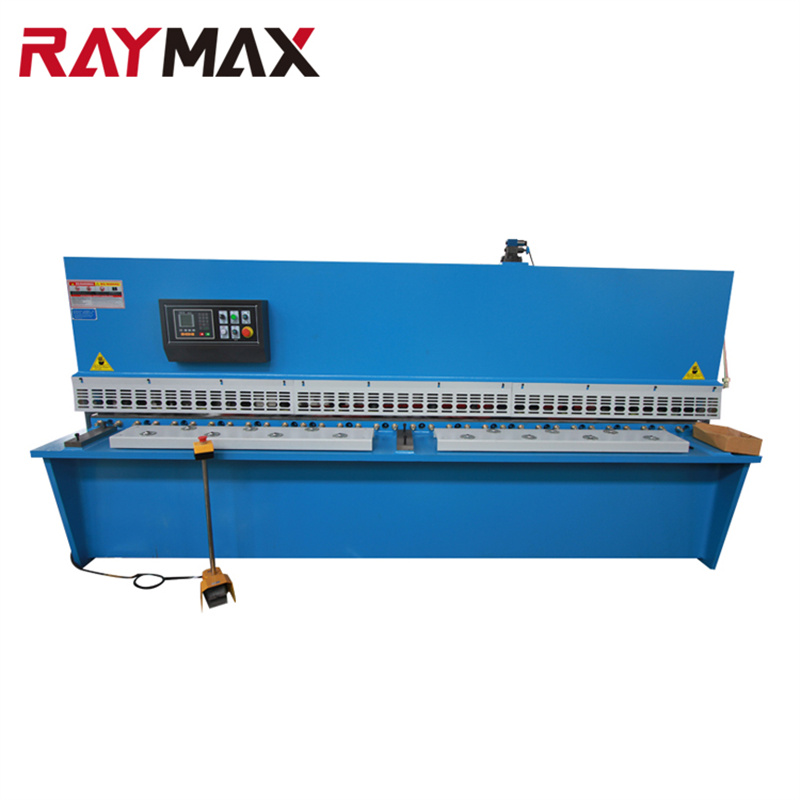

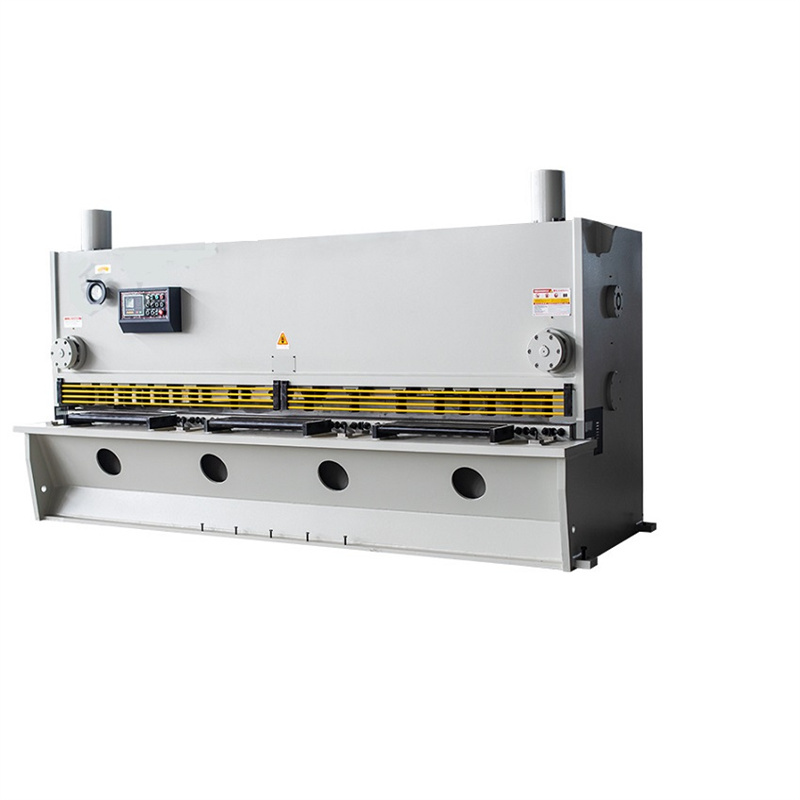

QC11K 10 12 16 mm 3200 4000mm Metal Guillotine Shear CNC Guillotine Shearing Machine

Product Information

CNC Hydraulic Guillotine | QC11K 10 12 16 mm 3200 4000mm Metal Guillotine Shear CNC Guillotine Shearing Machine

* Streamlined design originated from EU, the kind of machine tool consists of rack, cutter holder, oil cylinder, hydraulic controller,backgauge and other components. Finite-element analysis of main parts, welding parts uses tempering, vibration and other processing methods to eliminate stress ensuring the structural strength and rigidity of the rack and components;

* Cutter holder use three-point support rolling guide rail, reducing the friction to the greatest extent and realizing seamless rolling during cutter holder moving.

* Leftmost front holder configured with verticality regulator and front positioning device, easy operation and high efficiency;

* Simple and effective adjusting mechanism is used to rearrange blade clearance via CNC system, improving the cutting quality.

* Fine ball screw and bar structure, good-performance frequency converter is used to positioning X axis to ensure accuracy, unique designed timing transmission-mechanism, stable and reliable.

* Light and shadow line is conductive to manual scribing for cutting; stable and reliable hydraulic transmission, integrated hydraulic system is able to significantly alleviate problems causing by hydraulic fluid leakage.

* Made by high-quality alloy tool steel capable enough to against impact load and high wear resistance when cutting.

* With reference to ergonomic design, easy CNC system surface, improving the operation precision and comfort; rolling ball worktable to reduce friction and prevent work piece from scratching; novel and practical safety guard device, line with safety specification, protect the personal safety; delicate design, petty work piece can be done easily by hand.

Hydraulicswing beam shear	shearing thickness	shearing length	cutting angel	materail strength	stopper adjust rangge	stroke times	main power
	4	2500	1°30'	≤450	20-500	16	5.5
	4	3200	1°30'	≤450	20-500	13	5.5
	6	4000	1°30'	≤450	20-600	9	7.5
	6	6000	1°30'	≤450	20-800	5	11
	8	3200	1°30'	≤450	20-500	8	7.5
	12	3200	2°	≤450	20-600	10	18.5
	16	2500	2°30'	≤450	20-600	10	18.5
	16	4000	2°30'	≤450	20-800	10	18.5
	20	3200	3°	≤450	20-800	8	22

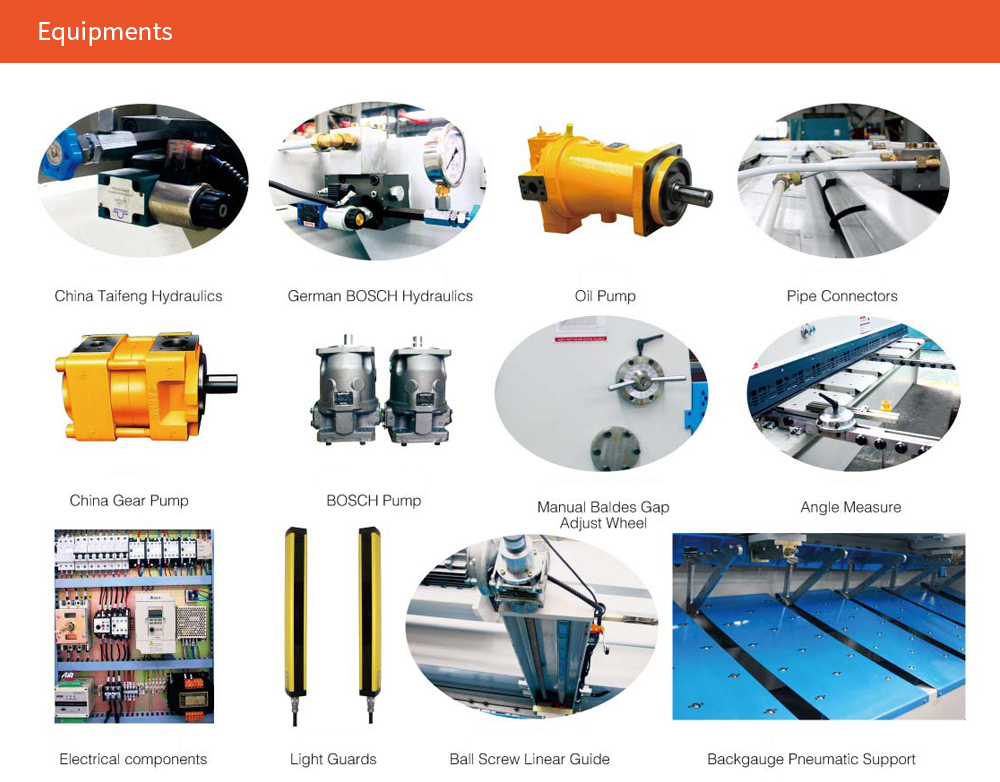

Main Configuration
Main motor	Siemens, Germany
Electrics	Schneider, France
Hydraulic valve	Rexroth, Germany
Oil Pump	Sunny, U.S.A
Controller	E21s ESTUN, MD11
Foot switch	Karcon, South Korea

Details

• Max. Cutting Width (mm): 4000
• Max. Cutting Thickness (mm): 16 mm
• Automatic Level: Semi-automatic
• Shearing Angle: 1.5
• Blade Length (mm): 4000 mm
• Backgauge Travel (mm): 20 - 600 mm
• Throat Depth (mm): 100 mm
• Condition: New
• Power (kW): 11 kW
• Weight (KG): 4000 KG
• Place of Origin: China
• Voltage: 110v/220v/380v/440v customized, 110v/220v/380v optional
• Dimension(L*W*H): 2800*1600*1800mm
• Year: 2021
• Warranty: 2 years
• Key Selling Points: Competitive Price
• Applicable Industries: Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
• Showroom Location: None
• Marketing Type: New Product 2021
• Machinery Test Report: Provided
• Video outgoing-inspection: Provided
• Warranty of core components: 2 years
• Core Components: Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Other, Engine, Gearbox
• Product name: Hydraulic Cnc shearing machine
• CNC Control system: E21/MD11
• Application: Stainless Plate cutting
• Machine Type: 3200mm shearing machine for sheet plate
• Raw Material: Q235A hydraulic shearing machine
• Keyword: Hydraulic shears
• Usage: Metal Sheet cutting
• Type: MS Steel Plate cutting Machine
• Main Motor: 5.5kw
