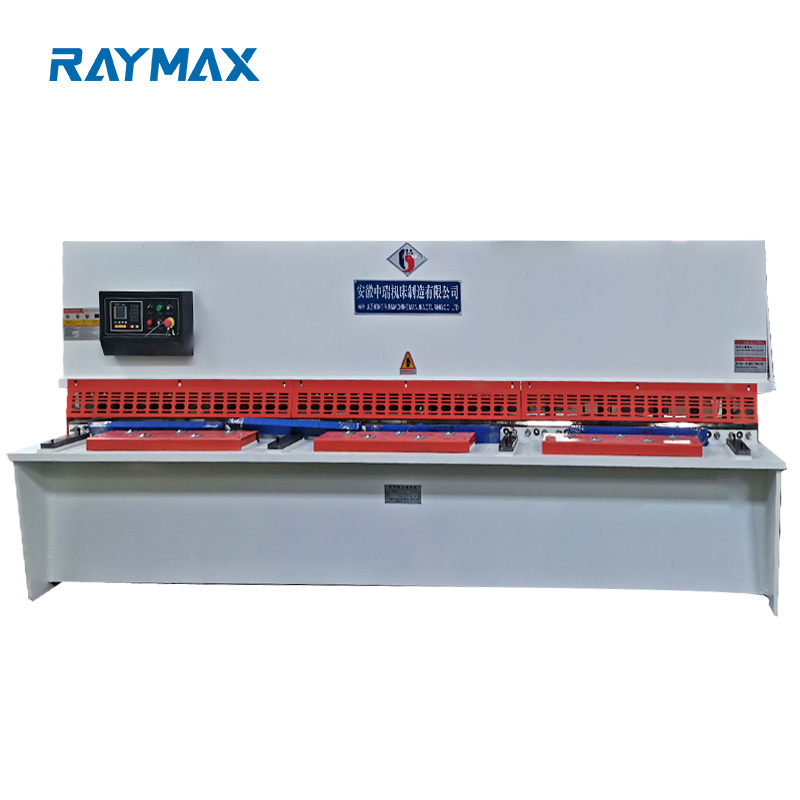

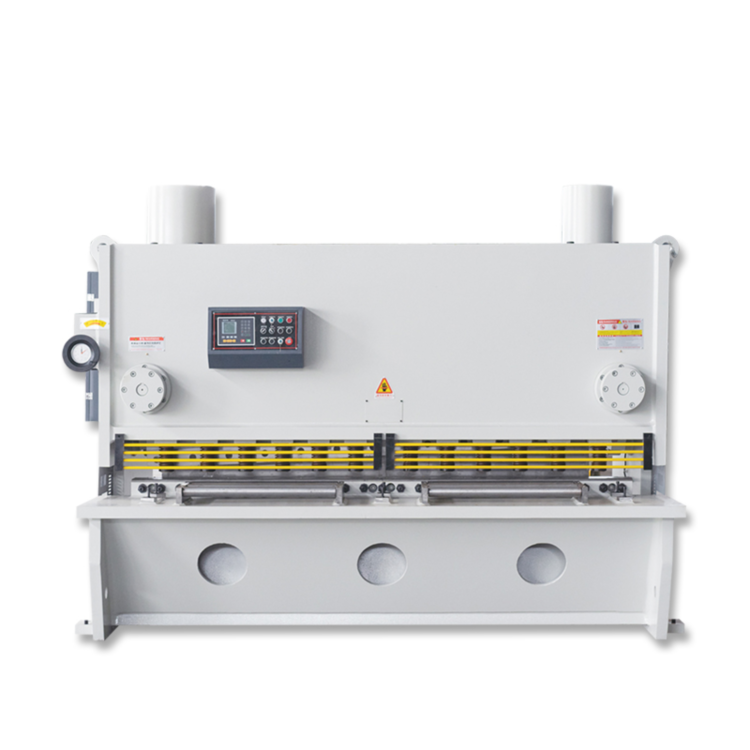

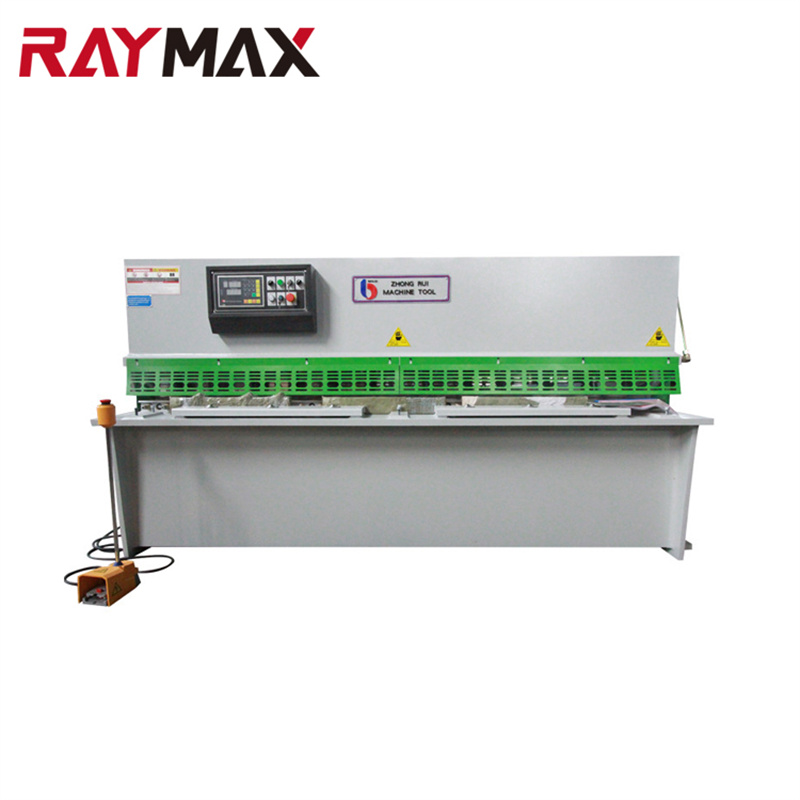

Qc11k-6×2500 Metal Guillotine Shear Guillotine Shearing Machine

Main functions and features

1. The second generation of shear.
2. Welded steel plate construction, heating to eliminate stress, with high strength and good rigidity.
3. Advanced integrated hydraulic system with and excellent reliabitity quality.
4. Rapidly,accurately and conveniently adjusting the blade clearance by motor
5. The adjustable rake angle can minimize plate deformation.
6. As the cutting beam has been designed in inner-inclined structure, it is easy for plates to fall down and the accuracy of products can be also guaranteed.
7. Shearing in sections, shadow-line cutting.
8. Counter for the motorized back gauge.
9. Back support device (optional).

Model	Mild Steel (450MPA)	Cutting Length(mm)	Depth Of Throat(mm)	Back Gauge Range(mm)	Rake Angle Adjustment	Strokes Per Minute	Main Motor	L×W×H(mm)	Weight(t)
4×2000	4	2000	80	750	0.5°~2°	14	5.5	2600×1680×1750	3.8
4×2500	4	2000	80	750	0.5°~2°	14	5.5	3125×1750×1765	4.5
6×2500	6	2500	80	750	0.5°~1°30′	14	7.5	3100×1725×1900	5.3
6×3200	6	3200	80	750	0.5°~1°30′	12	7.5	3935×1840×1995	6.5
6×4000	6	4000	80	750	0.5°~1°30′	10	7.5	4650×1840×2100	8.5
6×5000	6	5000	80	750	0.5°~1°30′	8	7.5	5650×2050×2400	10.5
6×6000	6	6000	80	750	0.5°~1°30′	8	7.5	6650×1980×2380	15.2
8×2500	8	6000	80	750	0.5°~1°30′	14	7.5	3135×1840×2075	6
8×3200	8	3200	80	750	0.5°~1°30′	12	7.5	3850×1990×2050	6.8
8×4000	8	4000	80	750	0.5°~1°30′	10	7.5	4650×1890×2075	9
8×5000	8	5000	80	750	0.5°~2°	7	15	5650×2050×2400	12.5
8×6000	8	6000	100	750	0.5°~2°	7	15	6805×2115×2715	19.8
10×2500	10	2500	100	750	0.5°~2°30′	10	15	3195×1915×2205	8
10×3200	10	3200	100	750	0.5°~2°30′	8	15	3895×1900×2235	8.8
10×4000	10	4000	100	750	0.5°~2°30′	6	15	4695×1970×2270	9.15
10×5000	10	5000	100	750	0.5°~2°30′	5	15	5700×2115×2715	16
10×6000	10	6000	100	750	0.5°~2°30′	5	15	6905×2115×2800	22
12×2500	12	2500	100	750	0.5°~2°30′	10	15	3195×2000×2210	8.3
12×3200	12	3200	100	750	0.5°~2°30′	8	15	3895×1950×2240	9.2
12×4000	12	4000	100	750	0.5°~2°30′	5	15	4710×1950×2450	13
12×5000	12	5000	100	750	0.5°~2°30′	5	18.5	5750×2115×2800	20
12×6000	12	6000	100	750	0.5°~2°30′	5	18.5	7150×2300×3100	29
16×2500	16	2500	100	750	0.5°~2°30′	8	15	3215×1970×2340	8.7
16×3200	16	3200	100	750	0.5°~2°30′	7	15	3915×1970×2455	11
16×4000	16	4000	100	750	0.5°~2°30′	6	15	4715×2010×2590	15
16×5000	16	5000	100	750	0.5°~3°	5	22	6000×2300×3000	23
16×6000	16	6000	80	750	0.5°~3°	5	37	7250×2400×3100	36
20×2500	20	2500	100	750	0.5°~3°	6	22	3235×2020×2465	10.5
20×3200	20	3200	120	750	0.5°~3°	5	30	4150×2065×2755	18
20×4000	20	4000	120	750	0.5°~3°	4	30	4955×2125×2885	21
20×5000	20	5000	120	750	0.5°~3°	4	37	6000×2300×3050	29
25×2500	25	2500	120	750	0.5°~3.5°	5	37	3465×2130×2710	15
25×3200	25	3200	120	750	0.5°~3.5°	5	37	4120×2200×3000	21
25×4000	25	4000	120	750	0.5°~3.5°	4	37	4950×2200×3150	26
30×2500	30	2500	120	750	0.5°~3.5°	4	37	3465×2170×2770	16
30×3200	30	3200	120	750	1°~3.5°	3	37	4200×2300×3200	23

NO.	Item	Parameter	Unit
1	Cutting thickness	16	mm
2	Cutting Length	6000	mm
3	Backgauge Range	20-1000	mm
4	Material Strength	≤450	N/mm²
5	Shear Angle	0.5-3	°
6	Strokes	≥4	(min-1 )
7	Main motor power	22	KW
	L	7250	mm
8	Overall dimension W	2400	mm
	H	3100	mm
9	Machine weight	35000	kg

Why Choose Us

Packing&Shipping

We have cooperated with experienced shipping forwarders for many years, they arrange the shipment. No matter by express, by airor by sea, we will track the course of the goods all the way, to make sure goods arrive at you on time and in good condition.

FAQ

1. What's your advantage?

A: Honest business with competitive price and professional service on export process.

2. How I believe you?

A :  We consider honest as the life of our company, we can tell you the contact information of our some other clients for you to check our credit. Besides, there is trade assurance from Alibaba, your order and money will be well guaranteed.

3.  Can you give warranty of your products?

A: Yes, we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately if you are not pleased with our quality or service.

4. Where are you? Can I visit you?

A: Sure, welcome to you visit our factory at any time.

5. How about the delivery time?

A:  Within 15-35 days after we confirm you requirement.

6. What kind of payment does your company support?

A: T/T, 100% L/C at sight, Cash, Western Union are all accepted if you have other payment, please contact me.

Details

• Place of Origin: Anhui, China
• Brand Name: RAYMAX
• Condition: New
• Type: Shearing Machines
• Video outgoing-inspection: Provided
• Machinery Test Report: Provided
• Marketing Type: Hot Product 2019
• Warranty of core components: 3 years
• Core Components: PLC, Engine, Bearing
• Voltage: 220V380V
• Rated Power: 7.5
• Dimension(L*W*H): 6750X1700X1500
• Year: 2020
• Warranty: 3 years
• Key Selling Points: Multifunctional
• Applicable Industries: Machinery Repair Shops
• Showroom Location: None
• Weight (KG): 11 KG
• style: Luxury
• Product name: guillotine shearing machine
• Machine Type: guillotine shearing machine
• Application: Construction Projects
• After-sales Service Provided: Free spare parts, Field installation, commissioning and training, Online support
• After Warranty Service: Video technical support, Online support, Spare parts
• Local Service Location: None
• Certification: CE
