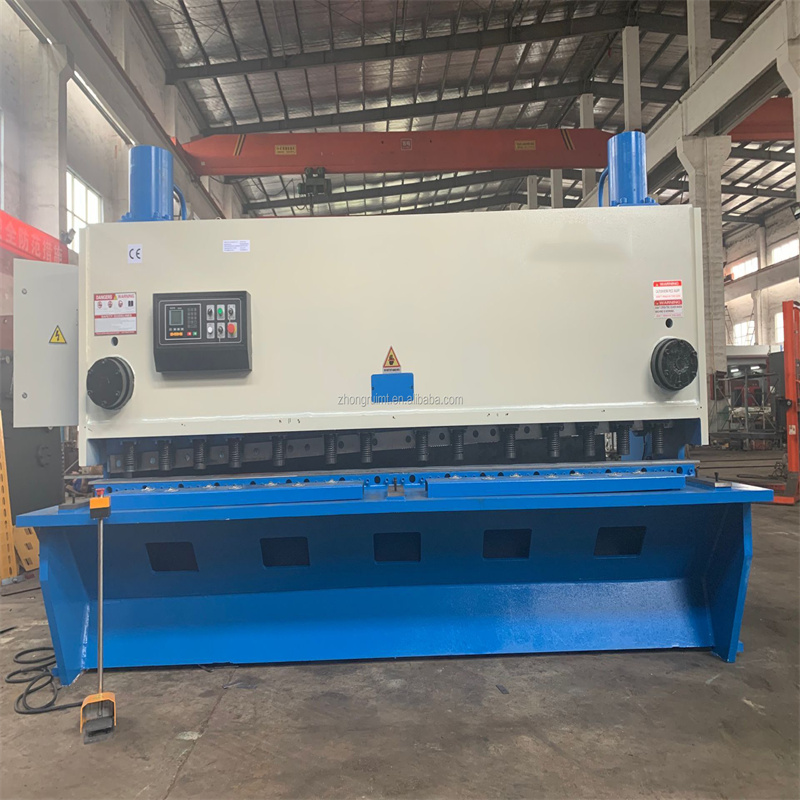

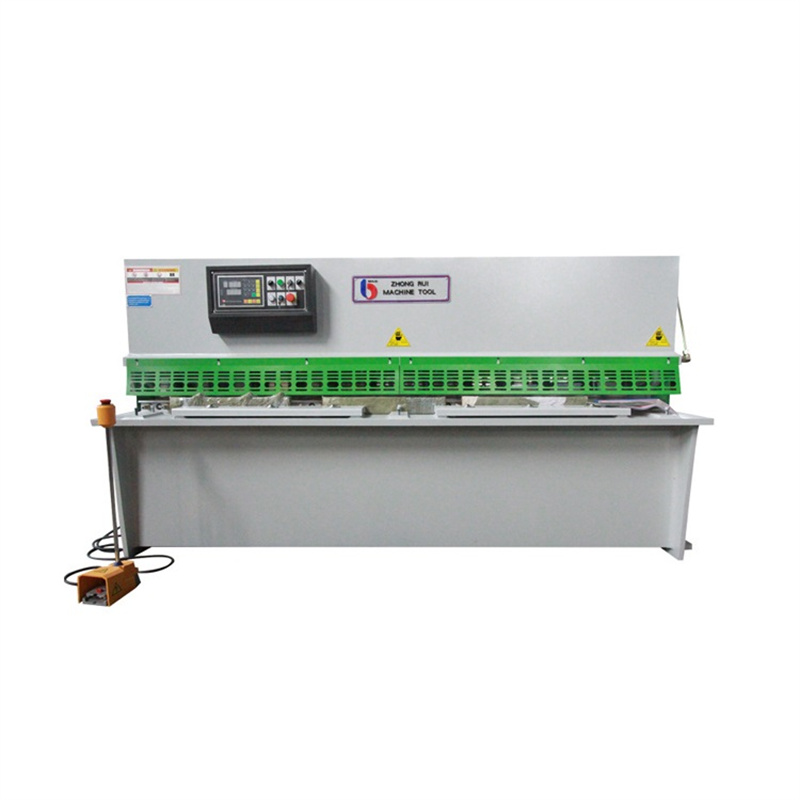

Qc11y Steel Sheet Cutting Machine High Quality Hydraulic Guillotine Shears Supplier

Products Description

1. Main structure consists of 2 units oil cylinder, cutter holder, rack, hydraulic controller, backgauge and electric
controller. Finite-element analysis of main parts, Welding parts uses tempering and high frequency vibration etc processing methods to eliminate stress ensuring the structural strength and rigidity of each component;

2. Cutter holder use three-point support rolling guide rail to reducing the friction to the greatest extent, and eliminate the support gap, improve cut quality.

3. Simple and effective blade adjusting mechanism , blade gap adjustment by a hand wheel, fast, accurate and convenient,improving the cutting quality.

4. Left-most front holder configured with verticality regulator and front positioning device, easy operation and high efficiency;

5. Fine ball screw and polished rod structure, using good-performance frequency converter positions X axis to ensure accuracy, unique designed timing transmission mechanism, stable and reliable.

6. Stable and reliable hydraulic transmission; integrated hydraulic system is able to significantly alleviate problems causing by hydraulic fluid leakage.

7. Blades made by high-quality alloy tool steel capable enough to against impact load and high wear resistance when cutting;

8. With reference to ergonomic design, easy operation with CNC system surface, improving the operation precision and comfortability.

9. Rolling ball workbench to reduce friction and prevent work piece surface from scratching; unique and practical safety guard,line with safety specifications, protect the personal safety; exquisite design, petty work piece can be done easily by hand.

Product Paramenters

Model	Shearing Thickness(mm)	Shearing Length(mm)	Strokes(/mm)	Back gauge Stroke(mm)	Shearing Angle(°)	Main Motor(kW)
QC11Y-4x2000	4	2000	14	600	0.5∽2	5.5
QC11Y-4x2500	4	2500	14	600	0.5∽2	5.5
QC11Y-6x2500	6	2500	14	750	0.5∽1.5	7.5
QC11Y-6x3200	6	3200	12	750	0.5∽1.5	7.5
QC11Y-6x4000	6	4000	10	750	0.5∽1.5	7.5
QC11Y-6x5000	6	5000	8	750	0.5∽1.5	7.5
QC11Y-6x6000	6	6000	8	750	0.5∽1.5	7.5
QC11Y-8x2500	8	2500	14	750	0.5∽2	7.5
QC11Y-8x3200	8	3200	12	750	0.5∽2	7.5
QC11Y-8x4000	8	4000	10	750	0.5∽2	7.5
QC11Y-8x5000	8	5000	7	750	0.5∽2	15
QC11Y-8x6000	8	6000	7	750	0.5∽2	15
QC11Y-10x2500	10	2500	10	750	0.5∽2.5	15
QC11Y-10x3200	10	3200	8	750	0.5∽2.5	15
QC11Y-10x4000	10	4000	6	750	0.5∽2.5	15
QC11Y-10x5000	10	5000	5	750	0.5∽2.5	15
QC11Y-10x6000	10	6000	5	750	0.5∽2.5	15
QC11Y-12x2500	12	2500	10	750	0.5∽2.5	15
QC11Y-12x3200	12	3200	8	750	0.5∽2.5	15
QC11Y-12x4000	12	4000	6	750	0.5∽2.5	15
QC11Y-12x5000	12	5000	5	750	0.5∽2.5	30
QC11Y-12x6000	12	6000	5	750	0.5∽2.5	30
QC11Y-16x2500	16	2500	8	750	0.5∽2.5	15
QC11Y-16x3200	16	3200	7	750	0.5∽2.5	15
QC11Y-16x4000	16	4000	6	750	0.5∽2.5	15
QC11Y-16x5000	16	5000	5	750	0.5∽3	22
QC11Y-16x6000	16	6000	5	750	0.5∽3	37
QC11Y-20x2500	20	2500	6	750	0.5∽3	22
QC11Y-20x3200	20	3200	5	750	0.5∽3	30
QC11Y-20x4000	20	4000	4	750	0.5∽3	30
QC11Y-20x5000	20	5000	4	750	0.5∽3	37
QC11Y-20x6000	20	6000	5	750	0.5∽3	37
QC11Y-25x2500	25	2500	5	750	0.5∽3.5	37
QC11Y-25x3200	25	3200	5	750	0.5∽3.5	37
QC11Y-25x4000	25	4000	4	750	0.5∽3.5	37
QC11Y-30x2500	30	2500	4	750	0.5∽3.5	37
QC11Y-30x3200	30	3200	3	750	1∽3.5	37
QC11Y-40x2500	40	2500	4	750	1∽4	37x2

FAQ

1. Q: Are you a factory or trading company?

A: We are a factory and trading company.

2. Q: Can you supply the relevant documentation?

A: Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.

3. Q: How does your factory do regarding quality control?

A: Quality is priority". we always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO, CE certificate.

4. Q: How long is the product warranty period?

A: We will provide one year warranty for all products.

5. Q: I would like to ask you if it's possible to have my logo on the product.

A: We hope you know that our company perfectly support customized logo service. But, we also hope you know that it's an extra service,so a little bit extra service fee is needed.

Details

• Max. Cutting Width (mm): 5000
• Max. Cutting Thickness (mm): 10 mm
• Automatic Level: Semi-automatic
• Shearing Angle: 0.5°-2.5°
• Blade Length (mm): 5000 mm
• Backgauge Travel (mm): 600 - 750 mm
• Throat Depth (mm): 100 mm
• Condition: New
• Brand Name: Zhouxiang
• Power (kW): 15 kW
• Weight (KG): 22000 KG
• Place of Origin: Jiangsu, China
• Voltage: 220V-380V
• Dimension(L*W*H): 5700x2115x2715 mm
• Warranty: 2 Years
• Key Selling Points: high quality
• Applicable Industries: Machinery Repair Shops, Manufacturing Plant
• Showroom Location: Egypt, Viet Nam, Russia, Argentina, Chile
• Marketing Type: Factory Sales
• Machinery Test Report: Provided
• Video outgoing-inspection: Provided
• Warranty of core components: 1 Years
• Core Components: Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Engine, Gearbox
• Model: QC11Y-10x5000
• Strokes: 5 Times/min
• Electric Control System: Digital Show
• Machine type: Guillotine 2 Cylinders Working
• Material: Stainless Steel, Alloy, Carbon Steel
• Color: Gray or Designated
• Main Motor: Siemens Germany
• Main Hydraulic Valve: Bosch-Rexroth Germany
• Linear Scale: Heidenhain Germany
• After Warranty Service: Video technical support, Online support
