Product Application:

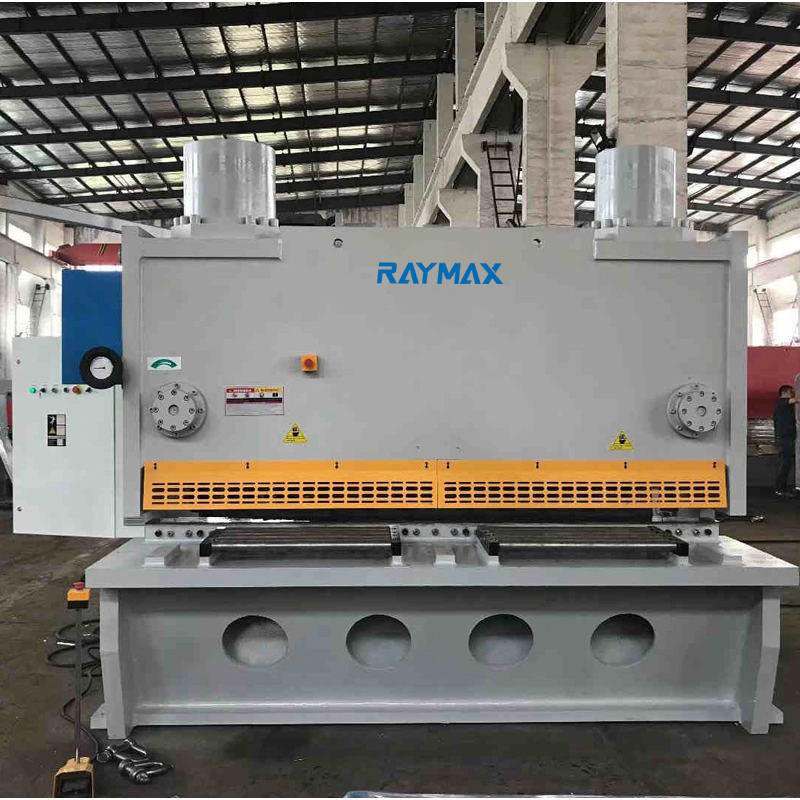

QC12K series hydraulic shearing machine is suitable for cutting carbon steel, stainless steel, galvanized sheet, aluminum and many other metals. It is widely used in metal processing industry, machine building industry, building construction, mining industry, railway construction and Aerospace Industry.
Features:
1. Whole machine is metal plate welded structure,with hydraulic transmission and accumulator return,typical of an easy operation,reliable performance and nice appearance;
2. Indication is provided for adjustment of blades clearance,for a handy and prompt adjustment;
3. Alignment device with lighting and control device for shearing stroke set,it is easy and fast for adjust ;
4. Worktable with balls for material feeding convenient,to minimize scratch off plate and to reduce fricitional resistance;
5. Backage adopts E21S control system,low noise and high precision.
PRODUCT SPECIFICATIONS
| No | Item | Data |
| 1 | Model | QC12K-4x2500 |
| 2 | Max. Cutting Thickness | 4mm |
| 3 | Max. Cutting Width | 2500mm |
| 4 | Function | Cutting Metal Plate |
| 5 | Motor Power | 5.5 kw |
| 6 | Stroke Times | 16 times/min |
| 7 | Weight | 3.1 T |
| 8 | Dimension | 3040x1550x1550 |
PRODUCT CONFIGURATION
1. Control system: Estun E21S CNC controller(Opitional)
2. Hydraulic cylinder: China Taifeng(Standard)or German Bosch(opitional)
3. Gear Pump: China famouse brand(Standard) or Bosch pump(opitional)
4. Oil Pump: China made(standard) or USA Sunny pump(opitional)
5. Electric components: China made(Standard) or Semiens brand(opitional)
6. Motor: China made(Standard) or Semiens brand(opitional)
7. Linear Screw: Normal screw(Standard) or Taiwan HIWIN brand ball screw and linear guide rail(opitional)
8. Hydraulic and electrical overload protection(Standard)
9. Light /Laser guards(opitional)
10. Frequency converter(opitional)
11. Blade material:6CrW2Si
Germany Rexroth Safety Valves Group

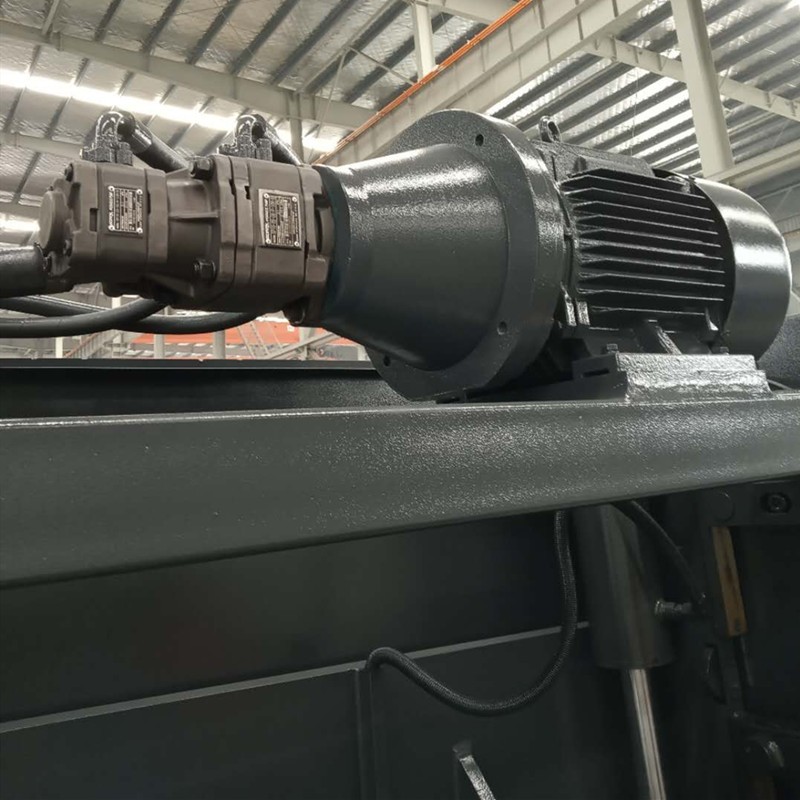

Germany Simens Motor and The US Sunny Oil Pump

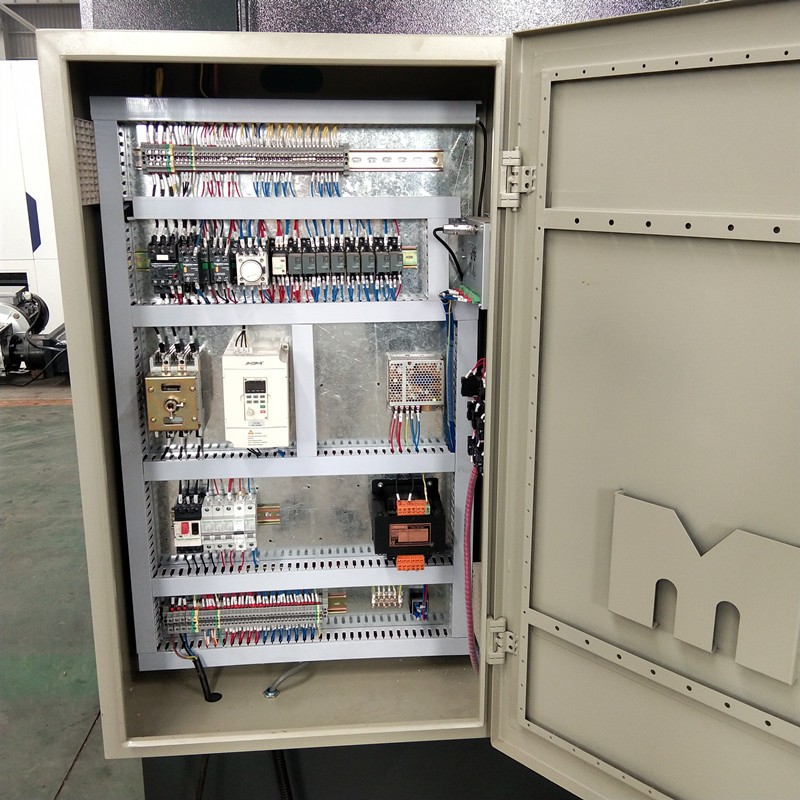

France Schneider Electric System

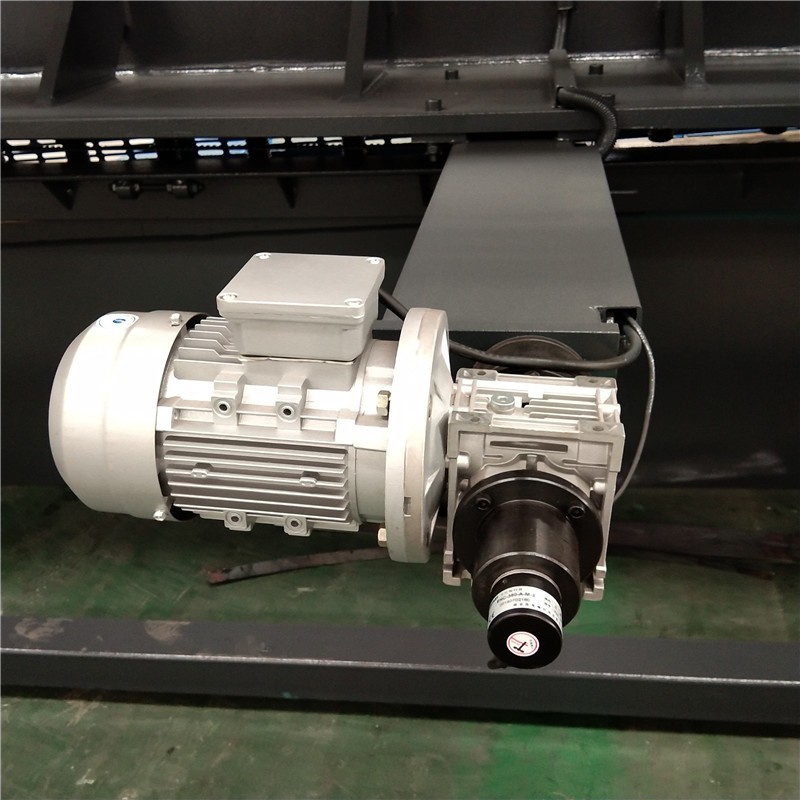

Stepping Motor

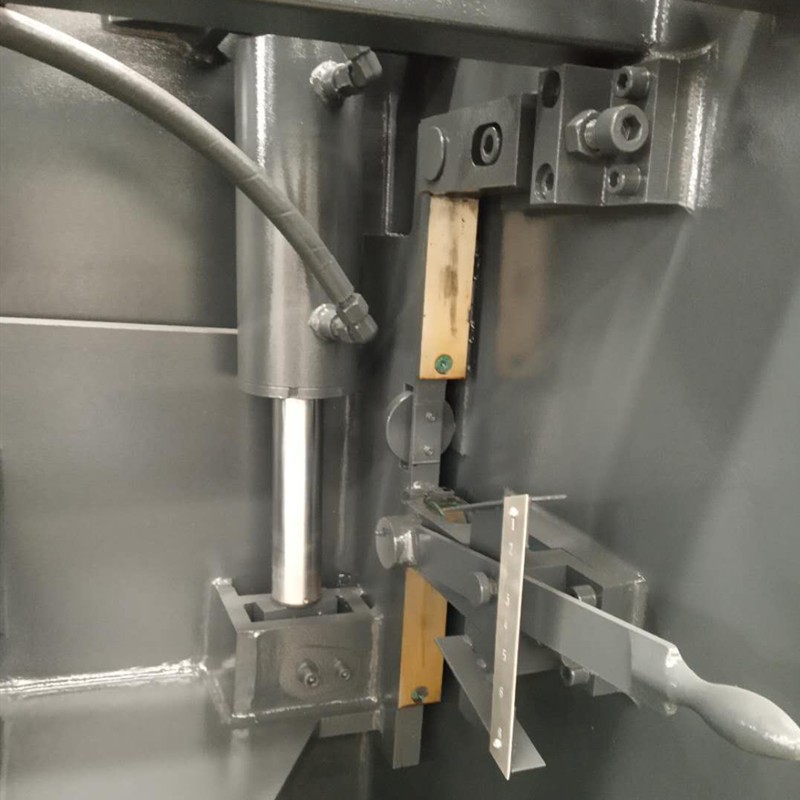

Blade Gap Adjustment Device

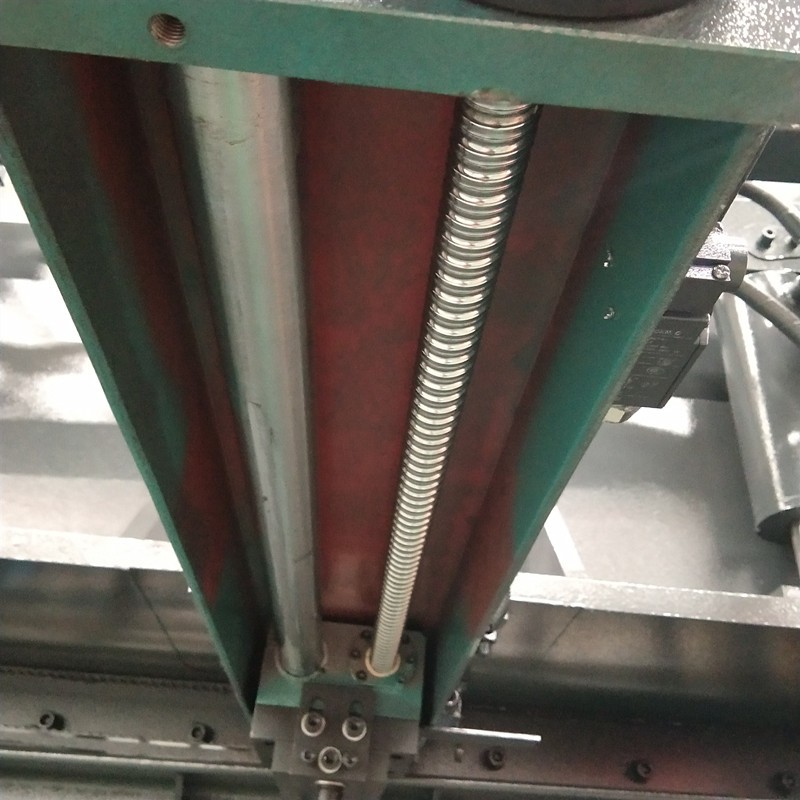

Taiwan HIWIN Ball screw rod

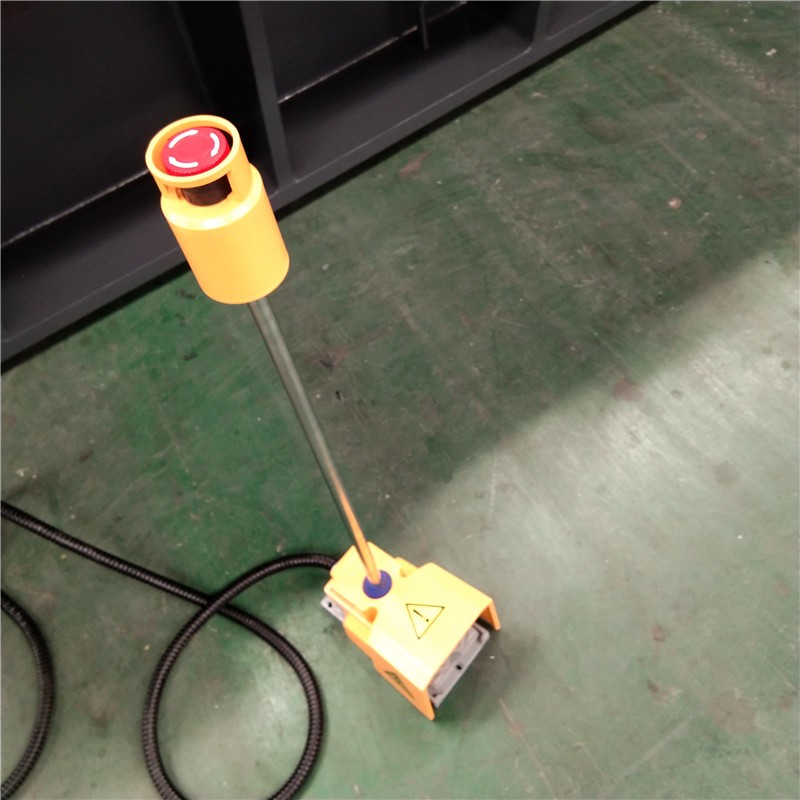

Foot Switch

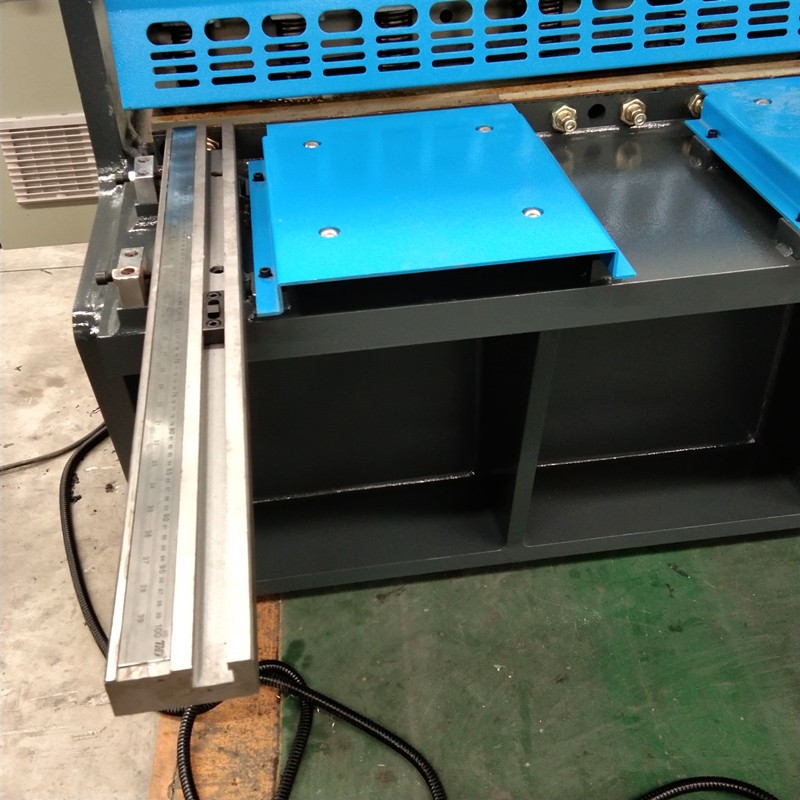

Measuring Ruler

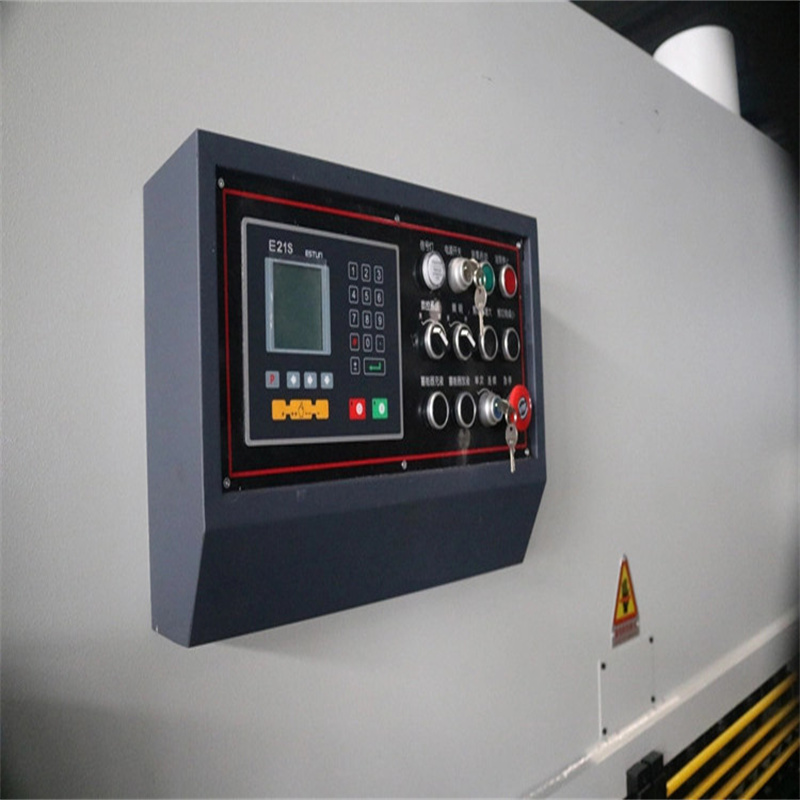

Introduction for Estun E21S control system:
▪ 160x160 LCD Display
▪ Backage control
▪ Control for general AC motors,frequency inverter
▪ Intelligent positioning
▪ Stock counter
▪ Program memorey of up to 40 programs,up to 25 steps per program
▪ One side positioning
▪ Retract function
▪ One key backup/restore of parameters
▪ mm/inch
▪ Chinese/English

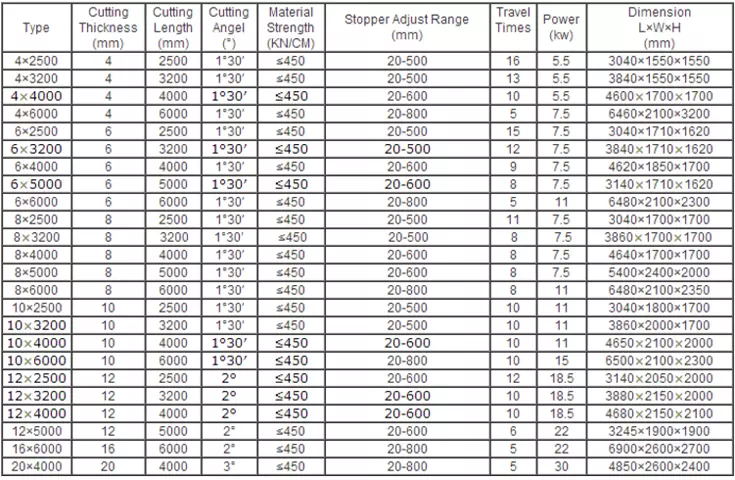

PARAMETERS
What details should we know for choosing shearing machine:
1. Shearing material;
2. Shearing thickness;
3. Shearing length;
4. Do you have high accuracy requirements for shearing machine?
Which decide whether we should use high accuracy components for your shearing machine.
FAQ
1. Are you the manufacture? Can we visit your factory?
Of course, you can. We are manufacturer and we are located in Anhui, China. We have our own team for products design. Welcome to visit our factory and check our machine qualtiy, any question will be solved on time.
2. What's your main product? What is your main foreign market?
Our main products are press brake, shears machines, press, cutting machine, locking machine , auto duct line and related products. Our main foreign markets are Asia, North America, Europe, and Africa.
3. what are the advantages of your machines? And how can I believe the quality of your product?
The main configuration is import high quality products, and professional product quality inspection team ensures machine in top-quality, precision and life. For example, Germany Bosch-Rexroth Valve group,Germany Siemens Main Motor, Schneider Electrics system and so on. Once tested as qualified, our machine would be sent out. So The quality of our product is stable and reliable.
4. Are you able to update the production process Information in time after placing our order?
After confirming your order ,we would keep you updated of production details of emails and photos.
5. Can we be your agent?
Yes, we are looking for global agent, and we will help agent improve the market ,and supply all the service like machine technical problem or other after-sales problem, meanwhile ,you can get big discount and commission.
6. Payment terms?
T/T, L/C, Western Union, Paypal, Alibaba Secure Payment ect.
7, Are you provide product metal parts and provide us technical guidance?
Wearing parts, Disassembly tool(free) are what we could provide.And we can give you technical guidance.Our technical staff can go abroad to provide you with professional technical guidance.
8. How long is your warranty?
13 months free warranty, life-long maintenance.
9. Do you accept customer Logo and customized ?
we accept kinds of customized , including logo and machine . Please feel free to contact us if you are interested in our QC12K-4x2500 cnc hydraulic customized shearing machine 2500 hydraulic cutting machine.
Details
- Max. Cutting Width (mm): 2500
- Max. Cutting Thickness (mm): 4 mm
- Automatic Level: Fully Automatic
- Shearing Angle: 1
- Blade Length (mm): 2500 mm
- Backgauge Travel (mm): 30 - 500 mm
- Throat Depth (mm): 400 mm
- Condition: New
- Brand Name: RAYMAX
- Power (kW): 5.5 kW
- Weight (KG): 3100 KG
- Place of Origin: Anhui, China
- Voltage: 3 Phase 380V/50Hz
- Dimension(L*W*H): 3040x1550x1550 mm
- Year: 2020
- Warranty: 2 years
- Key Selling Points: Competitive Price
- Applicable Industries: Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
- Showroom Location: None
- Marketing Type: New Product 2020
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Warranty of core components: 2 years
- Core Components: Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Engine, Gearbox
- Model: QC12K-4x2500
- Max. Cutting Thickness: 4mm
- Max. Cutting Width: 2500mm
- Usage: Metal Cutting
- Main Motor: Siemens, Germany
- Oil Pump: Sunny, the US
- Electrical components: Schneider, France
- CNC System: Nanjin Estun(E21S)
- Keyword: Customized
- Color: Optional
- After-sales Service Provided: Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support
- After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
- Local Service Location: None
- Certification: ISO
