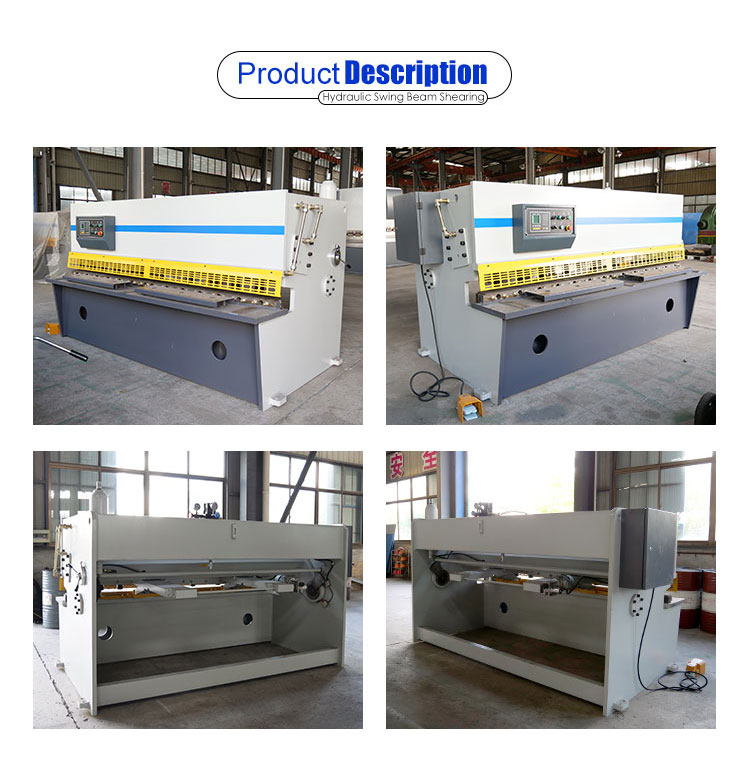

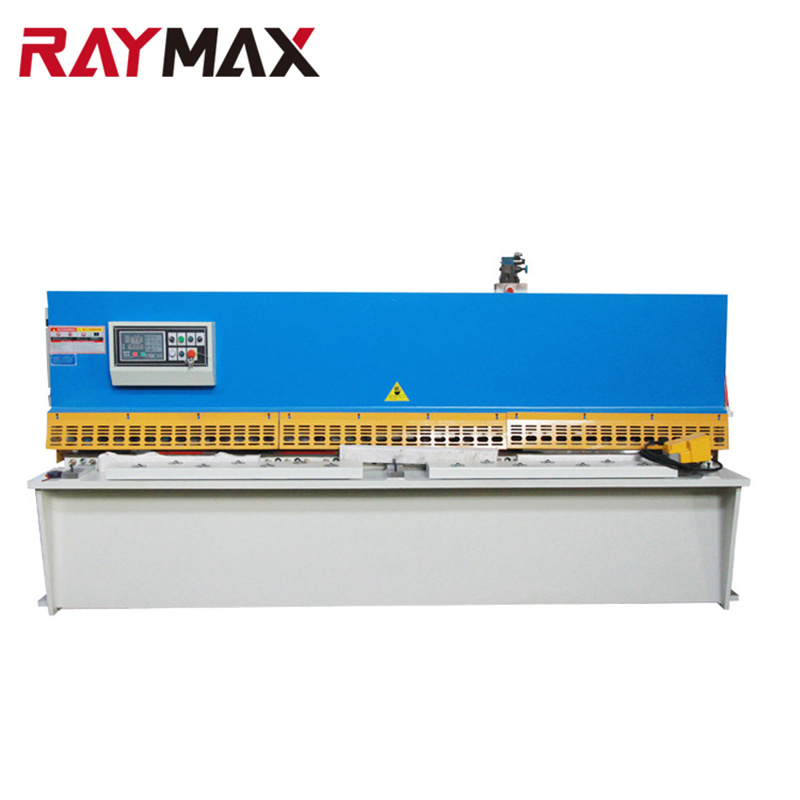

Qc12y-6x5000 Cnc Hydraulic Shearing Machine For Sheet Metal Cutting With Ce

Features of shearing machine:

1. Frame welded, vibration to eliminate stress, high in rigidity, sturdy an durable. Hydraulic drive, swing beam, return of knife beam is smooth and prompt by accumulator or nitrogen cylinder, stead & reliable perfoman.

2. The position of low blade can be adjusted to ensure the epuilibrium of the gap after regrinding. the protable and prompt adjusted of the blades gap, the value of gap is indicated by dial, positioning reliable.

3. Setting the backgauge by motor. The displessly devices used to the backgauge value and the shearing times are on the front of the machine.

4. The stroke of knife or cbeam can be adjusted steplessly, conveniently an fast.

5. Preselection of single or continous strokes. Preselection of cutting number and cutting strokes
Qc12y-6x5000 Cnc Hydraulic Shearing Machine For Sheet Metal Cutting With Ce

SpecificationShearBackgaugeShearing AngleMotor
WidthRangPower
mmmm(°)kw
QC11Y-4×2500250020--6000.5-1°30'5.5
QC11Y-4×3200320020--6000.5-1°30'5.5
QC11Y-4×4000400020--6000.5-1°30'5.5
QC11Y-6×2500250020--6000.5-1°30'7.5
QC11Y-6×3200320020--6000.5-1°30'7.5
QC11Y-6×4000400020--6000.5-1°30'7.5
QC11Y-6×5000500020--8000.5-1°30'11
QC11Y-6×6000600020--8000.5-1°30'11
QC11Y-8×2500250020--6000.5-1°30'7.5
QC11Y-8×3200320020--6000.5-1°30'7.5
QC11Y-8×4000400020--6000.5-1°30'7.5
QC11Y-8×5000500020--8000.5-2°15
QC11Y-8×6000600020--8000.5-2°15
QC11Y-12×2500250020--8000.5-2.5°15
QC11Y-12×3200320020--8000.5-2.5°15
QC11Y-12×4000400020--8000.5-2.5°15
QC11Y-12×5000500020--8000.5-2.5°15

Qc12y-6x5000 Cnc Hydraulic Shearing Machine For Sheet Metal Cutting With Ce

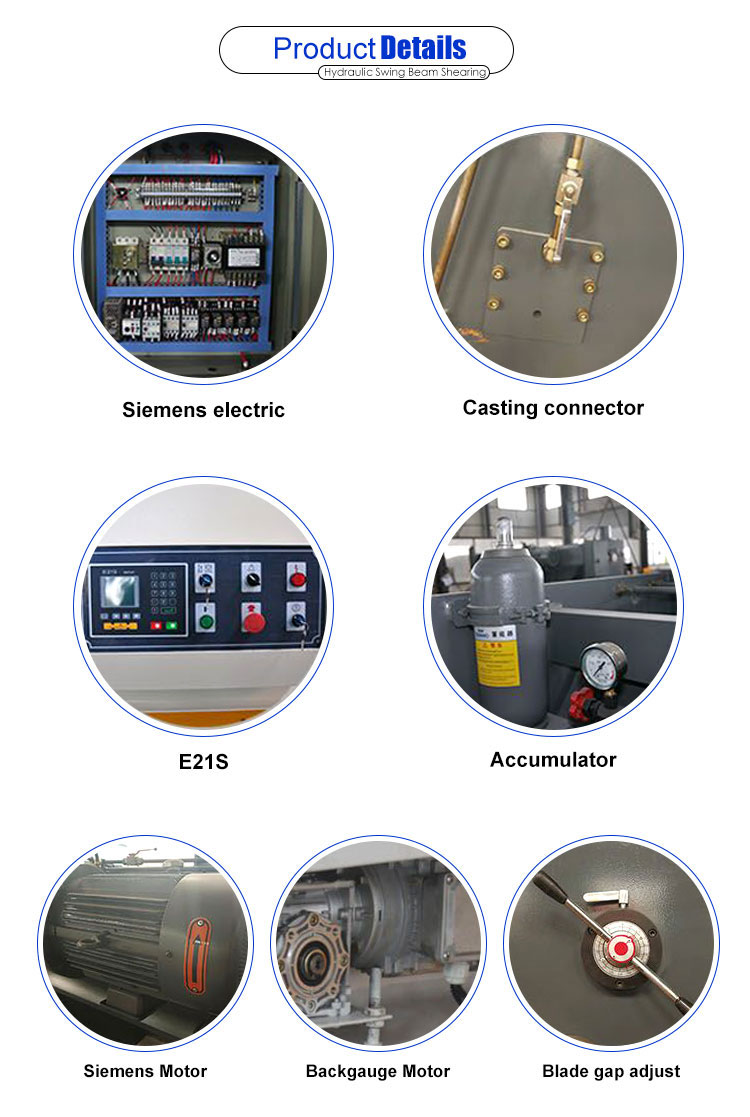

Details Images

Qc12y-6x5000 Cnc Hydraulic Shearing Machine For Sheet Metal Cutting With Ce

FAQ

Q1: How is the warranty?

A1: Warranty time is 13 months after BL date.

Q2: Can we visit your factory before order?

A2: Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.

Q3: Do you have a stock?

A3: Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.

Q4: What’s the MOQ?

A4: One set only.

Q5: How about your quality?

A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.

Q6: Do you have professional engineers?

A6: Yes.we have professional engineers and designers. We can provide OEM services.

Q7: Can you provide customized machines?

A7: Yes, we can design and manufacture according to your specific requirements.

Details

  • Max. Cutting Width (mm): 5000 mm
  • Max. Cutting Thickness (mm): 6 mm
  • Automatic Level: Fully Automatic
  • Blade Length (mm): 800 mm
  • Throat Depth (mm): 200 mm
  • Condition: New
  • Brand Name: RAYMAX
  • Power (kW): 7.5 kW
  • Weight (KG): 3800 KG
  • Place of Origin: Anhui, China
  • Voltage: 220/380/415v
  • Dimension(L*W*H): 5000x2500x3600mm
  • Year: 2021
  • Warranty: 1 Year
  • Key Selling Points: High-accuracy
  • Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Retail, Construction works
  • Showroom Location: Canada, United Kingdom, United States, Italy, France, Germany, Brazil, Peru, Indonesia, Mexico, Russia, Spain, Thailand, Morocco, Argentina, South Korea, Chile, Colombia, Algeria, South Africa, Japan, Malaysia, Australia
  • Marketing Type: New Product 2021
  • Machinery Test Report: Provided
  • Video outgoing-inspection: Provided
  • Warranty of core components: 1 Year
  • Core Components: Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Other, Engine, Gearbox
  • Raw Material: stainless steel
  • Name: Hydraulic Shearing Machine
  • Product name: Metal Steel Cutting Machine
  • Application: Industrial Metal Cutting
  • Cutting material: Metal .alloy Metal .aluminum
  • Machine type: Cutting Machine Shearing Machine
  • Control system: Estun E21 NC Control
  • Keyword: Metal Steel Cnc Cutting Machine
  • Color: Customer Requirement
  • Material: Steel Material
