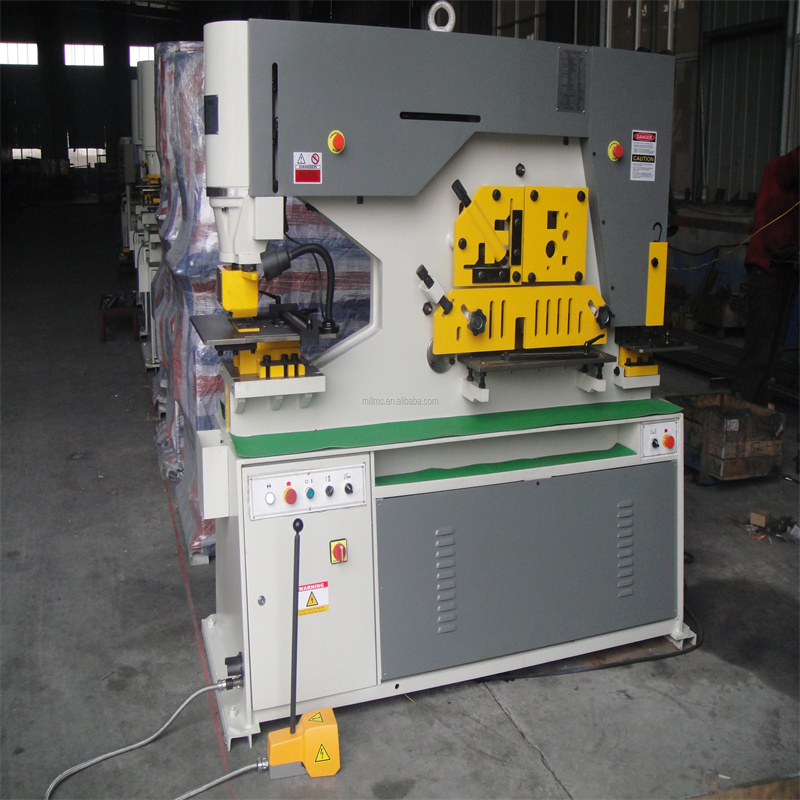

RAYMAX Q35y Series Hydraulic Ironworker Machine

Product Description

Q35Y series hydraulic ironworkers combined punching and shearing machines is designed by the most advanced technology, which has the advantages of easy operation, low consumption and low maintenance cost.Hydraulic ironworkers machine has multiple functions, including: round hole, square hole, rectangular hole punching; steel plate, flat steel, angle steel, C-groove, H-shaped steel punching; steel plate bending; angle steel shearing, notching and bending; Flat, round, square bar, C-shaped channel, I-beam, T-bar shear; angle bending and pipe notching.

Q35Y series hydraulic ironworker tools have multi-function functions, which is your first choice among similar machines. In addition, all components are of the highest quality in terms of safety, function, performance and maintenance.

Details

Electrical Cabinet: Main electric is Schneider brand .Equipped with open door automatic power-off protection device , more safe .

Main Motor and Valve: Chinese famous brand Shuangta motor and imported valve from Japan

Laser calibration: Higher processing accuracy and easy operation.

Backgauge: The stop backgauge can be adjusted in accordance with the shearing length, thus, it can control efficient shearing length automatically.

Notching: Special design can excellently cut right-angle, bevel and notch on the angle steel, profile steel and plates. There is a large visible window with scale and stop gauge.

Punching: Full range of universal punches and dies are available . Unique style allows for large angle iron punching, pipe punching and large channel punching .

Bending

Channel steel shearing

I-beam shearing

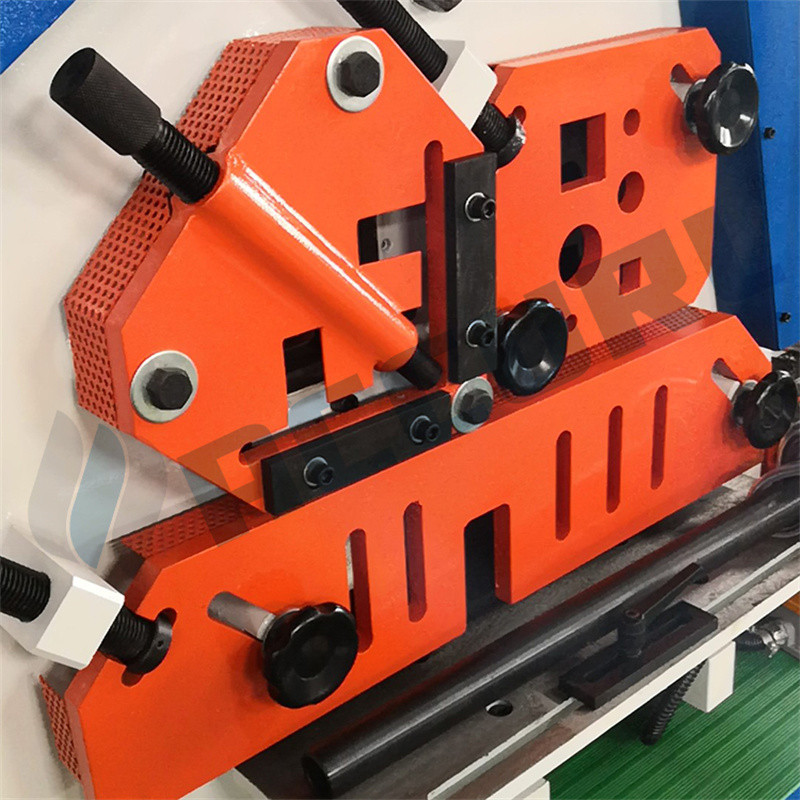

Round and Square bar shearing:  Round and Square bar shear has multiple holes for a variety of sizes. Adjustable hold own for clean square cutting. Optional Channel and beam shears available.

Steel plate and angle steel shearing:  There are several visible holes in adjustable holder, which can ensure accurate shearing of steel plates and 45°angle.Working table with scales and adjustable plates can do angle shearing.

Automatic presser foot: Optional automatic presser foot device, saving time and effort, simple operation.

Product Paramenters

Model	Q35Y-16	Q35Y-20	Q35Y-25	Q35Y-30	Q35Y-40	Q35Y-50
L(mm)	1650	1950	2350	2680	2800	3000
W(mm)	800	900	980	1060	1160	1440
H(mm)	1780	1930	2100	2380	2400	2450
Weight(Kg)	1900	2600	4800	6800	9200	12800

Details

• CNC or Not: CNC, Normal
• Condition: New
• Nominal Force (kN): 600
• Power Source: Hydraulic, Hydraulic
• Year: 2021
• Voltage: 220v 380v
• Dimension(L*W*H): 1740X810X1830
• Motor Power (kW): 5.5
• Weight (T): 1.9
• Key Selling Points: Low Noise Level
• Warranty: 1 Year
• Applicable Industries: Farms, Home Use, Manufacturing Plant, Energy & Mining, Construction works , Advertising Company, Machinery Repair Shops, Building Material Shops, Printing Shops, Hotels, Food & Beverage Factory, hydraulic ironworkers
• Usage: Pressing Metal Products
• Keyword: combined ironworker
• Function: Punching Shearing Bending
• Product name: combined punching and shearing machines
• Model: Q35Y Ironworker
• Certification: CE ISO
• Application: Metal Sheet Stamping
• Color: Customized
