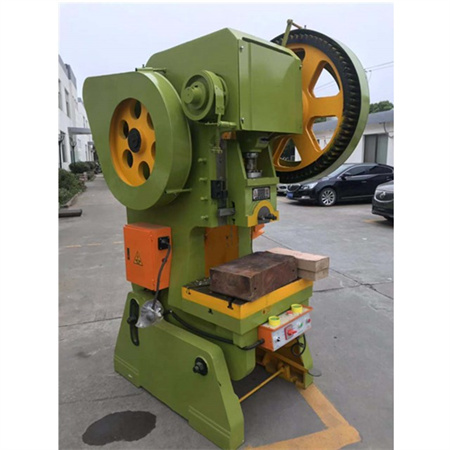

30 ton punch press

Product Description J23 Series Presses is one of the new generation of plate process and developed by RAYMAX, The press is for cutting, punching, blanking, bending and light stretching work 1. C- frame provides maximum rigidity and minimum deflection for accurate parts and long tool life.Steel-welded frame, high rigidity and less deformation Compact.Thick plates and large columns provide you with the stable platform you need for your demanding application. 2. Wide body frame eliminating vibration for improved ide life and machine,which means economical and practical. Operation space is wide, and the movable bolster could be moved out of frame to…

Product Description J23 series Open Eccentric Presses is a general-purpose presses, suitable for forming, blanking, punching, bending and other cold stamping process. 1. C-frame Casting fuselage,maximum rigidity and minimum deflection for accurate parts and long tool life. body can be tilted, high rigidity and less deformation Compact. Thick plates and large columns provide you with the stable platform you need for your demanding application. 2.Wide body frame eliminating vibration for improved ide life and machine,which means economical and practical. Operation space is wide, and the movable bolster could be moved out of frame to set the die. The structure is…

Products Description J23 series cnc hole punching press machine Model J23-10T Dimensions(L*W*H) 915*750*1690MM Certificate CE, ISO Packing details Steel tray case MOQ 1SET Warranty 2Years Payment T/T, L/C, D/P, Weston Union,MoneyGram Mechanical C-Frame Power Press J23 Series J23 series Open Eccentric Presses is a general-purpose presses, suitable for forming, blanking, punching, bending and other cold stamping process. 1. Stable: reasonable and scientific mechanical design, stable structure to reduce wear 2. Economical and practical: long service life and high efficiency, high accuracy 3. Simple operation: high degree of automation The Machine use Rigid rotated bond clutch rigid and well supported. The…

Scope of application: The multifunctional combined punching and shearing machine is a manual punching and shearing equipment that integrates cutting, shearing, punching, plate shearing and angle shearing. It uses overlapping two-stage levers, sliders, crankshafts, etc. to drive a 5-station The sliding board moves up and down to achieve a multi-purpose effect. It is widely used in machining, construction, electric power, railway, shipbuilding, automobile and other industries. Product Paramenters Model QJ-8B QJ-10B QJ-12B Shear force 360KN 500KN 900KN Tool stroke 27MM 30MM 36MM Number of trips 30Times/min 30Times/min 30Times/min Motor Power 2.2KW/380V 3.0KW/380V 4.0KW/380V Machine weight 550KG 700KG 1100KG Dimensions 900*600*1100MM…
