3mm sheet metal bending machine

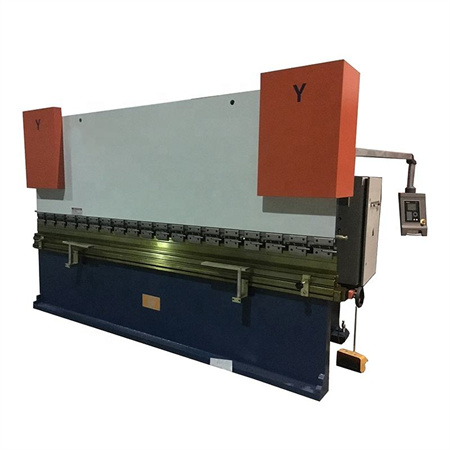

Product Description 1. Totally EU streamlined design. Monobloc by welding robots & apparatus and stress relief process by annealing treatment. 2. Hydraulic top-drive, steadiness and reliability, mechanical stop, steel torsion bar to maintain synchronization, high precision. 3. Adopt integrated hydraulic system, more reliable and easy for maintenance. and the hydraulic system from Bosch Rexroth, Germany. 4. Travel limit protection, full machine guarding with safety interlocker. 5. Mechanical synchronous mechanism and the complex compensation are designed so as to raise the workpieces precision. 6. The stroke and distance of the back gauge is adjusted by the motor. 7. Inch, single mode…

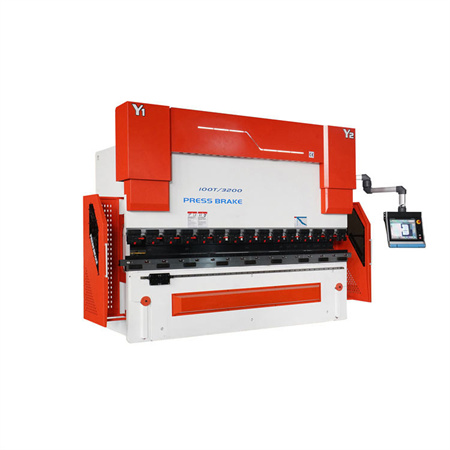

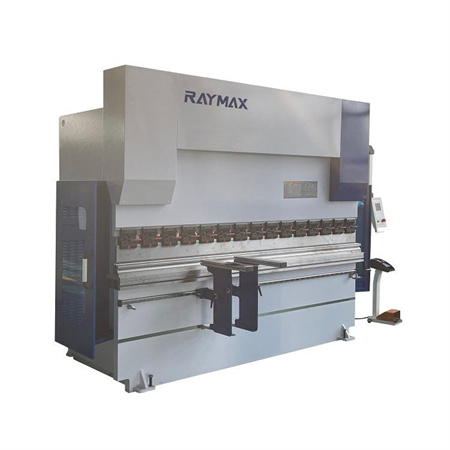

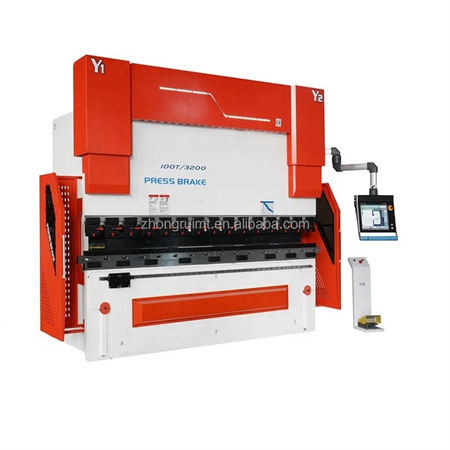

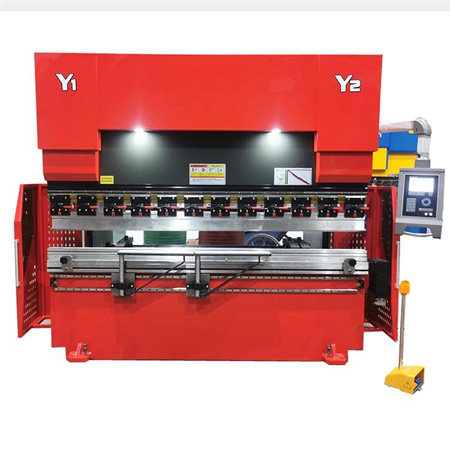

Products Description Press Brake is a new CNC bending machine launched by RAYMAX in 2020, and is suitable for manufacturers with high precision and cost performance requirements. 4-axis CNC Bending Machine is our most popular model by volume and a true workhorse, which is constructed of high quality parts and offers serious reliability. Y1 & Y2 Synchronization technology ensure high approach, bend and return speeds. It's bending length capability and pressure range can be customized to meet various producing requirements. Stable and durable performance of the machine body 1, The machine frame integrated welding. 2, The machine frame formed by…

Type Nominal Force Worktable Length Poles Distance Throat Septh Slider Travel Max Open Power Dimension (KN) (mm) (mm) (mm) (mm) (mm) (KW) L*W*H(mm) 30T/1600 300 1600 1280 200 80 285 3 1600*1000*1600 35T/2000 350 2000 1480 200 80 285 4 2000*1100*1800 40T/2200 400 2200 1850 230 100 320 5.5 2200*1200*1910 40T/2500 400 2500 1850 230 100 320 5.5 2500*1200*1910 50T/2500 500 2500 1850 230 100 320 5.5 2500*1200*2000 63T/2500 630 2500 1900 250 100 320 5.5 2500*1300*2210 63T/2500 630 3200 2500 250 100 320 5.5 3200*1300*2210 80T/2500 800 2500 1900 300 100 320 7.5 2500*1400*2300 80T/3200 800 3200 2500 320…

Main Configuration 1. Full EU streamlined design, heat treatment rack,high rigidity worktable. 2. Estun NC controller E21/DA41for Y axis and X axis control. 3. Working-piece counting function. 4. Bending retraction function 5. Backgauge with ball screw and Manual R axis 6. Optional V axis for compensation function. 7. light curtain for safty , optional DSP laser protection. 8. CE certificate and ISO9001*2008 Stanard configuration Estun E21 control (Y, X axis) * Backgauge control * Control the common motor or inverter * lntelligent positioning * Holding pressure unloading time setting * Workpiece counting * 40 programs stored, 25 steps per program *…
