5 axis press brake

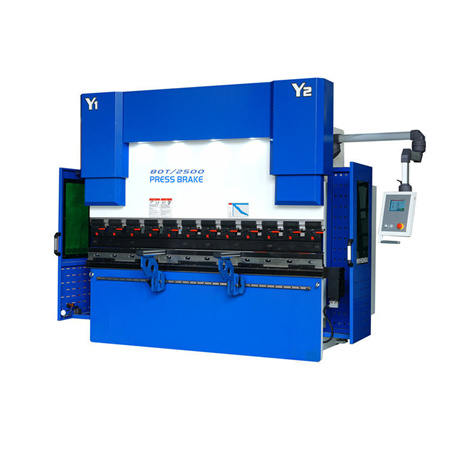

Products Description 1. Steel plate welded structure, hydraulic transmission, accumulator return, holistic processed, vibrating toeliminate stress, high strength and good rigidity. 2. Mechanical torque system makes sure the synchronization of cylinders. 3. The stroke of slider and back gauge is adjusted automatically by double servo motors or transducer, and showed on CNC Mechanical torque or NC control panel. 4. Slanting wedges can be chosen to install on the top dies which can be adjusted by hands or automatically. Hydraulic compensation system is installed under the worktable. DA53T controller features: “Hot-key” touch navigation 10.1" high resolution colour TFT Up to 4…

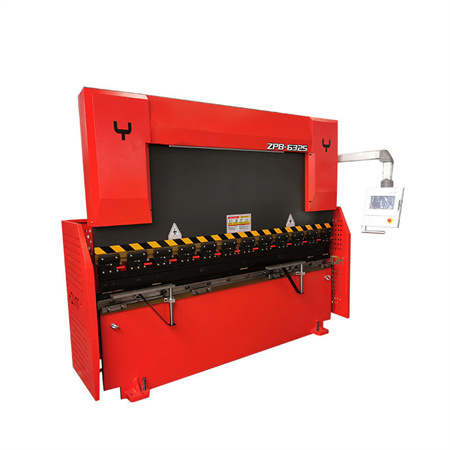

The press brake is a machine that can bending the sheet metal. Its structure mainly includes a bracket, a working table and a clamping plate. The working table is placed on the bracket which composed of a base and a pressing plate. The base is attached to the clamping plate by a hinge, and is composed of a shell, a coil and a cover plate. When in use, the wire is energized to the coil, so that the coil generates attractive force to the pressing plate in order to realize the clamping of the sheet metal between the pressing plate…

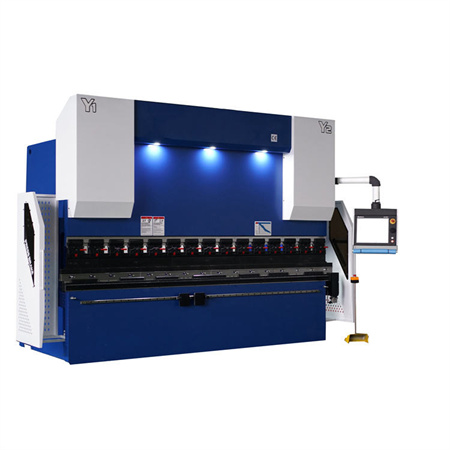

Product Description Front Sheet Supporter (Option) Two types of front supporters for selection makes the production more conveniently to reduce workload and increase work efficiency. Hydraulic System The integrated hydraulic system adopts the integrated one, which helps to reduce piping connection, eliminates the work stability, and beautifies the machine appearance. The inner engaged gear pump manufactured by a famous Germany or Japanese company is used to reduce the system noise and extend the service life. DA66T System 2D touch screen graphic simulation; 3D visualization in production mode; 17" TFT color display; Memory capacity 1 GB; USB interfacing Safety Curtain (Option)…

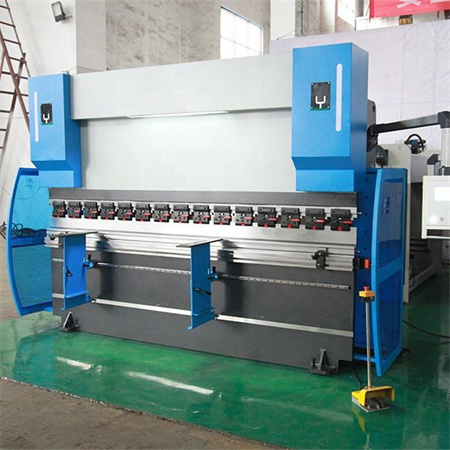

Product Description Torsion axis CNC bending machine This machine is economical and easy to operate. It can be equipped with Estan E21 or e200p system，It can be used for the bending of sheet metal. Detailed Images Ball screw and linear guide (Optional) High precise backguage,equipped with Taiwan HIWIN ball screw and polishedrod structure. Back Stop After the block material is divided into ordinary type and precision type It can be selected according to the needs Precision back stop is equipped with ball screw and linear guide It is controlled by servo motor Oil pump and Motor Guarantees the machine service…
