acp laser cutting machine

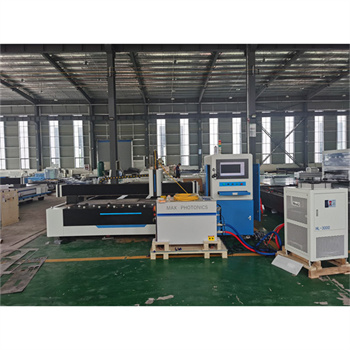

Fiber Laser Cutting Machine Characteristics: 1. Stability and reliability of light path system and control system. 2. Imported original fiber lasers,high and stable function,lifespan is over 100000 hours. 3. Higher cutting quality and efficiency,cutting speed is up to 80m/min with appearance and beautiful cutting edge. 4. German high performance reducer,gear and rack;Japanese guide and ball screw. Technical Paramaters: Working size 1300*2500mm 4 feet*8 feet 48"*96" 3000*1500mm 10 feet*5 feet 120*60'' Laser Power 500W Raycus or IPG fiber laser source cut 3mm stainless steel max cutting 6mm carbon steel max 750W Raycus or IPG source cut 4mm stainless steel max cut…

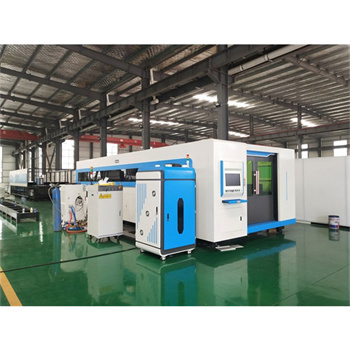

Laser cutting machine has many attractive featues, like fast speed, flying cutting, wireless control, famous controllers...etc, but all must be played on a robust table! Our rack is made of thick plates welded together one by one , so the ruggedness and stability of the rack are better. Much better than the usual pipe welding rack. Type JLM3015 JLM4015 JLM4020 JLM6015 JLM6020 Max Cutting Size(mm) 3000*1500 4000*1500 4000*2000 6000*1500 6000*2000 Max Height of The Workpiece(mm) 90 90 90 90 90 The Laser Power(W) 1000/1500/2000/3000/4000/6000 Level of Protection IP54 Effective Travel 3050 4050 4050 6050 6050 1550 1550 2050 1550 2050…

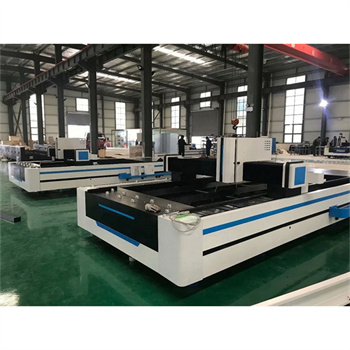

Max.Cutting Speed 90m/min Max.Acceleration 1.0G X/Y Positioning Accuracy /- 0.08mm X/Y Repeated Positioning Accuracy /-0.02mm Operating Voltage 380v/50Hz Laser Power 500w-12000w Power consumption 8kw Machine Running Temperature 0-40C0 Machine Running Humidity <90% Transmission Precise rack and pinion Size Chart of This Design Model 3015 4020 6020 working area(mm) 1500*3000 2000*4000 2000*6000 Total weight(kg) 8500 11500 16000 Machine Dimension(mm) 8650*5220*2250 10820*6000*2527 14930*6000*2527 Exchange mode Horizontal/Hydraulic Exchange Applicable field: can be used for various metal sheet processing, mainly applicable for high-speed and high-precision cutting for stainless steel, carbon steel, manganese steel, galvanized sheet, alloy sheet and rare metal materials. Applicable industrial: hotel,…

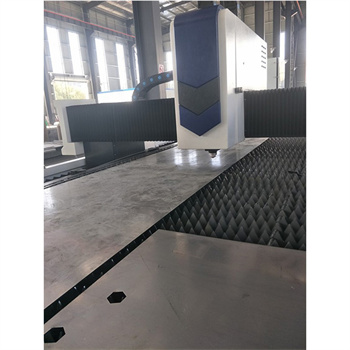

Brief Introduction CNC laser cutting machine is a new type of laser cutting machine, the structure has high rigidity, good stability, high cutting efficiency and high machining precision. The products are of high flexibility, safety, easy operation and low energy consumption. It belongs to environmental protection product, the processed plate size: 3000 * 1500mm; with the safety shield and the shuttle table. The overall layout is compact and reasonable. Numerical control cutting machine is to drive the machine tool movement with digital program. When the machine tool moves, the random cutting tool is equipped to cut the object. This Mechatronics…
