automatic guillotine shear

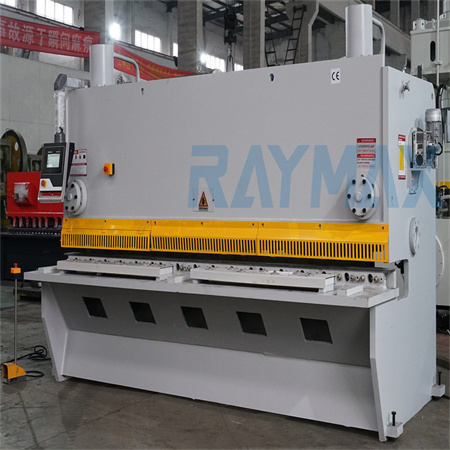

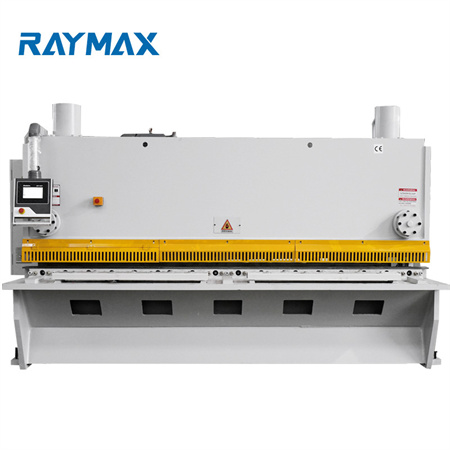

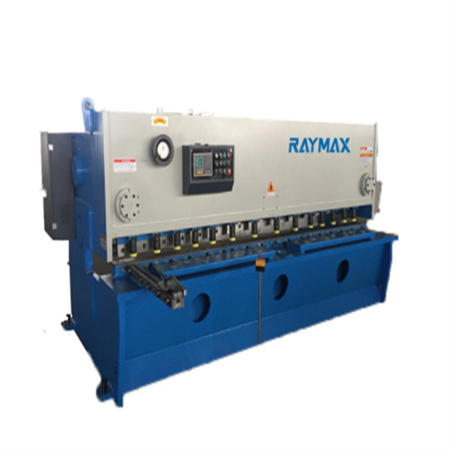

Product Information CNC Hydraulic Guillotine | QC11K 10 12 16 mm 3200 4000mm Metal Guillotine Shear CNC Guillotine Shearing Machine * Streamlined design originated from EU, the kind of machine tool consists of rack, cutter holder, oil cylinder, hydraulic controller,backgauge and other components. Finite-element analysis of main parts, welding parts uses tempering, vibration and other processing methods to eliminate stress ensuring the structural strength and rigidity of the rack and components; * Cutter holder use three-point support rolling guide rail, reducing the friction to the greatest extent and realizing seamless rolling during cutter holder moving. * Leftmost front holder configured…

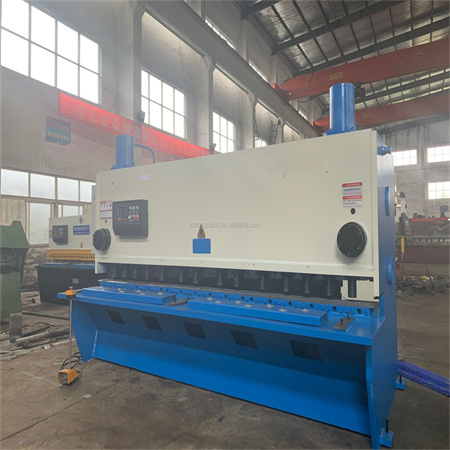

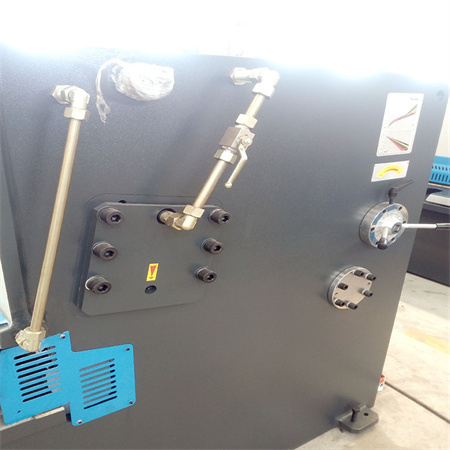

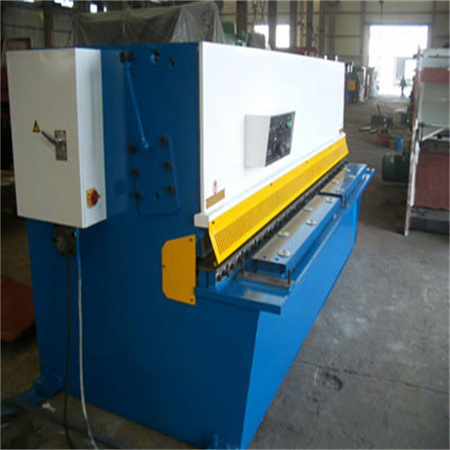

Product Description This machine adopts hydraulic driving and swing tool carrier,the structure is convenient to operate to operate and maintain.the characteristic of it is that it has complete fuctions mechanical back gauge manually operated trimming and numberical value display structure it also has blade clearnce "Quick set" device,line on the plate E10,SIKO DRO/HT071 NV system Available as optional. The Machine of Whole structure and Characteristics: Totally European design,streamlined looking,Frame: consists of right and left wall boards, working table, oil box, slot steel and etc. The stress of the welded parts can be eliminated by vibration. The machine enjoys high accuracy…

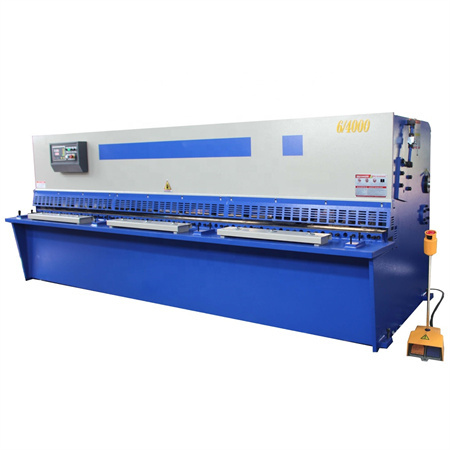

Specification Type Cutting Thickness （mm） Cutting Length （mm） Cutting Angle Material Strength Back-gauge Range Travel Times （cycle/min） Power （kw） Dimension（L*W*H） （mm） 4x2500 4 2500 1°30’ ≤ 450 20-500 14 5.5 3000*1600*1600 4x3200 4 3200 1°30’ ≤ 450 20-500 12 5.5 3900*1600*1600 4x4000 4 4000 1°30’ ≤ 450 20-550 10 5.5 4600*1800*1700 4x6000 4 6000 1°30’ ≤ 450 20-800 5 7.5 6460*2300*2400 6x2500 6 2500 1°30’ ≤ 450 20-500 14 7.5 3040*1710*1650 6x3200 6 3200 1°30’ ≤ 450 20-500 12 7.5 3840*1710*1650 6x4000 6 4000 1°30’ ≤ 450 20-500 9 7.5 4620*1850*1700 6x5000 6 5000 1°30’ ≤ 450 20-600 8 7.5…

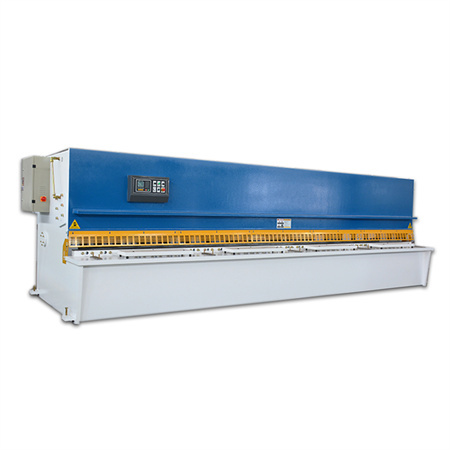

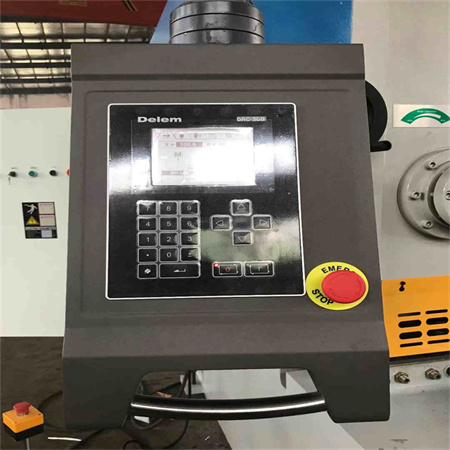

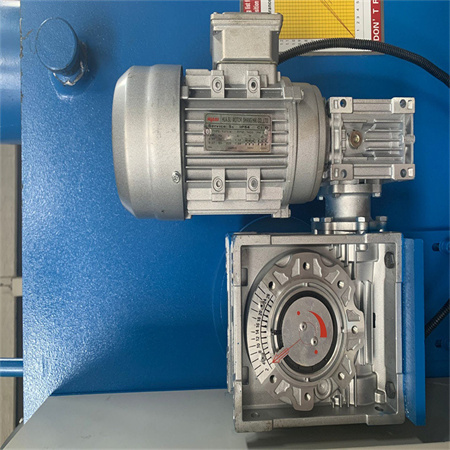

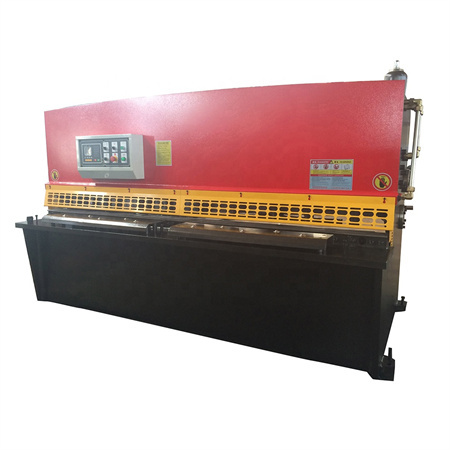

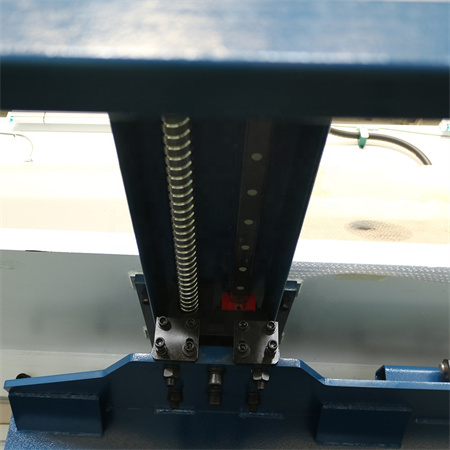

Product Description The second generation of hydraulic shearing machine QC11Y series adopts steel plate welding structure, which eliminates stress during vibration, and has good rigidity and stability. It adopts three-point supporting rolling guide to eliminate supporting gaps and improve cutting quality. It has segmented cutting function, light alignment function, motorized back gauge, digital display. In the machinery industry, Haas has always maintained the original aspiration to achieve quality, efficiency, and safety requirements. Details Images CNC system (Optional) DAC-360S（DELEM） * Panel based housing * Bright LCD screen * Back / front gauge control * Retract function * Cutting angle control and…
