bending press machine

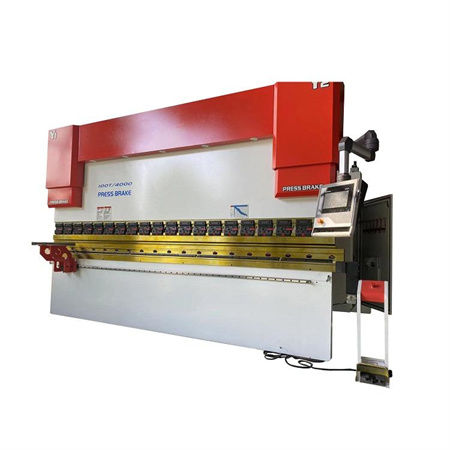

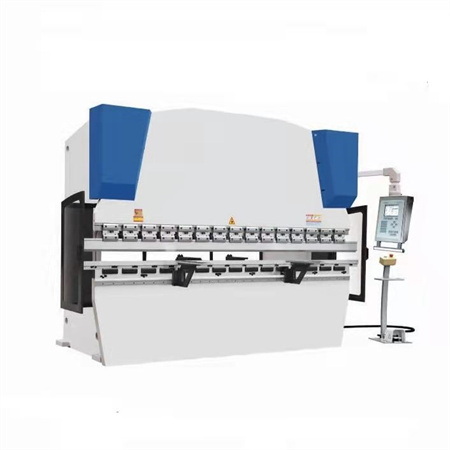

The CNC press brake uses the mold (general or special mold) to bend a cold metal sheet into a workpiece of various geometric cross-section shapes. It is a sheet metal forming machine designed for cold rolling sheet metal processing. It is widely used in sheet metal bending, such as automobile, aircraft manufacturing, light industry, shipbuilding, container, elevator, railway vehicles and other industries. 1. High bending precision,fast working speed, and efficient,operational safety, performance stably. 2. Good antiknock frame(welded-steel plate construction), whole frame is been tempering, reduce modification, using large-scale CNC milling machine,process in one time, insure high-precision. 3. Using international brand…

Production Description Basic type, torsion bar press brake,E21/E22 system with frequency converter + reducer and ball-screw to control the machine running accuracy. Torsion bar press brake, use Co-trust, E300, ES10, TP10S smart system with servo motors for y/x, machine running faster, supportfor degree input. Electro-hydraulic synchronous press brake, popular Cybelec Touch 8 system, support 4+1 axis, and motorized Z1/Z2 optional Electro-hydraulic synchronous press brake, popular Delem DA53T system, support 4+1 axis, and motorized Z1/Z2 optional CNC press brake with smarter system like DA66/69T, CT12/ModEva with 6+1 or 8+1 axis, support the communication with Robots NC/CNC tandem machine, each machine has…

Products Description Product parameters Model Nominal pressure(KN) Length of table(mm) Distance between columns(mm) Throat depth(mm) Stroke(mm) Open height(mm) Main motor(KW) Overall dimensions L×W×H(mm) 63t/2500 630 2500 1905 300 150 420 5.5 2700*1700*2300 63t/3200 630 3200 2700 300 150 420 5.5 3400*1700*2300 80t/2500 800 2500 1900 300 150 420 5.5 2700*1700*2400 80t/3200 800 3200 2700 300 150 420 5.5 3400*1700*2300 100t/3200 1000 3200 2700 350 180 420 7.5 3400*1800*2600 100t/4000 1000 4000 3100 350 180 420 7.5 4200*1800*2600 125t/3200 1250 3200 2700 350 200 420 11 3400*1900*2600 125t/4000 1250 4000 3090 350 200 420 11 4200*1900*2600 160t/3200 1600 3200 2600 350…

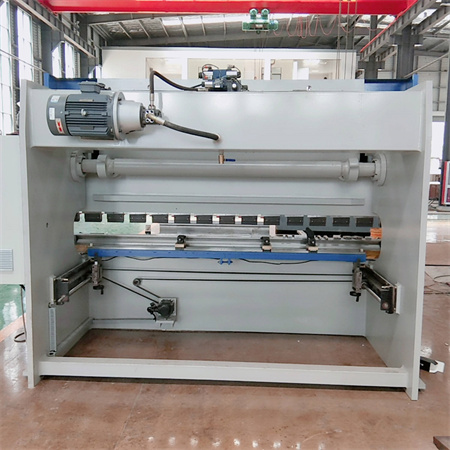

Product Overview Special numeric-control system is fitted with mainframe of the hydraulic press brake machine. Multi-work-step programming function is able to achieve an automatic operation and continuous positioning of multi-step procedures, as well as an automatic precision adjustment for positions of rear stopper and gliding block. The machine is provided with bend counting function, for a real-time display of processing quantity, power-failure memory of positions stopper and gliding block, as well as procedures and parameters. Imported ball bearing lead screw and linear guide rail are used for rear stopper, to ensure the positioning precision of rear stopper, for processing precision of…
