c frame punch press

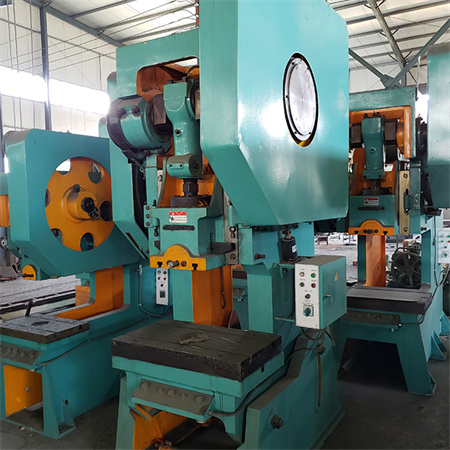

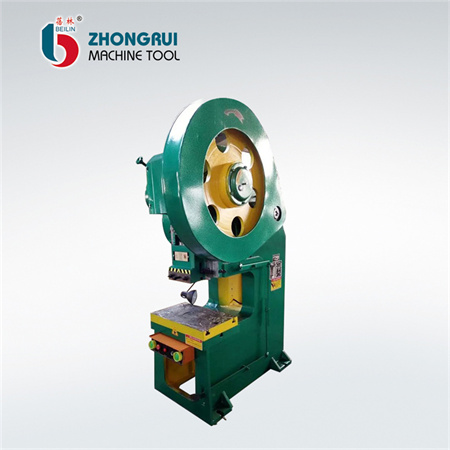

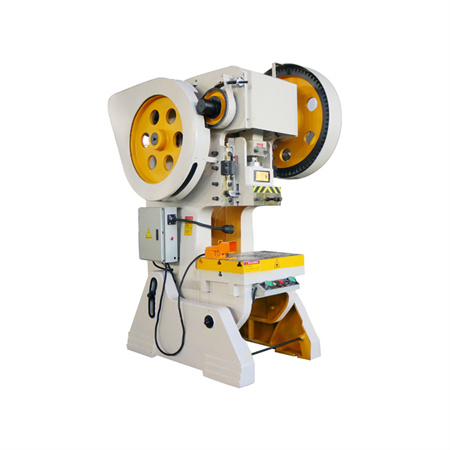

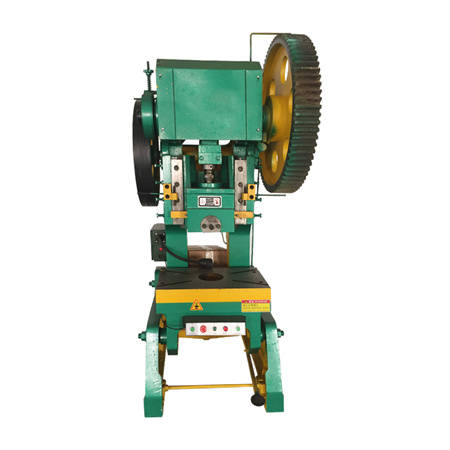

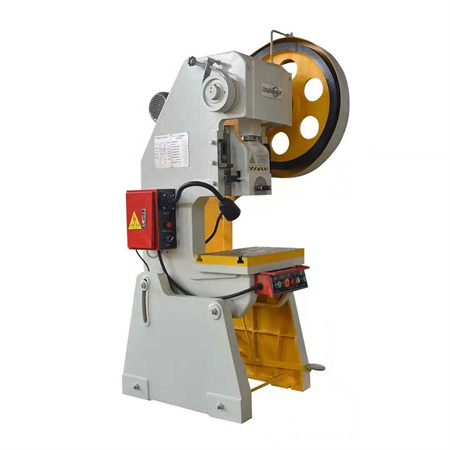

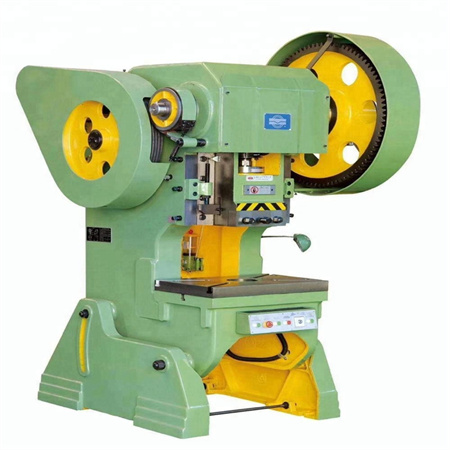

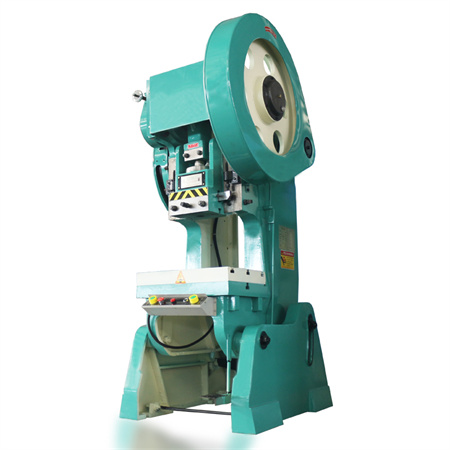

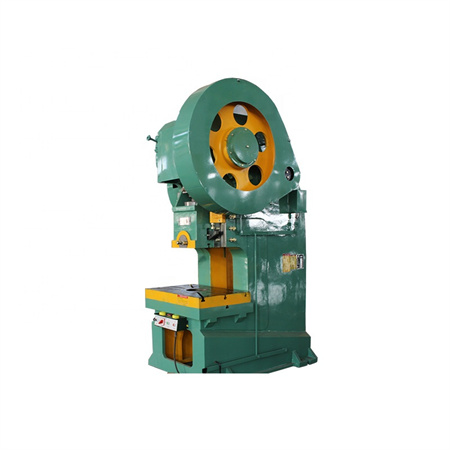

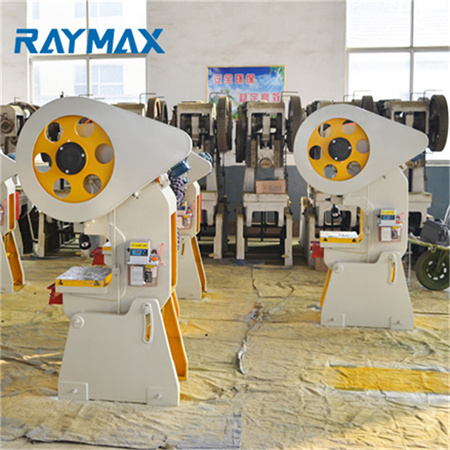

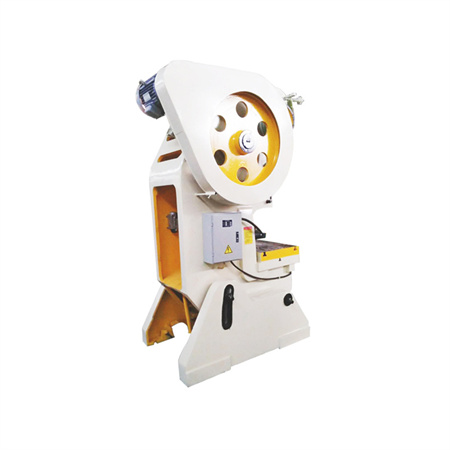

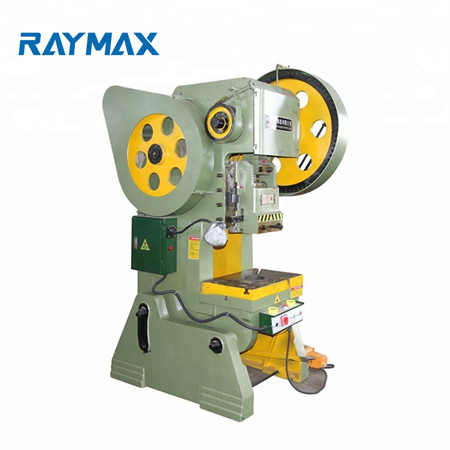

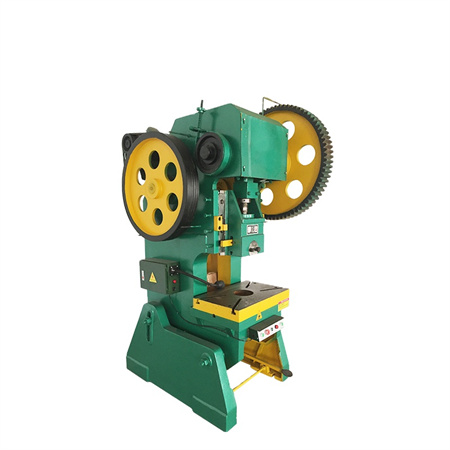

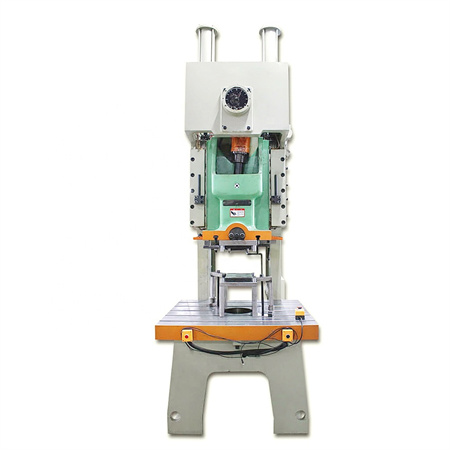

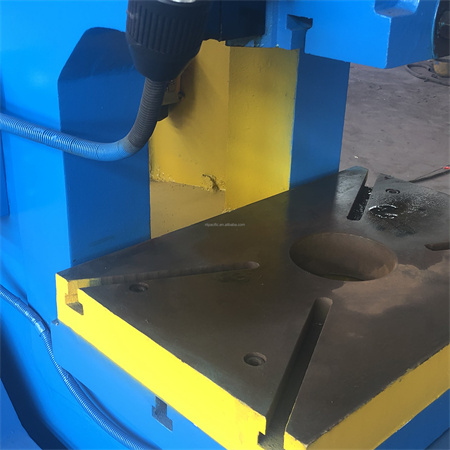

Product Description J23 Series Presses is one of the new generation of plate process and developed by RAYMAX, The press is for cutting, punching, blanking, bending and light stretching work 1. C- frame provides maximum rigidity and minimum deflection for accurate parts and long tool life.Steel-welded frame, high rigidity and less deformation Compact.Thick plates and large columns provide you with the stable platform you need for your demanding application. 2. Wide body frame eliminating vibration for improved ide life and machine,which means economical and practical. Operation space is wide, and the movable bolster could be moved out of frame to…

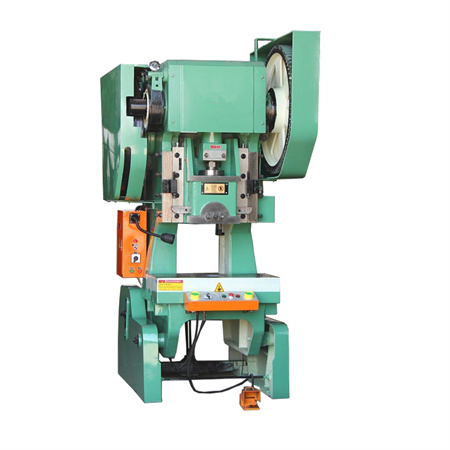

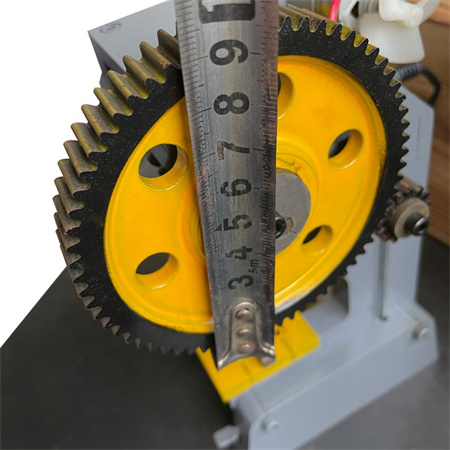

Features 1. This series of press adopts rotating key positive clutch,which has a simple structure and is convenient to operate and maintain,achieving smooth operation, low impact and low noise. 2. J23-25 open type inclinable press machine is the first to adopt rolling bearing rather than the commonly used sliding bearing(copper bearing) for the transmission gear, making the transmission gear more wear-resistant and avoiding loud noises of gears caused by the quickly worn copper bearing; 3. The 80T level and above press machine all adopt the structure of pneumatic dual balance cylinder, chich has small fluctuation of the balancec force and…

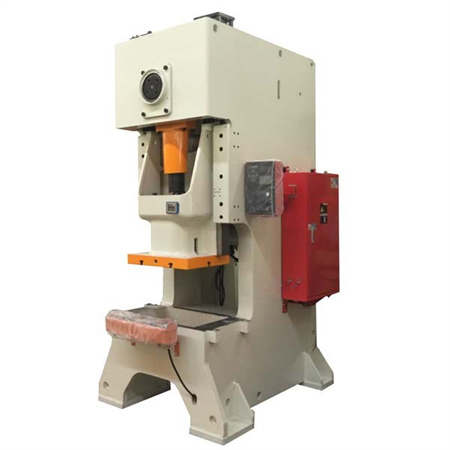

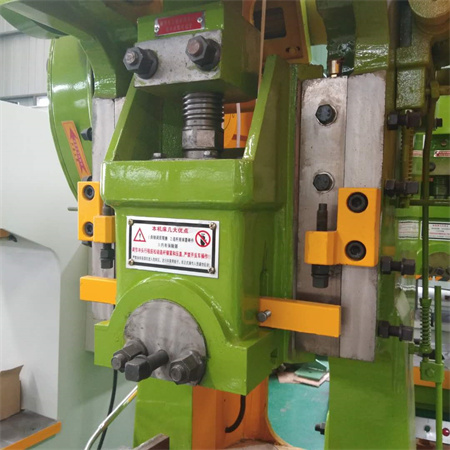

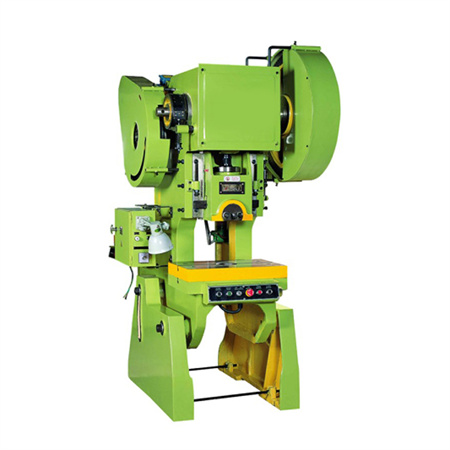

Product Description The high performance punching machine are widely used in the fields of aeronautics,auto,agriculture machines,electric machines,apparatuses and meters,medical equipments,electrical home appliance and hardware.Welded frame with quality steel which means good rigidity. Square figure long guide with six friction faces makes abrasion resistant and punching precision.Hydraulic overload protector has sensitive response and reliable motion, which can protect the die when overloading Combined pneumatic clutch and brake are made of friction material, which means long service life. Closed gear-driven, dipped in lube, which drives stably with low noise. Slide with counter balancer, which will eliminate the clearance and improve the stability…

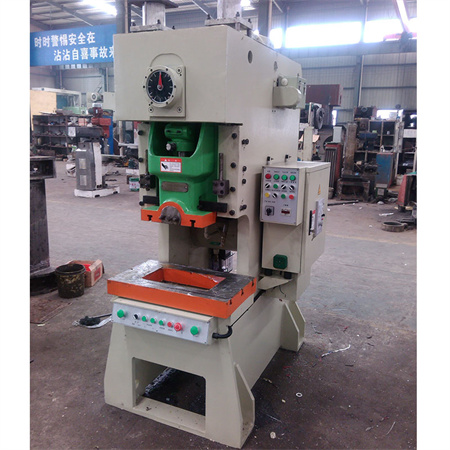

Punching machine is a stamping press, stamping production is mainly for the plate. Through the mold, can make blanking, punching, molding, drawing, dressing, fine punching, shaping, riveting and extrusion parts, etc., widely used in various fields.Such as our switch socket, cup, cupboard, dish, computer case, even missile aircraft have a lot of accessories can be produced by punching machine through the mold. JH21 Pneumatic Power Press / Punching Machine / Open high performance press JH21 adopts hydraulic overload protection device, while JF21 adopts steel safety device to prevent damage to the machine tools by using overload. The circuit is controlled…
