coil laser cutting machine

Main Features 1. The famous brand of fiber laser resonator, electronic components, mechanical parts to ensure machine superior stability 2. Open design provides easy loading and unloading 3. Single working table saves space 4. Drawer style tray makes easy collecting and cleaning for the scraps and small parts 5. Gantry double driving structure, high damping bed, good rigidity, high speed and acceleration Technical Date Laser type Fiber laser Model HH-F1530 Fiber laser source Raycus, IPG, nLight(Optional) Laser wavelength 1070nm Laser power 300W, 500w,700W,1000W,1500w,2200w,3000w option Cutting area 1500mm x 3000mm Moving system Japanese YASKAWA servo motor, Germany Alpha Reducer and Germany…

Product Description Laser cutting machine is a multi-mode continuous fiber lasers, commonly user in sheet metal ang tube continuous cutting. Laser tube cutting machine is a type of automatic CNC metal cutter for square, round and special-shaped pipes made of stainless steel, carbon steel, mild steel, galvanized steel, iron, copper, brass, and aluminum, which is used for straight cutting, tangent, bevel cutting, perforation, 45 degree angle cutting, joint cutting, bevel splicing, and more metal pipe cutting projects & plans. Laser tube cutter will replace mechanical drilling, milling, sawing, punching or cleaning of burrs and other processing procedures that require different…

Products Description Cutting table size options: 3000x1500mm, 4000x1500mm, 6000x1500mm, 4000x2000mm, 6000x2000mm Cutting ability of different power (for reference): Machine details Cast-Iron Bed, Anti-Vibration, Stable, No Deformation *The main frame adopts the gantry structure welded by all steel plates to ensure the long-term stability without deformation*The bed is annealed at high temperature in a large annealing furnace *The bed is formed by imported gantry milling once *Using gantry rack double guide rail, double servo drive structure *Improve the stability and rigidity of the Y-axis beam *Ensure the high precision and high dynamic performance of Y-axis beam movement *Y-axis beam runs smoothly…

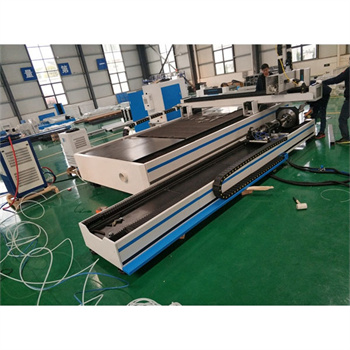

Product Description This is metal tube fiber laser cutting machine Pipe laser cutting machine with 3000mm,6000mm or 8000mm. It can cut round, square, irregularity, rectangle metal tube The machine can support minimum metal tube outer diameter 20x20mm, maximum outer diameter 200x200m The fiber laser cutting machine laser source support IPG, Raycus and nLIGH, cutting head support Precitec and RayTools The sofware used Chinese best brand which is Cypcut and CypTube Laser power from 500 watts to 8000 watts What is brand servo motor we used? YASKAWA from Japan, Beckoff from Germany Rack and pinion: Atlanta from Germany, YYC from Taiwan…
