eccentric punching machine

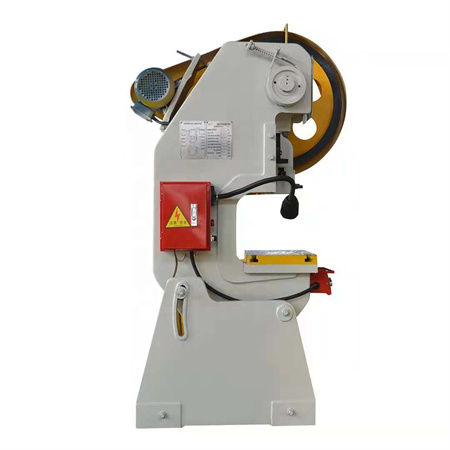

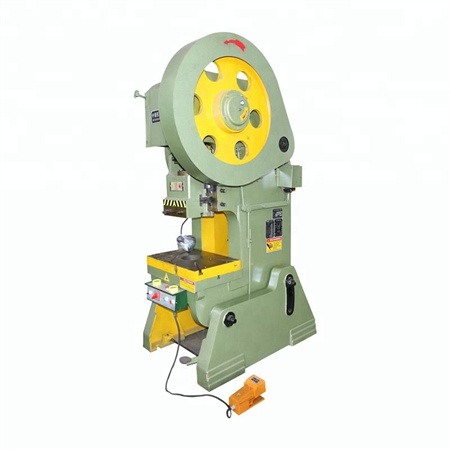

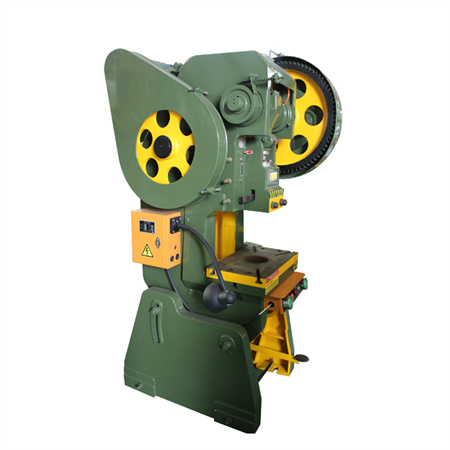

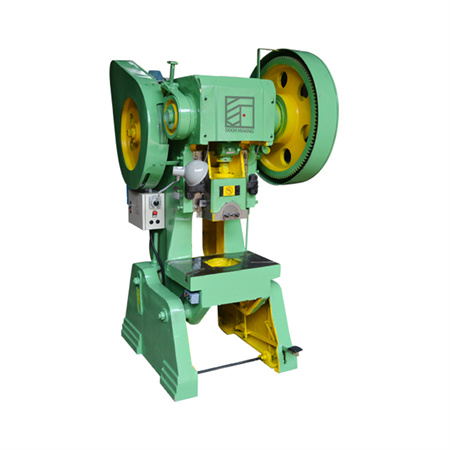

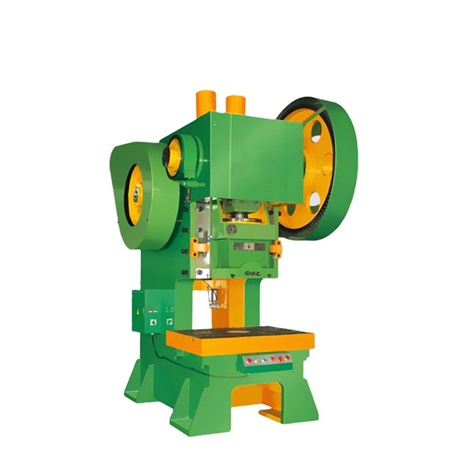

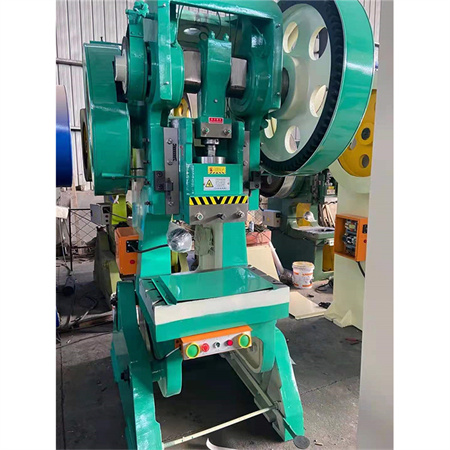

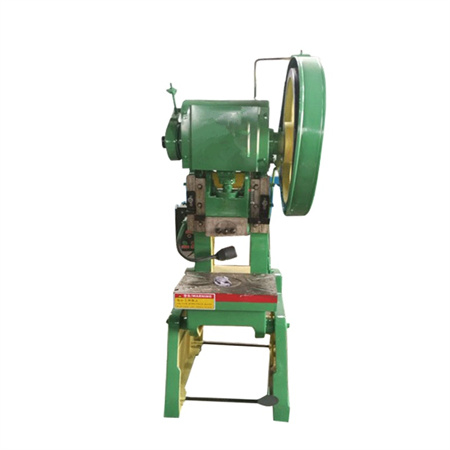

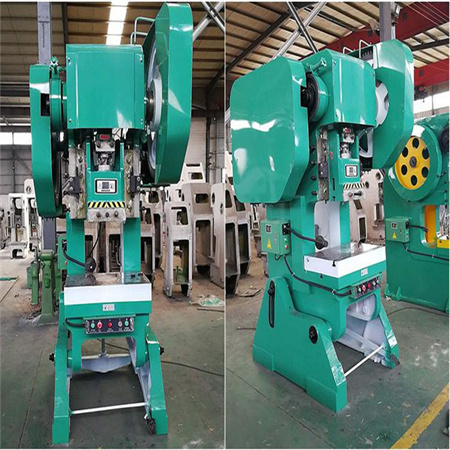

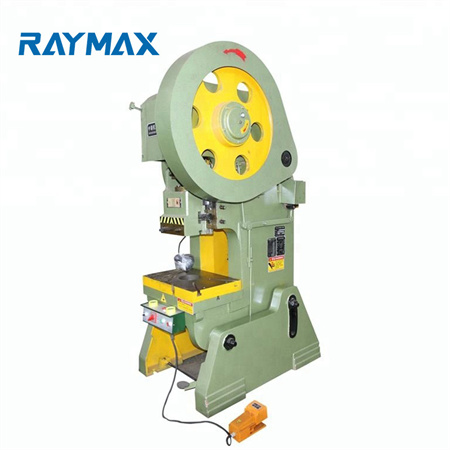

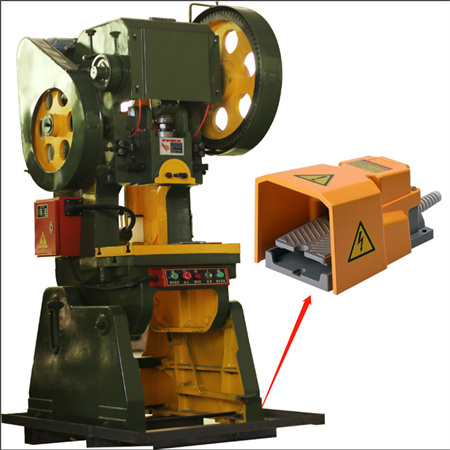

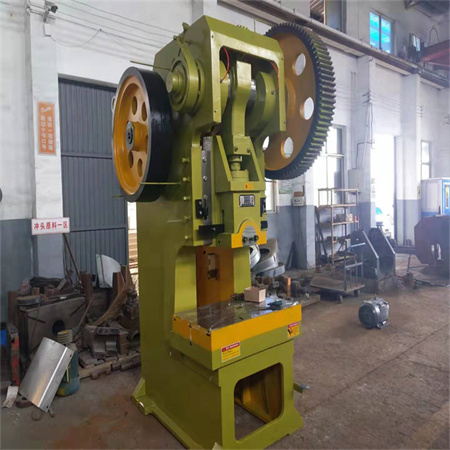

Product Description J23 Series Presses is one of the new generation of plate process and developed by RAYMAX, The press is for cutting, punching, blanking, bending and light stretching work 1. C- frame provides maximum rigidity and minimum deflection for accurate parts and long tool life.Steel-welded frame, high rigidity and less deformation Compact.Thick plates and large columns provide you with the stable platform you need for your demanding application. 2. Wide body frame eliminating vibration for improved ide life and machine,which means economical and practical. Operation space is wide, and the movable bolster could be moved out of frame to…

Main Features: * The series punching machine adopt rigid rotated key clutch with simple structure, easy operation and maintenance, helical gear transmission, smooth operation and low impact. * J23-25 open inclinable punching machine, first changed from traditional sliding bearing to ball bearing with higher Wear Resistance, avoid generating big gear noise due to brass faster abrasion. * J23 series open inclinable punching machine is unique in the industry with transmission brass gear. * Redesigned machine body with higher strength, at the same time, completed with ball bearing transmission (small noise). * J23-80 and above tonnage punching machine is in pneumatic…

Machine Introduction Mechanical punching machine, also known as mechanical stamping machine. It uses the compressed air provided by the compressed air pump to enter the cylinder through the solenoid valve, drive the piston to the spindle to make the spindle move downward, and that creates momentum, and then the workpiece can be deformed in the die to achieve the purpose of processing. Working Principle of Mechanical Punch Machine Products or parts produced by punch or hydraulic machine tools for mechanical punching machines are called stamping parts. Basic requirements: stamping power, male die, mother die and raw materials of products (usually…

Scope of application: The multifunctional combined punching and shearing machine is a manual punching and shearing equipment that integrates cutting, shearing, punching, plate shearing and angle shearing. It uses overlapping two-stage levers, sliders, crankshafts, etc. to drive a 5-station The sliding board moves up and down to achieve a multi-purpose effect. It is widely used in machining, construction, electric power, railway, shipbuilding, automobile and other industries. Product Paramenters Model QJ-8B QJ-10B QJ-12B Shear force 360KN 500KN 900KN Tool stroke 27MM 30MM 36MM Number of trips 30Times/min 30Times/min 30Times/min Motor Power 2.2KW/380V 3.0KW/380V 4.0KW/380V Machine weight 550KG 700KG 1100KG Dimensions 900*600*1100MM…
