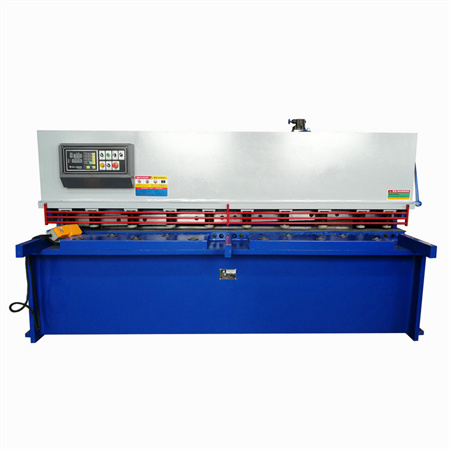

hydraulic metal shear machine

Features 1. The second generation of shear. 2. Welded steel plate construction, heating to eliminate stress,with high strength and good rigidity. 3. Advanced integrated hydraulic system with and excellent reliabitity quality. 4. Rapidly,accurately and conveniently adjusting the blade clearance by motor 5. The adjustable rake angle can minimize plate deformation. 6. As the cutting beam has been designed in inner-inclined structure,it is easy for plates to fall down and the accuracy of products can be also guaranteed. 7. Shearing in sections, shadow-line cutting. 8. Counter for the motorized back gauge. 9. Back support device (optional). PRODUCT SPECIFICATIONS No Item Data…

Product Description This machine adopts hydraulic driving and swing tool carrier,the structure is convenient to operate to operate and maintain.the characteristic of it is that it has complete fuctions mechanical back gauge manually operated trimming and numberical value display structure it also has blade clearnce "Quick set" device,line on the plate E10,SIKO DRO/HT071 NV system Available as optional. The Machine of Whole structure and Characteristics: Totally European design,streamlined looking,Frame: consists of right and left wall boards, working table, oil box, slot steel and etc. The stress of the welded parts can be eliminated by vibration. The machine enjoys high accuracy…

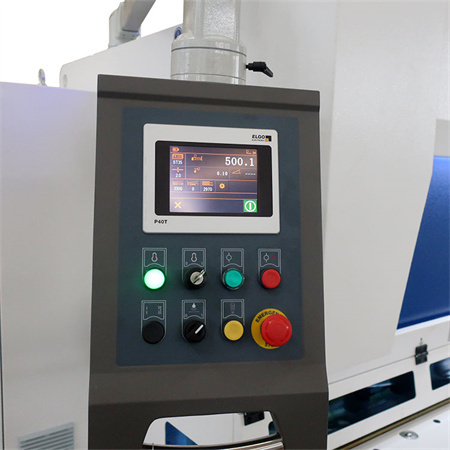

Main Features: * Totally EU streamlined design,Monoblock by welding robots & aparatus and stress relief process by Annealing treatment. * Adopt integrated hydraulic system, more reliable and easy for maintenance.and the hydraulic system from Bosch-Rexroth,Germany, * The Hydraulic Guillotine is a Swing Beam Action machine which is produced in a variety of cutting lengths and capacity options. * The distance of the backgauge is adjusted by the motor and is well adjustment is displayed by E21S with Delta inverter. * Equipped with lighting-alignment, so as to align when shearing. The stroke of knife beam can be adjusted in stepless mode.…

Products Description Model Max. rolling thickness Shearing angle times of stroke Range of back gauge Size QC12Y4X3200 4X3200 1°30' 18 20~600 3840X1675X1600 QC12Y6X2500 6X2500 1°30' 18 20~600 3130X1530X1600 QC12Y6X3200 6X2500 1°30' 14 20~600 3840X1675X1620 QC12Y6X6000 6X6000 1°30' 10 20~800 6700X2300X2300 QC12Y8X3200 8X3200 1°30' 10 20~600 3840X1675X1620 QC12Y12X2500 12X2500 1°30' 16 20~800 3234X2045X1935 FAQ Q:  How to get a accurate quotation from us? A:  provide us the detail of the material such as metal thickness and width Q:  what’s the shipping cost from China to your country? A:  We can send machine to your port or door address by sea or…
