hydraulic plate shearing machine

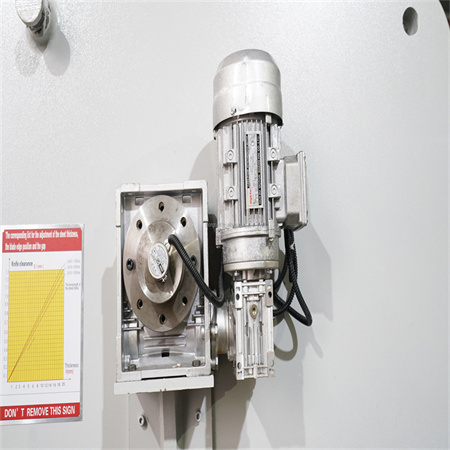

Features: 1. The machine adopts full steel weking structure,heating to eliminate stress,with high strength and good rigidity. 2. The German large floor boring and milling machine is used to make recision machining with one time processing method to ensure the machining precision. 3. Advanced integrated hydraulic system with and excellent reliabitity quality. 4. Rapidly,accurately and conveniently adjusting the blade clearance by motor 5. The adjustable rake angle can minimize plate deformation. 6. As the cutting beam has been designed in inner-inclined structure,it is easy for plates to fall down and the accuracy of products can be also guaranteed. 7. Shearing…

Machine Performance And Characteristics This Machine Consists Of Frame, Blade, Rear Stop, Rapid Blade, Gap Adjustment Mechanism, Hydraulic System, Electrical System Components, Racks Welded By Right And Left Wall Board And Upper And Lower Support Block. After Eliminate Stress To Ensure The Rack Has Sufficient Rigidity And Strength. Both Of Sides Wall Board Had Two Cylinders, Blade Install On Right And Left Wall Board, Under The Hydraulic System, Drive Blade To Do Swing Arc Action. On Blade Racks, There Are Upper Blade, Shear With Lower Blade Which On Work Table. Upper Blade Surface Is Arc Surface, Ensure Consistency When Shear…

Machine Description: Hydraulic Guillotine shearing machines are characterized by high accuracy and cut quality in all conditions and on any material. The solid frame of the machine and the double plate, that supports the work bench, ensure absolute stability with performance and reliability. The quality of guillotine shear is certified by hydraulic, electrical and mechanical components with high range. The machine's performance, excellent in the standard equipment, can be upgraded with different components and accessories that are characterized by flawless performances even in extreme working. The options of CNC control panel allows an easier use of the machine optimizing the…

Hydraulic Shearing Machine Features include: Solid monolithic structure An avant-garde hydraulic system Blade carrier beam: Thrust cylinders on the cutting axis with blade carrying beam Blade pressure cylinders, with auto-regulating pressure, based on cutting force Blade carrying beam guide over the whole cutting length Rear regulator with recirculating ball screws Running wheels’ table and frontal support Cutting Angle & Blade Gap control by DAC310 DA360 Cutting line with LED illumination ESTUN NC control System DELEM DAC310 DA360 Frontal support frame complete with retractable adjustable guides, millimetre rule and running wheels HIWIN Ball screws & Polished rod with 0,01 mm accuracy.…
