hydraulic punching machine for sheet metal

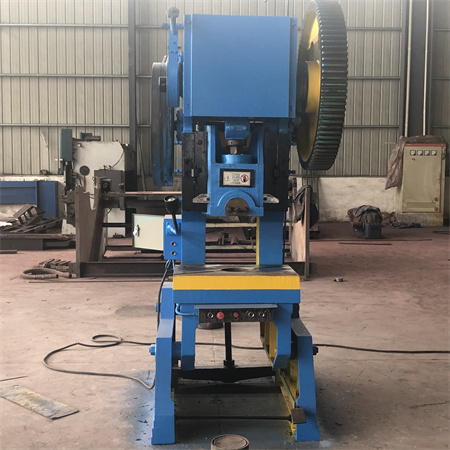

Product Description J23 Series Presses is one of the new generation of plate process and developed by RAYMAX, The press is for cutting, punching, blanking, bending and light stretching work 1. C- frame provides maximum rigidity and minimum deflection for accurate parts and long tool life.Steel-welded frame, high rigidity and less deformation Compact.Thick plates and large columns provide you with the stable platform you need for your demanding application. 2. Wide body frame eliminating vibration for improved ide life and machine,which means economical and practical. Operation space is wide, and the movable bolster could be moved out of frame to…

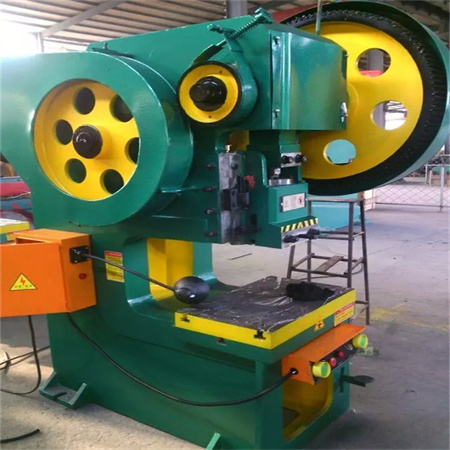

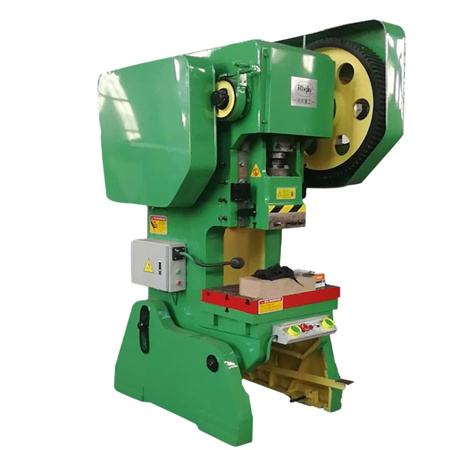

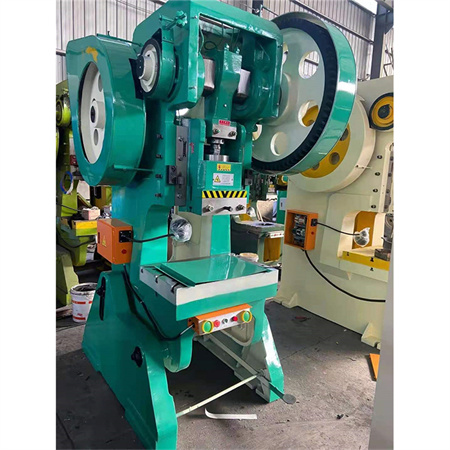

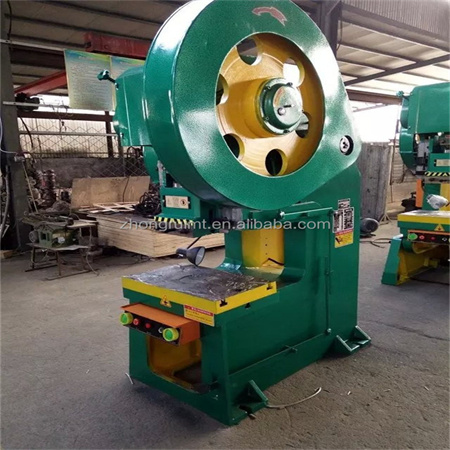

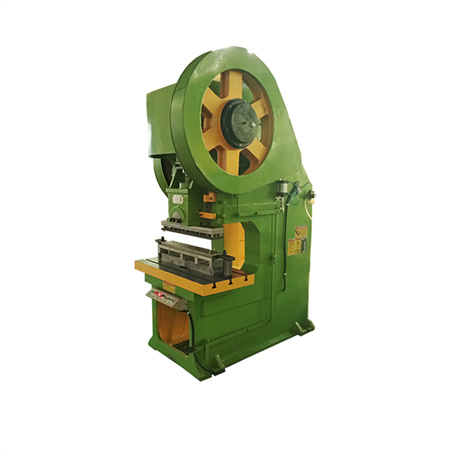

Product Description J23 series Open Eccentric Presses is a general-purpose presses, suitable for forming, blanking, punching, bending and other cold stamping process. 1. C-frame Casting fuselage,maximum rigidity and minimum deflection for accurate parts and long tool life. body can be tilted, high rigidity and less deformation Compact. Thick plates and large columns provide you with the stable platform you need for your demanding application. 2.Wide body frame eliminating vibration for improved ide life and machine,which means economical and practical. Operation space is wide, and the movable bolster could be moved out of frame to set the die. The structure is…

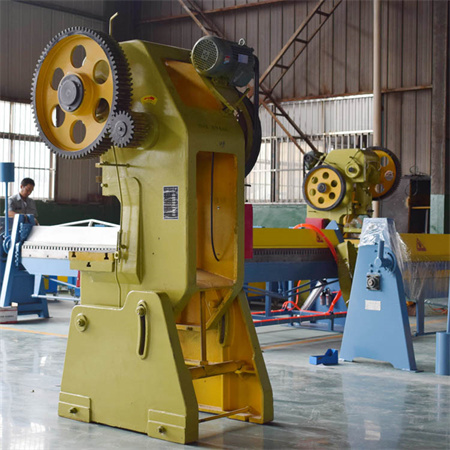

Product Description 1. It adopts horizontal crankshaft and open external gear, which is convenient for maintenance. 2. The sliding block of the cast box structure has good rigidity. 3. Built-in block collapsed overload protection device, the structure is simple if slider after overload, fuse collapsed destroyed to protect the machine and mold from damage. 4. It adopts hand and foot switch operation button design, which is convenient for continuous, single and adjustment operation. 5. Compatible with the automatic feeding system of corresponding presses, with feeding error detection, pre-cutting and pre-breaking devices, low cost and high efficiency. Specification Model J23-100A Norminal…

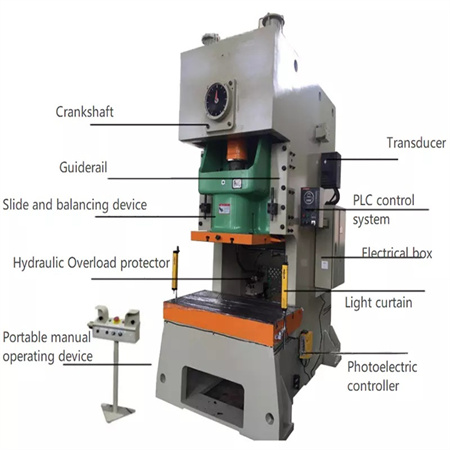

Product Description J23 Series Pneumatic High Speed Sheet Metal Punching Press Machine Perforating Machine 1. steel welding body, good stiffness, more stable accuracy. 2. Crankshaft longitudinal, compact structure, beautiful appearance. 3. Mold height to achieve electric adjustment, digital display adjustment height. 4. Slider with rectangular hexahedron extended rail, with bronze lining, high precision guide. 5.Brake with modular pneumatic friction clutch, smooth connection, action sensitive. 6. Press the collapse of the insurance, to ensure the safety of the whole overload. 7. Slider with lifting balance cylinder, to achieve the balance of the slider link. Model Nominal Pressure(kn) Slipper Stoke(mm) Slipper Stoke…
