hydraulic sheet cutting machine

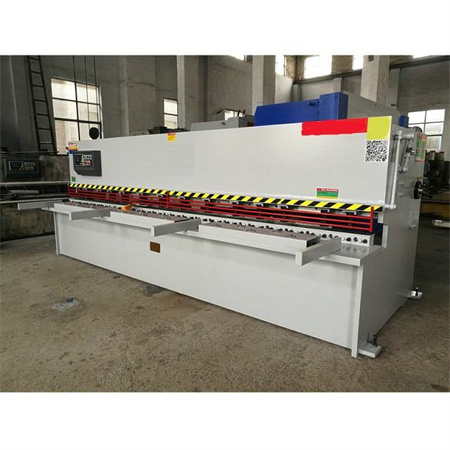

Products Description - Streamlined looking,Frame: consists of right and left wall boards, working table, oil box, slot steel and etc. The stress of the welded parts can be eliminated by vibration. The machine enjoys high accuracy and high strength and can be transported easily. - As the cutting beam has been designed in inner-inclined structure, it is easy for plates to fall down and the accuracy of products can also be guaranteed. - High accuracy, high efficiency, simple and convenient operation, good performance, favorable price and best service. - The machine by CE certification and ISO quality system certification QC12Y…

Product Description Plate shearing machine CNC hydraulic pendulum numerical control shearing machine plate shears easy to operate Hydraulic system: 1. Hydraulic control system by BOSCH-REXROTH Germany or FIRST America. 2. Oil seals by Japanese, NOK. 3. Overload & overflow protection to ensure there is no leakage and protect hydraulic system, and the oil level can be read directly. Servo motorized back gauge: 1. CNC Back gauge system with X axis by AC servo motor driven ball screw shafts and on linear bearings 2. Back gauge has well enough mechanical strength and rigidity with tank-type gauge structure. 3. High-precision ball screw…

Product DescriptionSpecificationCutting Area6mm*3200mmMotor Power7.5kwShearing Angle1.5Automatic LevelSemi-automaticStrokes14n/minThroat Depth200mmBackgauge Travel5-600mmMax. Cutting Thickness8mmCore ComponentsMotor, Bearing, Gear, PLC, Pump, Pressure vessel, Engine, Gearbox and etcControl SystemMD11-1 / other optionPacking & Delivery FAQQ1. How to get the most suitable machine and best pricePlease tell us what metal material you want to shear, the thickness and desired work table length and other information.Q2. If we don't know how to use the machine, can you teach us?Yes, we will, English manual and video will come along with the machine. You also can contact our service team if you need any help during use our machines.Q3. How about your…

Features 1. Welded steel plate structure,with excellent rigidity and stability; 2. Assisting blade pedestal on worktable is convenient for micro adjustment; 3. Support ball is provided on worktable convenient operating for rolling plate; 4. Advanced hydraulic integrated system to ensure the system reliability and safety; 5. International standard electric and switch; 6. Shearing in sections,shadow-line shearing; 7. Top blade and bottom blade with four cutting edges; 8. Shearing angle adjustment by CNC Controller; 9. Front arms support wit rules fixed on worktable; 10. Blade gap adjustment by hand wheel; 11. Motorized back gauge, reduce speed through gear. 12. Pneumatic support…
