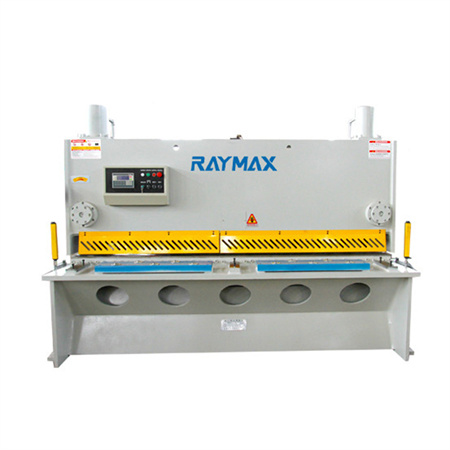

hydraulic steel shear

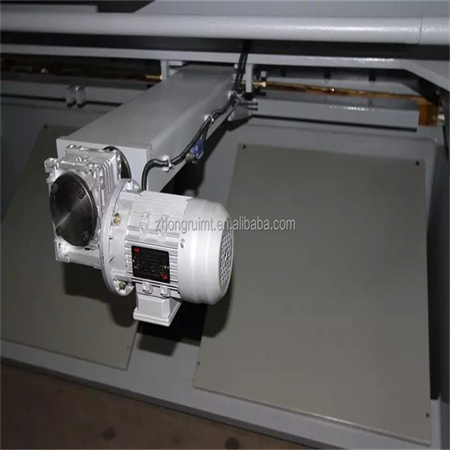

The main performance characteristics: 1. Sheet plate welded structure is adopted with hydraulic transmission and accumulator return, typical of an easy operation reliable performance and nice appearance . 2. Indication by indicator is prompt for adjustment of blade clearance. for a handy and prompt adjustment . 3. Alignment device with lighting and control device for shearing stroke are set. with a handy and prompt adjustment . 4. Rolling material support ball is provided. to minimize fish tail with sheet bar and to reduce frictional resistance. 5. The rear stopper is fitted with electric adjustment and manual adjustment devices. and digital…

No Name Numerical value Unit 1 Max Cutting Thickness 6 MM 2 Max Cutting Length 2500 3 Length of Cutter Blade(A) 2600 4 Backgauge Range of X Axis 550 5 External Dimension Length 3030 6 External Dimension Wildth 1700 7 External Dimension Height 1620 8 Cutting Angle 1°30 9 Main Moto Power 7.5 KW 10 Number of strokes 8-14 Hits/min 11 Power requirement 380V (-15%,+15%) 50Hz ,3PH Main Motor Advantages: Improve the accuracy to ± 0.01km; The noise decrease to 25 decibels Reduce energy consumption by 60% Consump 70% less hydraulic oil and 30% higher efficiency Schneider Electrical Use French…

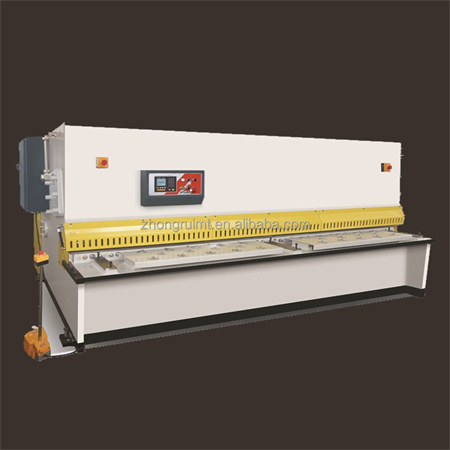

Product Application: QC12K series hydraulic shearing machine is suitable for cutting carbon steel, stainless steel, galvanized sheet, aluminum and many other metals. It is widely used in metal processing industry, machine building industry, building construction, mining industry, railway construction and Aerospace Industry. Features: 1.  Whole machine is metal plate welded structure,with hydraulic transmission and accumulator return,typical of an easy operation,reliable performance and nice appearance; 2.  Indication is provided for adjustment of blades clearance,for a handy and prompt adjustment; 3.  Alignment device with lighting and control device for shearing stroke set,it is easy and fast for adjust ; 4.  Worktable with…

Machine Features 1. The Frame is entirely welded with steel plates, and treated to relive stress by tempering. 2. Hydraulic drive, return of knife beam is smooth and prompt by accumulator or nitrogen cylinder. 3. It adopts three point supporting type rolling guide way to raise shearing precision. 4. Rectangle knife which has four blades has a lasting life. 5. The portable and prompt adjustment of the blades gap and the value of gap are indicated by digital, convenient and fast. 6. Equipped with lighting alignment, so as to align when shearing, the stroke of knife beam can be adjusted…
