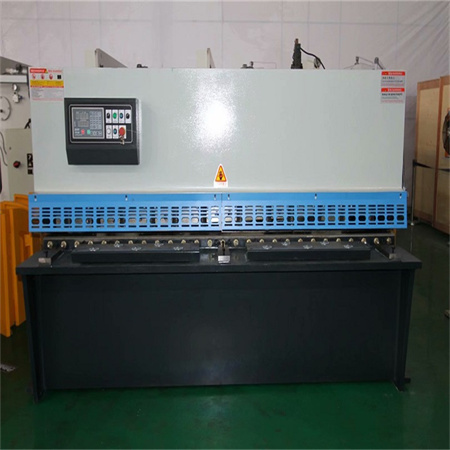

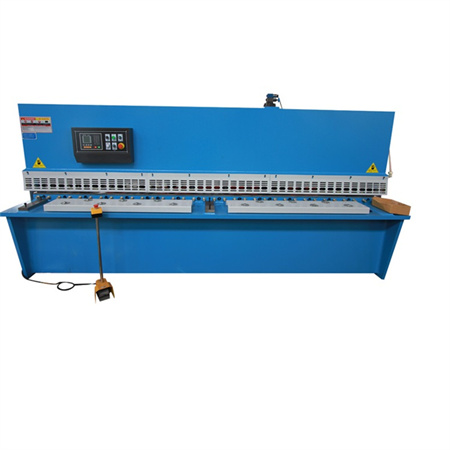

hydraulic swing beam shear qc12y

The main performance characteristics: 1. Sheet plate welded structure is adopted with hydraulic transmission and accumulator return, typical of an easy operation reliable performance and nice appearance . 2. Indication by indicator is prompt for adjustment of blade clearance. for a handy and prompt adjustment . 3. Alignment device with lighting and control device for shearing stroke are set. with a handy and prompt adjustment . 4. Rolling material support ball is provided. to minimize fish tail with sheet bar and to reduce frictional resistance. 5. The rear stopper is fitted with electric adjustment and manual adjustment devices. and digital…

Main functions and features 1. The second generation of shear. 2. Welded steel plate construction, heating to eliminate stress,with high strength and good rigidity. 3. Advanced integrated hydraulic system with and excellent reliabitity quality. 4. Rapidly,accurately and conveniently adjusting the blade clearance by motor 5. The adjustable rake angle can minimize plate deformation. 6. As the cutting beam has been designed in inner-inclined structure,it is easy for plates to fall down and the accuracy of products can be also guaranteed. 7. Shearing in sections,shadow-line cutting. 8. Counter for the motorized back gauge. 9. Back support device (optional). Technical Parameters NO.…

Product DescriptionSpecificationCutting Area6mm*3200mmMotor Power7.5kwShearing Angle1.5Automatic LevelSemi-automaticStrokes14n/minThroat Depth200mmBackgauge Travel5-600mmMax. Cutting Thickness8mmCore ComponentsMotor, Bearing, Gear, PLC, Pump, Pressure vessel, Engine, Gearbox and etcControl SystemMD11-1 / other optionPacking & Delivery FAQQ1. How to get the most suitable machine and best pricePlease tell us what metal material you want to shear, the thickness and desired work table length and other information.Q2. If we don't know how to use the machine, can you teach us?Yes, we will, English manual and video will come along with the machine. You also can contact our service team if you need any help during use our machines.Q3. How about your…

Products Description Max. Cutting Thickness (mm): 6 mm Blade Length (mm): 3200 mm Throat Depth (mm): 150 mm Power (kW): 7.5 kW Weight (KG): 8800 KG BLADE ALLOY STEEL Max. Cutting Width (mm): 3200 mm Certification: CE Voltage: according to consumers' request Electric parts: Siemens & Schneider CONTROLLER: CNC ELECTRICAL EQUIPMEENTS: SIEMENS Warranty 2 years Key Selling Points: Multifunctional Application Mild carbon stainless steel plate or iron sheet Weight as per machine specification Why Choose Us? For choosing proper/suitable Busbar Machine, we need to consider below items, #1. Budget Affordable, Multi-Function,small workshop and medium-sized companies can afford it #2. Capacity…
