ironworker shear machine

Product Description Hydraulic transmission is the latest product of the multi-function joint punching and shearing machine, shearing, punching, die cut flat steel, square steel, round steel, angle steel, channel steel, I-beam carried, and equipped with shear blockfeeding devices Main functions: 2 independent hydraulic piston rods and foot-pedal allows two people operating at the same time. More efficient stroke-control functions of piston rod. Central lubricating system Motor-driven rear stopper Lighting devices for work 5 independent work-positions: punch pin and die (standard punching dies), cutting blade group for round and square steel, shearing blades for steel plate, slotting and angle-cutting blade. Punching…

Product Description Double cylinders hydraulic punch & shear machine Five independent stations for punch, shear, notcher, section cut Large punch table with multi-purpose bolster Removable table block for overhang channel / joist flange punching applications Universal die bolster, easy change punch holder fitted, punch adapters supplied Angle, round & square solid monoblock crop station Rear notching station, Low power inching and adjustable stroke at punch station Centralised pressure lubrication system Electric panel with overload protaction elements and ingetrated controls Safety movable foot pedal Parameters Model Q35Y-20 Q35Y-25 Q35Y-30 Q35Y-40 Q35Y-50 Processing Capacity (KN) 900 1200 1600 2000 2500 Material Tensile…

Product Description RAYMAX's Q35Y series industrial-grade hydraulic ironworker features multiple functions, including: round hole, square hole, oblong hole punching; steel plate, flat bar, angle steel, C-channel, H-beam punching; steel plate bending; angle steel shearing, notching and bending; flat, round, square bar, C-channel, I-beam, T-bar shearing/cutting; angle bending and pipe notching. Technical Parameters Model Q35Y-16 Q35Y-20 Q35Y-25 Q35Y-30 Q35Y-40 Q35Y-50 Pressure(T) 65 90 120 160 200 250 Max.cutting thickness(mm) 16 20 25 30 40 50 Plate strength(N/mm2) ≤450 ≤450 ≤450 ≤450 ≤450 ≤450 One stroke shears size(T*W)(mm) 16*2508*400 20*33010*480 25*33016*600 30*33020*600 35*40025*700 40*40030*750 Slider stroke(mm) 80 80 80 80 80 80…

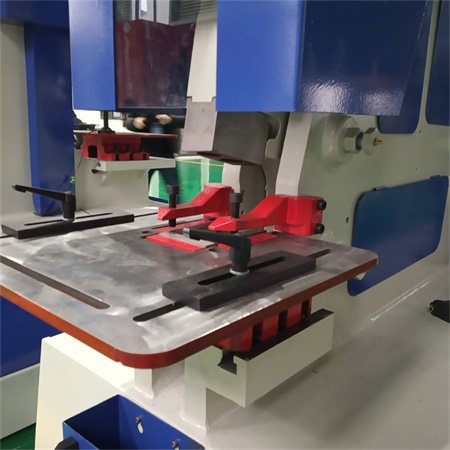

Product Description Our steelworkers will bring,optimal quality and productivity in reasonable price in to your company. This universal machine, allowed you to punching, cropping, notching,cutting and many others function depend on your tool configuration. This machine os equipped with two separate stations which are able to work independently. Very precise machined mechanical parts and selected main hydraulic and electrical components guaranteed long serviceless function and stable operation in any conditions. Detailed Images 1. Punch station The large punch bed area has a removable front block and is designed to give a very wide range of punching applications. A punch table…
