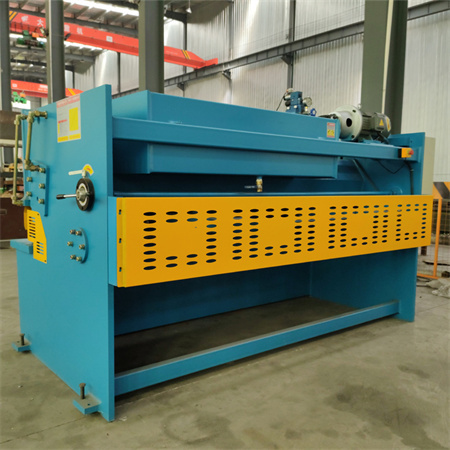

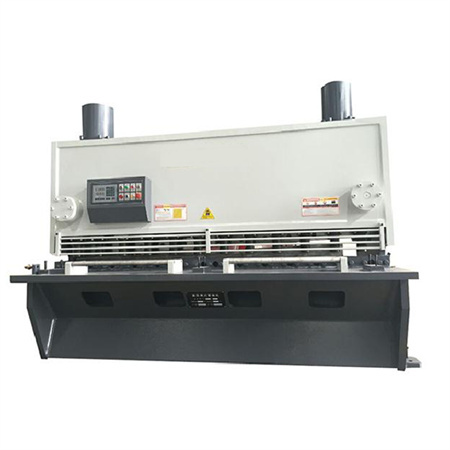

nc hydraulic shearing machine

1. Hydraulic drive,swing tool carrier,Durable welded frame as a whole,the use nitrogen return,stable quickly. 2. With non-polar travel adjustment function,upper and lower blade edge clearance volume adjustment with handle,easy to adjust the blade gap uniformity; 3. The protective fence ensures safe operation; 4. After the block ABBA ball screw with TaiWan to improve positioning accuracy of the latter. 5. The numerical control system adopts NanJing Eston E21S system, controls the backstop material, the intelligent positioning, the frequency changer control, the unidirectional, the two-way positioning function, effectively eliminates the screw gap, the concession function, avoids the rear block device interference with…

Product Description The frame structure of the shearing machine adopts all-steel welding; the four-corner and eight-sided right-angle guide rails have high precision, good rigidity and hydraulic preloading. The hydraulic system adopts two-way plug-in integrated valve, and can be equipped with stroke digital display, photoelectric protection device and mobile workbench. The shearing machine has double-action function of upper slider and lower hydraulic pad, and the working pressure stroke can be pressed within the specified range. The process requires adjustment, and the operation is simple and centralized using buttons.Machine performance characteristics 1. The shearing machine adopts the overall welded frame structure and…

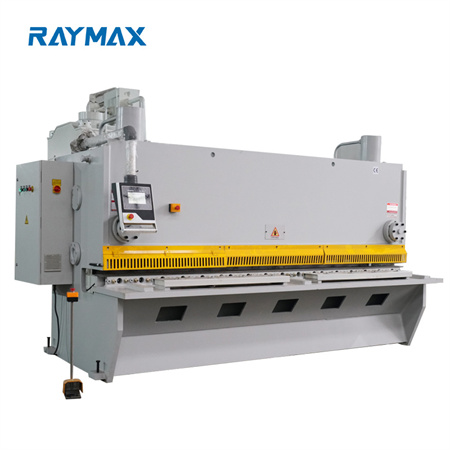

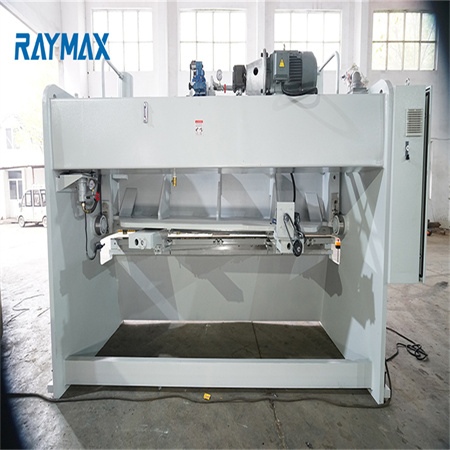

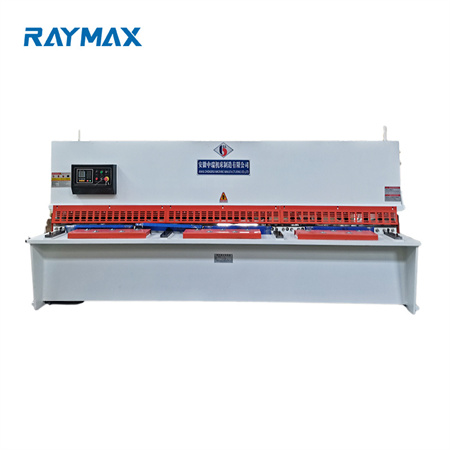

HYDRAULIC GUILLOTINE SHEARS MASTER SERIES The RAYMAX guillotine shear is the fruit of a project resulting in our bringing together ‘Made in China’ creativity, design and innovation with all the reliability of the best Chinese and European component range.The result is a perfect mix of avant-garde and efficient technology, guarantee of an extremely solid machine, precise with its cutsand of extremely high quality. MACHINE DESIGN RAYMAX Shears features a rigid frame for min deflection under the load. The frame steels are German origin and designed using SOLIDWORKS 3D programming and made with quality steel Improved Q235 using the latest technology.…

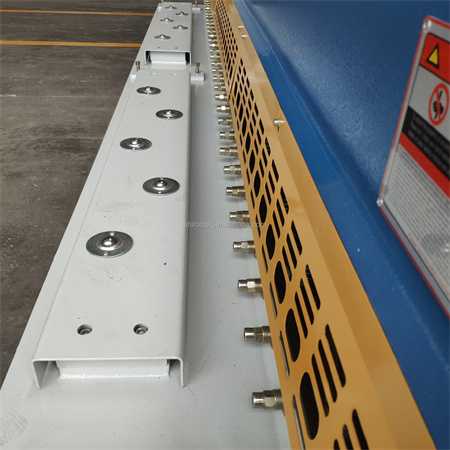

Features 1. Welded steel plate structure,with excellent rigidity and stability; 2. Assisting blade pedestal on worktable is convenient for micro adjustment; 3. Support ball is provided on worktable convenient operating for rolling plate; 4. Advanced hydraulic integrated system to ensure the system reliability and safety; 5. International standard electric and switch; 6. Shearing in sections,shadow-line shearing; 7. Top blade and bottom blade with four cutting edges; 8. Shearing angle adjustment by CNC Controller; 9. Front arms support wit rules fixed on worktable; 10. Blade gap adjustment by hand wheel; 11. Motorized back gauge, reduce speed through gear. 12. Pneumatic support…
