punching machine for metal

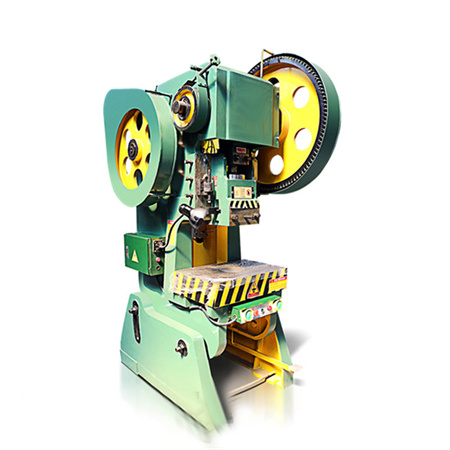

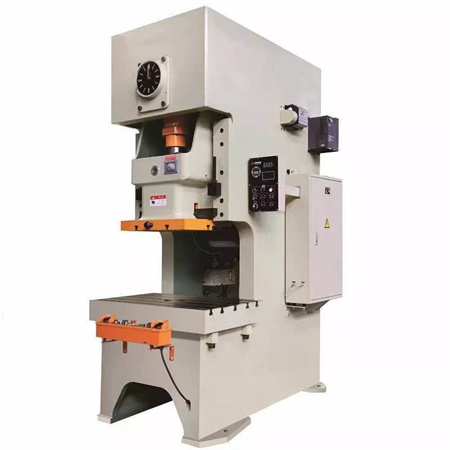

Main Features: 1) This series of press frames are welded by steel plates, small deformation, good rigidity. 2) This series of machines adopts pneumatic friction clutch-brake combination, long service life, low noise, stable transmission. The six surfaces of the guide rail, precision is high, can prolong the life of die, die height adjustment is convenient and reliable, with emergency stop, inching, single and continuous operation specification. 3) Optional: PLC electrical control system, air cushion, photoelectric safety protection device. Advantages: 1) Crankshaft can stop at any point during operation, Highest safety; 2) High precision; long life; low noise; Easy access to…

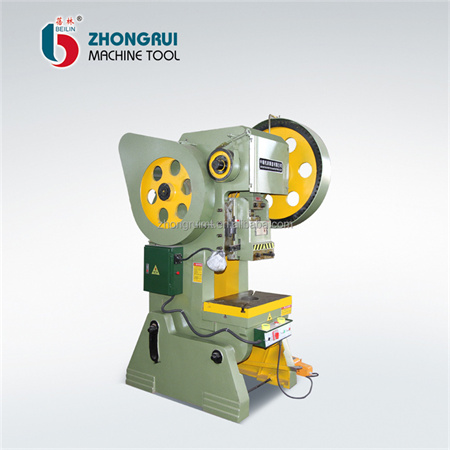

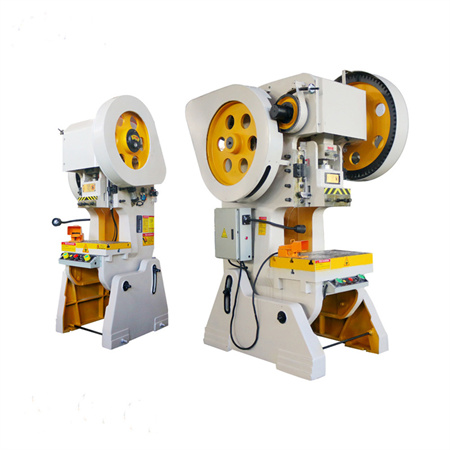

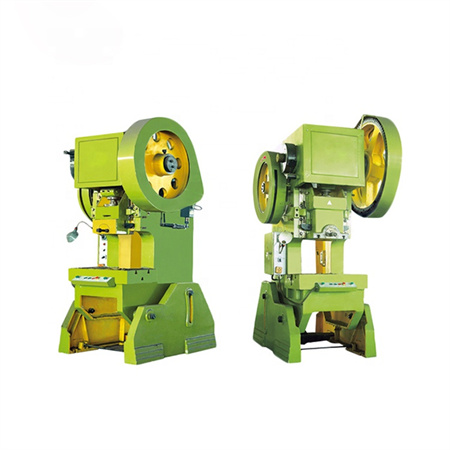

Features 1. This series of press adopts rotating key positive clutch,which has a simple structure and is convenient to operate and maintain,achieving smooth operation, low impact and low noise. 2. J23-25 open type inclinable press machine is the first to adopt rolling bearing rather than the commonly used sliding bearing(copper bearing) for the transmission gear, making the transmission gear more wear-resistant and avoiding loud noises of gears caused by the quickly worn copper bearing; 3. The 80T level and above press machine all adopt the structure of pneumatic dual balance cylinder, chich has small fluctuation of the balancec force and…

Machine Introduction Mechanical punching machine, also known as mechanical stamping machine. It uses the compressed air provided by the compressed air pump to enter the cylinder through the solenoid valve, drive the piston to the spindle to make the spindle move downward, and that creates momentum, and then the workpiece can be deformed in the die to achieve the purpose of processing. Working Principle of Mechanical Punch Machine Products or parts produced by punch or hydraulic machine tools for mechanical punching machines are called stamping parts. Basic requirements: stamping power, male die, mother die and raw materials of products (usually…

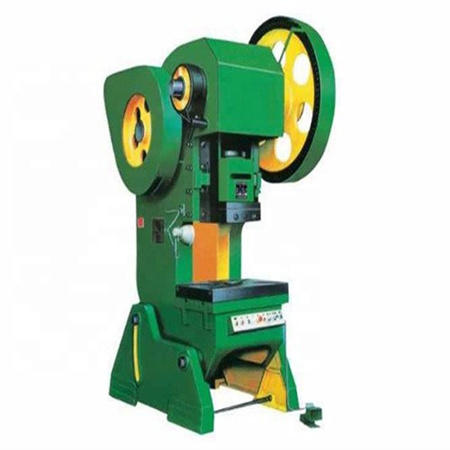

Product Description J23 Series Pneumatic High Speed Sheet Metal Punching Press Machine Perforating Machine 1. steel welding body, good stiffness, more stable accuracy. 2. Crankshaft longitudinal, compact structure, beautiful appearance. 3. Mold height to achieve electric adjustment, digital display adjustment height. 4. Slider with rectangular hexahedron extended rail, with bronze lining, high precision guide. 5.Brake with modular pneumatic friction clutch, smooth connection, action sensitive. 6. Press the collapse of the insurance, to ensure the safety of the whole overload. 7. Slider with lifting balance cylinder, to achieve the balance of the slider link. Model Nominal Pressure(kn) Slipper Stoke(mm) Slipper Stoke…
