sheet metal punch press machine

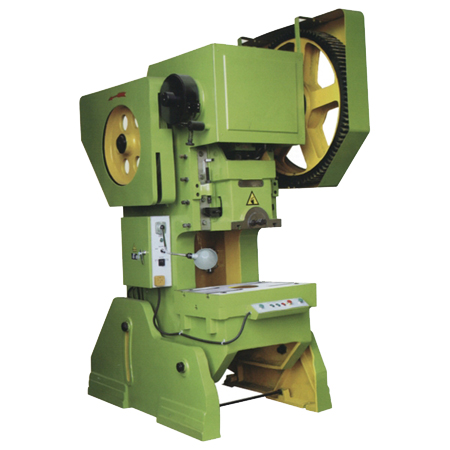

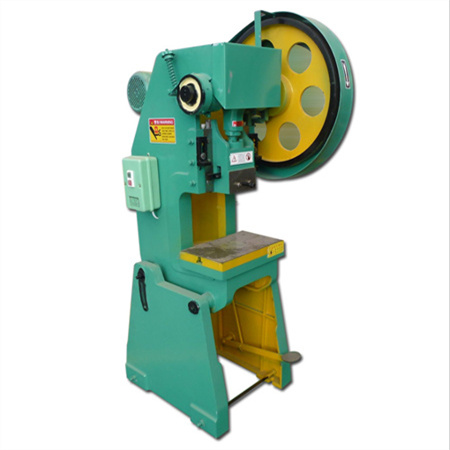

Product Description RAYMAX produces various types of punch presses to meet the production needs of different customers. This series of power press adopts rotating key positive clutch, which has a simple structure and is convenient to operate and maintain, achieving smooth operation, low impact and low noise; J23-25 open type inclinable press machine is the first to adopt rolling bearing rather than the commonly used sliding bearing (copper bearing) for the transmission gear, making the transmission gear more wear-resistant and avoiding loud noises of gears causedby the quickly worn copper bearing; The 80T-level and above press machine all adopt the…

Main Features: * The series punching machine adopt rigid rotated key clutch with simple structure, easy operation and maintenance, helical gear transmission, smooth operation and low impact. * J23-25 open inclinable punching machine, first changed from traditional sliding bearing to ball bearing with higher Wear Resistance, avoid generating big gear noise due to brass faster abrasion. * J23 series open inclinable punching machine is unique in the industry with transmission brass gear. * Redesigned machine body with higher strength, at the same time, completed with ball bearing transmission (small noise). * J23-80 and above tonnage punching machine is in pneumatic…

Product Description 1. It adopts horizontal crankshaft and open external gear, which is convenient for maintenance. 2. The sliding block of the cast box structure has good rigidity. 3. Built-in block collapsed overload protection device, the structure is simple if slider after overload, fuse collapsed destroyed to protect the machine and mold from damage. 4. It adopts hand and foot switch operation button design, which is convenient for continuous, single and adjustment operation. 5. Compatible with the automatic feeding system of corresponding presses, with feeding error detection, pre-cutting and pre-breaking devices, low cost and high efficiency. Specification Model J23-100A Norminal…

Main Features 1. The high-rigidity body is designed, the high-quality steel plate is used for welding, and the stability and reliability of the precision of the whole machine are high by relieving the internal stress; 2. The precision machining is high, the noise is low, and the comprehensive clearance is low; 3. The symmetrical six- -face long guide rail of the sliding block is used for guiding, so that precision is high, and the operation is stable; 4. The adjustment of the mold height is precision, safe, convenient and reliable; 5. The crankshaft, gear set, connecting rod and other components…
