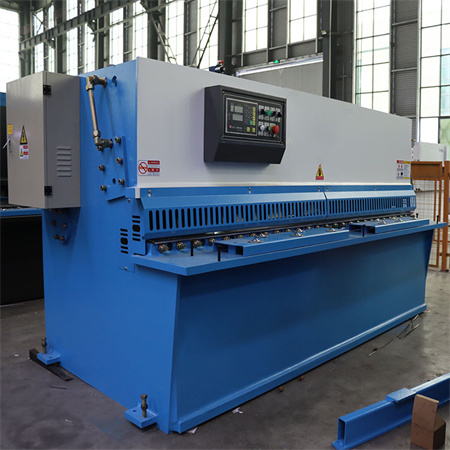

Product Overview Cnc shearing machine is the fruit of a project resulting in our bringing together 'Made in China' creativity, design and innovation with all the reliability of the best Chinese and European component range. The result is a perfect mix of avant-garde and efficient technology, guarantee of an extremely solid machine, precise with its cuts and of extremely high quality. cnc shearing machine is available with a broad series of standard equipment but it is possible, at any moment, to add optional equipment according to requirement. The robust monolithic structure is a guarantee of great stability and precision of…

 Main Features * Real-time display of back gauge position * Multi-step programming function, the back gauge can be automatically operated and continuously positioned, realizing the automatic adjustment of the back gauge position * The cut count function displays the number of cuts in real time * The use of high-precision machining ball screws and linear guides ensures positioning accuracy Product Paramenters E21S Control System Backgauge control. Control for general AC motor Intelligent positioning Double programmable digital output, stock counter Program memory of up to 40 programs Up to 25 steps per programs One side positioning, Retract function One key backup/restore…

Specification Type Cutting Thickness （mm） Cutting Length （mm） Cutting Angle Material Strength Back-gauge Range Travel Times （cycle/min） Power （kw） Dimension（L*W*H） （mm） 4x2500 4 2500 1°30’ ≤ 450 20-500 14 5.5 3000*1600*1600 4x3200 4 3200 1°30’ ≤ 450 20-500 12 5.5 3900*1600*1600 4x4000 4 4000 1°30’ ≤ 450 20-550 10 5.5 4600*1800*1700 4x6000 4 6000 1°30’ ≤ 450 20-800 5 7.5 6460*2300*2400 6x2500 6 2500 1°30’ ≤ 450 20-500 14 7.5 3040*1710*1650 6x3200 6 3200 1°30’ ≤ 450 20-500 12 7.5 3840*1710*1650 6x4000 6 4000 1°30’ ≤ 450 20-500 9 7.5 4620*1850*1700 6x5000 6 5000 1°30’ ≤ 450 20-600 8 7.5…

Guillotine hydraulic shearing machine price sheet metal QC11Y-12X4000 Product Overview QC11Y Series Hydraulic Swing Beam Shear, the maximum thickness of cutting mild steel is 30mm, the maximum length is 6000mm. Steel plate welded structure, hydraulic transmission and accumulator return strock; Characterized by easy operation, reliable performance and fine appearance; With E21S simple CNC controller,E21S can control the movement of backgauge, achieving efficient and highly precise positioning; The blades with high tensile strength,can cut mild steel and stainless steel Configuration with details : 1. E21S simple CNC controller for hydraulic shearing machine. 2. Domestic high quality hydraulic valve,no oil leakage and…
