steel sheet bending machine

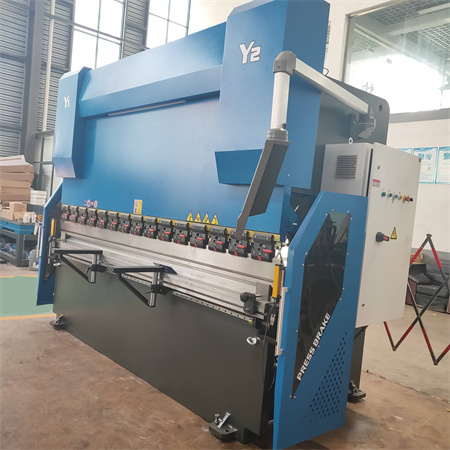

Electro-hydraulic press brake RAYMAX press brake features an CNC crowning system for improved quality, a servo driven back gauge system for increased speeds, and 3D capable graphical control unit to simulate bending sequences and collision points.Also has increasedworking speeds, stroke, daylight, and pressing capacities of GENIUS Series machines. The future - as a result of rising energy costs and increasingly cost efficient speed-controlled drives offered on the market, variable-speed solutions are on the advance. Product Specifications Type 63T/2500 80T/3200 100T/3200 160T/3200 200T/3200 250T/3200 300T/3200 Nominal Force (KN) 630 800 1000 1600 2000 2500 3000 Bending Length (mm) 2500 3200 3200…

1. The electric-hydraulic servo system can control the synchronization of two cylinders. Combined with optical curtain of international standard, the fully closed loop control is formed with high synchronization control accuracy, and high bending and repetitive positioning accuracy. 2. The CNC cylinder deflection auto compensation system helps to prevent the deformed sliding block from affecting the work piece quality and ensure its good linearity and bending angle. The compensation is adjusted automatically by the CNC system, both convenient and accurate. 3. The full functional back gauge system can be extended up to six axes. The work piece can be bent…

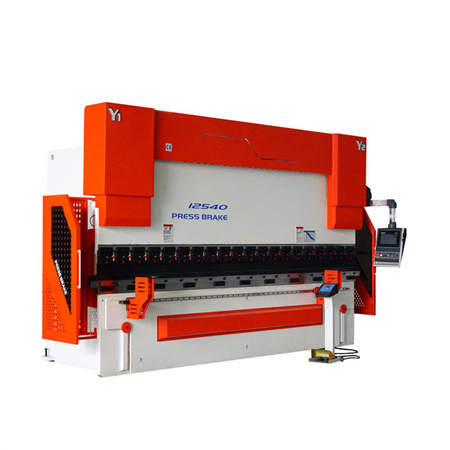

Advantages of WE67K Press Brake 1. Closed-Loop Electro-Hydraulic Servo Control Technology 2. Holland DA52S CNC Controller System 3. Germany Siemens Main Motor 4. Bosch-Rexroth Hydraulic System 5. France Schneider Electrics 6. France Fagor Grating Ruler Control Y1 and Y2 Axis (0.01mm) 7. Taiwan HIWIN Ball Screw and Linear Guide, X Axis up to 0.01mm 8. Mechanical Crowning System Managed By DA52S Controller 9. Germany EMB Oil Tube Connectors 10. SXZG Top & Bottom Tool Clamps DELEM DA52S Controller 1. Quick, one page programming 2. 7'' widescreen colour TFT 3. Up to 4 axes control(Y1 Y2 X R) 4. Crowning control;…

Standard Equipment DELEM DA58T CNC control System Powered Depth Y-axis&Back gauge X-axis DELTA Inverter controlled back gauge HIWIN Ball screws & Polished rod with 0,05mm accuracy. Plate Support Arms Germany Bosch-Rexroth Hydraulic Germany EMB Tubing connector Germany Siemens Main Motor Tele mecanique/Schneider Electrics Hydraulic &Electrical overload protection Top and Bottom Tooling(86°,R0.6mm) Safety Standards(2006/42/EC) SPECIFICATIONS FOR WE67K-160T/3200 HYDRAULIC PRESS BRAKE 1 Max.working length 3200mm 2 Max.bending thickness 5mm 3 Distance between columns 2600mm 4 Stroke(Y-axis) 250mm 5 Throat Depth 400mm 6 Motor Power 22KW 7 Open height 540mm 8 Length x Width x Height 2500x2200x2600 9 Weight 12T Main Features 1.…
