steel sheet punching machine

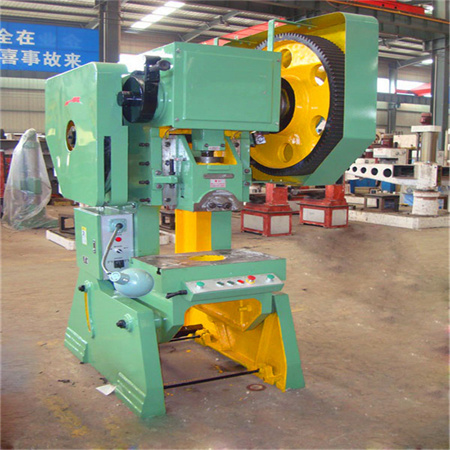

Product Description J23 Series Presses is one of the new generation of plate process and developed by RAYMAX, The press is for cutting, punching, blanking, bending and light stretching work 1. C- frame provides maximum rigidity and minimum deflection for accurate parts and long tool life.Steel-welded frame, high rigidity and less deformation Compact.Thick plates and large columns provide you with the stable platform you need for your demanding application. 2. Wide body frame eliminating vibration for improved ide life and machine,which means economical and practical. Operation space is wide, and the movable bolster could be moved out of frame to…

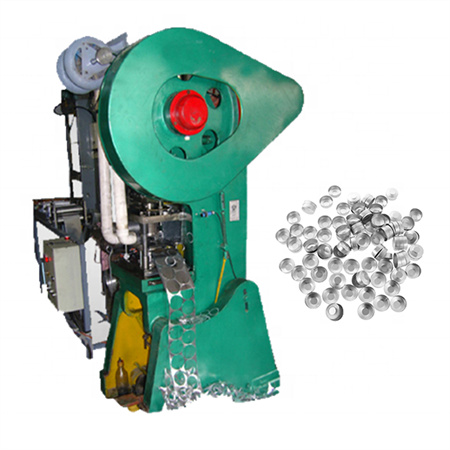

Features 1. This series of press adopts rotating key positive clutch,which has a simple structure and is convenient to operate and maintain,achieving smooth operation, low impact and low noise. 2. J23-25 open type inclinable press machine is the first to adopt rolling bearing rather than the commonly used sliding bearing(copper bearing) for the transmission gear, making the transmission gear more wear-resistant and avoiding loud noises of gears caused by the quickly worn copper bearing; 3. The 80T level and above press machine all adopt the structure of pneumatic dual balance cylinder, chich has small fluctuation of the balancec force and…

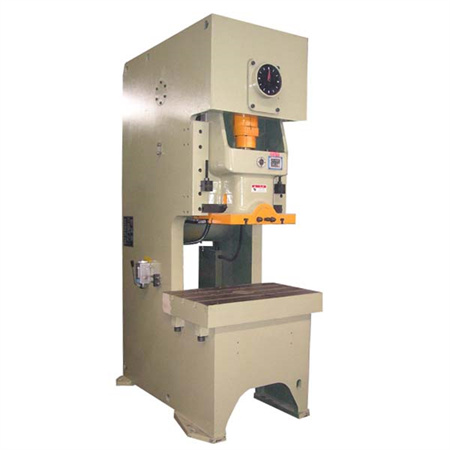

Product Description 1. It adopts horizontal crankshaft and open external gear, which is convenient for maintenance. 2. The sliding block of the cast box structure has good rigidity. 3. Built-in block collapsed overload protection device, the structure is simple if slider after overload, fuse collapsed destroyed to protect the machine and mold from damage. 4. It adopts hand and foot switch operation button design, which is convenient for continuous, single and adjustment operation. 5. Compatible with the automatic feeding system of corresponding presses, with feeding error detection, pre-cutting and pre-breaking devices, low cost and high efficiency. Specification Model J23-100A Norminal…

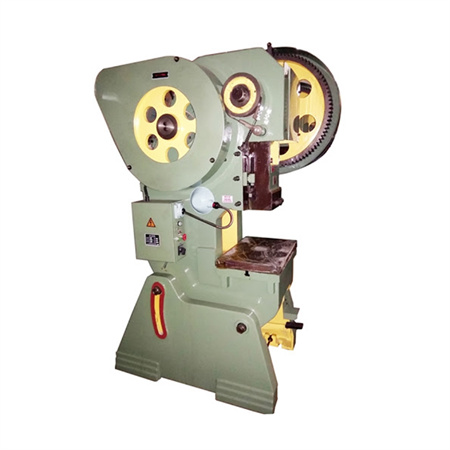

Products Description J23 series punch press is a suitable open type crank press featuring a left and right open type machine body (i.e. C-shaped machine body). Its steel plate welded body has high shock-absorbing performance.Its novel overall design gives the machine elegant appearance. Its throat has certain depth. The compact structure makes the use convenient and operation safe. The punch press is equipped with a turn-key rigid clutch, a cam band brake and a press-down type safety device. Its working table is open on three sides, so the mold loading and unloading and operation are convenient. The punch press is…
